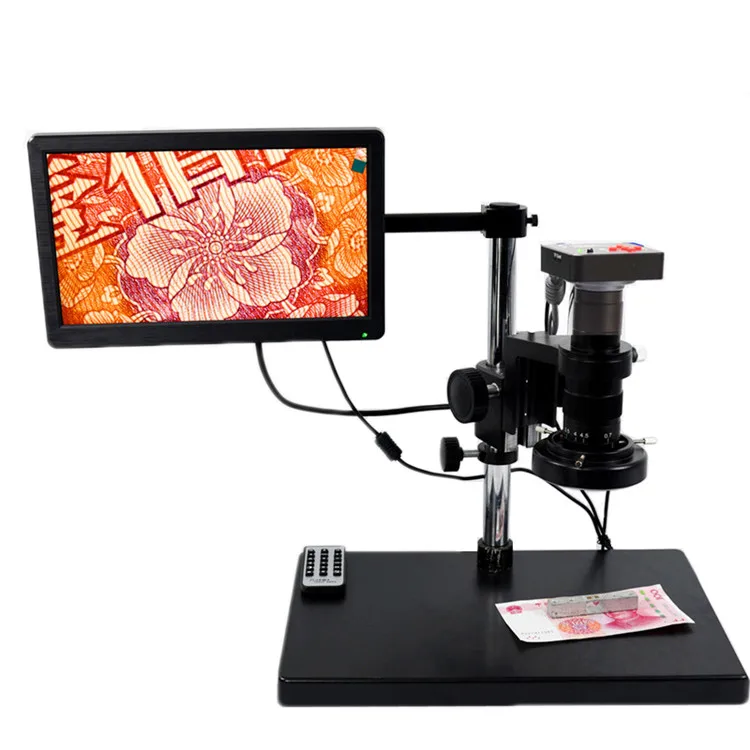

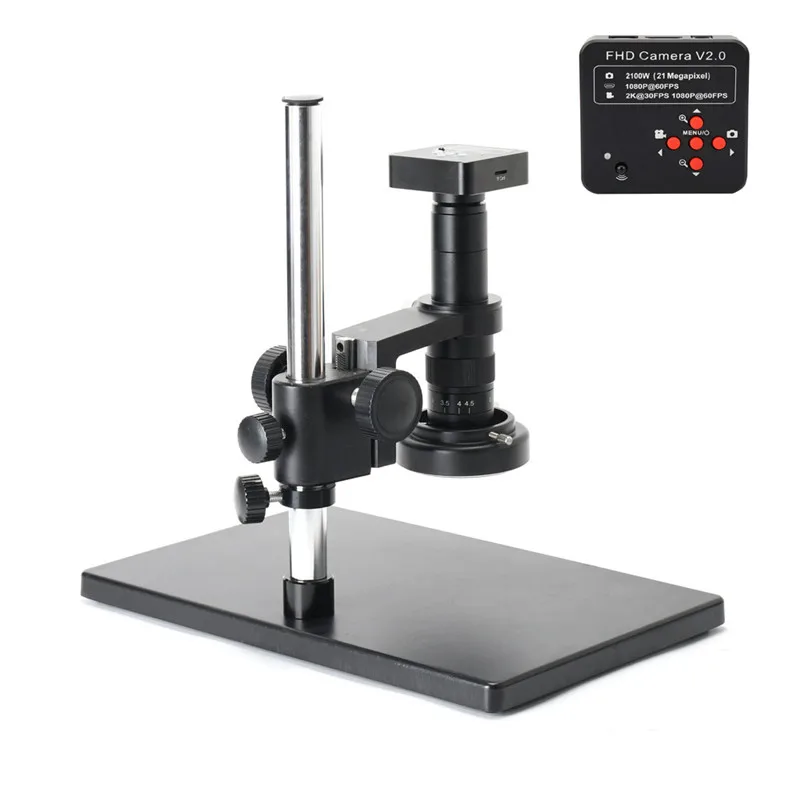

HD Electronic Display Video Microscope with LED Lights 8 inch LCD Monitor for PCB inspection and repairing

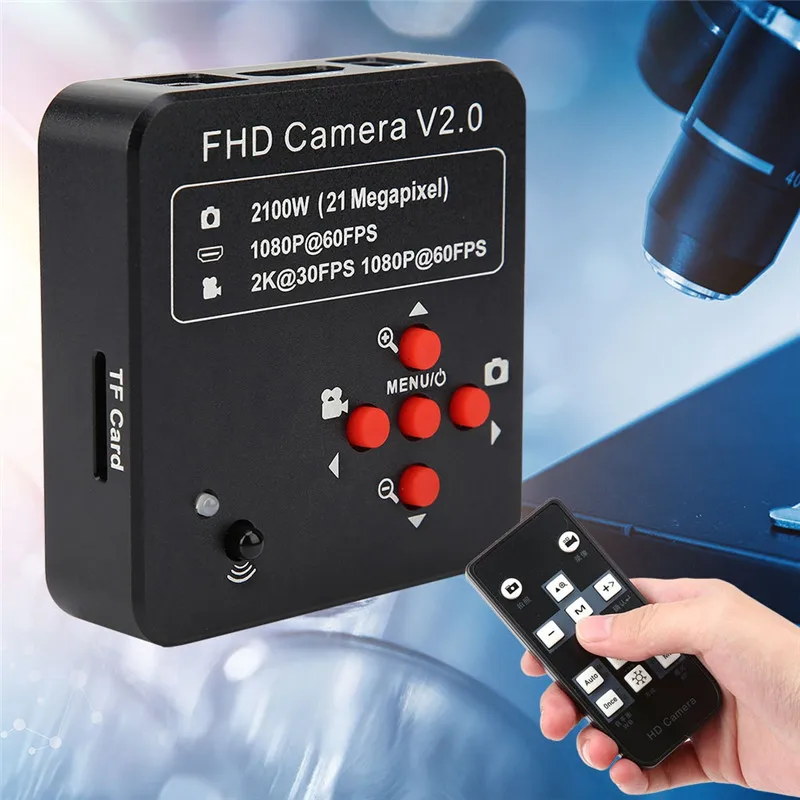

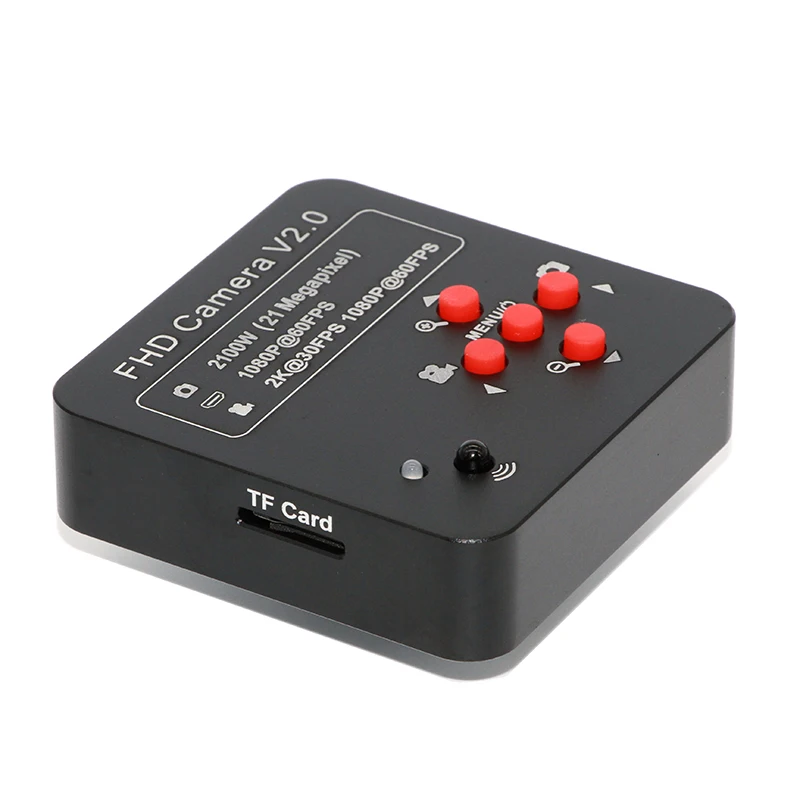

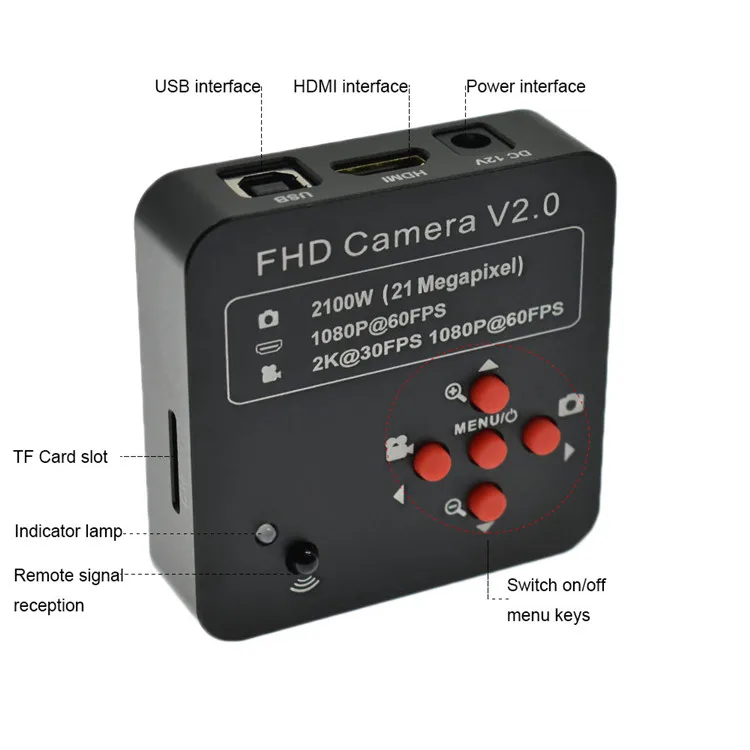

Camera parameters:
Model: PDOK2100
Image sensor: Panasonic original 21 million pixel CMOS Sensor
Photosensitive size: 1/2.3 inch. a larger field of view than the usual 1/3
Pixel size: 1.335μm × 1.335μm

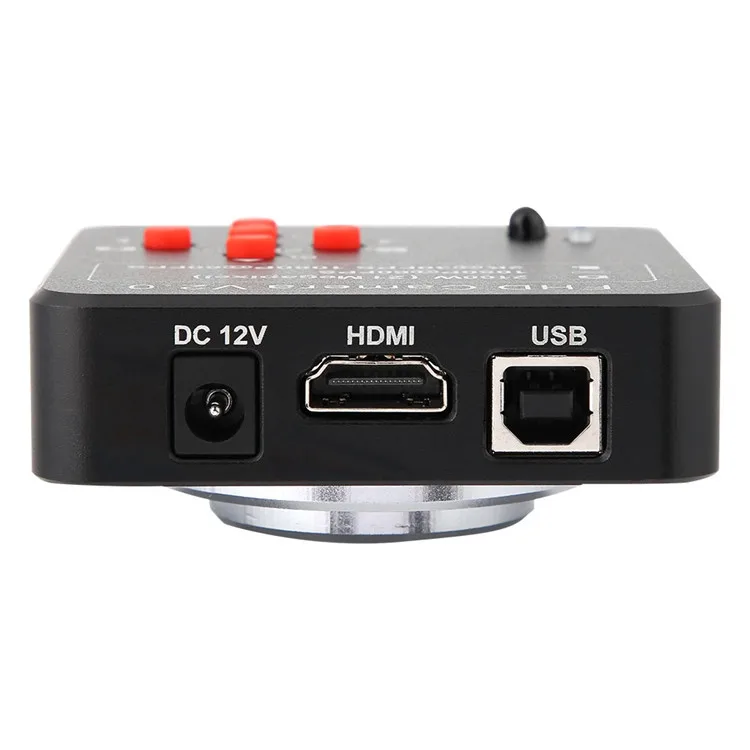

Output interface: HDMI (Type A), USB (Type B), TF Card
Photo output: 21 MegaPixel, 21 million pixels
Video output 2K@30 frame, 1080p@60 frame
HDMI output Progressive 1920*1080 60 frames. Simultaneous output with USB
HDMI output ratio Supports 4:3, 16:9, 16:10 screens to ensure that the image is not deformed.
USB2.0 output (free drive) 1920*1080@30 1280*720@30 640*480@30. Simultaneous output with HDMI
TF card storage capacity up to 64GB
White balance One-button white balance / automatic / manual, R, G, B individually adjustable
Exposure Manual / Auto. Adjustable exposure value
Crosshairs 8. Color, thickness, position adjustable
Cross mark 2
Cross line 2 lines. Color, thickness and position adjustable
Sharpness, contrast, saturation support, adjustable
Black and white, negative film support
Mirror horizontal and vertical mirroring
Language Chinese/English
Digital zoom support
Remote control support. Remote video recording, the picture does not shake.
Input voltage DC 12V (support 5-19V), 55-21 big mouth
Lens interface C/CS port
Net weight 180 grams
Gross weight 400 g
Product size 74*74*35mm
Packing size 160*100*80mm
Packing list Camera, adapter, remote control, B-port USB cable, Chinese and English manual, packing box

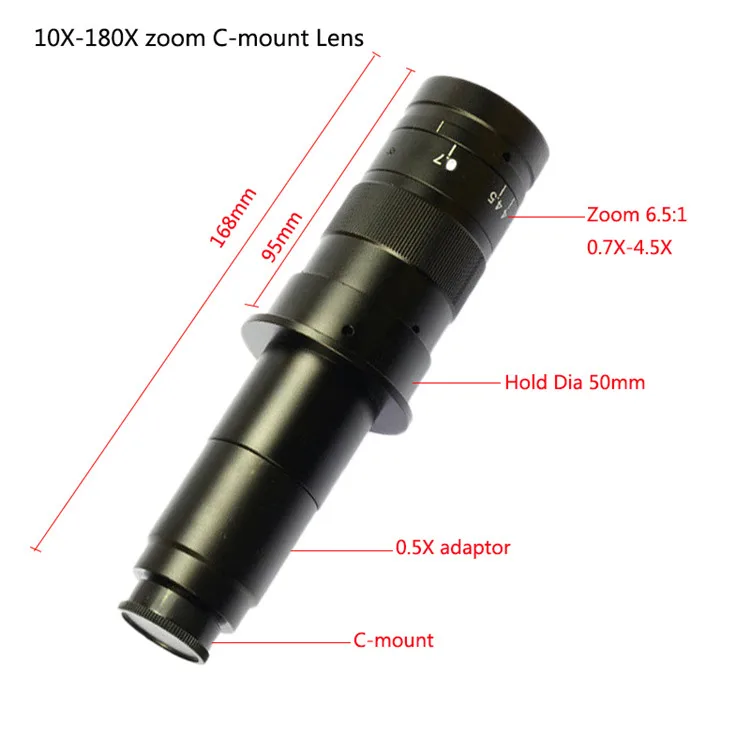

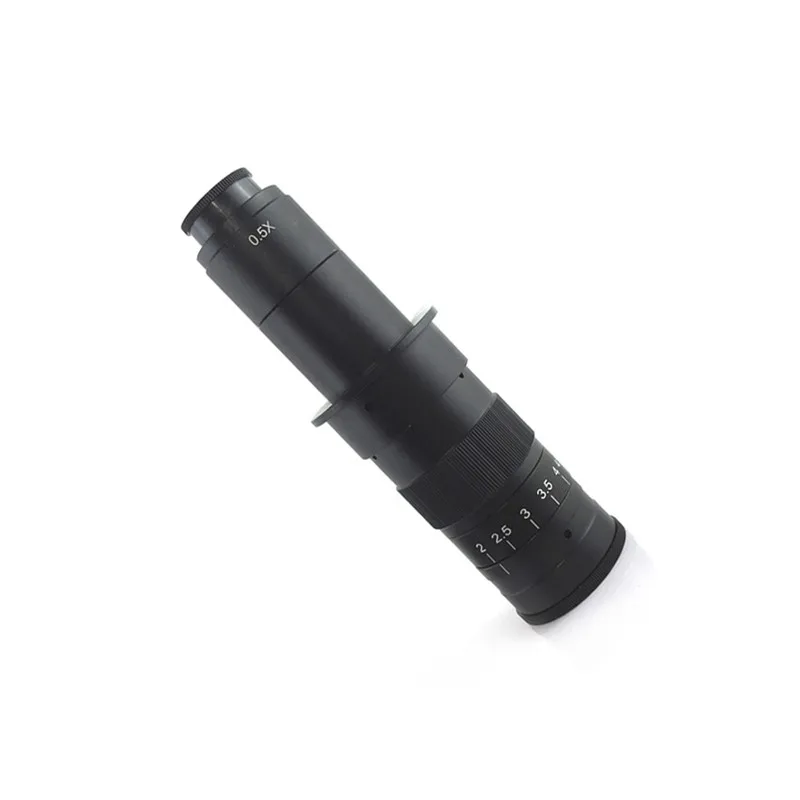

10X-180X zoom C-mount Lens:
Working distance: 95mm
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 168mm(L) * 50mm(DIA)
Weight: 510g

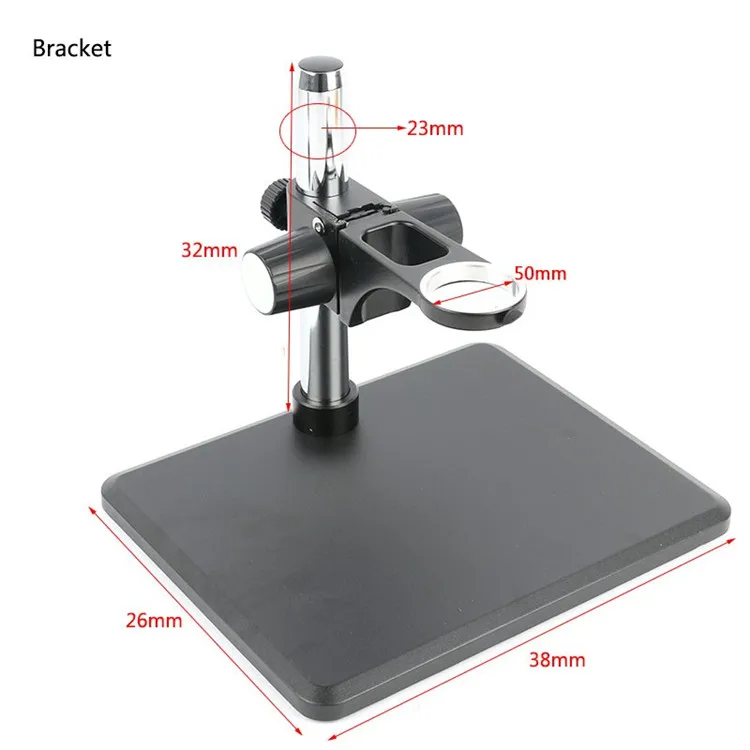

Large Bracket: L38cm*W26cm*H32cm

light source: 52 LED righ lights
Screen size: 8"

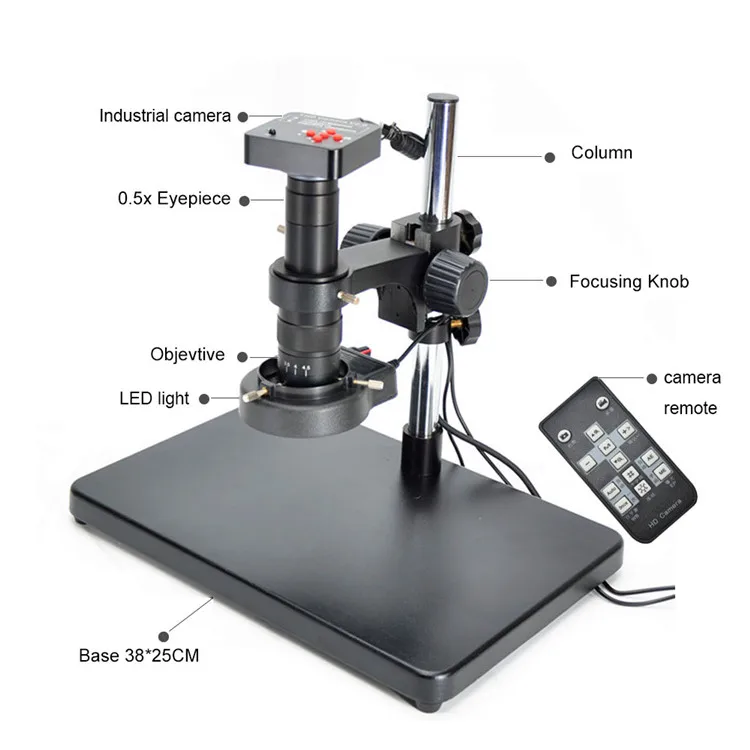

Package includes:
1 x Microscope Camera
1 x Power Adapter
1 x 10X-180X Lens
1 x Remote Control, not include CR2025 LITHIUM BATTERY for safety.
1 x LED Light Source
1 x Large Size Bracket

1 x 8"screen

Package size: 45X33X17 cm
