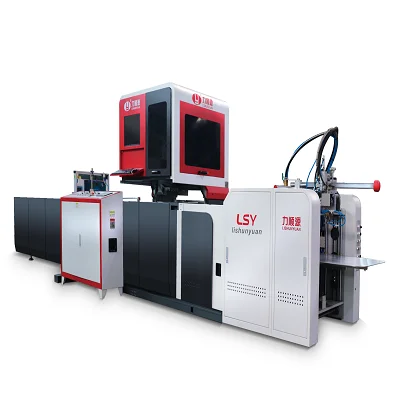

New style visual positioning machine for box making machine
New style visual positioning machine for box making machine
New style visual positioning machine for box making machine
New style visual positioning machine for box making machine

New style visual positioning machine for box making machine

Share on (62493897925):


Price:$55,000.00

Quantity:


Product Overview

Description


Product Description

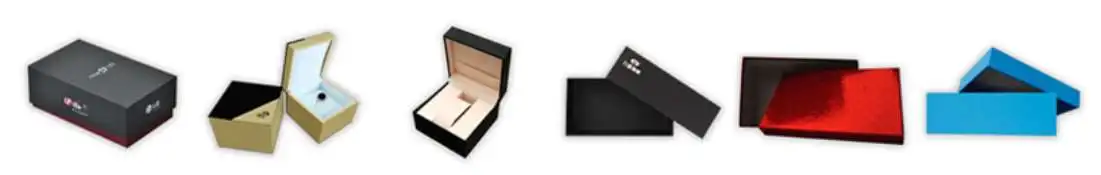

New style visual positioning machine for box making machine , is a good equipment for making high-grade covered boxes for its fine design, reliable performances and international advanced technologies.It is suitable for a variety of high-quality gift box which need gluing ,like phone box, cosmetic box, Jewelry box, watch box, wine box, cigarette box, etc.
Technical Parameters
Paper Size
L: 180-850mm
W:95-600mm
Finished box size
L:45-600mm
W:45-400mm
H:10-120mm
Case maker finished box size
L:100-800mm
W:80-400mm
Paper thickness
80-300g/m2
Max.paper stacking height
400mm
Cardboard thickness
1-3mm
Production Capacity
25-35pcs/min
Positioning accuracy
±0.1mm
Air pressure
0.6-0.8MPa
Glue tank volume
50kg
Power Supply
380V/50Hz/3phases
Constant power
18KW
Machine weight
1500KG
Machine dimension
Case maker L7500xW2400xH2000mm
Rigid box L7500xW1500xH2000mm
Product features
* Using two industrial cameras with five mega pixels, and YAMAHA robot arm to position, high positioning accuracy(±1mm).
* High production rate, rigid box production speed up to 25-35pcs/min; case maker and mounted product speed up to 20-30pcs/min.
* Using an independent man-machine control system, transfermachine time is short, fast transfer version.
* Feeding stably , does not suck up double sheets easily, reduce product rejection rate.
* Independent gluing & positioning module, can be optionally matched with corner pastingmachine, splicing board box making machine, pneumatic machine and case maker machine etc to produce of case maker, mounted, rigid box and opening window.It is strong and extensible for the future products.
Detailed Images
Feeder
1 . Feeder control by servo motor
2. Paper-feed-in overturn function
3. Big diameter pneumatic vacuum control valves
4. The rubber pressure roller for the feeding-in paper
5. Antistatic platform for paper
6. The automatic lifting function for feeding stack
7. Feeding stack auto stop when top paper in position Feeder control by servo motor

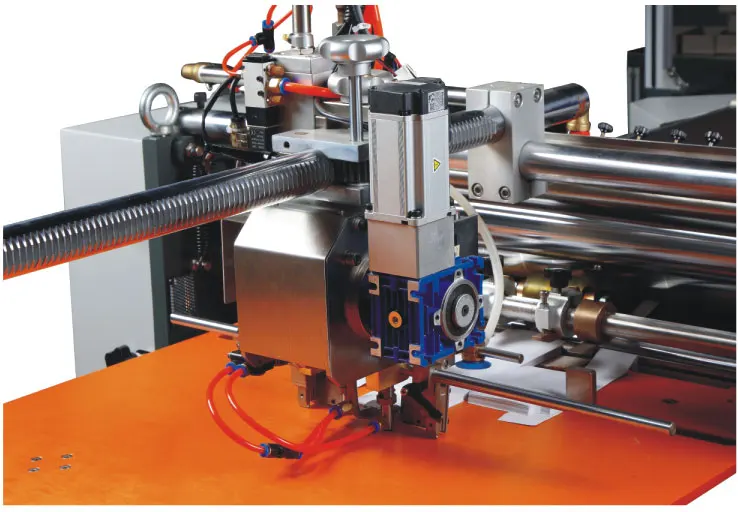

Positioning
1 . SCARA (Selective Compliance YAMAHA Robot Arm) for spotting the grey board box
2. Germany Balser camera with Japan Kowa Lens in 10 million Pixel tracing system
3. Double Camera with XY Spool for positioning.
Workshop
Workshop office Area
Partial Install Area

Packing&Shipping
Vacuum packing on the inside and wooden cases on the outside
Company Introduction
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 17 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.

Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.

Lishunyuan adheres to the development concept of “customer first, service to the world” and adheres to the development strategy of “keep improving and bring forth the old and new”. Lishunyuan devotes itself to the development of new products with high performance and high efficiency in the industry and leads the rapid development of intelligent automation in the industry.
Our Services & Strength
We have competitive machines, the quality team and the thoughtful service. Lishunyuan emphasizes on giving complete support to our customers, from consultation and development of the machine as per client requirements, to production of the box machine and providing extensive after sales service.Dedicated to providing the highest production rates, maximum accuracy and consistent pouch quality of boutique boxes as per each individual client’s requirements.
Certifications
Exhibition
Contact Information
Phone: 0769-88116769
Mobile: +86 13925859535
Email: evian@dglyjx.com
Website://www.dglyjx.com
