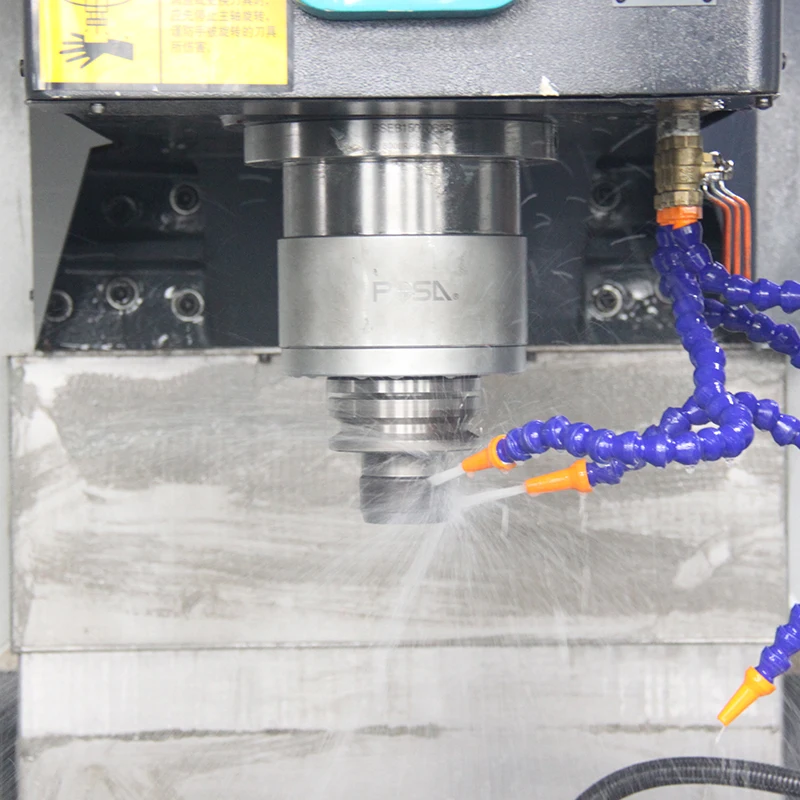

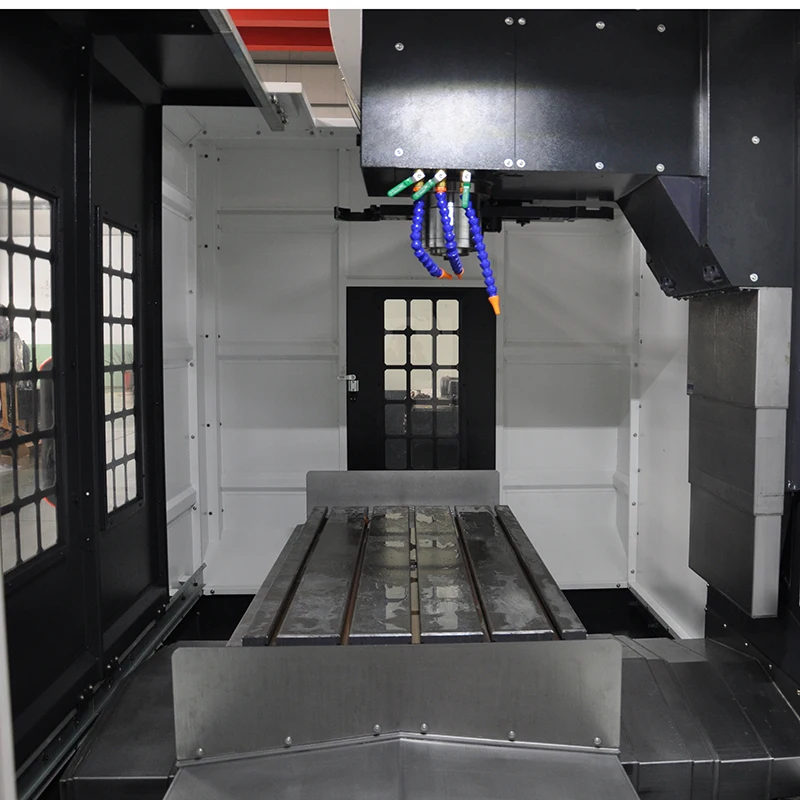

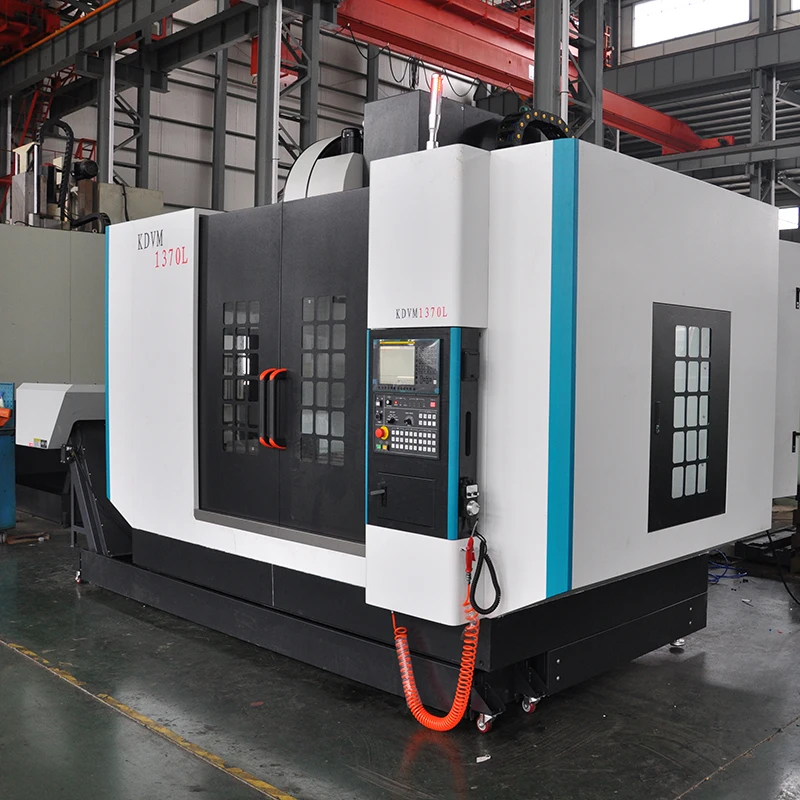

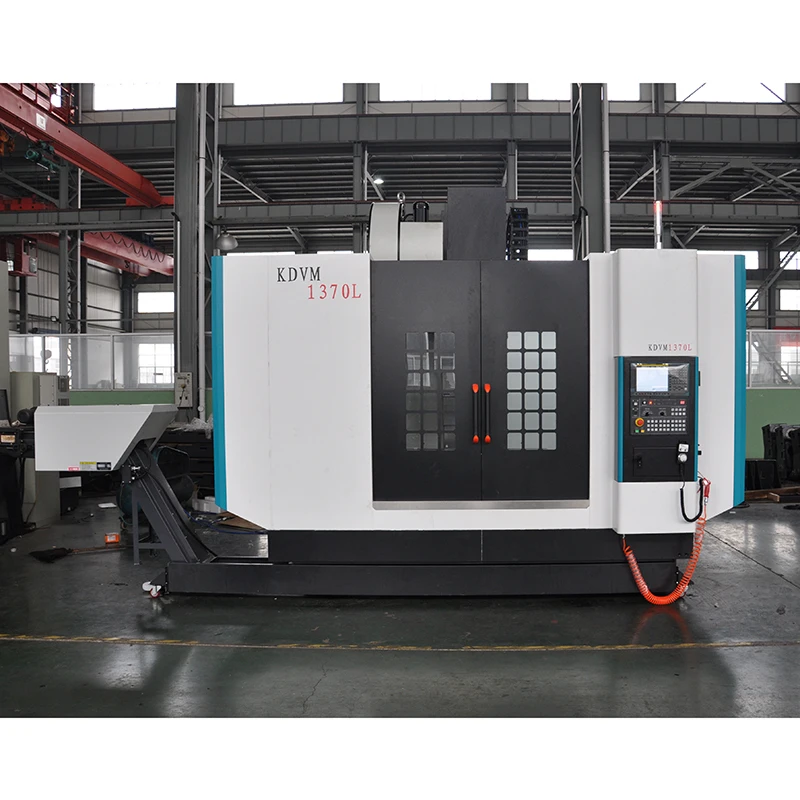

Fast speed CNC vertical milling machine center model KDVM1890L
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (62493926644):
Product Overview
Description
Specifications | KDVM1580L | KDVM1890L |
X travel | 1500 mm | 1800 mm |
Y travel | 800 mm | 900 mm |
Z travel | 700 mm | 700 mm |
Distance between spindle center and column guide way | 951 mm | 1000 mm |
Distance between spindle end and table | 180~880 mm | 180~880 mm |

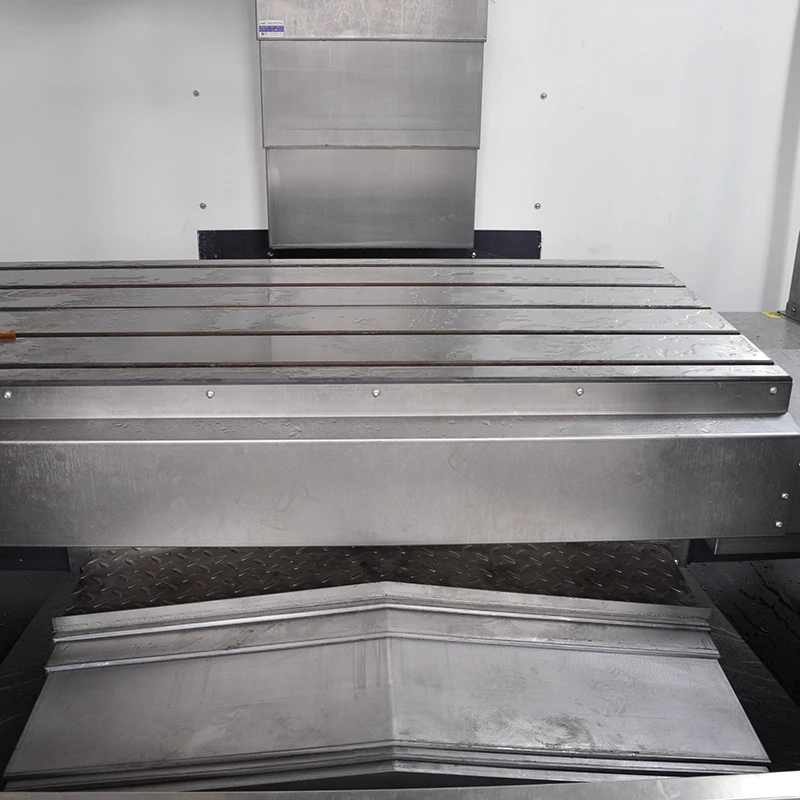

Table size | 1700×800 mm | 2000×900 mm |
Max. table load | 1500㎏ | 1900㎏ |
T-slot（width×number ×space） | 5×18×132 mm | 5×22×165mm |
Taper bore of spindle | BT50 | BT50 |
Spindle speed | 6000 rpm | 6000 rpm |
Main motor power | 15/18.5 KW | 15/18.5 KW |
Cutter removal from spindle | Pneumatic pneumatic | Pneumatic pneumatic |
X、Y travel speed | 20m/min | 20m/min |
Z travel speed | 20m/min | 20m/min |
X、Y、Z Motor torque | 27Nm | 36Nm |
Repeatability(X/Y/Z) | ±0.006mm | ±0.006mm |
Tool number | (Arm type)：24 | (Arm type)：24 |
Max. tool size（With adjacent tool） | Ø112mm | Ø112mm |
Max. tool size（Without adjacent tool） | Ø200mm | Ø200mm |
Max. tool length | 300 mm | 300 mm |
Max. tool weight | 18kg | 18kg |
Tool changing time（cut to cut） | 3s | 3s |
Min. Displacement(X/Y/Z) | 0.001 mm | 0.001 mm |
Min. Input(X/Y/Z) | 0.001 mm | 0.001 mm |
Overall dimensions(L×W×H) | 4710×3000×3300mm | 4710×3000×3300mm |
Net weight | 15000㎏ | 16000㎏ |

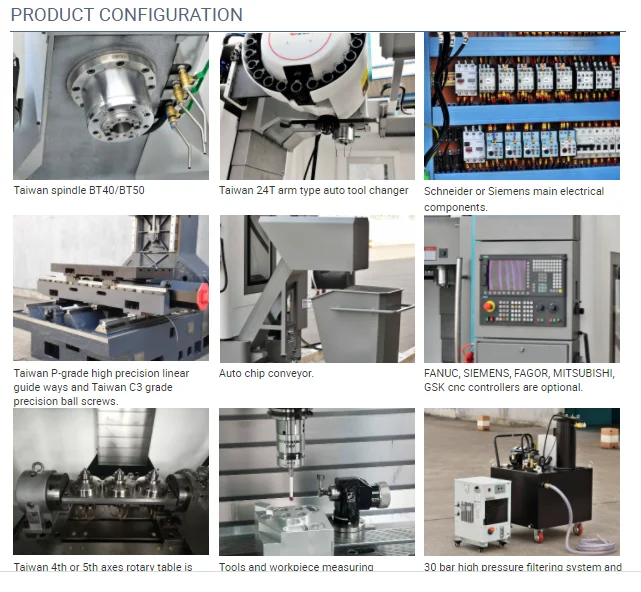

PRODUCT CONFIGURATION
