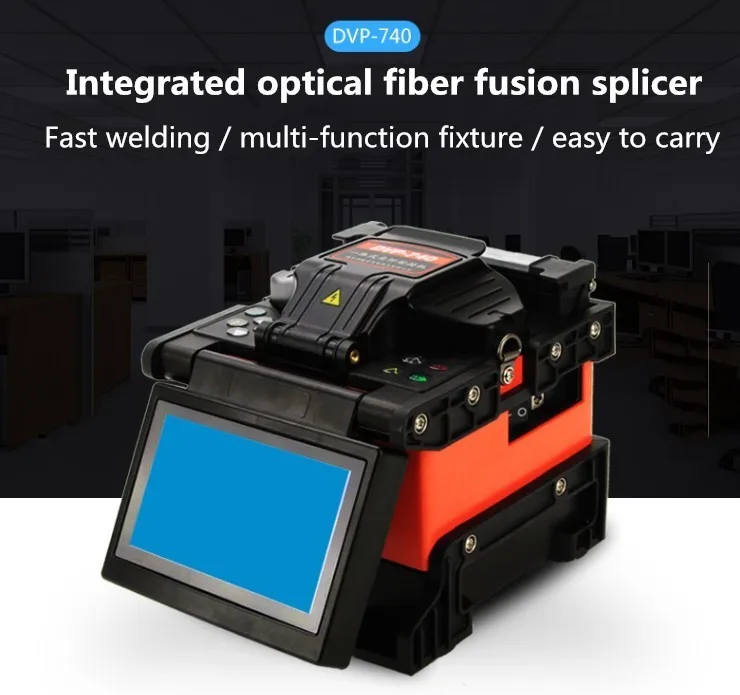

Factory Fusion splicer machine DVP740



Product Description


DVP-740 is an automatic fusion splicer for SM, MM, DS, NZ-DS(G655), EDF and other fibers. DVP-740 is capable of ensuring high-quality splicing even in the most unfavorable environment conditions. DVP-740 splicers are suitable forcore or cladding alignment. Using one of these methods the two cleaved fibers are automatically aligned by the fusion splicer in the x,y plane, then are fused together.The bare fiber area is protected either by  recoating or with asplice protector. A splice protector is a heat shrinkable tube with a strength membrane and less loss.



 Key Features:

1. It can applicable fibers such as SM/MM/DS/NZ-DS/EDF.
2. 8 Sec. splice time, 40 Sec. tube-heat time.

3. Reversible monitor with control panel on each side.
4. Compact & Light weight (3.3kg with battery).
5. SYSTEM TEST ensures the best working condition.
6. Auto check fiber end face.
7. Auto calibrate parameters.
8. Store 8000 groups of splice results, and can connect to computer
9. 8 Kind of Language options: English, Korean, Russian, Portuguese, French, Spanish, German, Chinese.
10. Large capacity internal battery ( Liion battery 12V 10,000mAh can guarantee the outdoor work. Normally when the user operate by the right way, the battery can really offer more than 200 times of continuous splices and heats when it is used in outside.)

DVP740 (4)



Feature:

  • Compact & Light weight
  • Applied for Fibers ,Cables and SOC(splice-on connector)
  • Integrated Holder Design
  • Fully Automatic , Semi-automatic and Manual Operation
  • Shockproof, Drop resistance
  • Power saving function
  • 4.3 inch Color LCD monitor
  • USB&DC interface

 Detailed Images:

Applicable fibers

SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector.

Fiber cleaved length

8-22mm

Average splice loss

0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)

Return loss

≥60dB

Tension test

2.0N(200gf)(Standard)

Protection sleeve length

20mm, 40mm, 60mm

Splice Program

5 groups of preset programs, 75 group of manual setting

Language

English, Chinese, Russian, Spanish, Portuguese.

Environment conditions

-25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)

Storage environment

-40~ +80℃ (temperature) , 0~95%RH (humidity)

Power supply

AC adaptor: 85~260V input voltage

Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat

Dimensions/Weight

142(D)×122(W)×138(H)mm/1.95kg

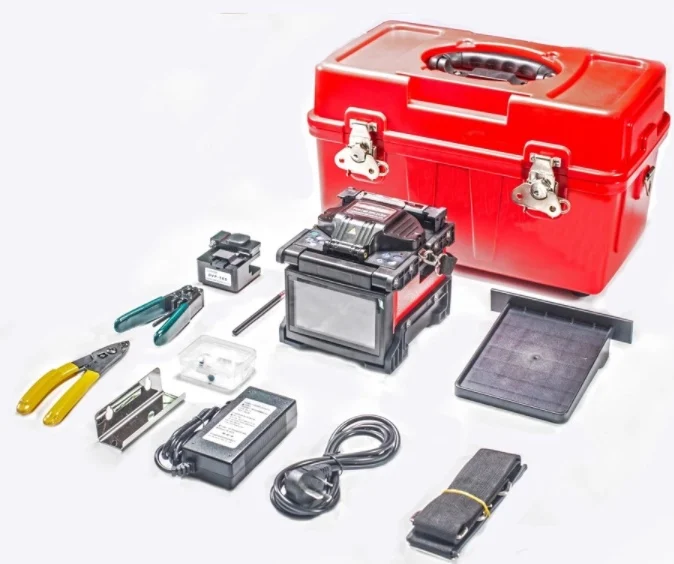

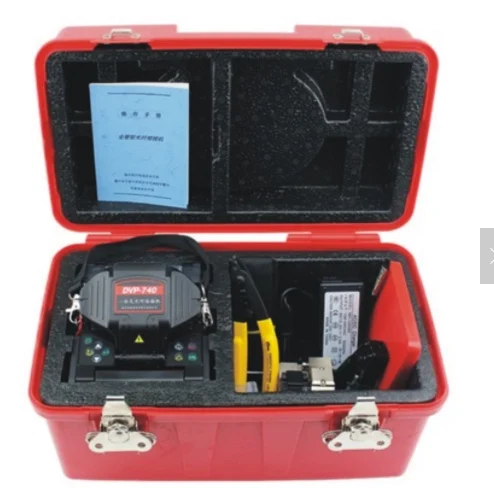

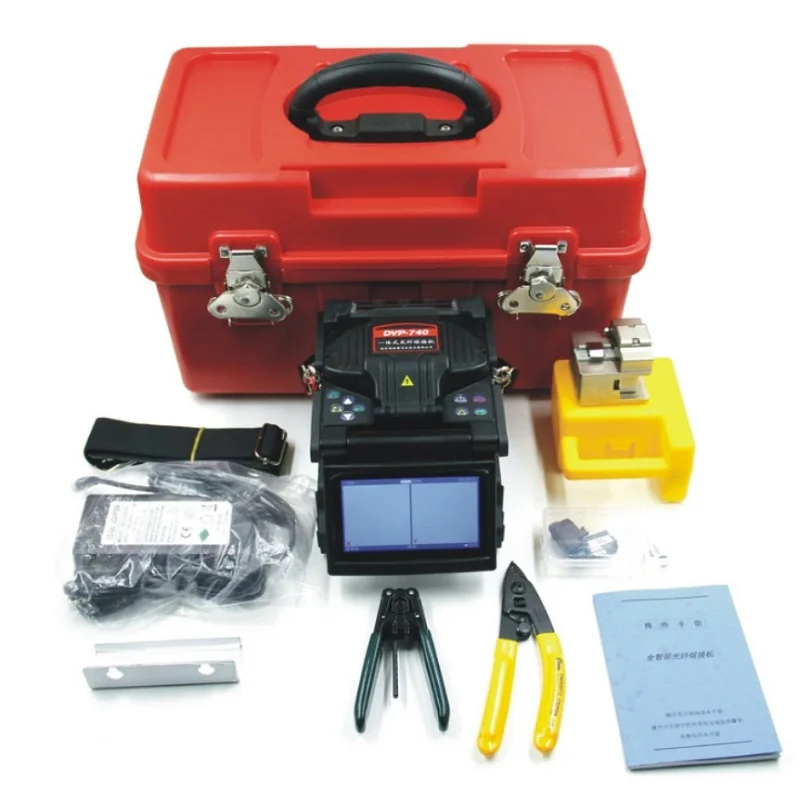

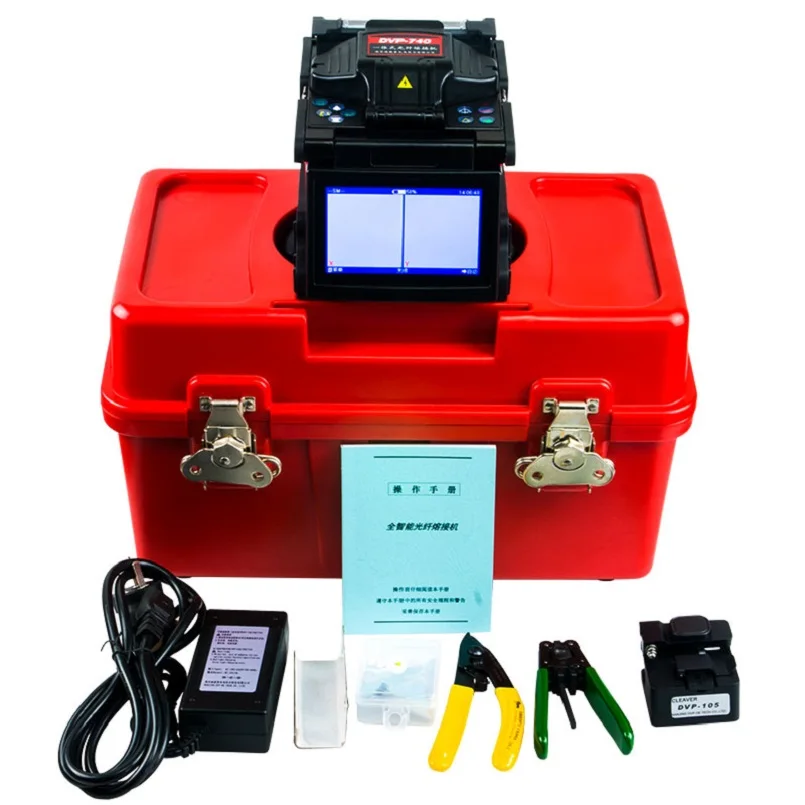

Standard Package:

Main body

Internal battery

charger

Spare Electrodes

Cooling tray

Manual instruction

Cary case

Fiber cleaver

Fiber stripper

AC adapter

AC power cord

4.jpgNew product FTTH Fusion splicer dvp740 fiber optic cable splicing machine

Packaging Details :

All products are original packing,we can pack the cartons to meet your requirements as the below pictures.

PE Plastic Box Size: 45*40*30 Weight: 16KG

Delivery Detail : Normally,we will ship the goods within 3-5 working days when received your deposit. We have our own shipping agent who handle with DHL,EMS,FedEx,UPS,TNT,AIR,SEA...

FAQ



Q1.About the price?

Re.We usually quote within 12 hours after we confirm the technical data of your products.

Q2.What's the payment method?

Re.We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.

Q3.What are your terms of payment?

Re.30% in advance,and 70% before shipment

Q4.How to ship the items to me?

Re.Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.

Q5.How long is your delivery time?

Re.The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.

Q6.Can you send me a free sample?

Re.Yes,We are willing to send free sample,if you would like to pay the shipping costs.

Q7.Do you accept OEM or ODM?

Re.Yes,we're factory. any your customized requirements we can do our best to help you realize.



Rlative products



Main products

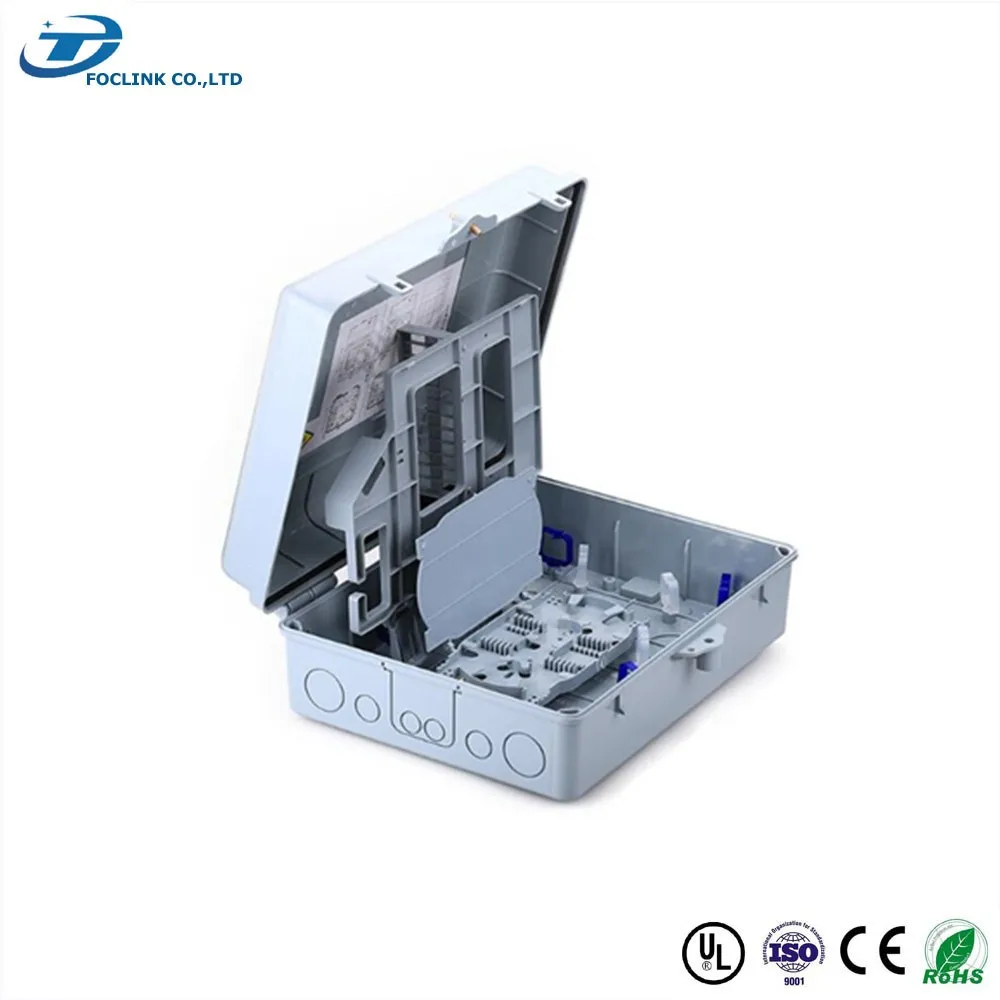

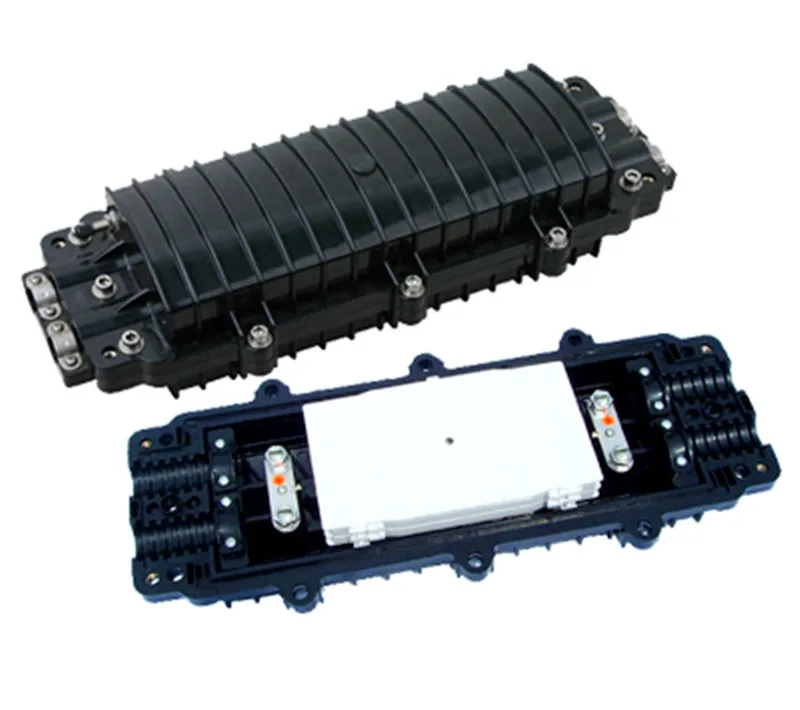

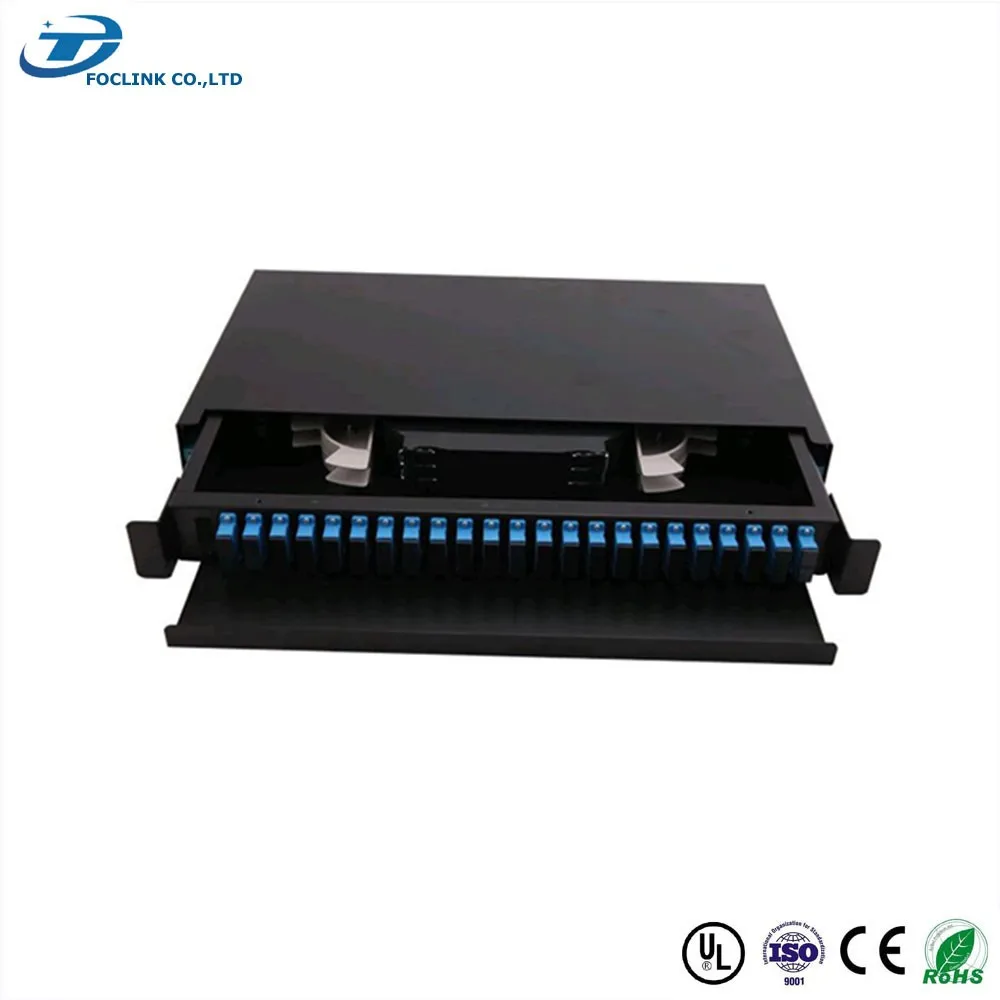

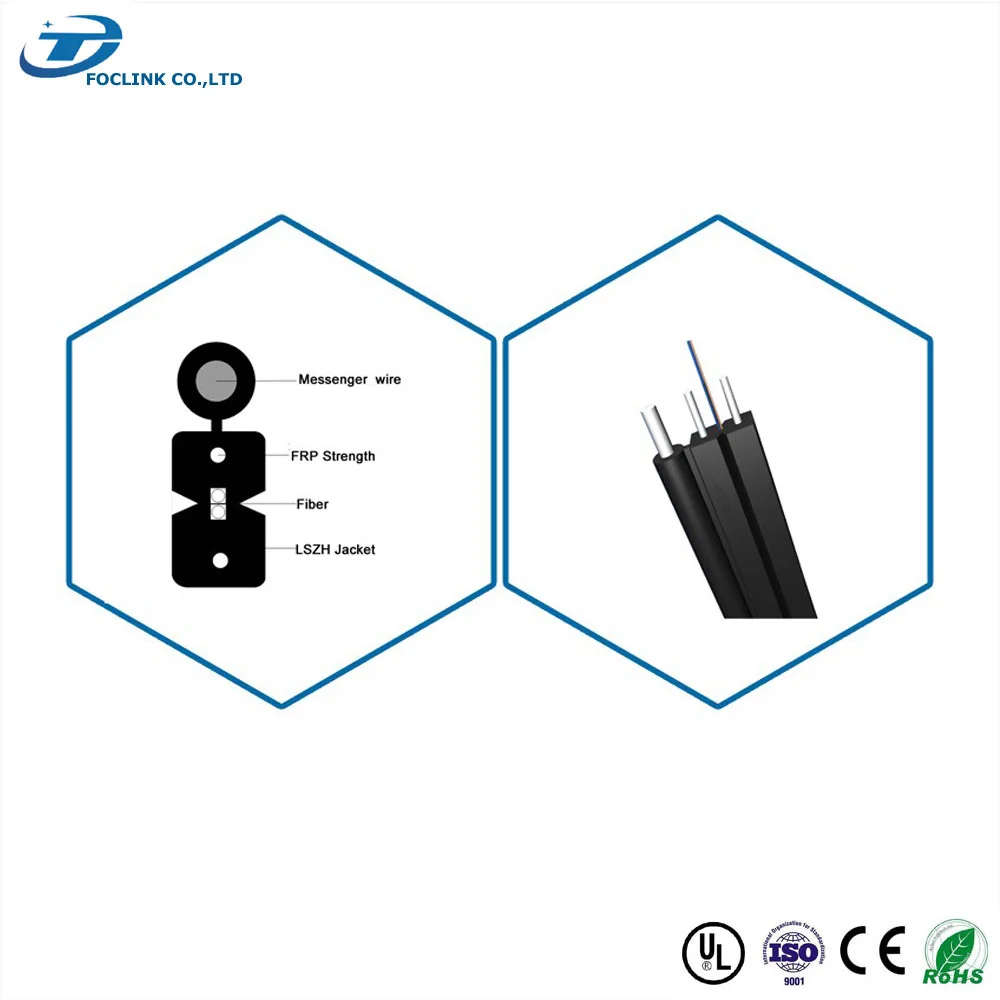

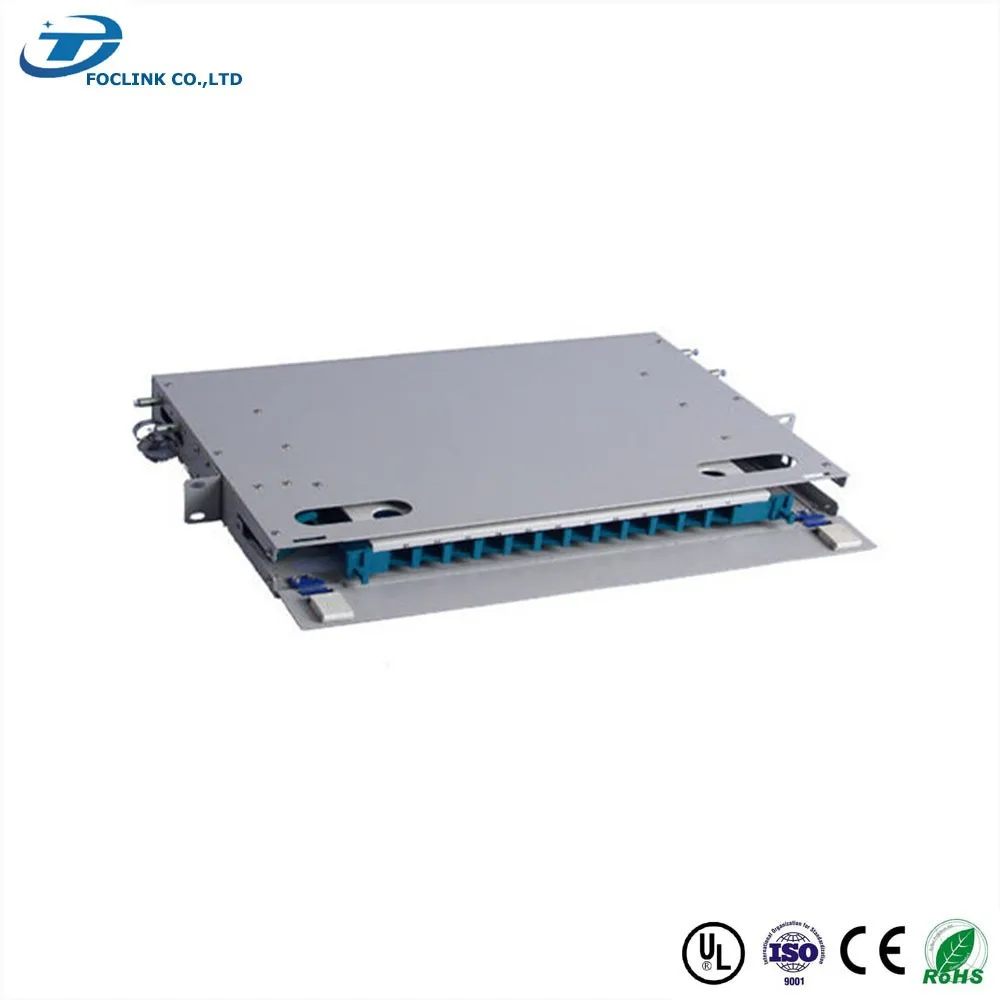

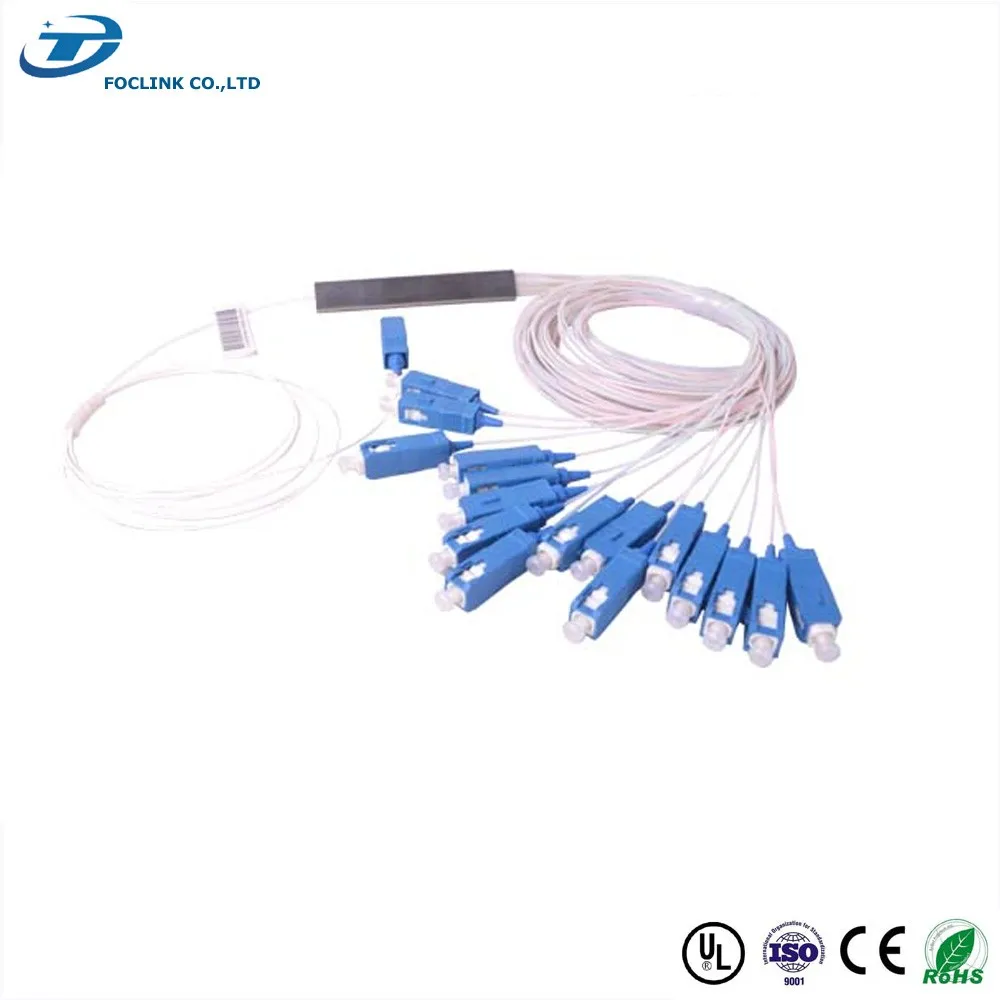

SC APC CONNECTOR2  09-1_ drop cable1 12 ports ODF empty    1 16 plc splitter mini sc upc 24 core terminal box5 24 port slidable ODF with SC adapter7
