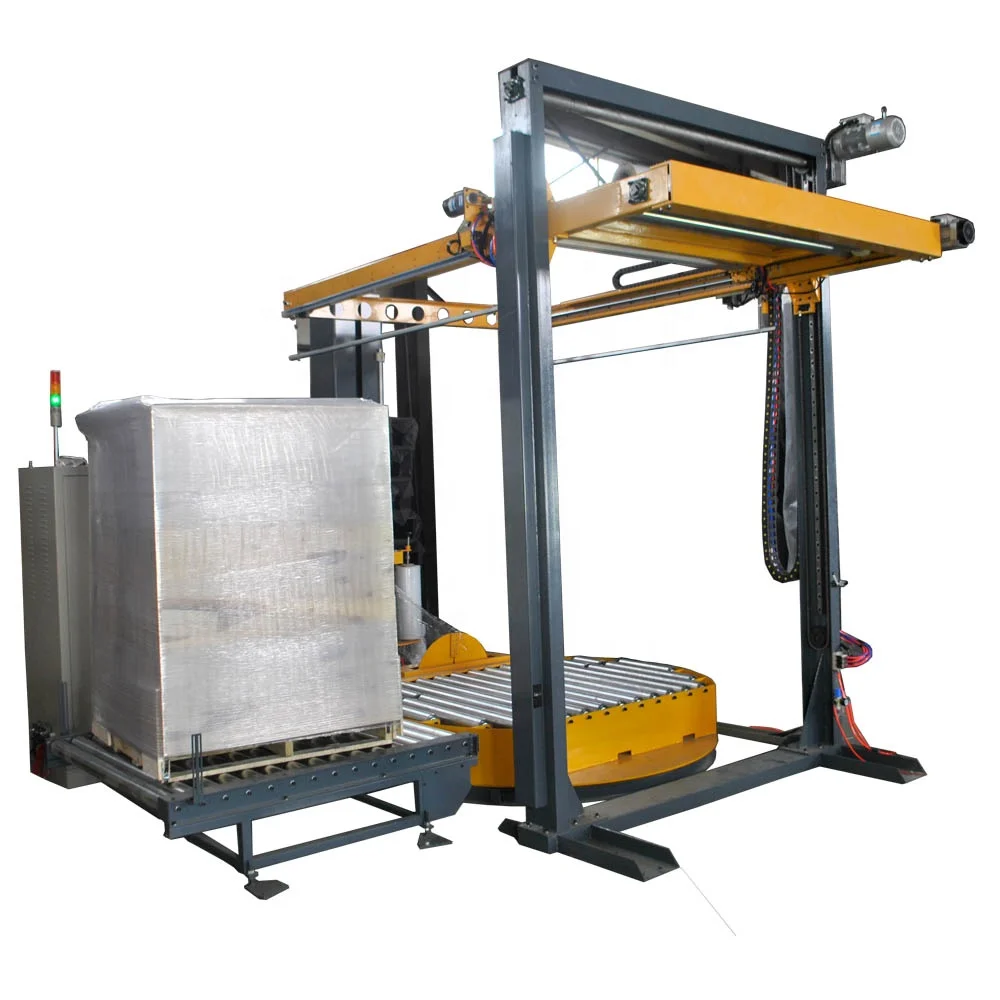

Factory Wholesale Fully Automatic Turntable Power Pre stretch Pallet Film Wrapper Machine With Top Sheet Applicator For Sales
- Category: >>>
- Supplier: Shandong Dyehome Intelligent Equipment Co. Ltd.
Share on (62493981891):
Product Overview
Description
We are professional manufacturer of pallet wrapper with top sheet dispenser
High quality pallet stretch wrapping machine top sheet dispenser and best serive & competitive market price!
Contact with us soon! Your best choice !
Descripition

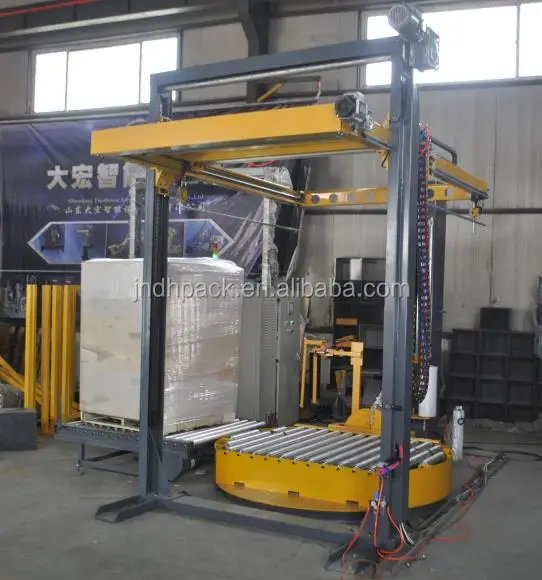

fully automatic pallet wrapping machine with top sheet dispenser

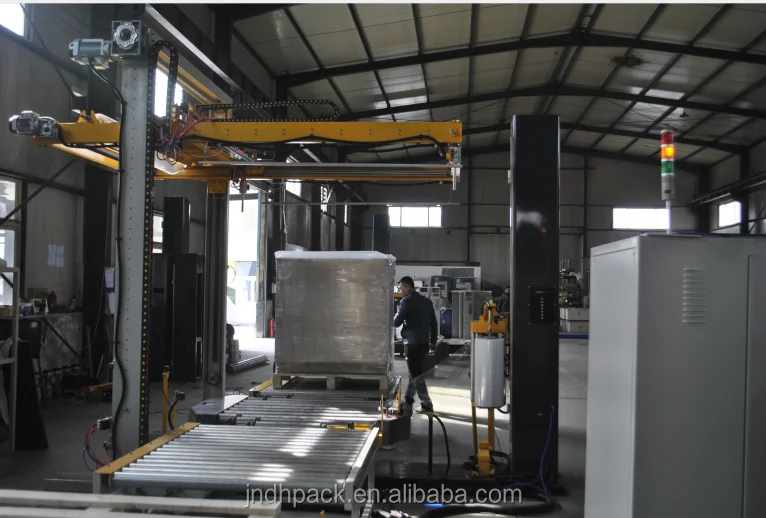

fully automatic In-line top sheet dispenser and pallet wrapper machine
Top sheet dispenser is placed in the process area of pallet wrapping machine. The load enters the process area, a sheet is pulled from the supply roll and is placed on the top of the load. At this point, as the placer arms are raised, begins its wrap cycle at slow speed until the top sheet is fully wrapped, then the high speed mode is activated until the entire load is wrapped.
Control System
PLC control system
Photo-eye pallet height sensor
0-9 separate top, bottom & up-down wrap count selectors
Photoeye sensing delay
Reinforce wrap allow more wrap on same location
Film Tension Control adjustment on the panel
312RPM variable turntable speed by frequency changer
Separate variable carriage up/down speed
Cycle pause capability
Separate start, reset and emergency stop buttons
Manual carriage up/down switch
Turntable jog button
Conveyor Jog (for each conveyor)
Dust-tight Precious Metal Slip-ring for long reliable service
Turntable
2000mm Diameter Structural steel plate
500mm high profile turntable
Position turntable alignment
Soft start/ Soft stop
Heavy duty chain drive
Table Fully Shrouded for Greater Personnel Safety
Film carriage
Powered pre-stretch system up to 200% to min film consumption(Prestretch ratio can be specially made according your requirements. )
Film delivery variable speed by separate DC Drive Motor
Film dancer-bar with variable speed output
Heavy duty double-chain carriage lift, calm and safety
Technical Parameters:
Wrapping size | 500-1100mm(L)*500-1100mm(W) |
Packaging height | 1800mm-2800mm available |
Work efficiency | 20-40 loads/H |
Turntable speed | 0-15RPM (adjustable, soft start&stop) |
Bearing | Max. 2000kgs |
Turntable size | D=2000mm, H from 400mm |
Film carriage | Driven pre-stretch carriage, stretch ratio up to 300%. Auto film feeding, cutting and pressing |
Tower | Double chain design. Lifting speed adjustable |
Control system | PLC |
Weight | 1000kgs |
Dimension | 3000mm*2000mm*2650-3650mm |
Power | Turntable 1.1kw; Film carriage 0.37kw; Tower 0.37kw; conveyor 0.55kw 380V 50HZ 3Phase |
Packaging & Shipping
1.all the machine beforeshipping should pass the inspect the test by assemble&debuggingengineer,after the tested video and picture
- approved by customer, then machine will packing by bubble film or standard
wooden case.(wooden case need charge)
2.inner packaging is film wrapping,outer packaging is wood box for free fumigation,
the packaging size is according to the machine you ordered.
Warranty and after-sales service
Warranty
(1) we guaranteed that the equipment is brand new and unused;
(2) Warranty period: 12 months after the shipment.
2.After-sale service:
(1) The warranty is 12 months from signing date of the inspection report.
If the inspection is
unavailable
because of customer, the warranty period is 12 months since the receiving date of
the equipment.
(2) Under warranty:
If defects or damages occur during operation, we shall provide service
support (repair data) and free spare parts (excluding freight).
If the defects are caused by misuse or external factors, we shall
provide service and spare parts against compensation.
3.After warranty:
We will provide paid service and spare parts.
Shandong Dyehome Intelligent Machinery Co.,Ltd
Skype: dahongpallet Contact:Angela
Mobile phone: 0086-15165006008(whatsapp,Viber,wechat)

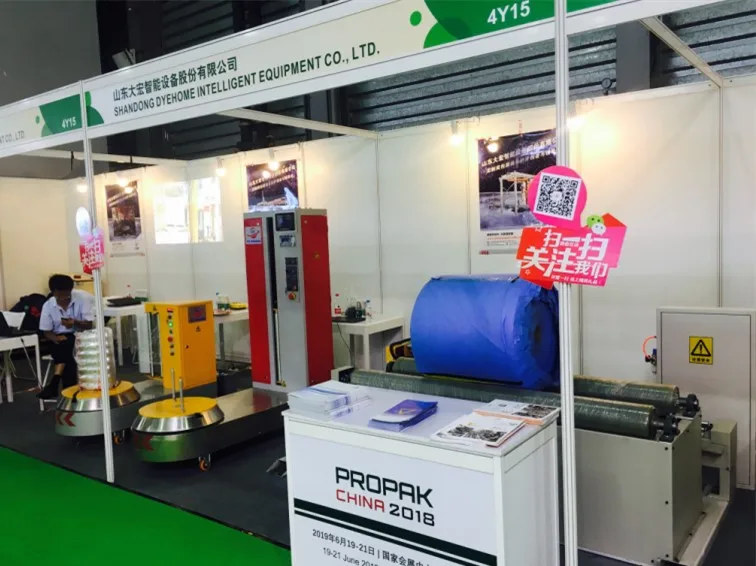

Exhibition

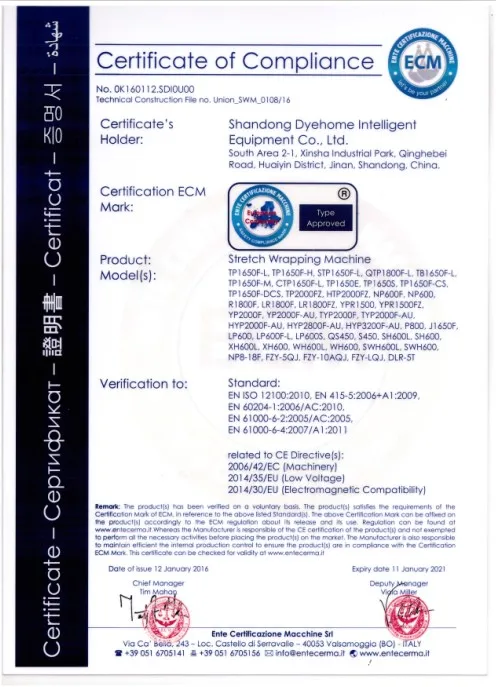

CE Certification
