FPL320D Automatic Roll To Roll Digital Sticker Label Die Cutter Rotary Label Die Cutting Machine
FPL320D is a kind of flat-bed die cutting machine with high precision. The paper-going is controlled by servo motor. Three photoelectric eyes do the web-guiding job. die cutting, laminating, waste rewinding, paper sheeting or rewinding can be finished in the process, the machine is applicable to die cut self adhesive labels, dacron film labels and laser anti-false labels, it is an ideal auxiliary of flexo printing machine, screen printing machine, relief printing machine and so on.

Feature&Configuration:
1. One Die Cutting Station.
One Sheet Cutting Station
2. With 1pc 3’’ Unwinding Shaft, 1pc 3” Rewinding Shaft
3. With Meter/Number counter.
4. With Two Photoelectric Eyes---Web Guide System
5. 1pc Color Track Photocell Sensor
6. PLC, Touch Screen...Controller







Samples




Product Paramenters


Machine Model
FPL320D-H
FPL420D-H
FPL520D-H
Max Process Speed
51 m/min
51 m/min
51 m/min
Die Cutting Speed
20-350 times/min
20-300 times/min
20-220 times/min
Max. Web Width
320mm
420mm
520mm
Max. Unwinding Diameter
500mm
500mm
500mm
Max. Rewinding Diameter
500mm
500mm
500mm
Max. Die Cutting Area
320*300mm
420*400mm
520*500mm
Precision of next die cut
±0.1mm
±0.1mm
±0.1mm
Precision of web guide
±0.5mm
±0.5mm
±0.5mm
Total Power:
7.5 kw
8 kw
11 kw
Voltage
220V/380V
220V/380V
380V
Dimensions
2700x1050x1400mm
2900x1150x1400mm
3200x1300x1400mm
Machine weight
1700 kgs
2100 kgs
3000 kgs


Details Images

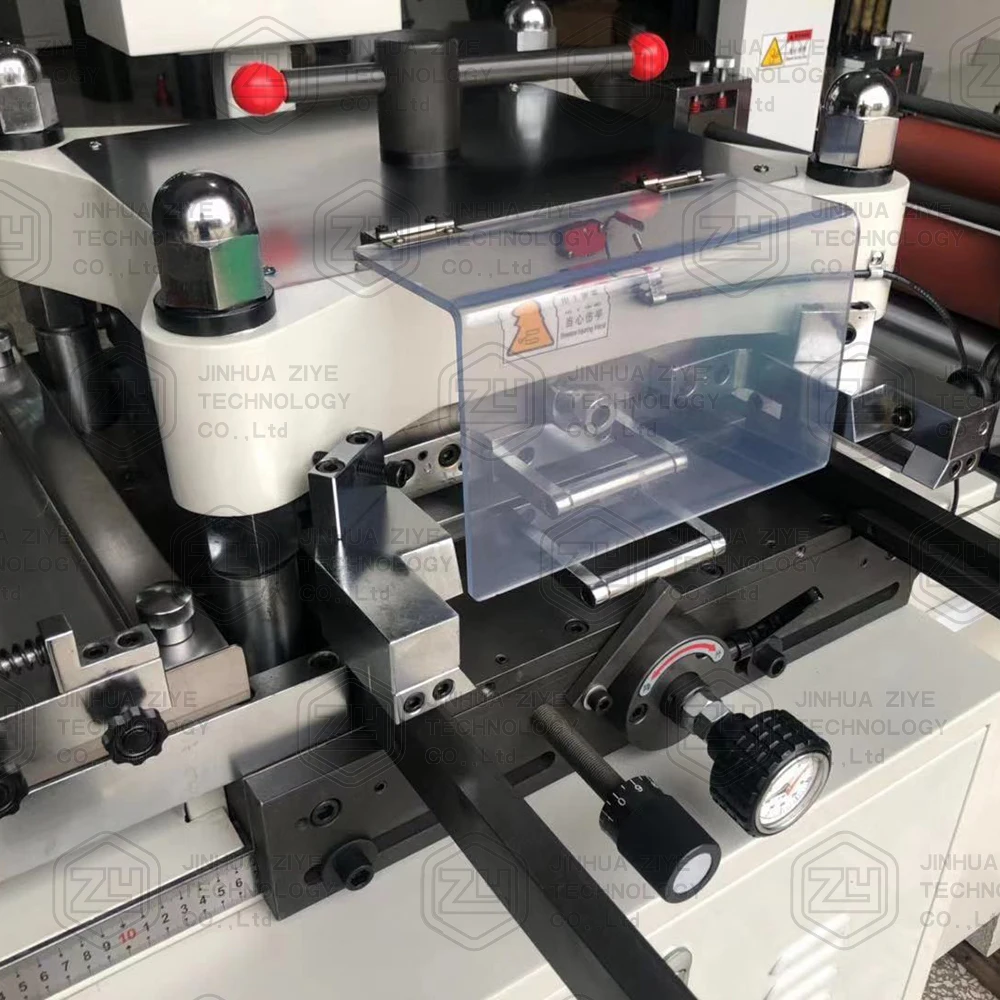

Die Cutting Unit
Flatbed Type.
Max 350 times/min
Sheet Cutting Unit
Cut Label Into Sheet


Unwind Unit
With 1 pc 3" Air Expanding Shaft.
Can accept max diameter 500mm material jumbo roll. (can be customized)

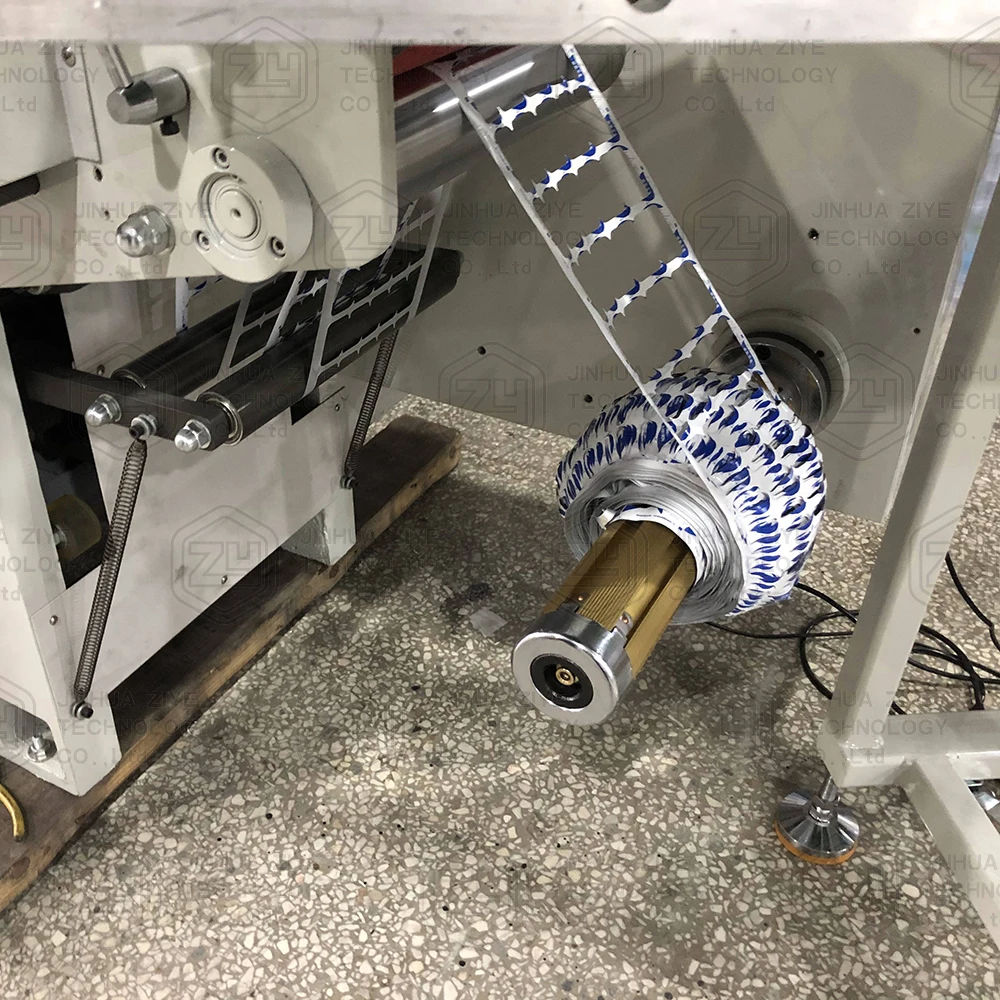

Rewind Unit
With 1 pc 3" Air Expanding Shaft.
Can accept max diameter 500mm material jumbo roll. (can be customized)

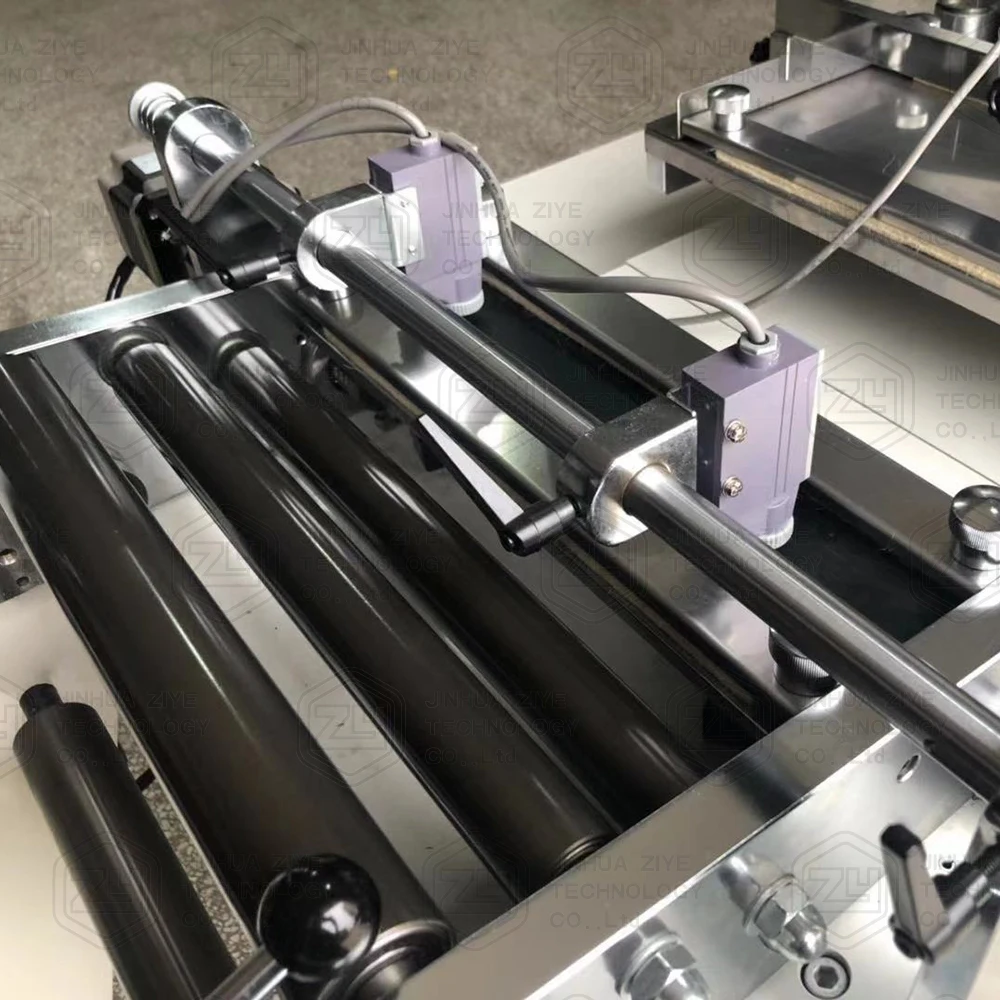

Web Guide System
Two Photocell Sensor to Control Web Go Straight.
Color Track Sensor
One Photocell Sensor to Track Printed Mark.


PLC Controller
Easy Control
Electric Configuration
All High Quality Configurations
