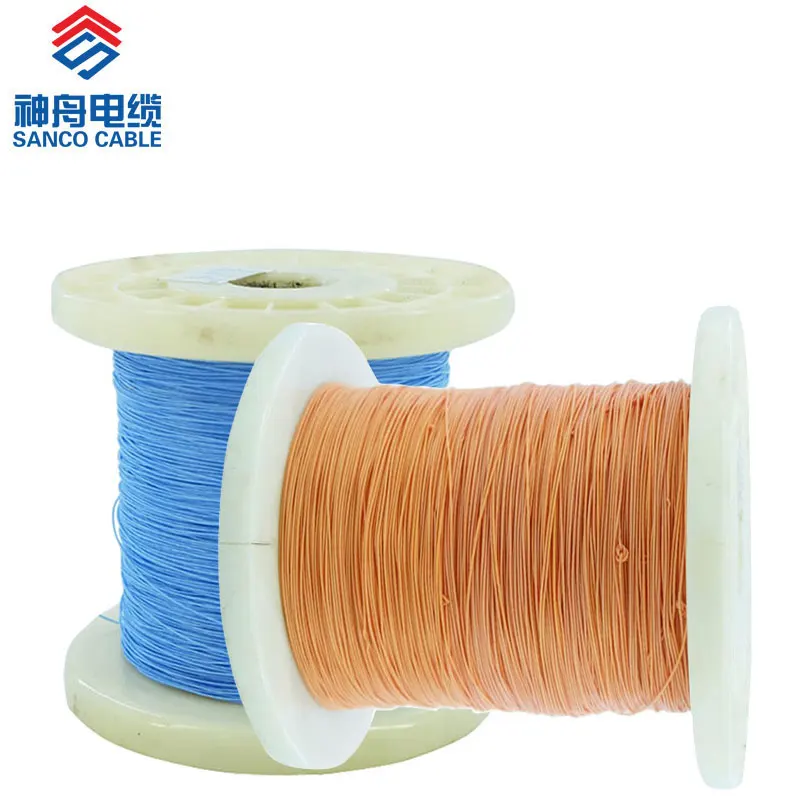

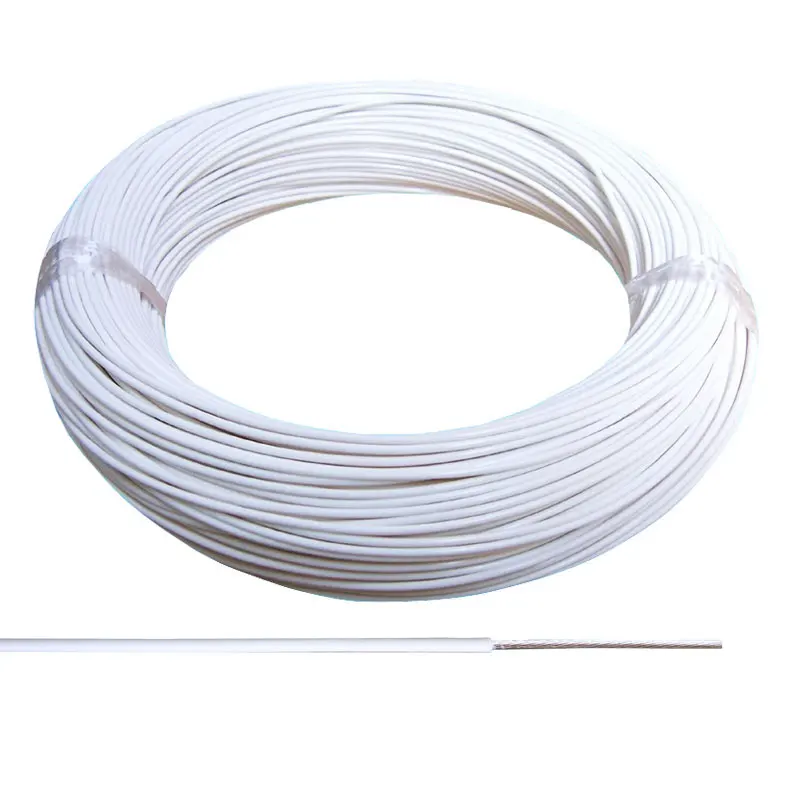

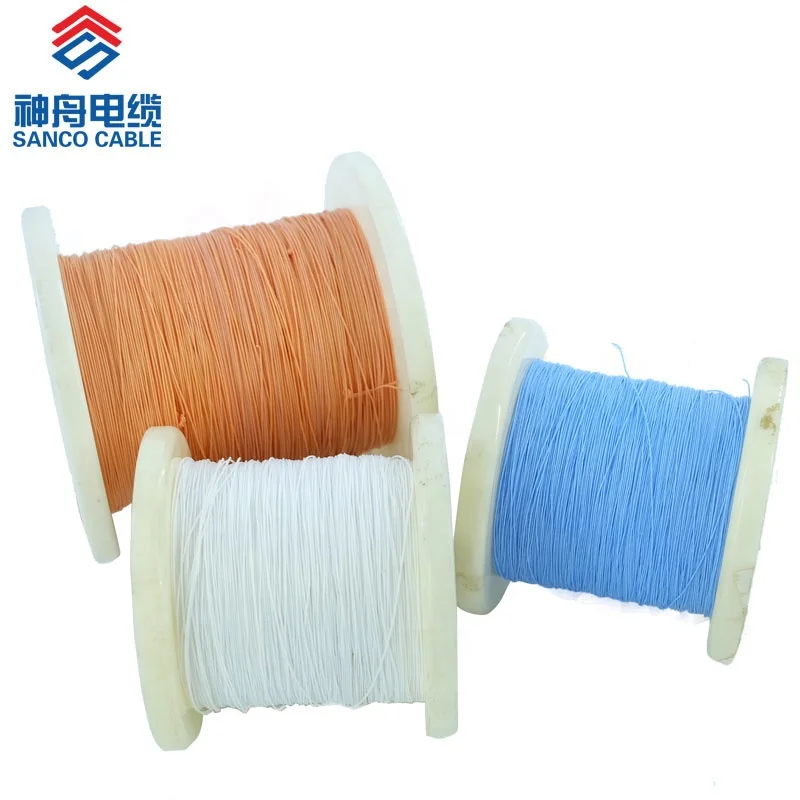

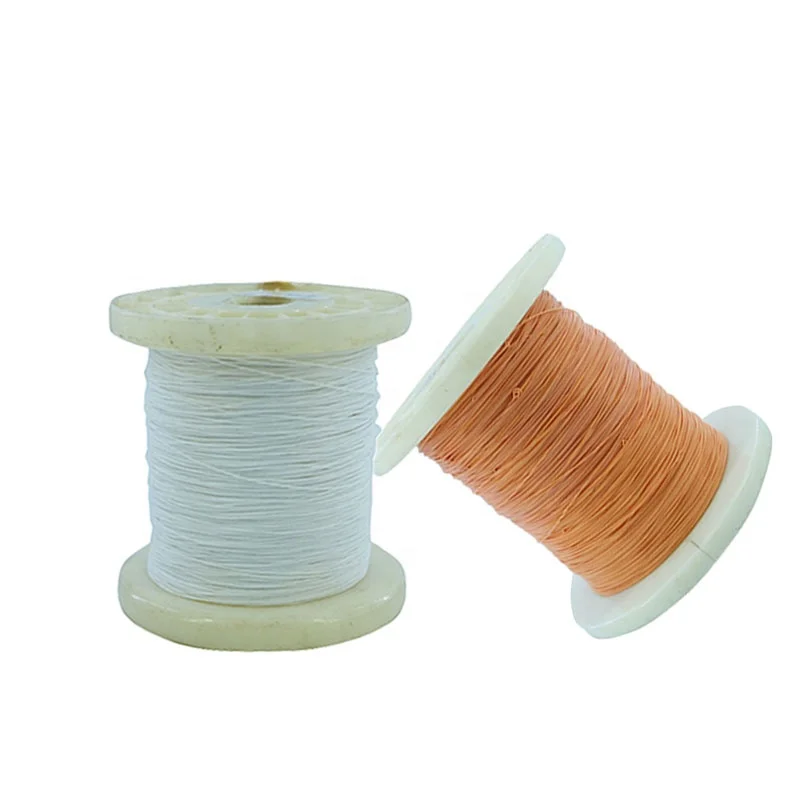

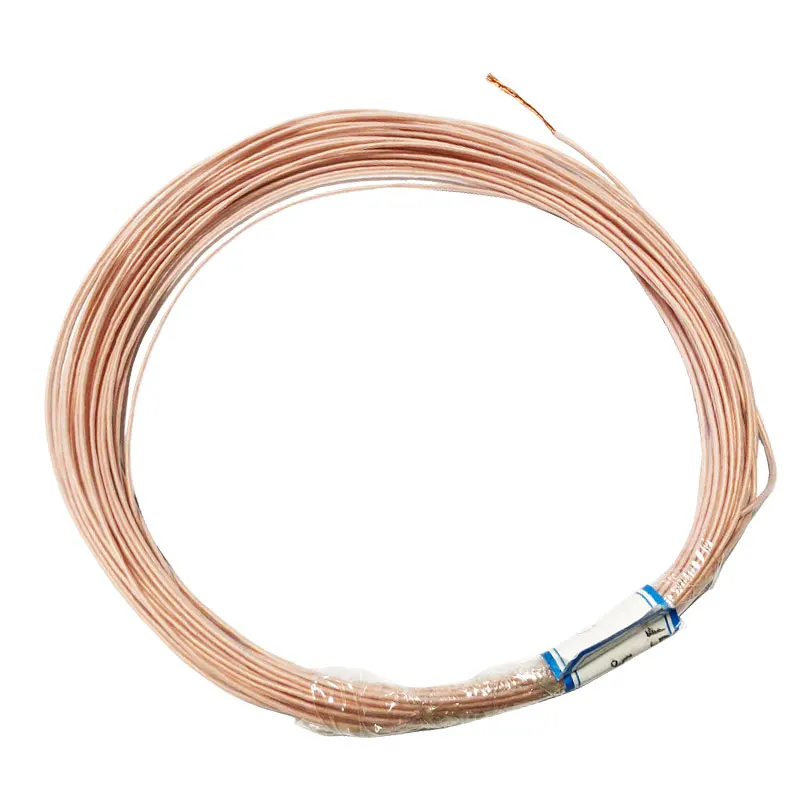

19/0.15mm 0.35mm2 PTFE Coated High Temp Wire
- Category: >>>
- Supplier: Xiangtan Shenzhou Special Cable Co. Ltd.
Share on (62494066153):
Product Overview
Description
19/0.15mm 0.35mm2 PTFE Coated High Temp Wire
Product Description
Application: PTFE Wire is used for Oil equipment, Electric machinery, Automotive cables, Outdoor lighting, PTC thermistors, Electric components etc.
PTFE Cable can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and fire-resist wire; household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.
Product Features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance; flame-retardant, Anti-ageing, long age of usage.
Cable Specifications:
Conductor Materials | Silver Plated Copper or Bare Copper |
Conductor Type | Stranded or Solid |
Insulation | |
Number Core | Single Core or Multiple Cores |
Size | 0.05~4mm2 |
Rated Voltage | 600V or Below |
Rated Temperature | -80~+250ºC |
Color | White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
Type and Name:
| Type | Name |
| AFR-200 | Bare Copper wire conductor PTFE film insulated lead wire |
| AFR-250 | Silver plated copper wire conductor PTFE film insulated lead wire |
| AFP | Bare Copper wire conductor PTFE film insulated screen lead wire |
| AFP-1 | Silver plated copper wire conductor PTFE film insulated screen lead wire |
| AFRP-200 | Bare Copper wire conductor PTFE film insulation shield lead wire |
| AFRP-250 | Silver plated wire copper conductor PTFE film insulation shield lead wire |
| AFRPF-250, AFPF | Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire |
Cable Structure:
| Wire gauge | Cross-section area | Conductor structure | Max.resistance at 20℃ | Max.OD of wire mm | Reference weight kg/km | ||
| AF-250 | AFP-250 | AF-250 | AFP-250 | ||||
| AWG | mm | mm | Ω/KM | 600V | 600V | 600V | 600V |
| 36AWG | 0.012 | 7/0.05 | 1450 | 0.85 | 1.3 | 0.98 | 3.43 |
| 32AWG | 0.035 | 7/0.08 | 580 | 0.95 | 1.4 | 1.37 | 4.08 |
| 30AWG | 0.05 | 7/0.10 | 380 | 1.05 | 1.6 | 1.67 | 4.63 |
| 28AWG | 0.07 | 7/0.12 | 260 | 1.1 | 1.65 | 2.02 | 5.12 |
| - | 0.1 | 7/0.14 | 180 | 1.2 | 1.75 | 2.42 | 5.76 |
| 26AWG | 0.14 | 7/0.16 | 130 | 1.3 | 1.95 | 2.85 | 6.71 |
| 24AWG | 0.2 | 19/0.12 | 84.5 | 1.4 | 1.98 | 3.85 | 8.22 |
| - | 0.3 | 19/0.14 | 61 | 1.48 | 2.05 | 5.65 | 10.3 |
| 22AWG | 0.35/0.40 | 19/0.16 | 49.5 | 1.6 | 2.2 | 5.74 | 10.5 |
| - | 0.5 | 19/0.18 | 37.1 | 1.8 | 2.4 | 7.39 | 12.2 |
| 20AWG | 0.6 | 19/0.20 | 30.1 | 1.98 | 2.5 | 10.7 | 16.1 |
| - | 0.75/0.80 | 19/0.23 | 22.7 | 2.1 | 2.6 | 10.9 | 16.3 |
| 18AWG | 1 | 19/0.26 | 19 | 2.2 | 2.9 | 13.3 | 19.2 |
| 16AWG | 1.2 | 19/0.28 | 15.3 | 2.4 | 3.1 | 15 | 21.4 |
| - | 1.5 | 19/0.32 | 11.7 | 2.6 | 3.3 | 19.7 | 28.1 |
| 14AWG | 2 | 19/0.37 | 9.45 | 2.9 | 3.6 | 25.2 | 34.5 |
| - | 2.5 | 37/0.30 | 7.4 | 3.6 | 4.2 | 33 | 43.8 |
| 12AWG | 3 | 37/0.32 | 6.03 | 3.5 | 4.3 | 36.9 | 48.1 |
| - | 4 | 37/0.37 | 5 | 3.9 | 4.7 | 47.5 | 63.2 |
| 10AWG | 5 | 37/0.41 | 4.1 | 4.37 | 5.17 | 47.5 | 63.2 |
| - | 6 | 49/0.39 | 3.3 | 5 | 5.9 | 70.1 | 88.6 |
Noted:Extruded ptfe cable core No. and specification are not limited to the above regulation,they could be customized.
Company Informations
Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military, 21 years experience. Cable compounds produced by ourselves, that is why we can keep superior quality and competitive offers for global valued customers. Our Main products are: High Temperature wires, PTFE Wire, FEP Wire, PFA Wire, ETFE Wire, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and so on. Also we have advanced production facility and integrated management system, we also have good cooperation with many universities and research institutes in addition we can customize the cable according to customer's demand. So best quality and cheapest price we can provide you.
Product Flow
EXHIBITION & VISIT
In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India... Also Delegation from Ezeagu Government of Nigeria Visited our factory in 2017, and they became a long time partner with us.
WHY CHOOSE US
PACKING & SHIPPING
FAQ
1).Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China
2).Q:What is your company's strengths?
A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.
3).Q:How do you guarantee your product quality?
A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.
4).Q:What's the warranty of your products?
A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.
5).Q:How can I get the samples?
A: We can make the sample order for you. And if the sample qty is small and available in our stock, we can provide you by free, but the freight should be absorbed by your side.
