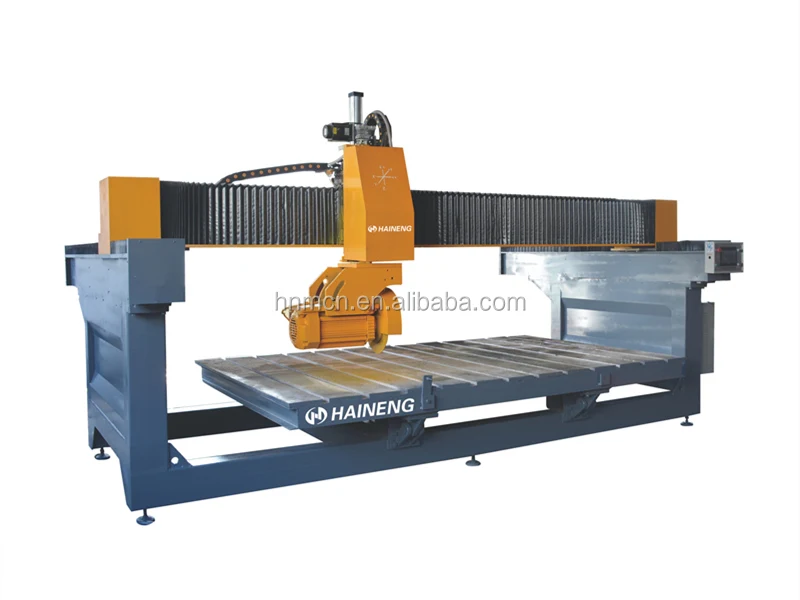

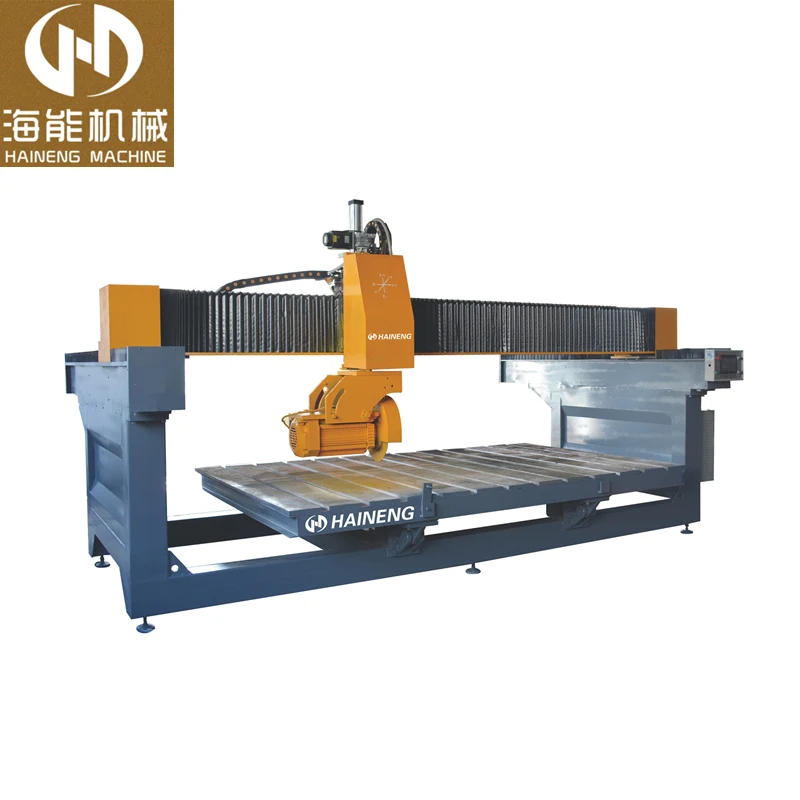

ANY Body type 5 Axis Axes Marble Quartz Dekton Stone Rock Splitting Machine Bridge Saw Cutting Cutter Machine
- Category: Building Material Shop Machines >>>
- Supplier: Quanzhou New Haineng Machinery Co. Ltd.
Share on (62494068217):
Product Overview
Description
The equipment adopts PLC programmable control system and touch screen operation interface, the operation is flexible and simple; the structure of the machine integrates, covers a small area and is easy to install; the main parts of the machine adopt high -quality imported accessories, servo motor, head rotation 0-45-90 degrees, table can turn 85 degrees, the head can automatically chamfer 45 degrees, so that it has a high level. Precision, high stability, high efficiency and so on. It is especially suitable for high value and big board.
Type | Unit | ANY |
Blade diameter | mm | Φ350-Φ400 |
Max. Working dimensions（L×W×H） | mm | 3180×1980×80 |
Worktable size (L×W) | mm | 3100×1900 |
Worktable tilting degree | n° | 0°-85° |
Head rotating degree | n° | 0°-45°-90° |
Head chamfering rotation | n° | 0°-45° |
Main motor power | kw | 9-11 |
Total power | kw | 12.5-14.5 |
Water consumption | m³/h | 3.5 |
Machine weight | kg | 3500 |
Overall dimension（L×W×H） | mm | 4800×2650×2600 |

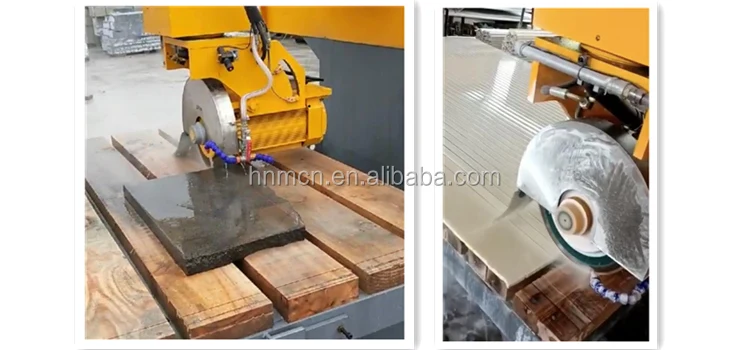

Processing
