4-13 тонн, дистрибьютор асфальта, грузовик и трейлер, дистрибьютор смолистной эмульсии

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description






Product Description

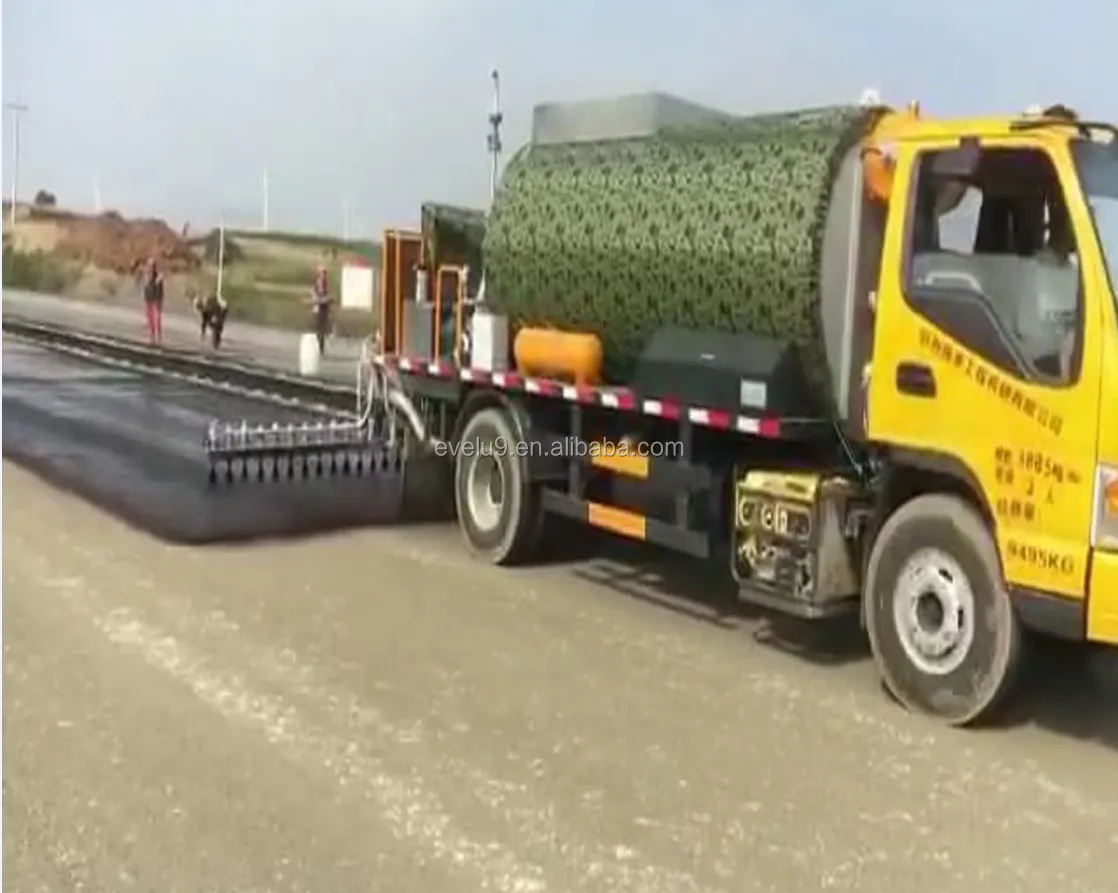

Intelligent Asphalt  Distributor

Intelligent Asphalt Distributor can be applicable to the construction of permeable layer, underlayer sealing, and cohesive layer, as well as the fog seal for each grade of asphalt highway, featuring high precision spraying, reliable performance, and convenient operation. It’s a professionally spraying equipment of emulsified asphalt, diluted asphalt, hot asphalt, heavy traffic asphalt and high viscosity modified asphalt.It is the ideal equipment for the construction and maintenance of asphalt road.





Specifications:



Model

DY5091GLQ



I. Chassis

Chassis model

JAC 4X2

GVW (kg)

9000

Engine

Cummins B140 33



Power (HP)

140

II. Tank and spray

Tank capacity

5000L

Material

Q235 carbon steel coated with stainless steel

Insulate thickness

50mm Fiberglass

Asphalt spray rate (L/m2)

0.25-3.0

Nozzles number

33

Spray width(mm)

4500

III. Hydraulic and transmission system

Power take off

from the gearbox

Hydraulic pump

CBQ-F540

Hydraulic motor

L2F63W2P2(Liyuan Brand)

Asphalt pump

QGB450

IV. Control system

PLC

Siemens



Display

TFT color touch screen

Nozzles control

Each pneumatic cylinder control by solenoid valve

V. Heating system

Generator

EC6500 Honda, Japan



Heating transfer oil Tube

Transfer the heating in tank, asphalt pump and spray bar

Temperature control

E5AZ Omron, Japan



Burner

RIELLO G20, Italy





Model

DY5160GLQ



I. Chassis Requirements

Chassis model

4X2

GVW (kg)

9000

Engine

≥160HP

Wheelbase

≥4500mm

II. Tank and spray

Tank capacity

8000L

Material

Q235 carbon steel coated with stainless steel

Insulate thickness

50mm Fiberglass

Asphalt spray rate (L/m2)

0.25-3.0

Nozzles number

39

Spray width(mm)

6000

III. Hydraulic and transmission system

Auxiliary engine

25KW

Hydraulic pump

CBQ-F550

Hydraulic motor

L2F63W2P2(Liyuan Brand)

Asphalt pump

QGB450

IV. Control system

PLC

Siemens

Display

TFT color touch screen

Nozzles control

Each pneumatic cylinder control by solenoid valve

V. Heating system

Generator

EC6500 Honda, Japan

Heating transfer oil Tube

Transfer the heating in tank, asphalt pump and spray bar

Temperature control

E5AZ Omron, Japan

Burner

RIELLO G20, Italy



Model

DY5250GLQ



I. Chassis

Chassis model

HOWO6X4

GVW (kg)

25000

Engine

WD615

Power (HP)

290

II. Tank and spray

Tank capacity

12000L

Material

Q235 carbon steel coated with stainless steel

Insulate thickness

50mm Fiberglass

Asphalt spray rate (L/m2)

0.25-3.0

Nozzles number

39

Spray width(mm)

6000

III. Hydraulic and transmission system

Power take off

from the gearbox

Hydraulic pump

CBQ-F563

Hydraulic motor

LY-A2F107W2P2(Liyuan Brand)

Asphalt pump

QGB950

IV. Control system

PLC

Siemens

Display

TFT color touch screen

Nozzles control

Each pneumatic cylinder control by solenoid valve

V. Heating system

Generator

EC6500 Honda, Japan

Heating transfer oil Tube

Transfer the heating in tank, asphalt pump and spray bar

Temperature control

E5AZ Omron, Japan

Burner

RIELLO G20, Italy



 Introduction:









Product pictures:
