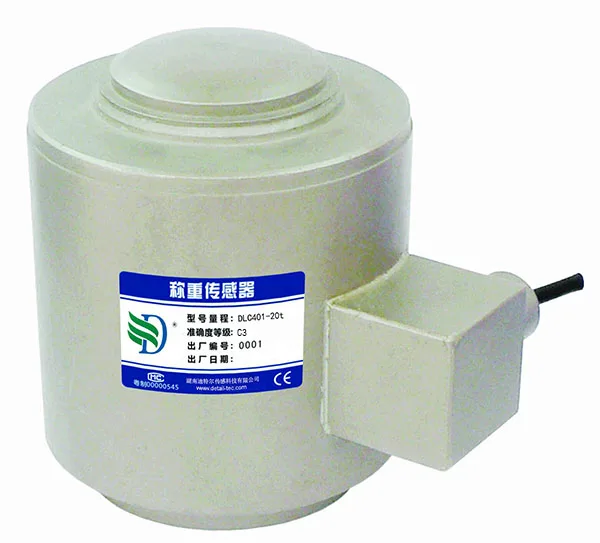

10, 25, 40, 60, 100 ton column style digital load cell

Product Overview

Description

10, 25, 40, 60, 100 t  column style digital load cell

Model: DLC401

Category: column load cell

Range: 10t 25t 40t 60t 100t

Material: Alloy steel

Features: The sensor elastomer is made of alloy steel; it can provide welded seals; high precision and high reliability.

Application: Widely used in various weighing and measuring equipment such as electronic platform scales, truck scales and floor scales.



 Installation dimension specification (unit: mm):

Force diagram:





Detailed specifications of conventional sensor specifications:



Range (t): 10, 25, 40, 60, 100
Accuracy level : C3	Sensitivity temperature effect (%F.S/10°C): ±0.017
Comprehensive error (%F.S) : ±0.02	Zero temperature effect (%F.S/10°C) ±0.023
Sensitivity (mv/v) : 2.0±0.003	Temperature compensation range (°C ) : -10~+40
Creep (%F.S/30min) : ±0.024	Use temperature effect (°C ) : -20~+55
Zero output (%F.S) : ±1.0	Excitation voltage (V) : 9~12(DC)
Input impedance (Ω) : 450±5	Safety overload range (%F.S) : 150
Output impedance (Ω) 480±5	Extreme overload range (%F.S) : 200
Insulation resistance (MΩ) : ≥5000(100VDC)	Protection level; IP67; IP68





Detailed description of digital sensor technical indicators:



Range (t): 10, 25, 40, 60, 100
Accuracy level : C3	Digital module resolution (code) : 1,000,000
Comprehensive error (%F.S) : ±0.02	Communication Baud Rate (BPS) : 9600
Rated output (counts) : 1,000,000	Communication interface (cable) : RS 485/RS232
Creep (%F.S/30min) : ±0.02	Data refresh frequency (s) : 10~80
Sensitivity temperature effect (%F.S/10°C): ±0.011	Maximum verification scale value (n max) : 5000
Zero temperature effect (%F.S/10°C) : ±0.019	Maximum transmission distance (m) : 1200
Temperature compensation range (°C ) : -10~+40	Bus address number (max) : 32
Use temperature effect (°C ) : -20~+55	Safety overload range (%F.S) : 150
Excitation voltage (V) : 5.5~12(DC)	Protection level : IP67 / IP68





Digital sensor wiring method:

Red line: Incentive ( +) 111 Green line: Signal ( +)
Black line: Incentive ( -) 111 White line: Signal ( -)

Remarks: Four-core shielded cable is used. The standard cable length is 10 meters. If you have special needs, you can provide it according to customer requirements!



Application of column load cell







Working process of column load cell













 Price,Package and Service



1. Price : EXW, FOB, C&F

2. Payment: T/T in advance, PayPal, Western Union.

3. Packing : standard export packing, including instructions and certificate

4. Leading time : 3-20 working days according to order quantity

5. OEM available

6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder

7. 7 days free replace & 1 year free repair for quality warranty
