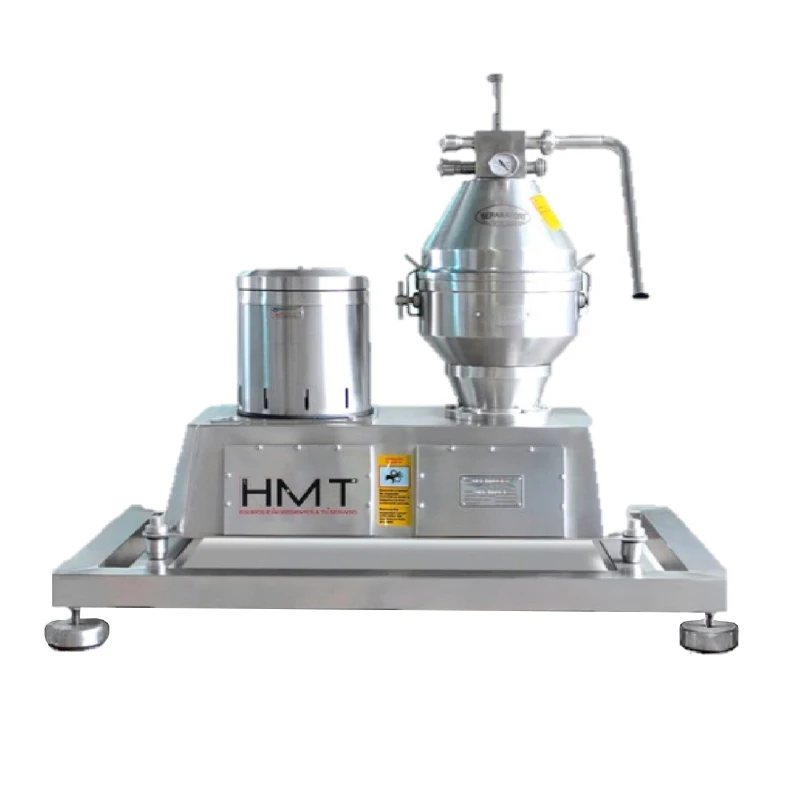

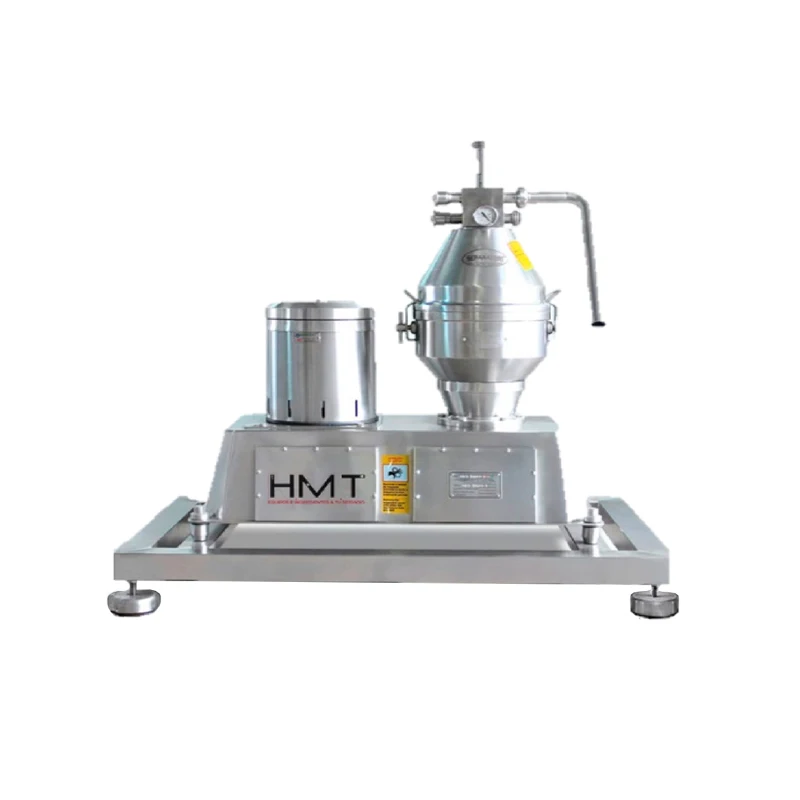

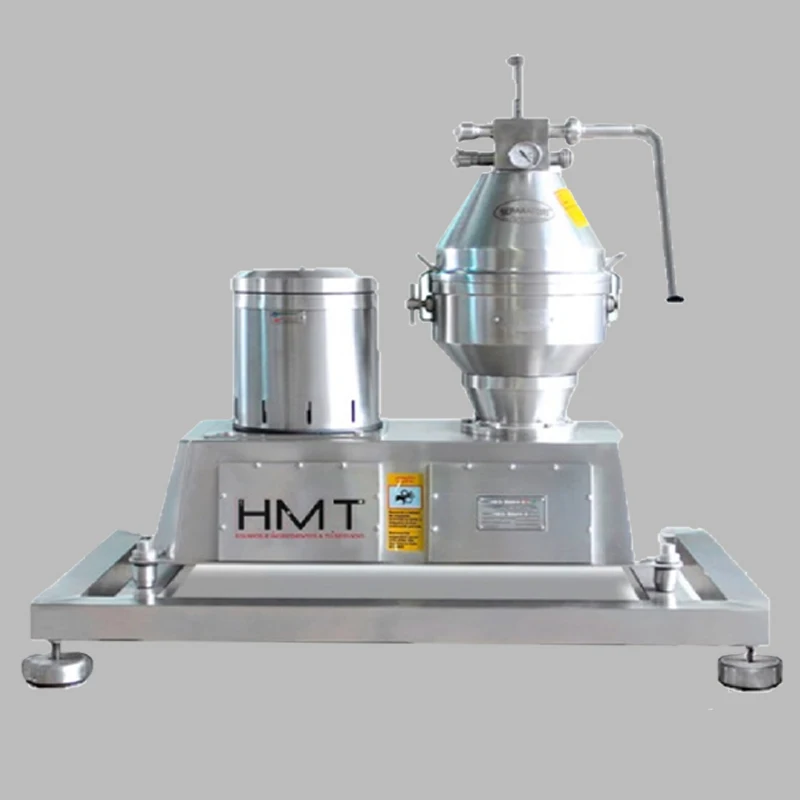

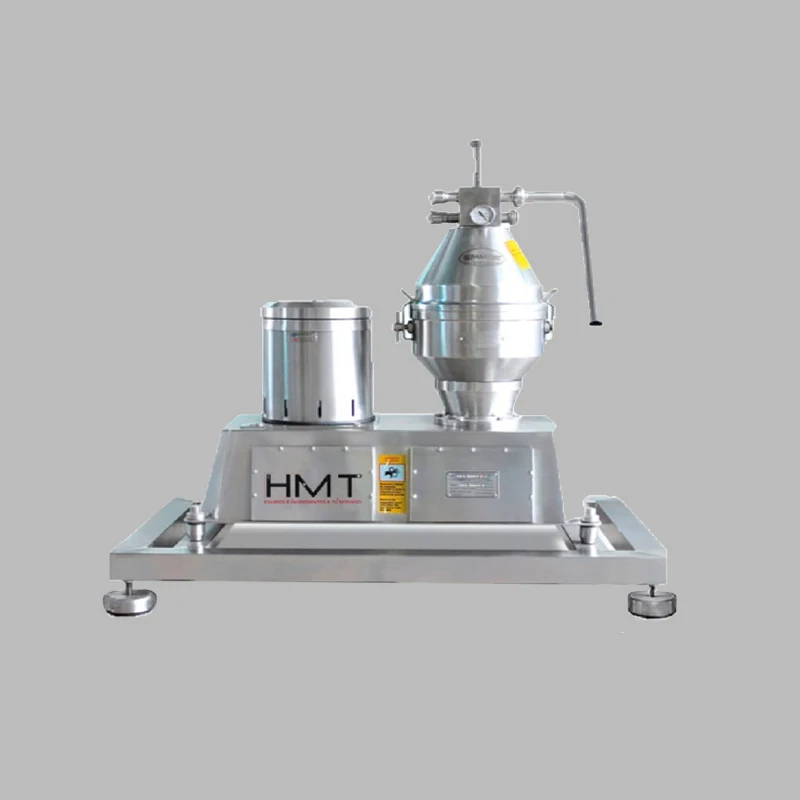

Wholesale Hot Sale Egg Cream Diary Oil Water Alcohol Wine Separator Machine

Homogenizers are an innovative alternative that provides solutions in the food, pharmaceutical and cosmetic industry for the preparation of suspensions, microemulsions, nanoencapsulation and cell lysis. The homogenization causes the rupture of the fatty globules thus decreasing their size and stabilizing the emulsion of the fat against the separation by gravity. The disintegration of the globules is achieved by the combination such as turbulence and cavitation.

Application Fields:
1-Food and beverage industry, such as ice cream, dairy products, juices, marmalade, etc.
2-Cosmetic industry, facial cream, hair toner, shampoo, etc.
3-Pharmaceutical industry, oral fluids, ointments, creams, etc.

4-Chemical industry, pesticides, coatings, antiseptic emulsion dye, resins, rubber latex, viscosity and fat additives, etc.

TECHNICAL INFORMATION H500 MODEL
Motor	Power	Kw/hp	5.5/7
	Voltage	220/480 V
	Frecuency	50/60 Hz
Main performance parameters	Main Work Capacity	l/h	500
	Work Pressure	Mpa/Psi	20/2900
	Work Temperature	F°/C°	176/80
General Specifications	Material Construction	Stainless Steel AISI 304/316
	Gross Weight	600 Kg
	Dimension	1400x1000x2100 mm

Main Features

1) Simple structure ,easy in installation and maintenance

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Double operation of pneumatic or manual valves in one and two stages

4) High efficiency motor with low energy consumption

5) Homogenization Block with high efficiency and low noise level

Detailed Images

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

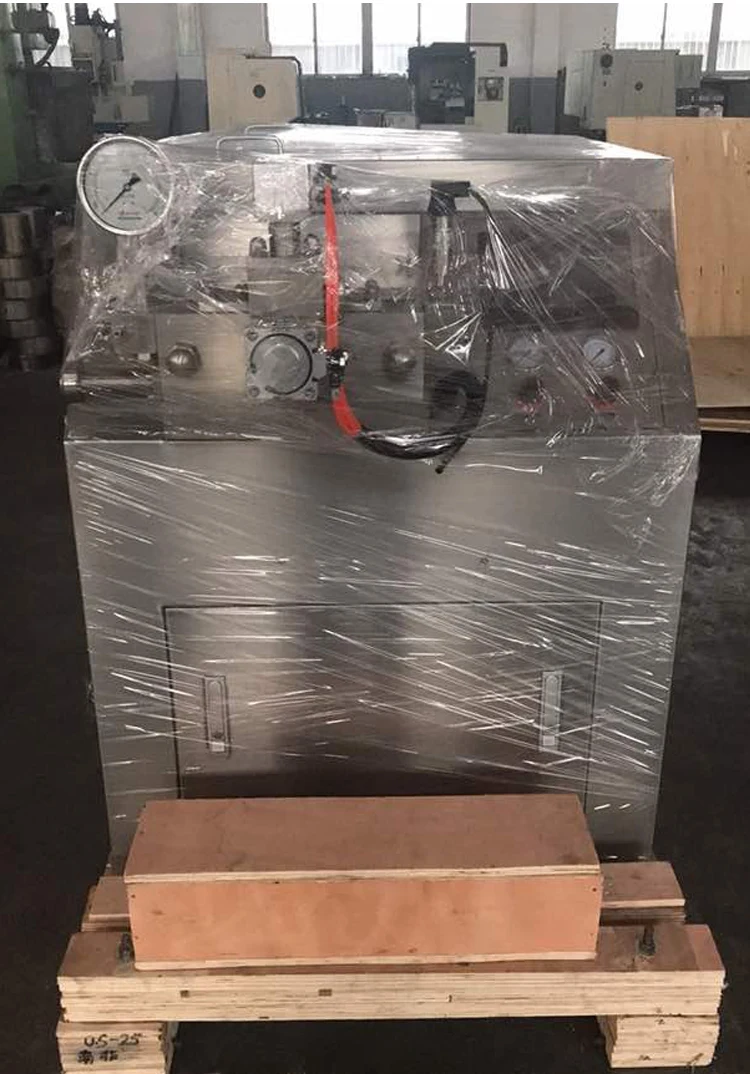

Packaging
Size	1050 (L) * 645 (W) * 1100 (D)
Weight	620 kg
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
