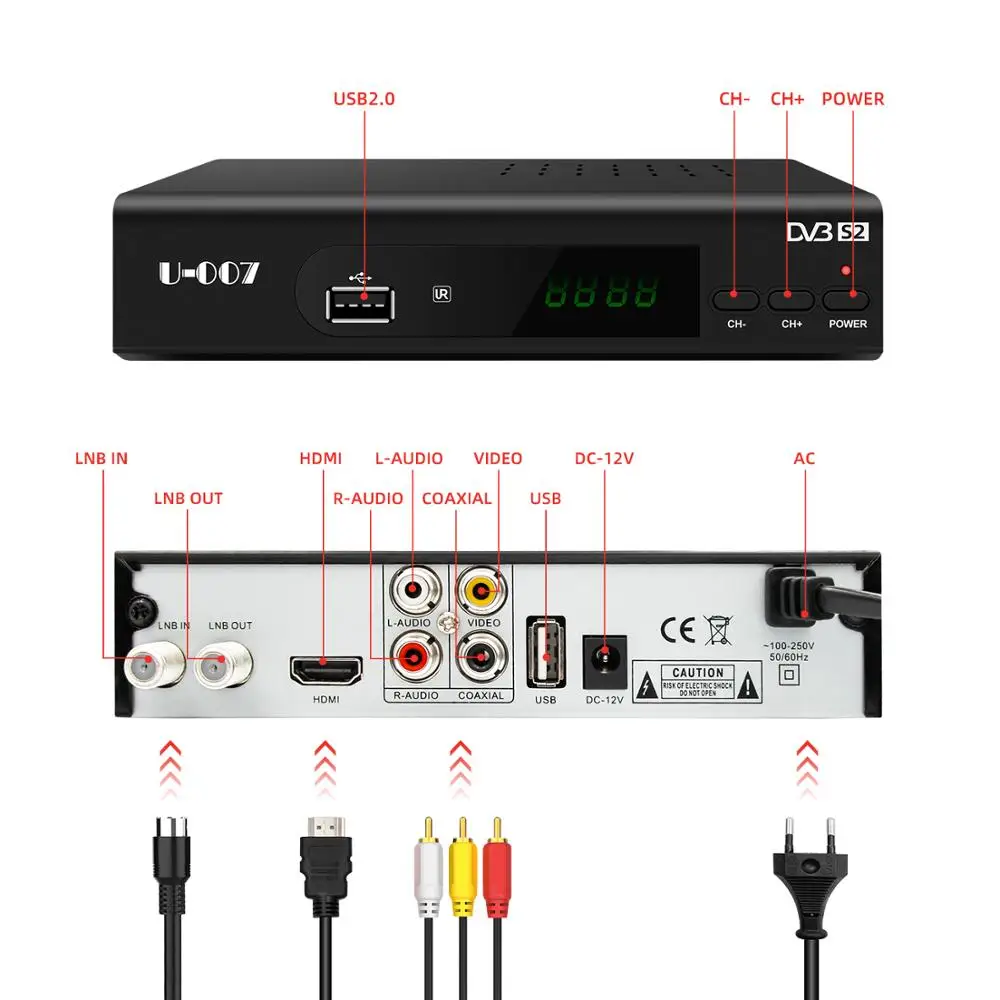

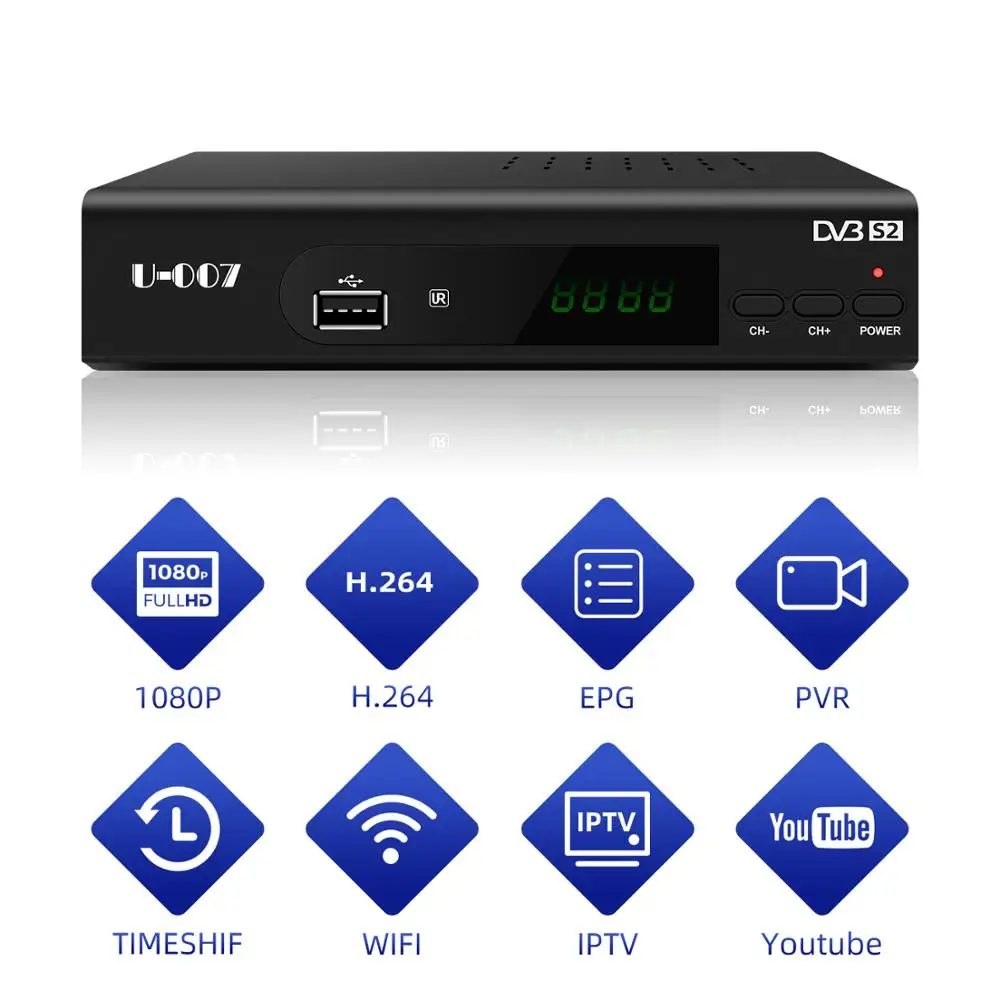

Full HD USB dvbs2 Digital Satellite receiver FTA dvb S2 Set Top Box
- Category: >>>
- Supplier: Shenzhen Huifeng Capital Management Co. Ltd.
Share on (62494344095):
Product Overview
Description
Specification
SPECIFICATION | ||
General Features | CPU Related Features | |
Targeted for High Definition DVB-S2 set top box solution | Sunplus 1506TV | |
3.3V/1.5V/1.8V/1.1V Power supply | Optimized 5 stage pipeline | |
Power down control | Internal operating frequency up to 609MHz | |
Power save mode for every module | Performance up to 730 DMPIS (1.2 DMPIS/MHz) | |
Dual high performance ALI CPU up to 600MHz | Supports non-blocking load operation | |
Built-in Audio HW accelerator | ||
Memory and Bus Interfaces | ||
16-bit DDR2/DDR3 DRAM interface | ||
Dram frequency up 1333 Mbps | ||
DDR density can be 64M bytes, 128M bytes, 256M bytes; 512M bytes | ||
Supports DRAM size up to 512MB for LQFP128 Package | ||
Support S-FLASH with different size: 4M bits, 8M bits,16M bits, 32 Mbts and up to128M bits | ||
Supports S-Flash size up to 32MB | ||
DVB-S2 | Video Decoder | |
Support Symbol Rate range: | MPEG1/2 | |
DVBS: 67.5M | Maximum bit-rate up to 80 Mbps | |
DVBS2 QPSK/8PSK/16APSK: 67.5M | Support HD resolution | |
DVBS2 32APSK: 54M | Support4:0:0 4:1:1 4:2:0 4:2:2 4:2:2T 4:4:4 JPEG | |
Supports Multiple Stream | H264 MPEG4 | |
Supports DVB-S2 QPSK/8PSK/16APSK/32APSK | ISO/IEC 14496-2 (MPEG4) compliant, | |
Supports DVB-S2 pilot signal | supports SP@L3 to ASP@L5 | |
Integrates digital timing and | 1X decode speed for 1920x1088 @ 30fps | |
carrier recovery loop with wide capture range | Real Video, VC-1, AVS/AVS+ | |
Supports fast channel blind search | Display Engine | |
Low power standby mode | High quality scaling for both HD and SD outputs | |
Up to32bit aRGB true color and CLUT graphic planes input | ||
