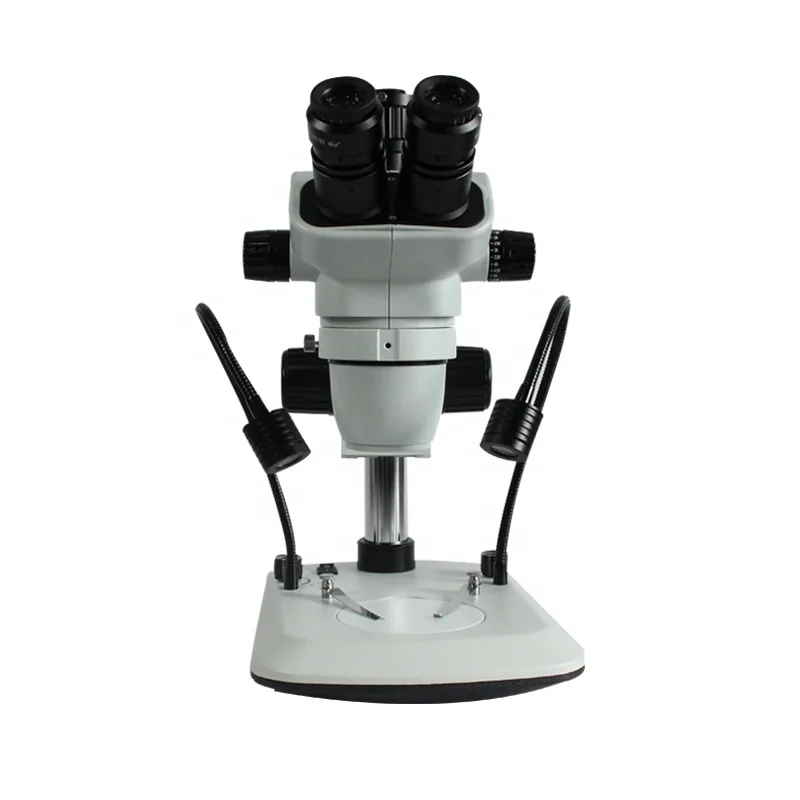

BZ6745 Series 3.4X 270X Binocular Stereo Zoom Microscope Trinocular Microscope for Phone Repair
- Category: >>>
- Supplier: Suzhou Jingtong Instrument Co. Ltd.
Share on (62494373583):
Product Overview
Description
 | High Precision Super High Resolution Maximum Working Distance Best Reproduction & True Color Images |
Product Description
BZ6745 Series Stereo Zoom Microscope is fully coated optical system with super high resolution. It is characterized by brand-new optical design, the best reproduction and true color image.
It is ideally suited for industrial as well as for biological research where high precision, maximum working distance and large field coverage is required.
Features
---3.4X~270X Magnification/p>
---Great Flat & Clarity Images
---Super High Resolution
---Convenient for the Observers with Glasses
---Educational Teaching & Learning; Agricultural Research; Electronic Industrial Inspection & Research
 |  |
Specification
Specification for BZ6745 Series | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 1.5X | Auxiliary Lens 2X | ||||
W.D. 105mm | W.D. 177mm | W.D. 47mm | W.D. 26mm | |||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/22mm | 6.7X | 32.8mm | 3.4X | 65.7mm | 10.1X | 21.9mm | 13.4X | 16.4mm |
45.0X | 4.9mm | 22.5X | 9.8mm | 67.5X | 3.3mm | 90.0X | 2.4mm | |
15X/16mm | 10.1X | 23.9mm | 5.0X | 47.8mm | 15.1X | 15.9mm | 20.1X | 11.9mm |
67.5X | 3.6mm | 33.8X | 7.1mm | 101.3X | 2.4mm | 135.0X | 1.8mm | |
20X/12mm | 13.4X | 17.9mm | 6.7X | 38.5mm | 20.1X | 11.9mm | 26.8X | 9.0mm |
90.0X | 2.7mm | 45.0X | 5.3mm | 135.0X | 1.8mm | 180.0X | 1.3mm | |
25X/9mm | 16.8X | 13.4mm | 8.4X | 26.9mm | 25.1X | 9.0mm | 33.5X | 6.7mm |
112.5X | 2.0mm | 56.3X | 4.0mm | 168.8X | 1.3mm | 225.0X | 1.0mm | |
30X/8mm | 20.1X | 11.9mm | 10.1X | 23.8mm | 30.2X | 7.9mm | 40.2X | 6.0mm |
135.0X | 1.8mm | 67.5X | 3.6mm | 202.5X | 1.2mm | 270.0X | 0.9mm | |
Magnification | 6.7X-45X, 3.4X-270X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm | |||||||
Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1 | |||||||
Aux Lens | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | |||||||
Product Details
 |

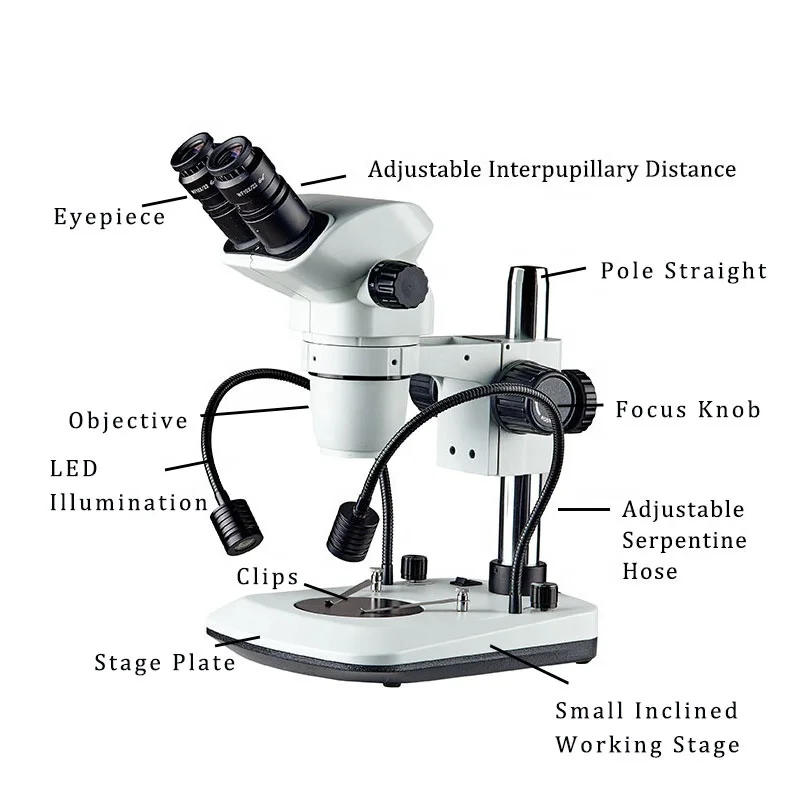

| Structure of BZ6745-PIGL |
 | Head Binocular/Trinocular Head, 45° inclined, 360° rotatable, can be locked in any position desired. WF10X/22mm High-eyepoint, Wide-field. |
Focusing Knob 6.7X-45X, 3.4X-270X with optional eyepieces and objectives. |  |
 | Working Stage Super Large Working Stage, Glass Frosted Stage. |
 |
 |
 |
| Accessories of BZ6745 Series |

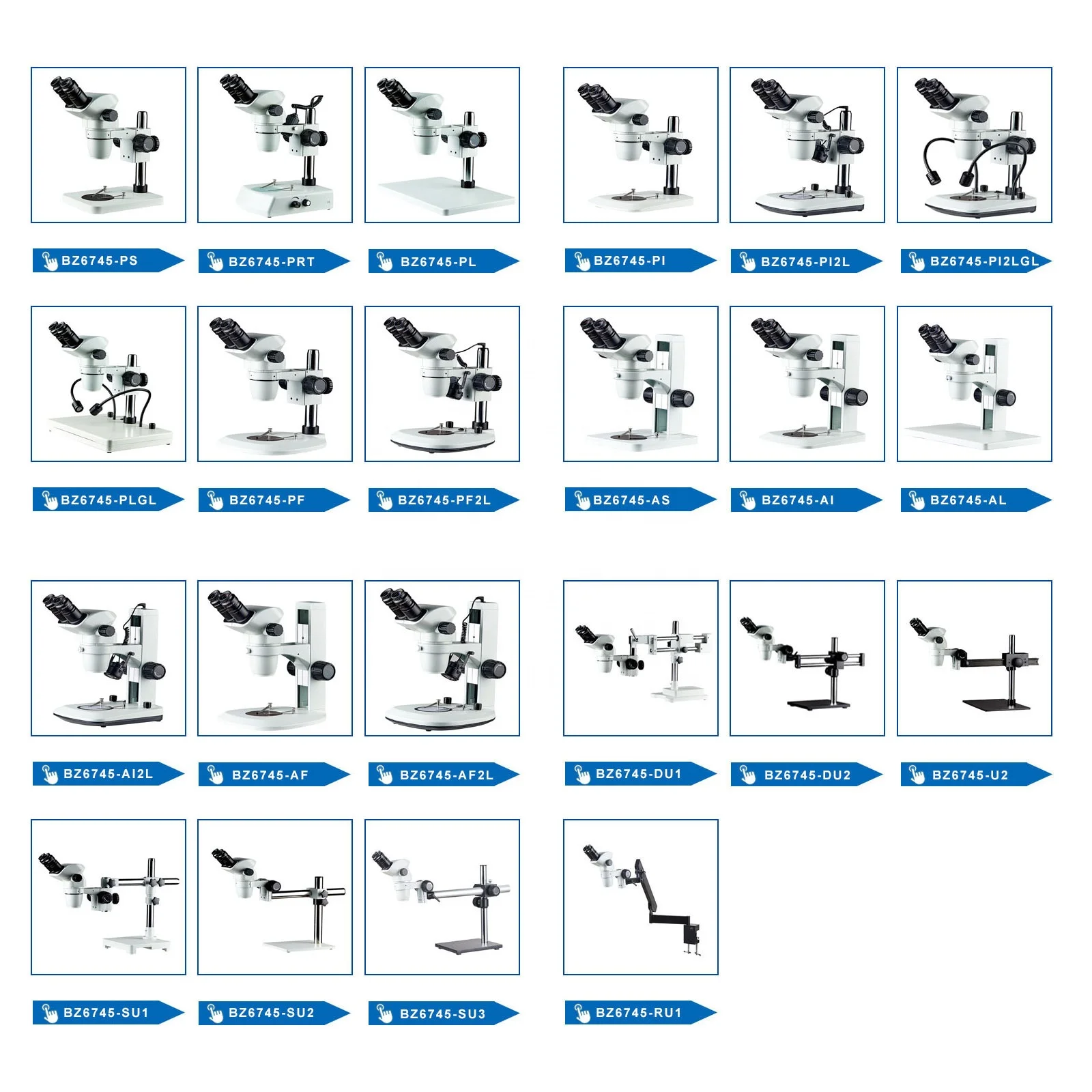

Products Display
 |
 |
 |
 |
Item | Illumination |
|---|---|

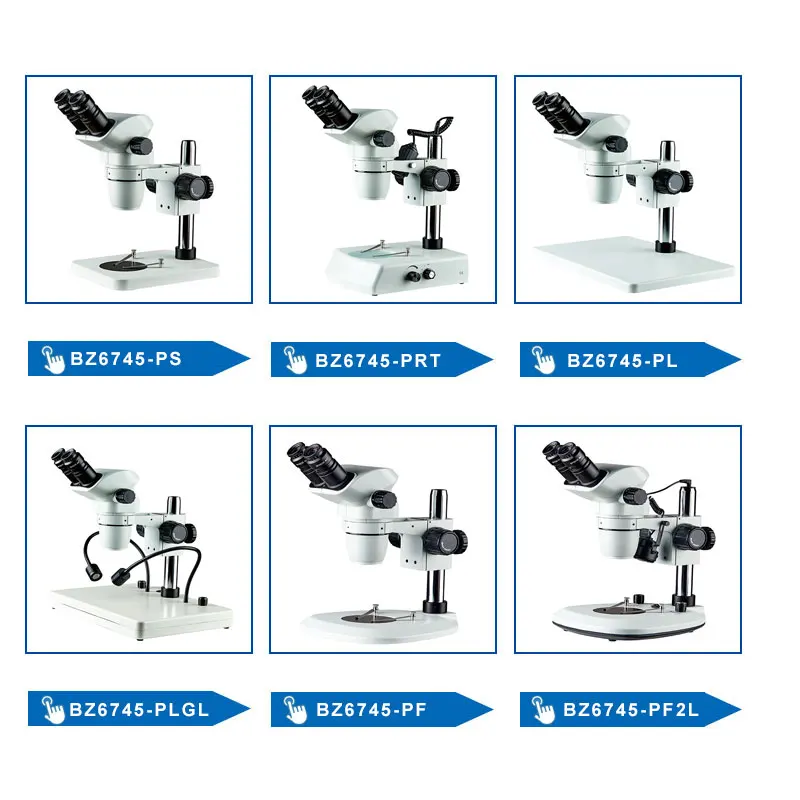

BZ6745 -PS | Fluorescent lamp, LED ring light |
BZ6745 -PRT | Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination |
BZ6745 -PL | Fluorescent lamp, LED ring light |
BZ6745 -PLGL | Double gooseneck LED illumination with independent switches and adjustable intensity |

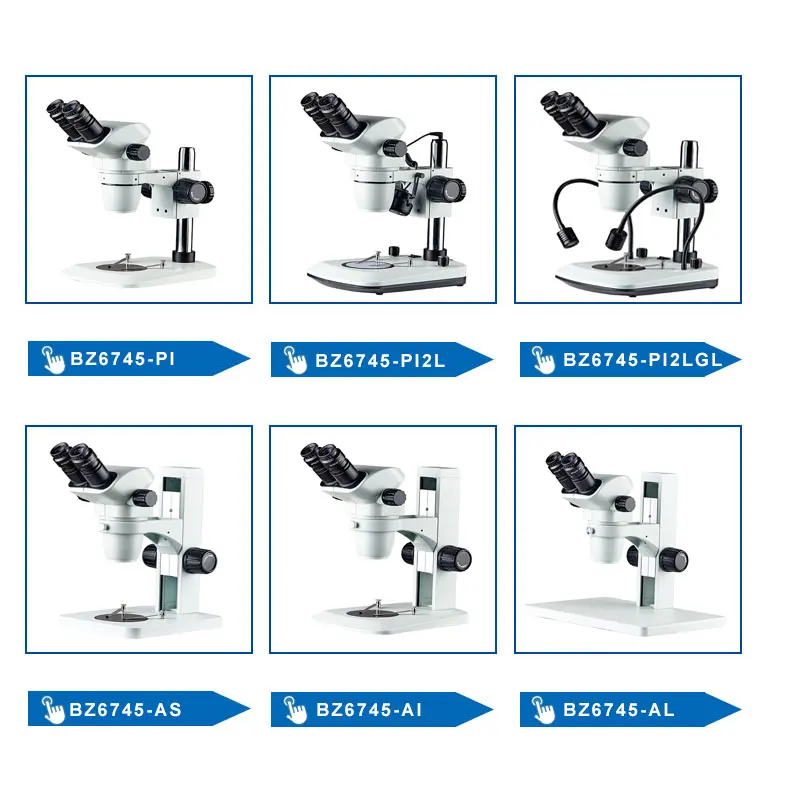

BZ6745 -PI | Fluorescent lamp, LED ring light |
BZ6745 -PI2L | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity |
BZ6745 -PIGL | Double gooseneck LED illumination with independent switches and adjustable intensity |
BZ6745 -PF | Fluorescent lamp, LED ring light |
BZ6745 -PF2L | Transmitted and reflected LED illumination with independent switches and adjustable intensity |
| BZ6745-U2 | Fluorescent lamp, LED ring light |
BZ6745-AS | Fluorescent lamp, LED ring light |
BZ6745-AL | Fluorescent lamp, LED ring light |
BZ6745-AI | Fluorescent lamp, LED ring light |

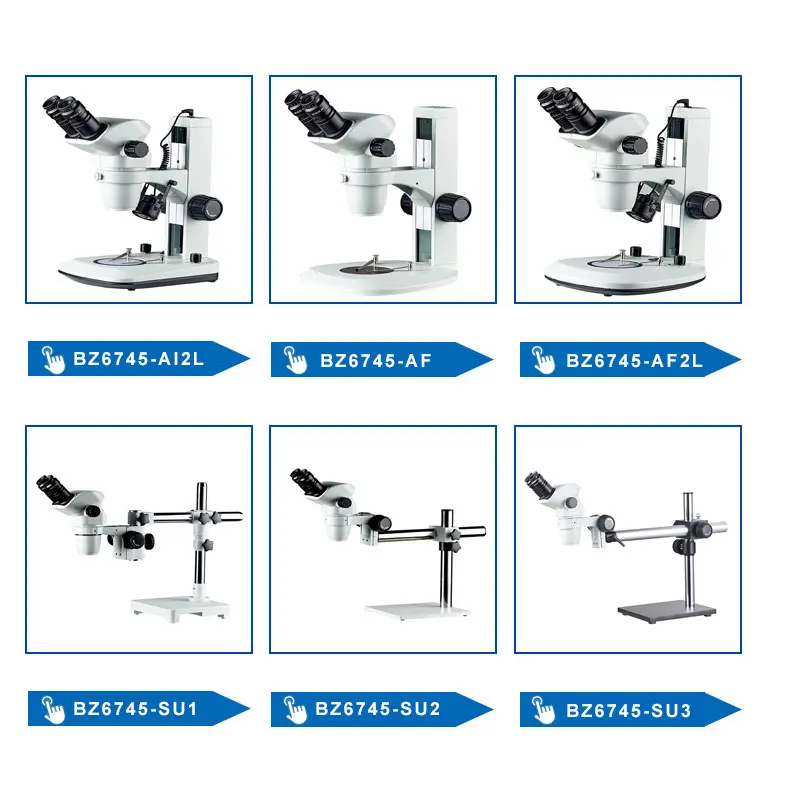

BZ6745-AI2L | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity |
BZ6745-AF | Fluorescent lamp, LED ring light |
BZ6745-AF2L | Transmitted and reflected LED illumination with independent switches and adjustable intensity |
BZ6745-SU1 | Fluorescent lamp, LED ring light |
BZ6745-SU2 | Fluorescent lamp, LED ring light |
BZ6745-SU3 | Fluorescent lamp, LED ring light |

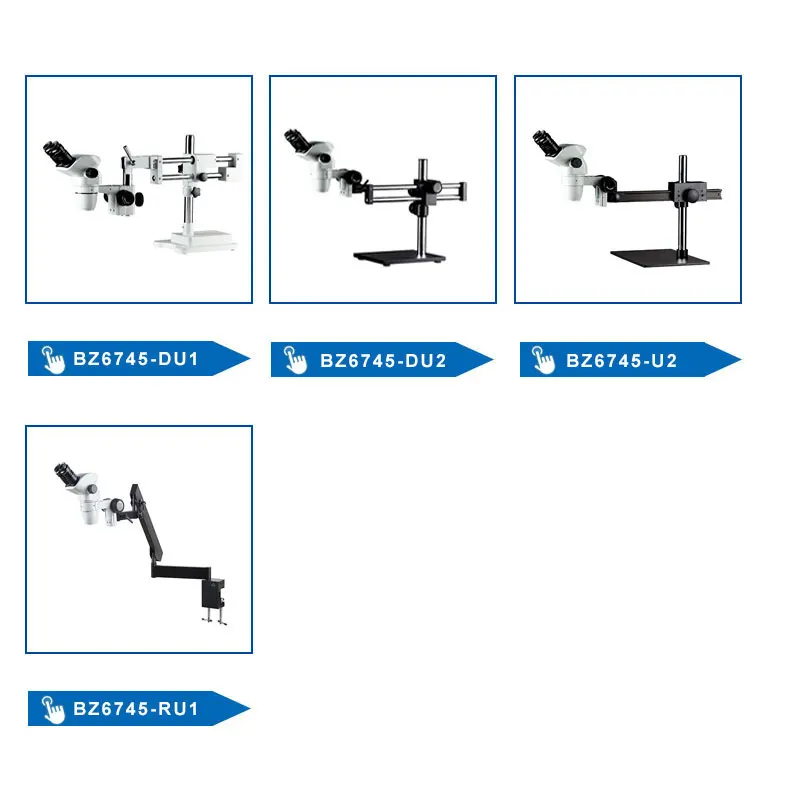

BZ6745-DU1 | Fluorescent lamp, LED ring light |
BZ6745-DU2 | Fluorescent lamp, LED ring light |
BZ6745-RU1 | Fluorescent lamp, LED ring light |
