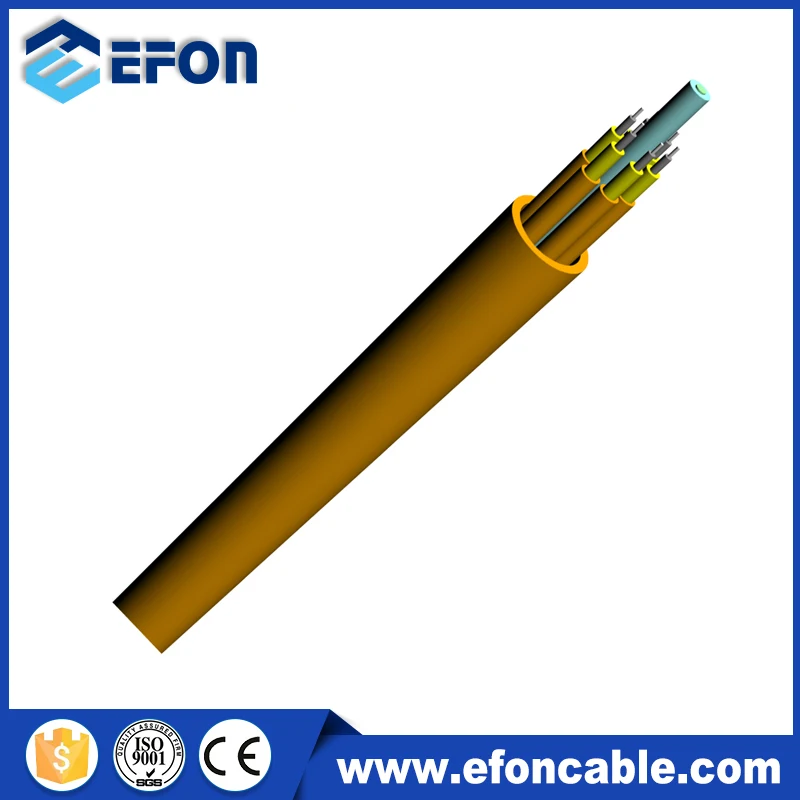

Indoor 1-48 CORE Tight Buffer OM1 OM2 OM3 BOC Multi-Purpose Breakout MM Fiber Optical Cable
Product Description

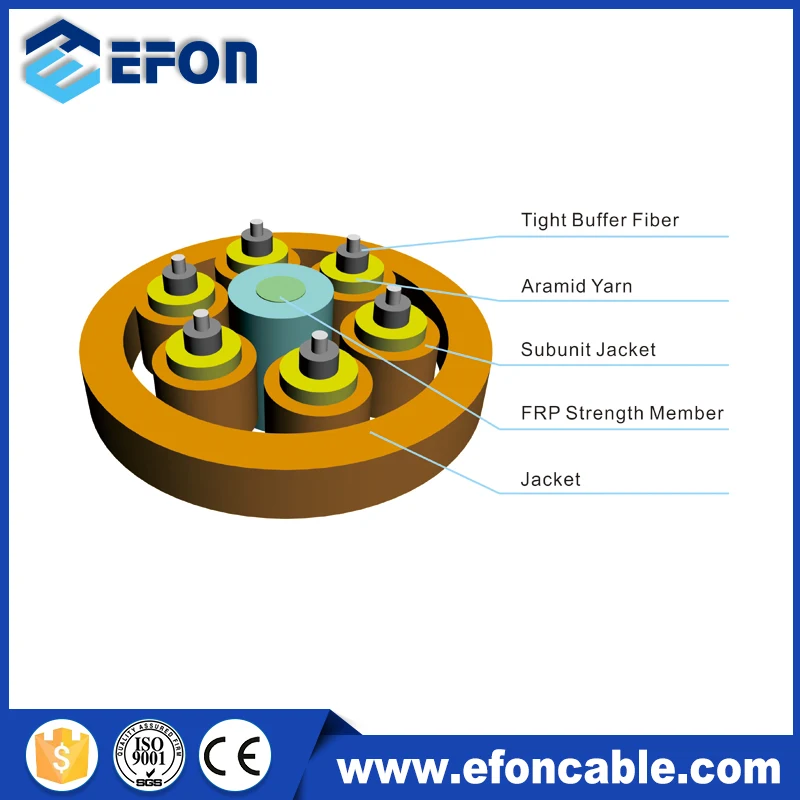

BOC Multi-Purpose Break-Out cable use simplex cable (Φ900µm tight buffer fiber, aramid yarn as strength member) as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.
Product Construction:
Fiber:
900um tight buffer fibers
Strength Member:
Kevlar yarns
Outer Jacket:
Flame resistant PVC or LSZH
Features:
- Stranded non-metallic strength member structure ensure the cable ensure larger tensile strength.
- Aramid yarn as strength member make cable have excellent tensile strength.
- The outer jacket material have many advantages such as anti-corrosion anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
Applications:
- Indoor any purpose cable distribution.
- Backbone distribution cable in a building.
Options:
Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber and OM1, OM2, OM3, OM4 muti mold fiber.
Optical Characteristics
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
Structure and Technical Specification
| Cable Code | Cable Diameter (mm) | Cable Weight (kg/km) |
(N/100mm) | Crush Resistance (N/100mm) | |||
| PVC jacket | LSZH jacket | Short Term | Long Term | Short Term | Long Term | ||
| 4 | 7.4±0.5 | 50 | 56 | 440 | 130 | 1000 | 300 |
| 6 | 8.4±0.5 | 66 | 74 | 660 | 200 | 1000 | 300 |
| 8 | 9.8±0.5 | 91 | 101 | 660 | 200 | 1000 | 300 |
| 12 | 12.4±0.5 | 140 | 155 | 660 | 200 | 1000 | 300 |
| 18 | 12.4±0.5 | 140 | 155 | 1320 | 400 | 1000 | 300 |
| 24 | 14.4±0.5 | 181 | 201 | 1320 | 400 | 1000 | 300 |
| 36 | 16.4±0.5 | 208 | 255 | 1320 | 400 | 1000 | 300 |
| 48 | 19±0.5 | 280 | 344 | 1320 | 400 | 1000 | 300 |
Note :THis datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for
more information.
We produce and test cable comply with following standard:
