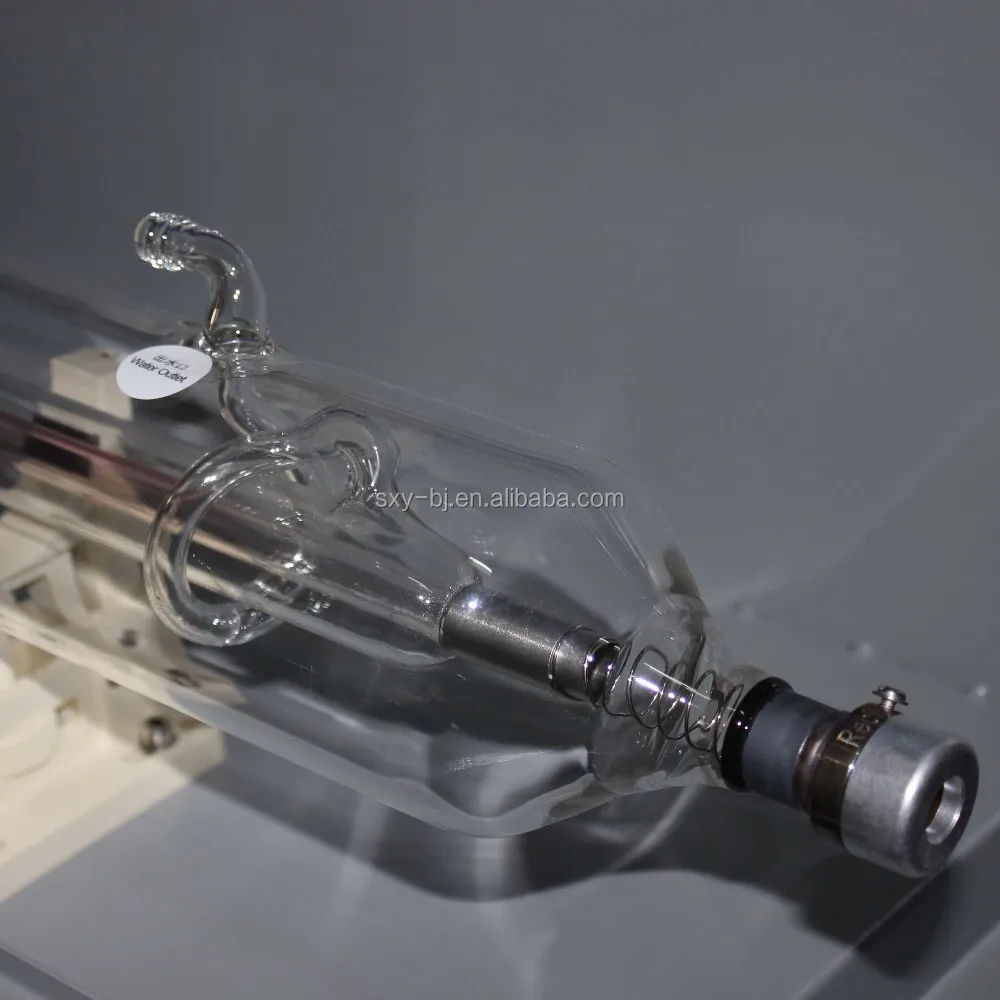

130W ~160W Reci Tube / CO2 Laser Tube for laser cutting machine

Installation Requirement

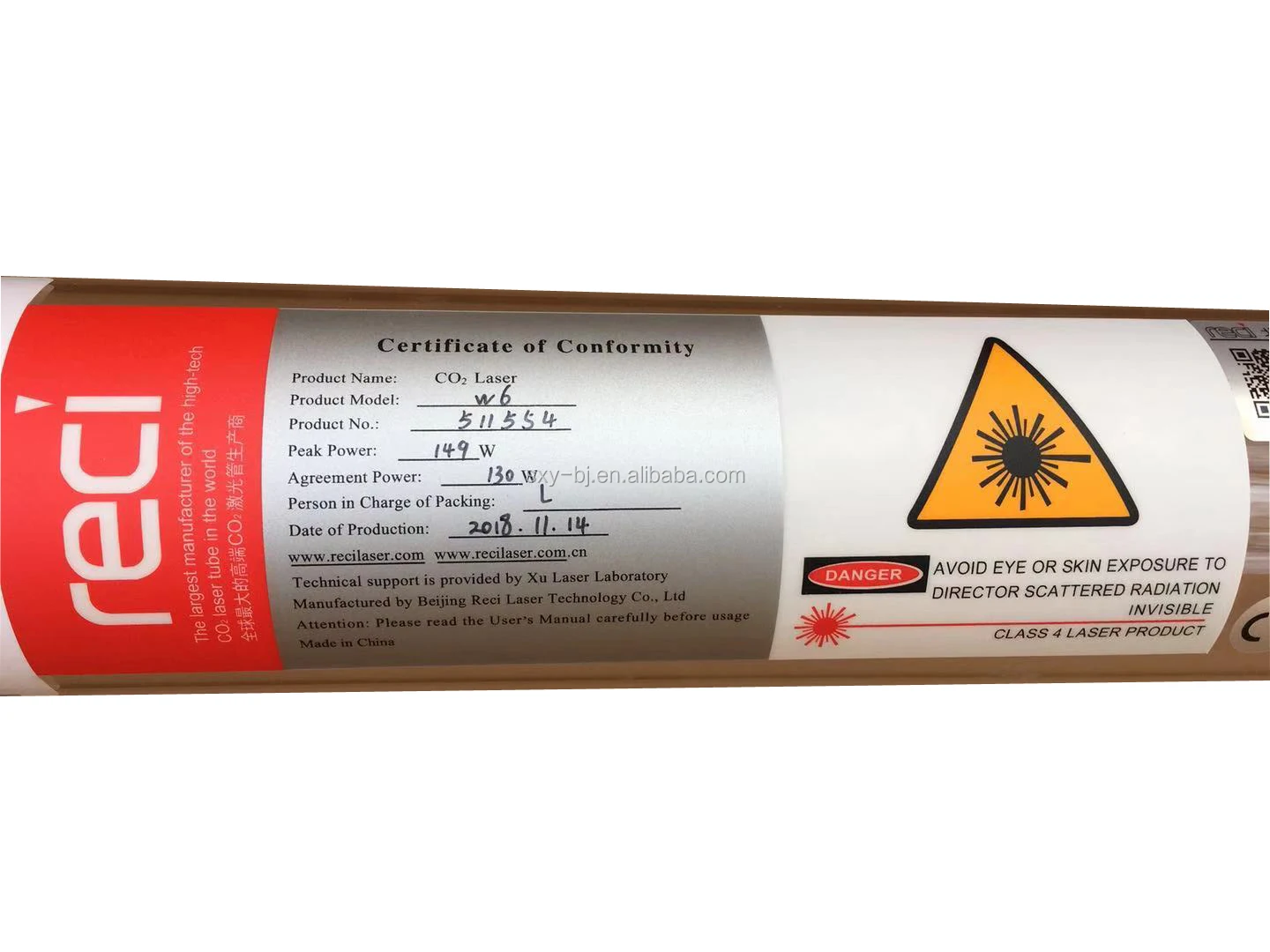

Make sure to follow the operation instruction of model W6 as shown in the illustration. The dedicated power P16 should be equipped. The positive pole of laser tube is in high voltage (the ignition voltage is 28kv). It may cause the following consequence when it is failed to follow the instruction: The cutting speed will be slowed because of the deformation of beam output model; Arcing; the inner tube will be punctured by electricity and may cause water leakage.

Operation conditions

Water cooling: using purified water; 3 to 5 liter/minute; water temperature: 10℃-40℃.
Operating environment: temperature 2-40℃;

humidity 10-60%.

The working current: test current is 32mA. Maximum working current is 32mA. The running current must be kept below 30mA. The life span can reach 10,000 hours if the current is kept below 28mA. The ammeter must be connected to the negative electrode of laser tube.

When it is working under over-high current for long term, the negative pole will appear purple and the life span will be shortened rapidly.

To protect dust from going into the insulation sheath, please wrap it with plastic film.

Working Performance

Cutting function.

Engraving function: Auxiliary engraving. When the working current is 4mA and the tube is in the state of preionization, the laser can be used for high-frequency impulse engraving.
