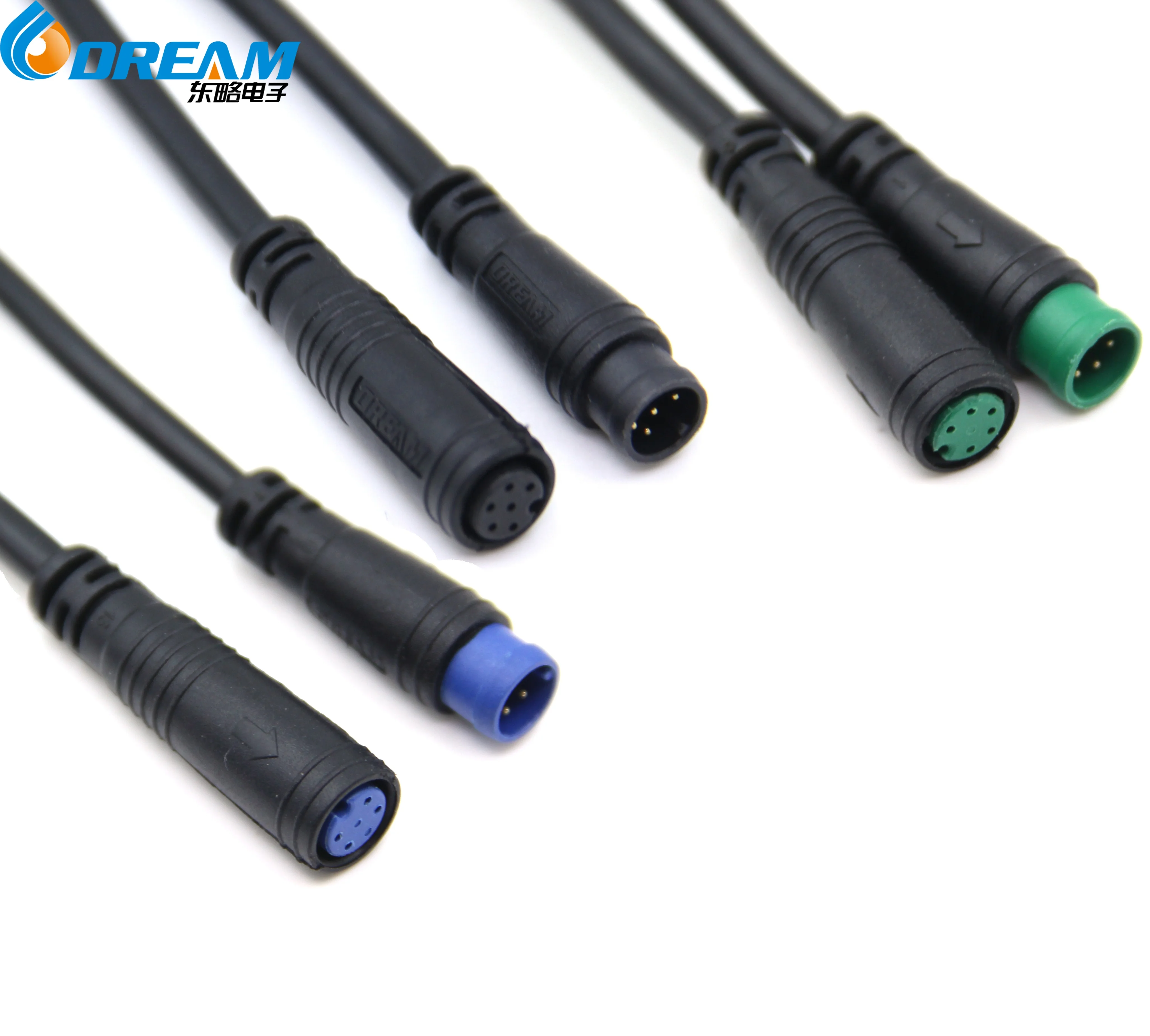

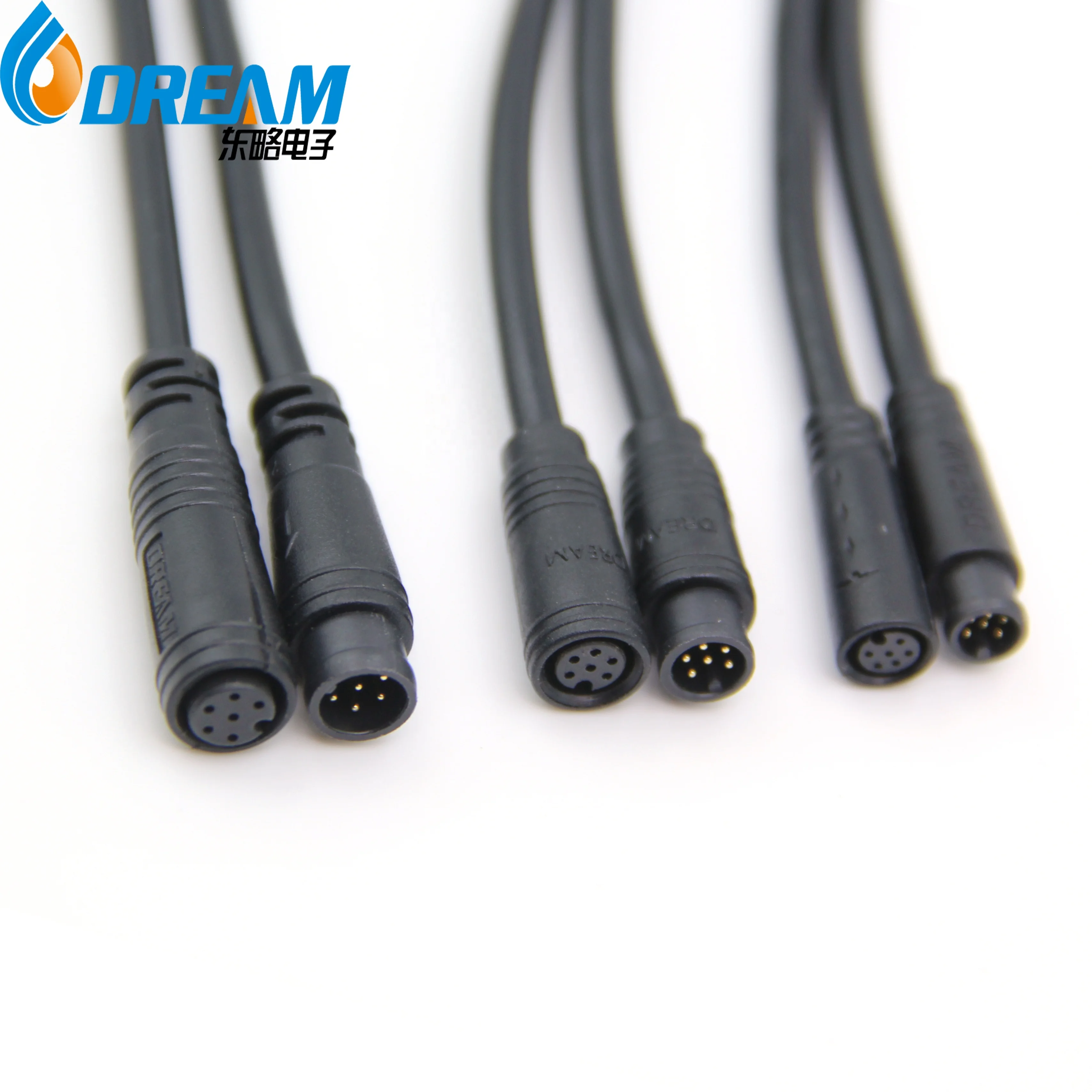

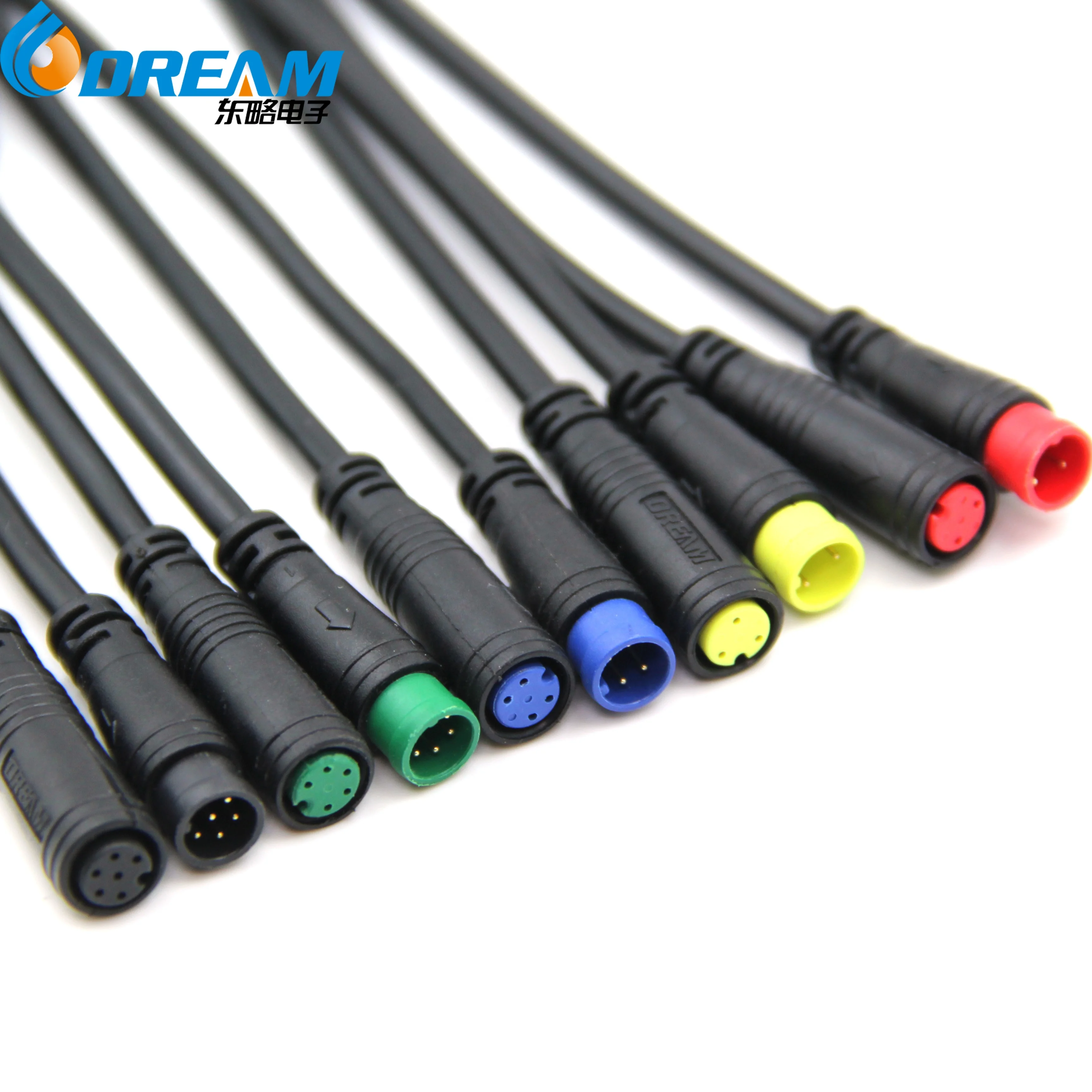

Male or Female 2pin 3pin 4pin 5pin 6pin M8 Electric Bike Connector IP65 Waterproof Connector
1). Direct plug-in docking assembly, simple to use and convenient installation;
2). For low voltage, low current of signal products tailored;
3). The plug with compact structure and dainty appearance, is more suitable for the demand;
4). Innovation and development in 2008, the first generation of electric bicycle universal signal lines.

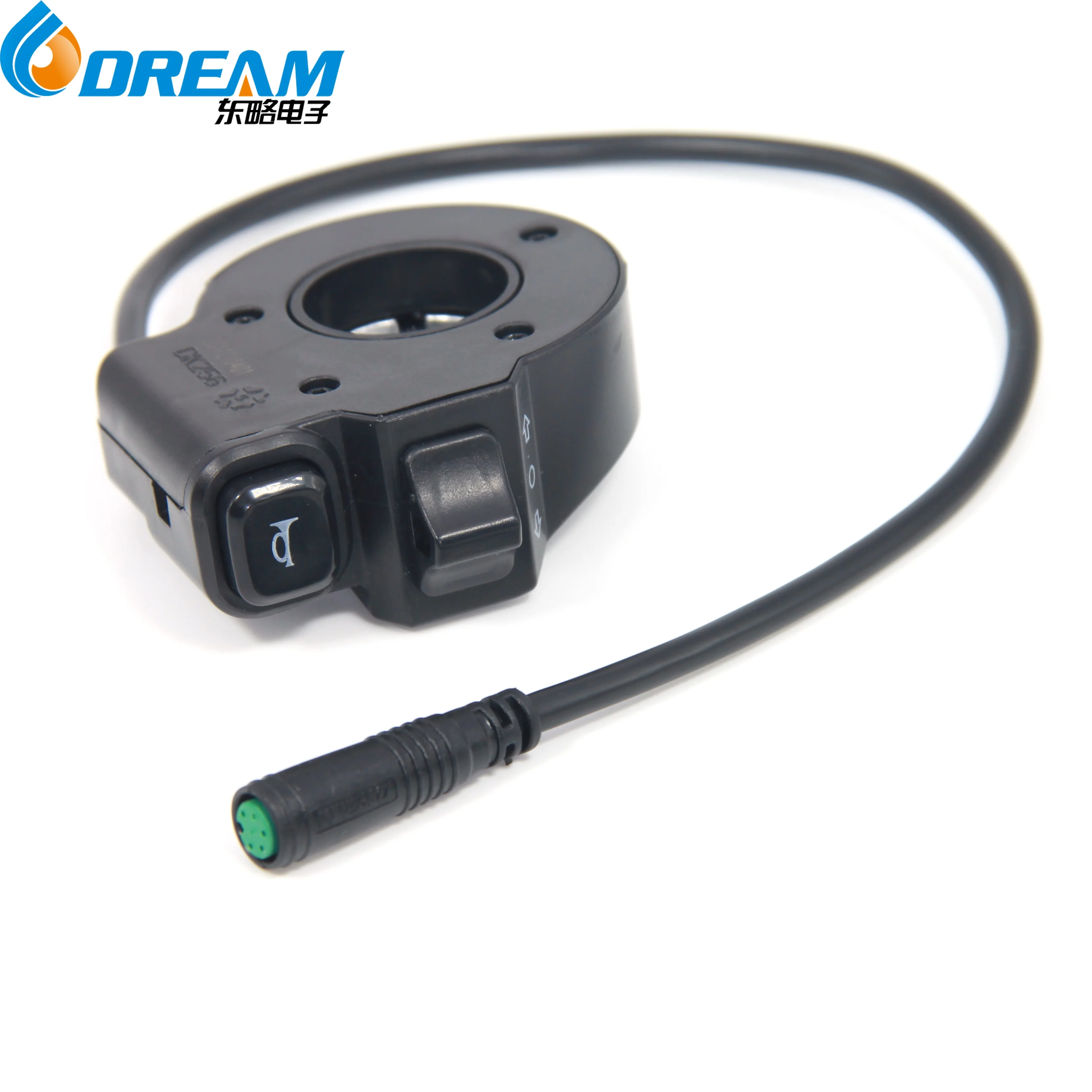

5). Mainly used for led strip, electric bicycle accessories and other signal lines.


Pins number
Reted
current
Reted
voltage
Contact resistance
Insulation
resistance
IP-Code
Cable
Specifications
Cable
Range
2
2A
60V AC
10mΩ
100MΩ
IP65
≤0.3mm²
0-4mm
3
2A
60V AC
10mΩ
100MΩ
IP65
≤0.2mm²
0-4mm
4
2A
60V AC
10mΩ
100MΩ
IP65
≤0.2mm²
0-4mm
5
1.5A
40V AC
10mΩ
100MΩ
IP65
≤0.2mm²
0-4mm
6
1.5A
40V AC
10mΩ
100MΩ
IP65
≤0.2mm²
0-4mm
Other Parameters
Operating Rating: PVC:0~80℃ TPU:-40℃~105℃
Mechanical Life:1500
Connection Mode:Direct Plug-In


Place of Origin pin connector
China m23 connector m16 connector 3 pin connector
adapters connector waterproof connector
Guangdong 6 pin connector 8 pin connector m12 connector 4 pin
Brand Name 10 pin connector
DREAM-START connector pin 5 pin connector female connector
Model Number 16 pin connector
M8 Connector male female connector
Type waterproof cable connector
adapters connector 12 pin connector m5 connector
Application 3 pin male female connector
Aviation/Sensor/Electrical equipment/Industrial etc/Automotive
Gender m8 3 pin connector
Male/Female waterproof wire connector 19 pin connector
Product name 2 pin wire connector
waterproof connector 7 pin connector 2 pin waterproof connector
Color m23 waterproof connector
according to your request to customize 3 pin male connector
Material connector m12
PVC/PUR/TPU 4 pin male and female waterproof connector
Connector type m12 cable connector
waterproof connector 9 pin connector 2 pin male female connector
Certificate m12 connector cable
CE/ROHS/ISO9001/IP68 connector 2 pin m12 connector 5 pin
Pins m8 cable connector
2 3 4 5 6 pin connector
Rated Voltage connector 3 pin
30V-250V 4 pin wire connector connector wire
Rated Current wire cable connector
1.5A-4A m12 waterproof connector connector 8 pin 14 pin connector
Waterproof Rating 15 pin connector
IP67/IP68 waterproof connector 2 pin m16 waterproof connector
MOQ 18 pin connector connector 4 pin
5pcs m12 connector 8 pin cable connector waterproof


Product Description




Packing & Delivery




Company Profile


SHENZHEN DREAM-START ELECTRONICS CO., LTD ,established in 2006, is a high-tech private enterprise intergrating research &development , productions , sales and service . The main products are waterproof plug , waterproof connector and circular connector.

As one of the few professional manufacturers in the industry of waterproof connector , with years of development and accumulation, the company has independent research & development ability , sound production management system and all kinds of testingequipments. Now the company activrly introduce ISO9001 quality management system . DREAM-START has get up the East China office in Kunshan and the North China offices in Tianjin is colsely in preparation , To meet customers growing dermands , our company plans to set up a branch factory in Eastern China within the following two years .
