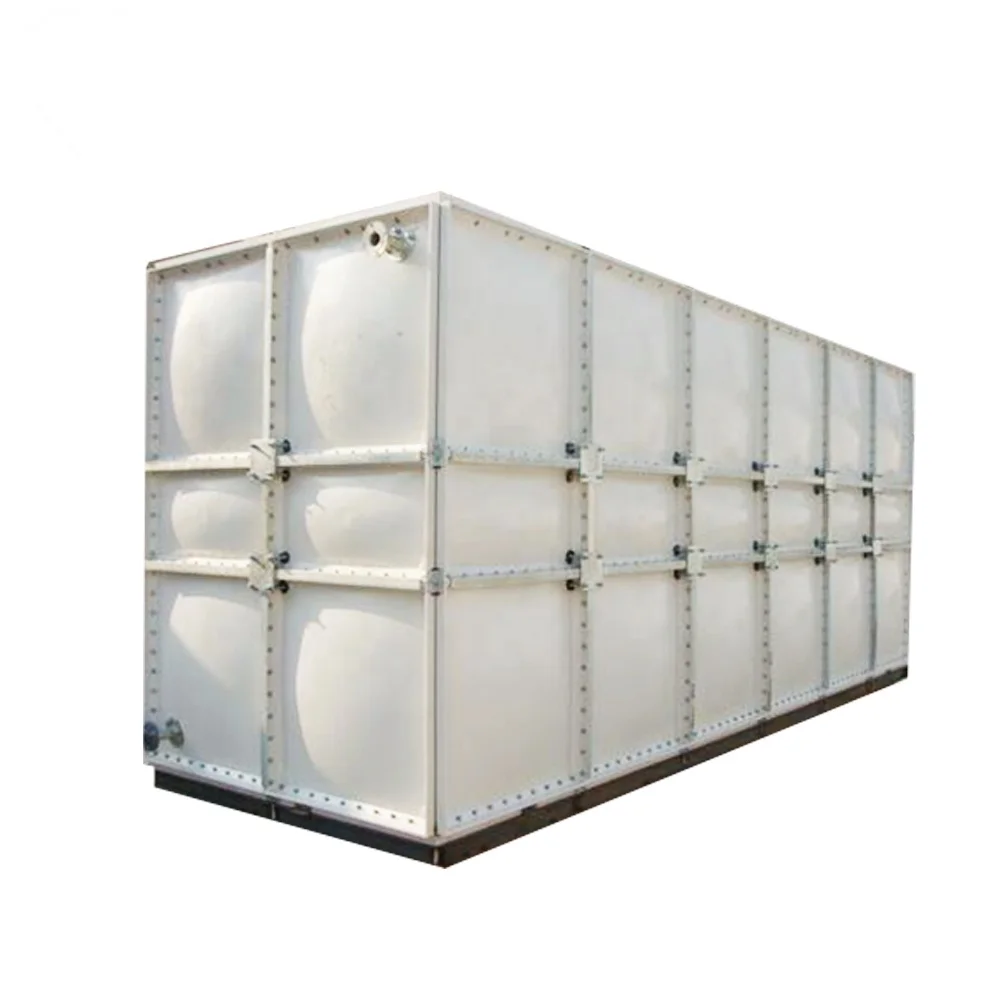

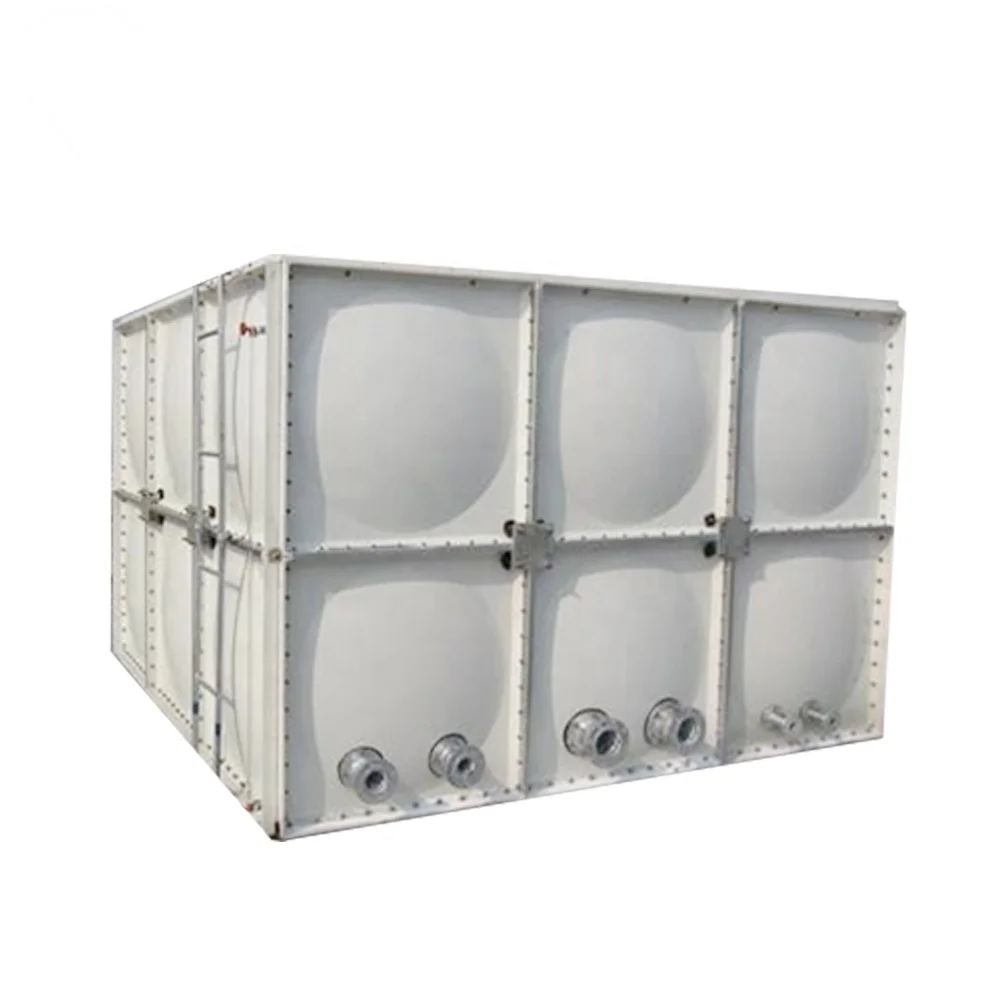

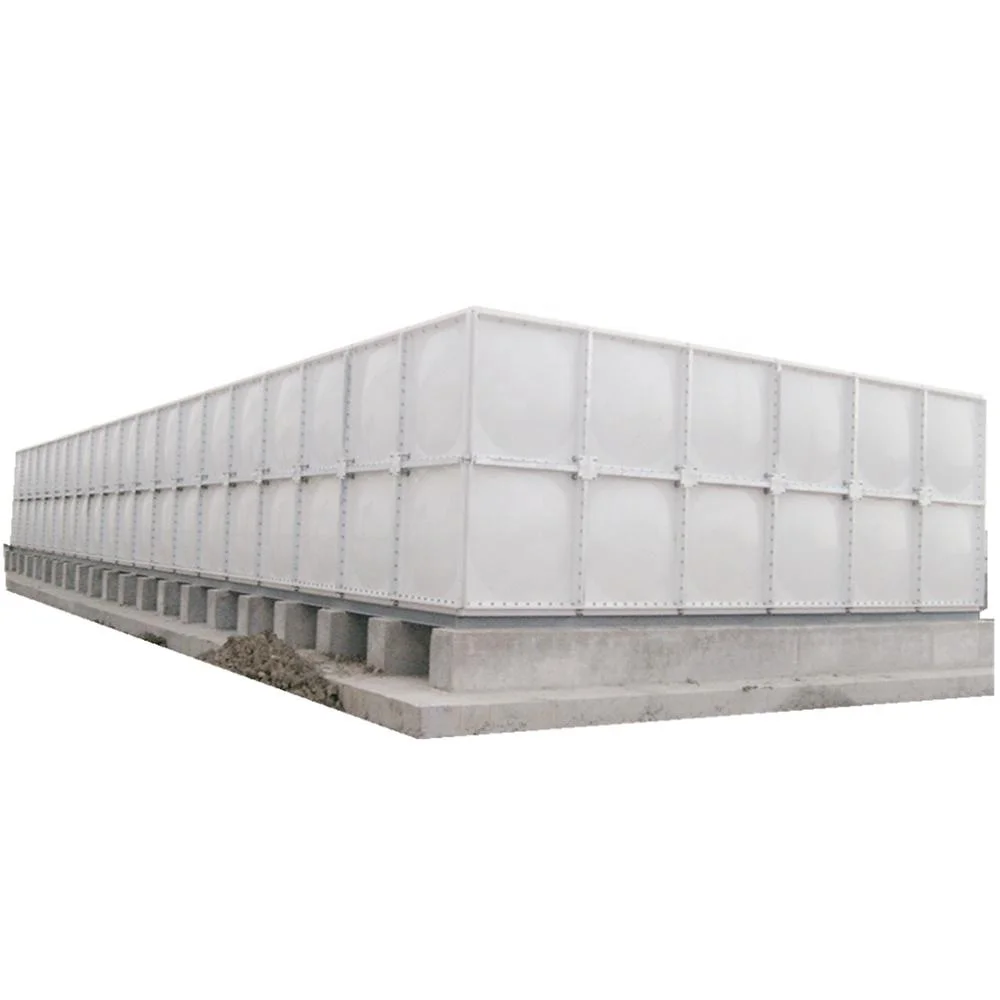

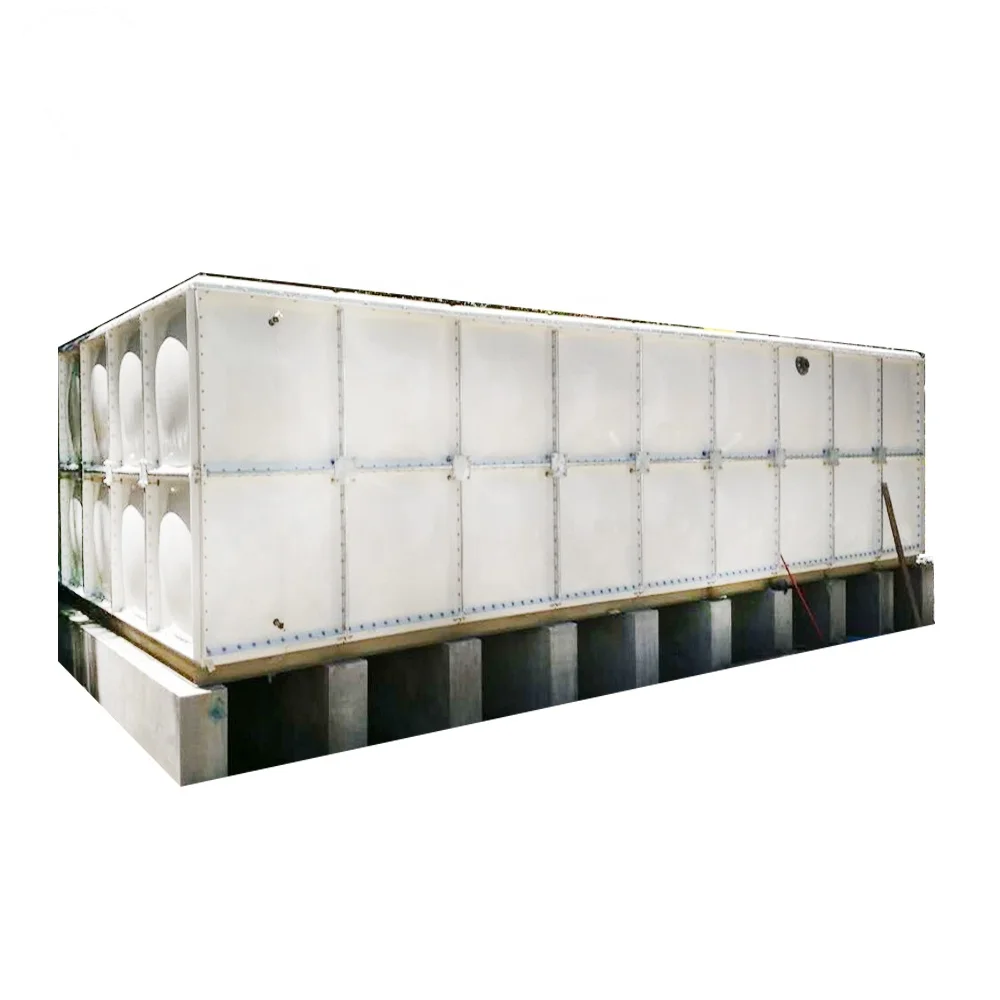

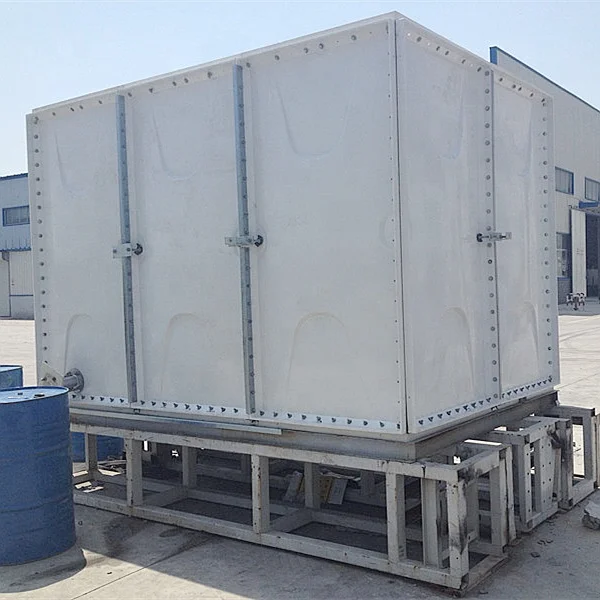

1000 Cubic meters hot sale GRP FRP mould panels bolted water tank for drinking water storage

Product Overview

Description

1000 Cubic meters hot sale GRP FRP mould panels bolted water tank for drinking water storage

SMC water tank is also called SMC storage tank, FRP water tank,GRP water tank, SMC panel tanks. It is a new type of tank. It is made of high qualified SMC panels. Sheet molding compound (SMC) is a kind of fiberglass reinforced plastic, which is a mixture of unsaturated polyester resin with impregnating augmentation material, filling material and glass fiber. SMC water tank is nontoxic, durable, lightweight, corrosion resistant and good-looking. Meanwhile, it's easy to maintain and long-life. It is widely used in water storage in residential buildings, schools, hotel. SMC water tanks are used both for domestic water as well as medicine and health where needs good water supply quality.

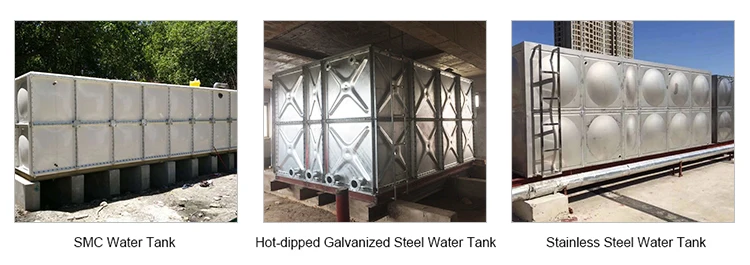

Related Products

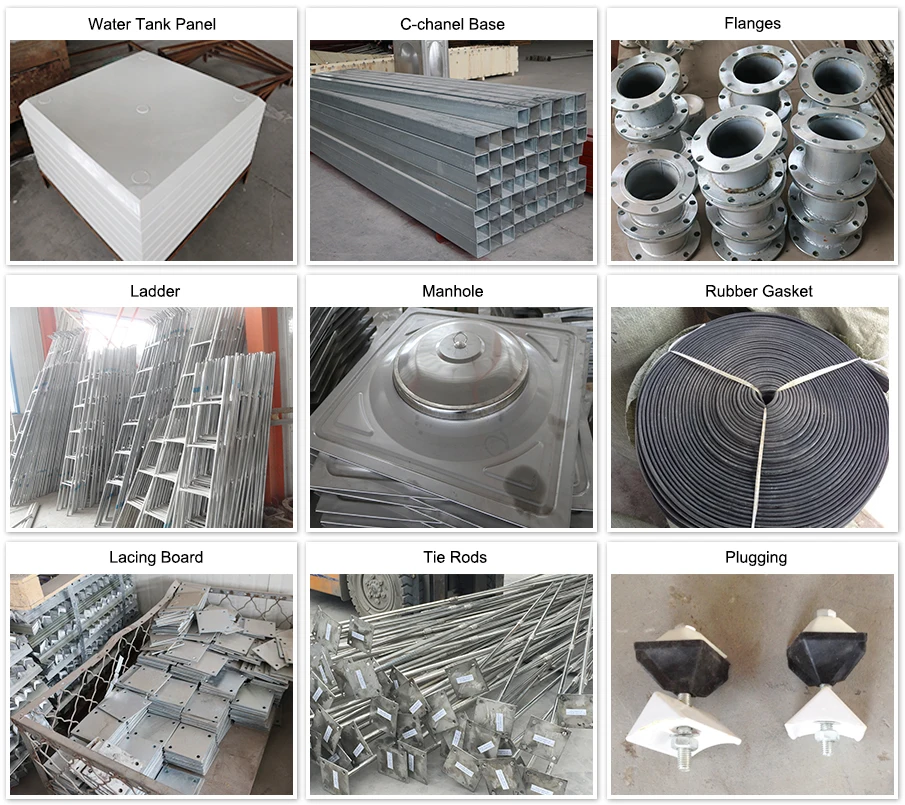

 Grp Tank Accessories

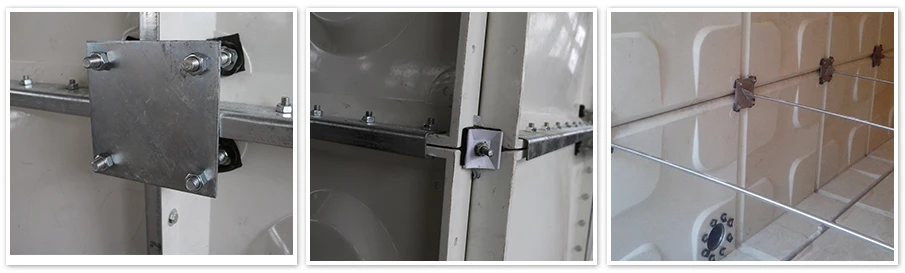

1. Support for Panels: The panels shall be supported externally or internally by an adequate support system.

External Reinforcement - Hot Dipped Galvanized Steel.

Internal Reinforcement - Hot Dipped Galvanized or Stainless Steel 304 rod support and tie-rod.

2. Sealing Materials: Non toxic Rubber foam to be used for all jointing, it is especially developed with long experience and technology on SMC products. It maintains soft itself and adhesives even at low temperatures

3. Bolts, nuts and washers for the assembly of panels: Exposed externally are hot dipped galvanized steel and in contact with water internally are hot dipped galvanized steel or stainless steel 304.

4. Flange: the flanges for inlet, outlet, drainage, overflow are hot dipped galvanized steel or stainless steel 304.

5. Ladders: SMC sectional tank of 1.5m depth or more shall be provided with internal ladder made up of materials same with the supports. The external ladders shall be galvanized mild steel or equivalent.

6. Drainage: The dome shaped bottom panel with a concave drain panel facilitates complete and fast drainage. The concave drain panel has been designed to ensure the periodic cleaning and inspection of tank

7. Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter.

8. Man-hole opening & Inspection Hatches: the size can be customized; normally it is supplied with a standard size of: 600 x 600mm. the opening can be designs of bolt, seal-tight locking arrangement.

9. ABS roof vent with PE insect screen.

10. Float level indicator, optional SS304 for internal and external support structure are available on request.



Smc Water Tank Range Applications

1).  Potable Water Storage (drinking water)

2). Rainwater Harvesting & Storage

3). Emergency Water Storage

4). Pump Chambers

5). Effluent/Acid and alkali solution treatment & Storage

6). Hospital,buildings,building site, school and other place



 Smc Water Tank Range Specifications

Tank Height	Thickness of each panel
	bottom panel	1st layer  side panel	2nd layer  side panel	3rd layer  side panel	4th layer  side panel	cover panel
1m	10mm	10mm	/	/	/	5mm
2m	12mm	12mm	10mm	/	/	5mm
3m	16mm	16mm	12mm	10mm	/	10mm
4m	18mm	18mm	16mm	12mm	10mm	10mm

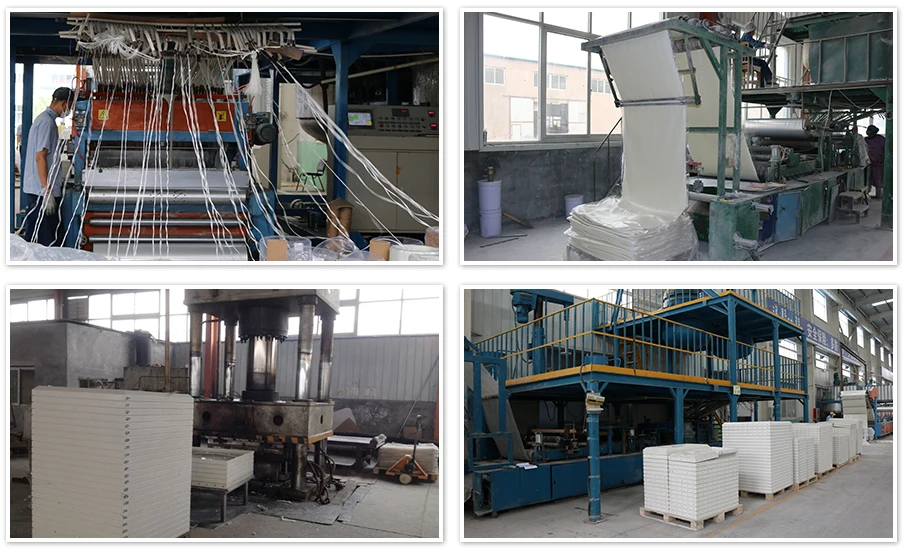

Frp Water Tank Production Process



GRP Water Tank Installation
