High Quality Fiberglass Geogrid Paving Composite reinforcement Geogrid
- Category: >>>
- Supplier: Feicheng Lianyi Engineering Plastics Co. Ltd.
Share on (62494852858):
Product Overview
Description
High Quality Fiberglass Geogrid Paving Composite reinforcement Geogrid
Product Description
| PHYSICAL PROPERTIES | TEST METHOD | UNIT | MINIMUM AVERAGE ROLL VALUE |
| Mass per Unit Area(Typical) | ASTM D-5261 | oz/yd2(g/m2) | 10.3(350) |
| Aperture Size (Grid) (MD/TD)(Typical) | Measured | in(mm) | 1.2/1.2(30/30) |
| Percent Open Aera (Grid only) | COE Method | % | 70+ |
| Wide Width Tensile Strength1 @ Ultimate (MD/TD) | ASTM D-6637 | lb/ft (kN/m) | 3426/3426 (50/50) |
| Elongation at Break (Typical) | ASTM D-6637 | % | <3 |
| Melting Point | ASTM D-276 | ºF (ºC) | >425(>218) |
| Roll Dimensions (Max.Width×Length) | — | ft(m) | 7.22×328.1(2.20×100) |
| 12.5×246(3.81×75) | |||
| Roll Area | — | yd2 (m2) | 236.1 (220) |
| 341.67 (285.75( | |||
| Roll Weight (Gross) | — | lb (kg) | 190 (86) |
| 247 (112) |
NOTES: 1: ALL values stated here are Minmum Average Roll Values and based on a 95% confidence level unless otherwise \\
noted.(MD—Machine Direction; TD—Transverse Direction, also called Cross Machine Direction
Applications
1.Road widening.
2.Road repairing.
3.Reinforcement of flexible pavement and concrete pavement..

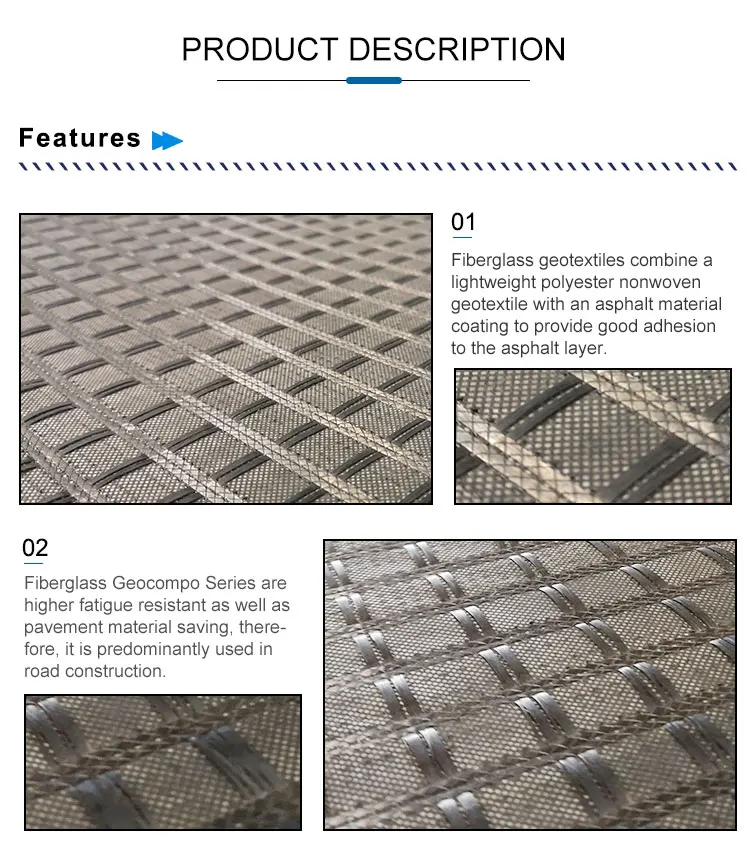

Characteristics
1. High modulus material.
2.High temperature resistance.
3.High bonding property and separation.
4.Excellent compatibility for asphalt mixture

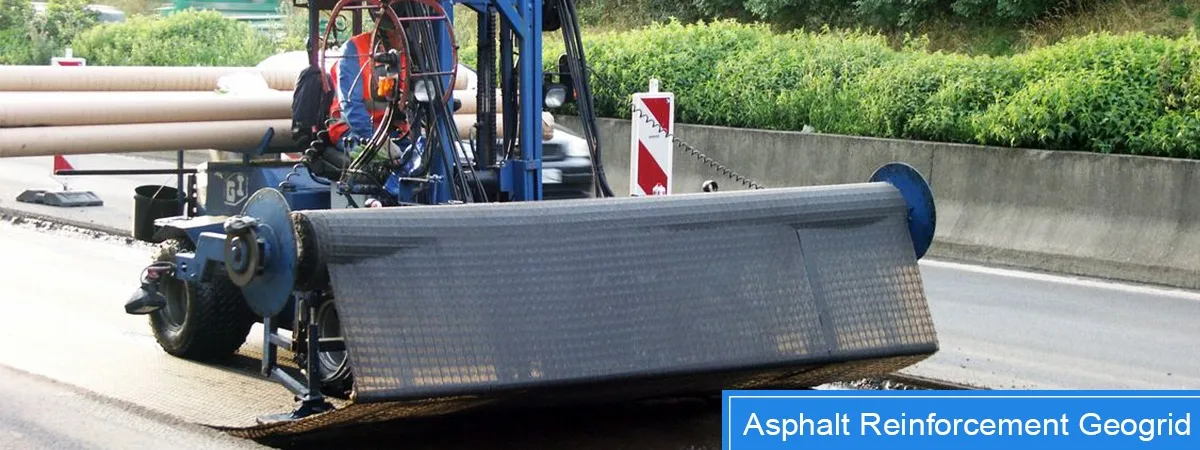

Our asphalt reinforcement solutions are used to address highway problems:
- Reflective cracking
- Thermal and fatigue cracking
- Rutting and shoving
- Haunching failure
- High-axle loads
- Construction on peat soils
- Differential settlement
- Weak subgrades
- Reduced construction layer thickness
Reducing the whole life cost through effective reinforcement. The reinforcement of asphalt
pavements can produce a threefold increase in the service life of highway pavements by reducing fatigue, reflective, thermal and settlement cracking. With increased fatigue life and extended
maintenance intervals, the “whole life cost” of a reinforced pavement is less than an unreinforced one.
Reinforcement reduces road stress. Stress concentrations in the asphalt matrix are relieved and
redistributed by the reinforcement, resulting in:
- Delayed initiation of cracks, slower crack growth
- Narrower crack width
- Wider spacing between cracks
- Deviation of cracks
