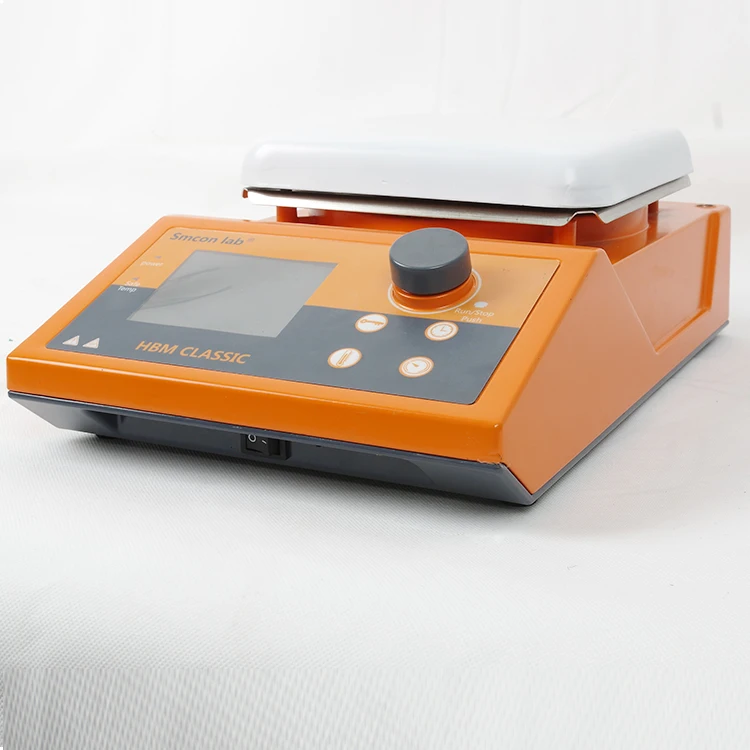

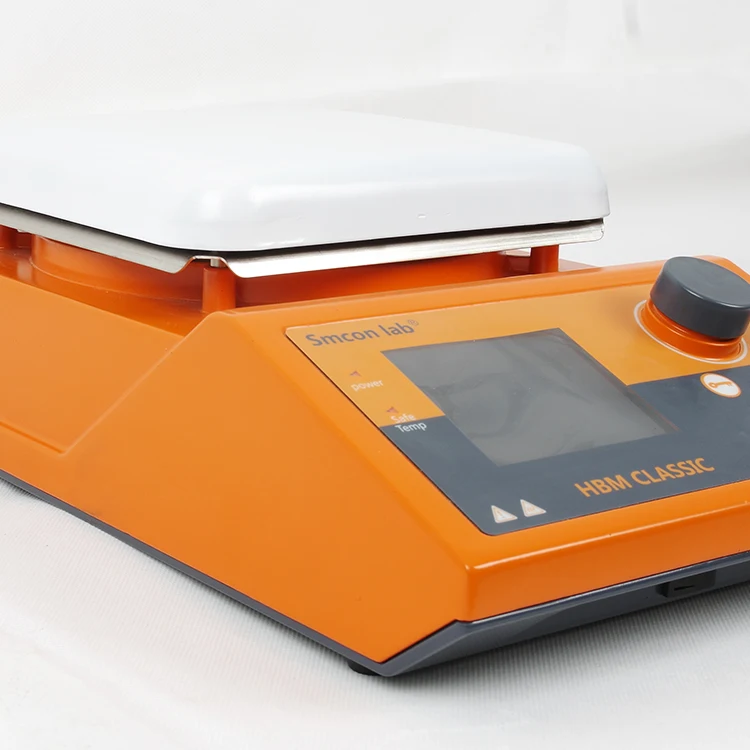

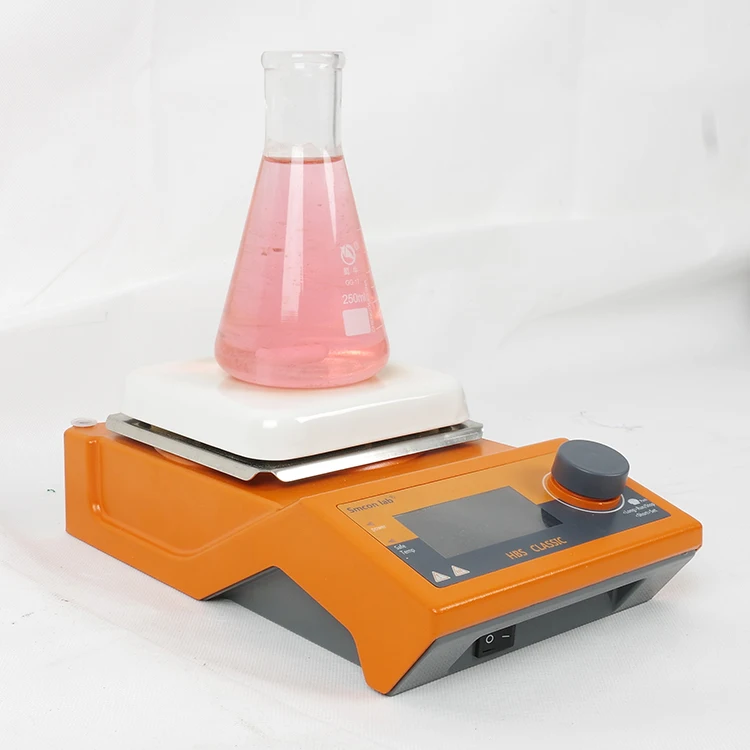

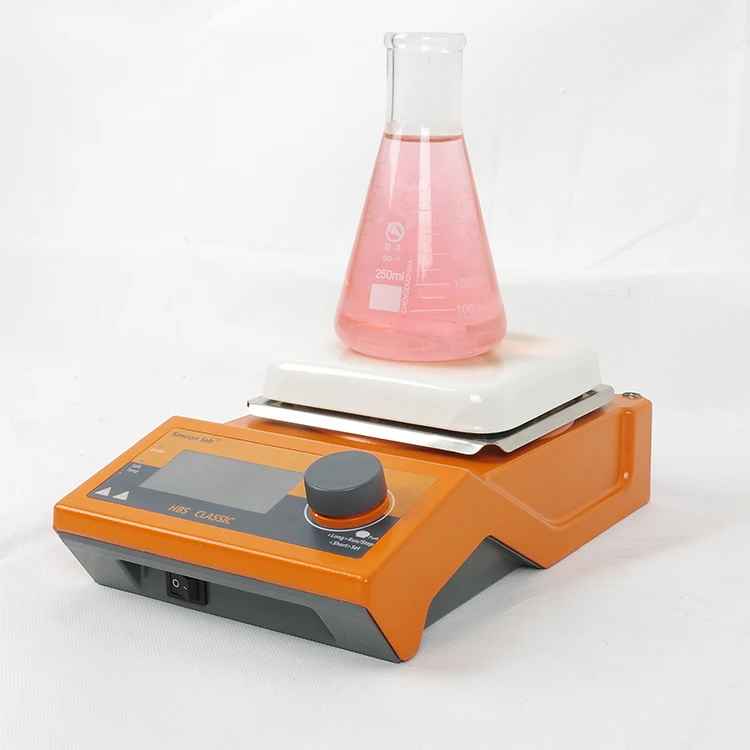

HBM CLASSIC magnetic stirrer with hot plate

Product Overview

Description

1> Nano ceramic table surface is beautiful, easy to clean and corrosion resistant.

2>Anti-scald indication after shutdown.

3> The maximum stirring amount is (water) 20L, and the rotation speed ranges is 100-1500 rpm.

4>The brushless DC motor has the advantages of stable performance, low noise, long service life and high safety.

5> High temperature control accuracy.

6> Wide speed range, strong magnetism, skip-proof, large amount of stirring.

7>The maximum temperature of the disk can reach 550 ℃.



Model	HBM CLASSIC
Name	Magnetic hotplate stirrer
Workplate size	190 x 190 mm
Work disk surface material	Nano ceramic
Range of rotation	100~1500rpm
Timing range	1Sec~99h59min/∞
Configure thermometer temperature control accuracy	PT1000:±0.1K
Maximum stirring amount (water)	20L
Stirring longest size	80mm
Safe temperature	580℃
Temperature control range	Room temperature+5℃~550℃
Input Voltage and Output Power of Motor	24V/30W
Input power	110VAC60HZ/220VAC50HZ
Power	1100W
Fuse	8A
Dimensions (W × D × H)	352 x 220 x 107 mm
Net weight	5 kg
