Statai плазменной резки с ЧПУ контроллер CC S4D со встроенным ТГК

Product Overview

Description

Brand:StatAi,START SHAPHON

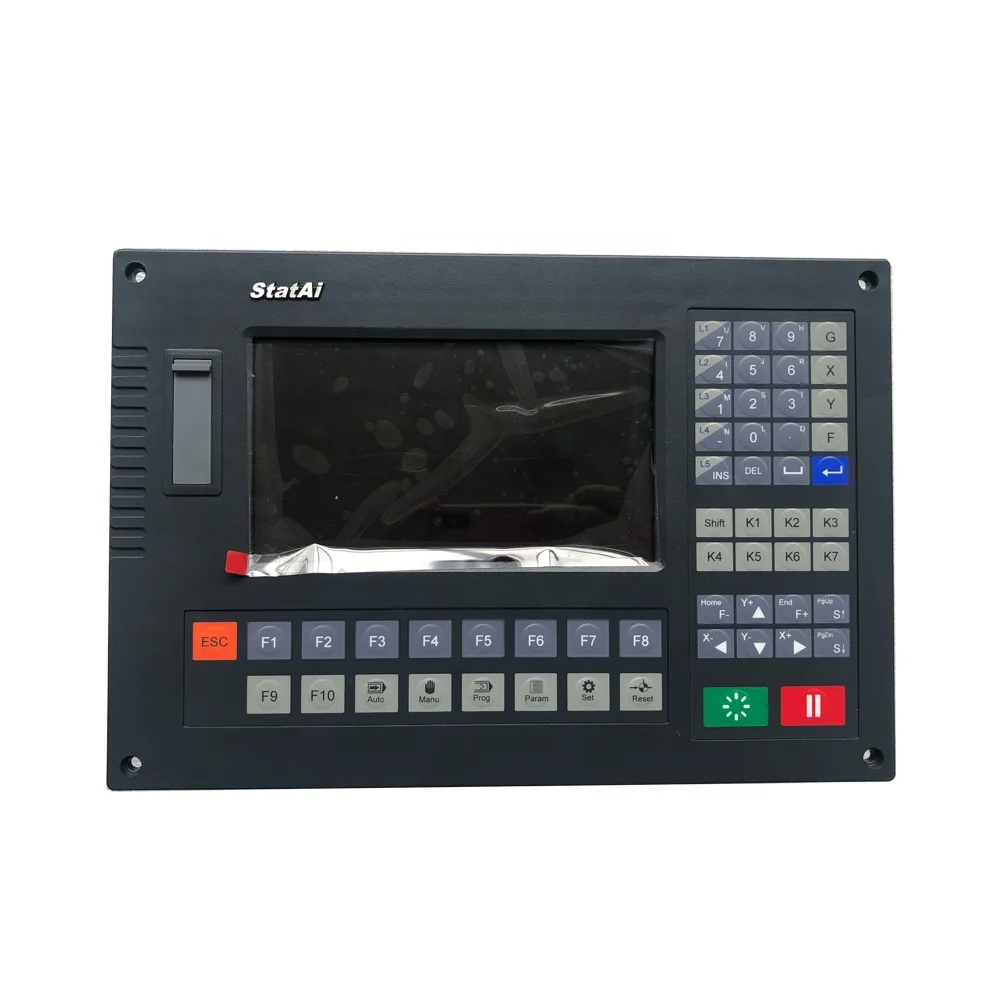

Model:CC-S4D

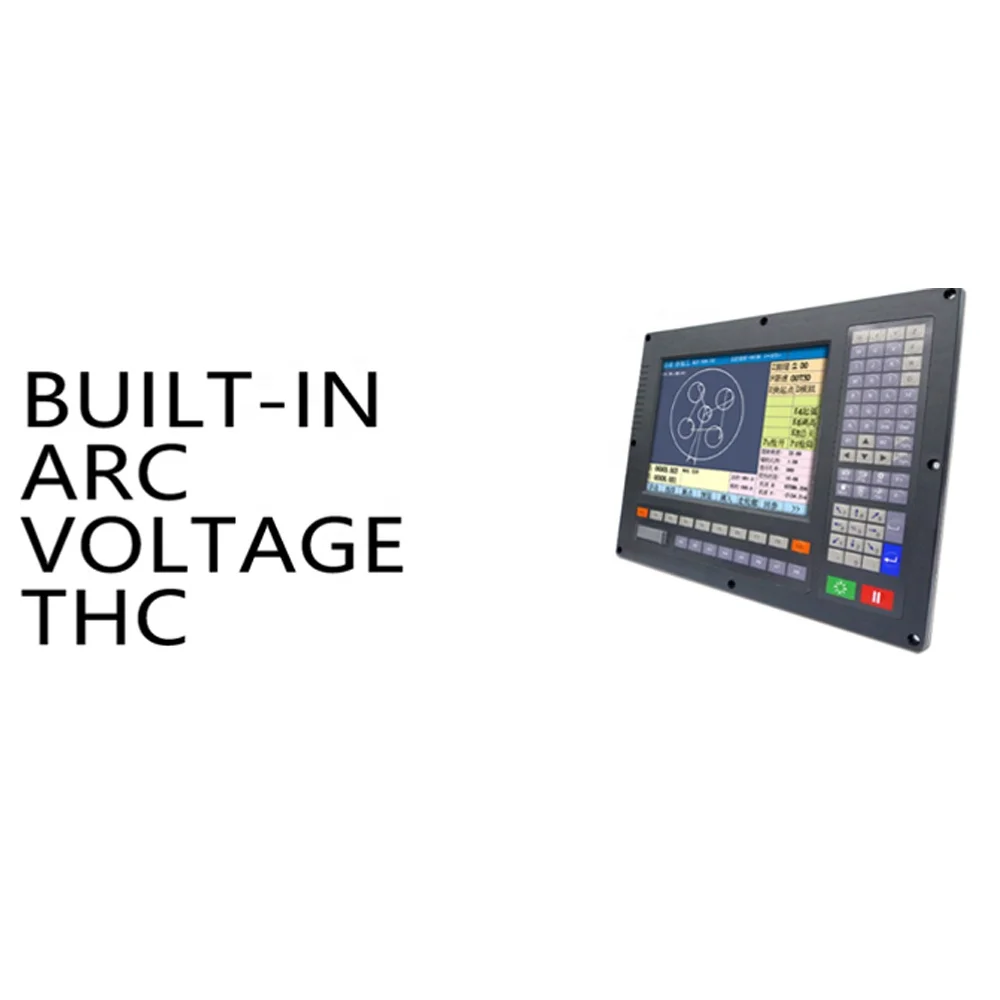

CNC controller with built-in torch height controller



1.Details:

CC-S4D cnc cutting controller is specially designed for the portable cnc cutting machine with perfect functions of plasma and flame cutting.



It is specially designed for 2-axis portable cutting machine. It has built-in 2-phase hybrid stepper drivers for X axis and Y axis. It is all-digital control, so its heating productivity is small,and noise is low and performance is perfect.

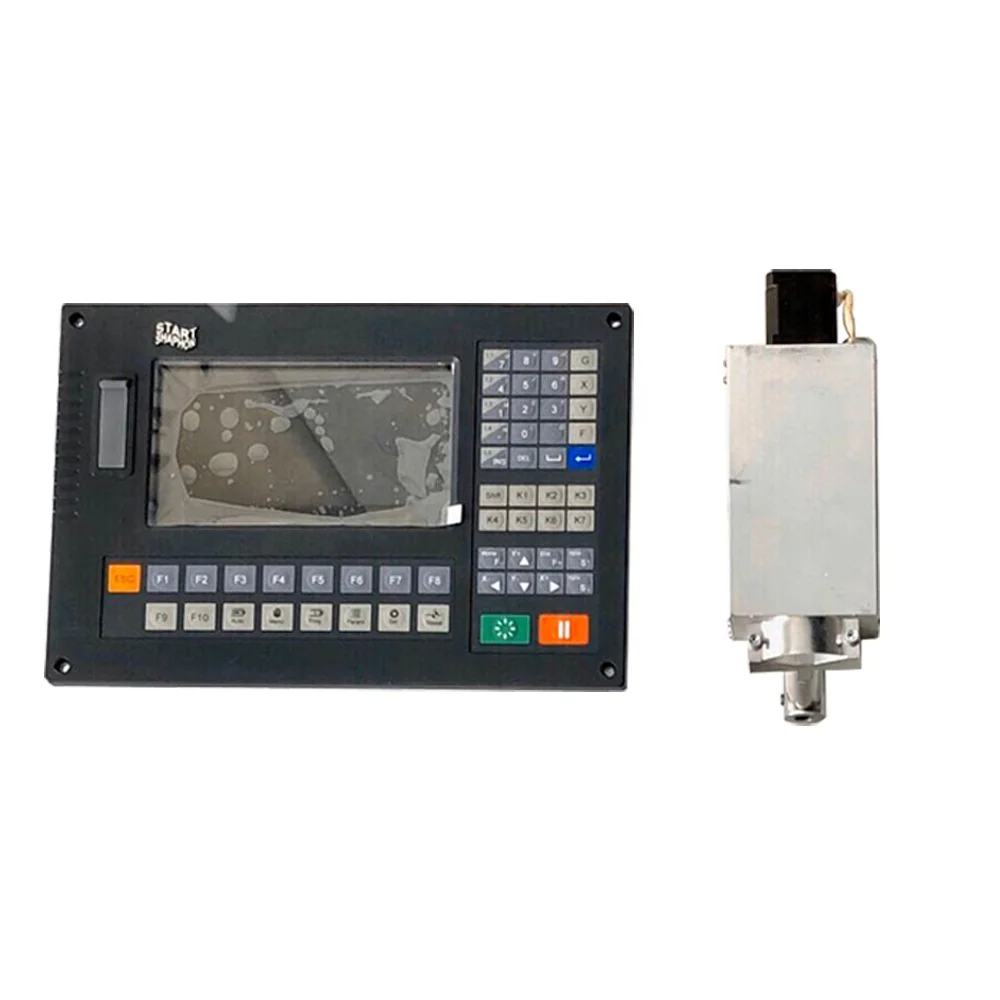

CC-S4D has built-in arc voltage torch height controller and it fits portable cnc cutting machine. THC adopts position control mode and it is easy to set cutting height and control is more accurate than DC motor.

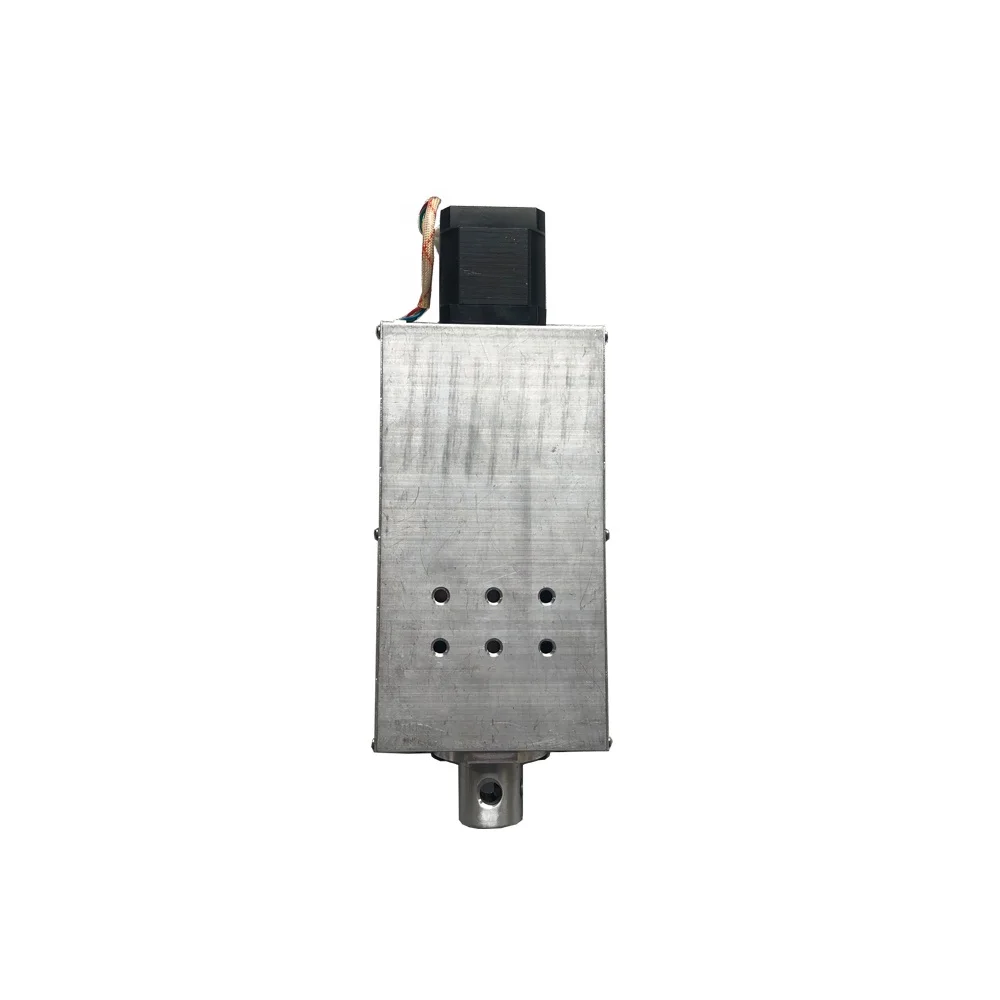

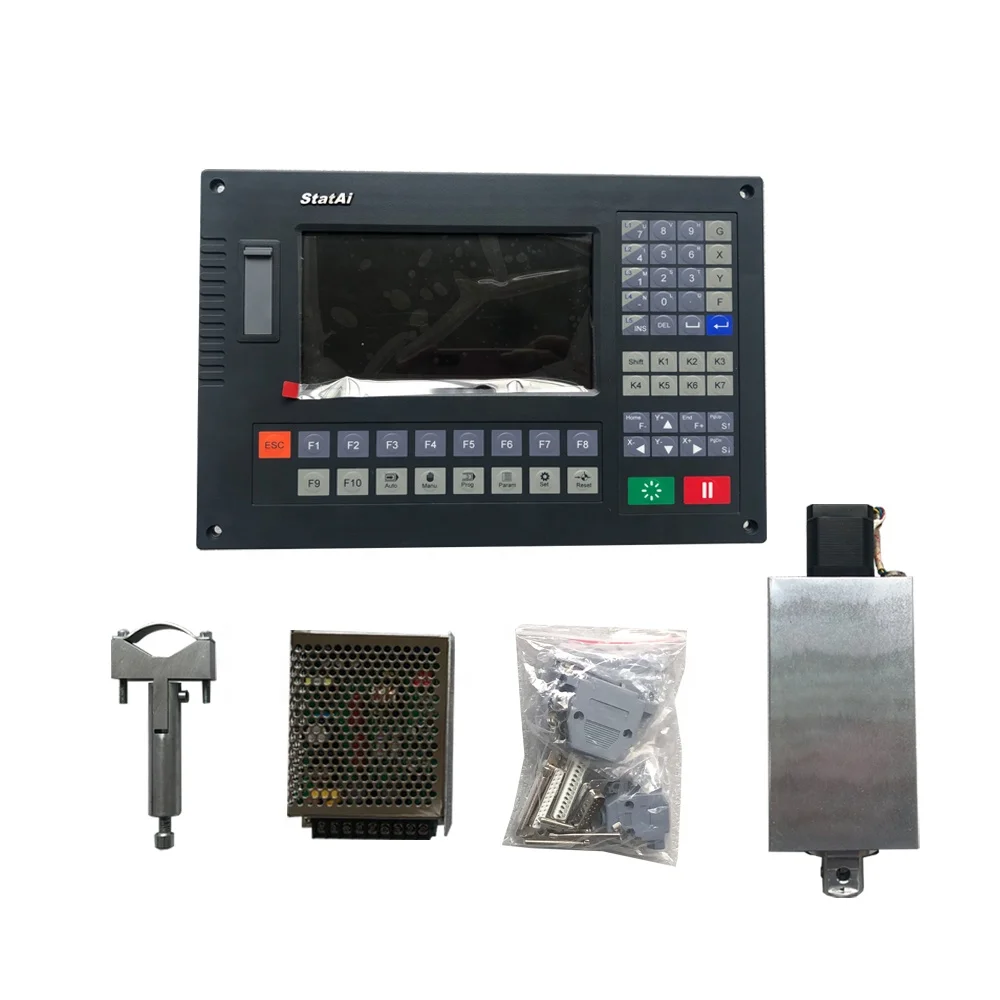

A complete set with electric torch lifter, cutting torch holder and other accessories is as follows:

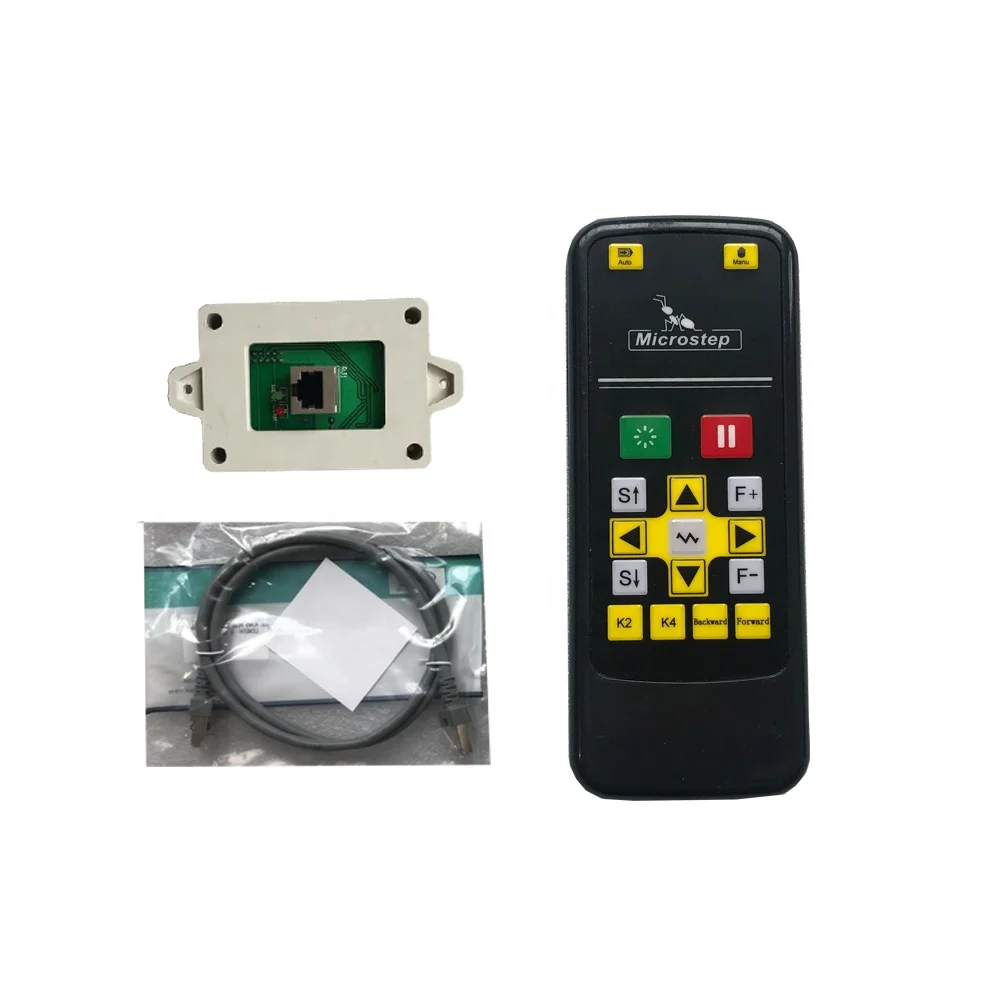

The remote controller RFS1 can be bought extra.



2.Specification:



Torch height controller	Built-in 485 torch height controller,drive output current<=3A
Driver	Built-in driver, driver power supply DC24~40V,output current<=3A
Processor	Industrial ARM processor chip
Display	7" true color LCD
Input	16 optoelectronic isolation
Output	16 optoelectronic isolation
Axis quantity	2
Communication	RS232 x1,USB x1
Storage	8G
Working temperature	0~40℃
Storage temperature	-40℃~60℃

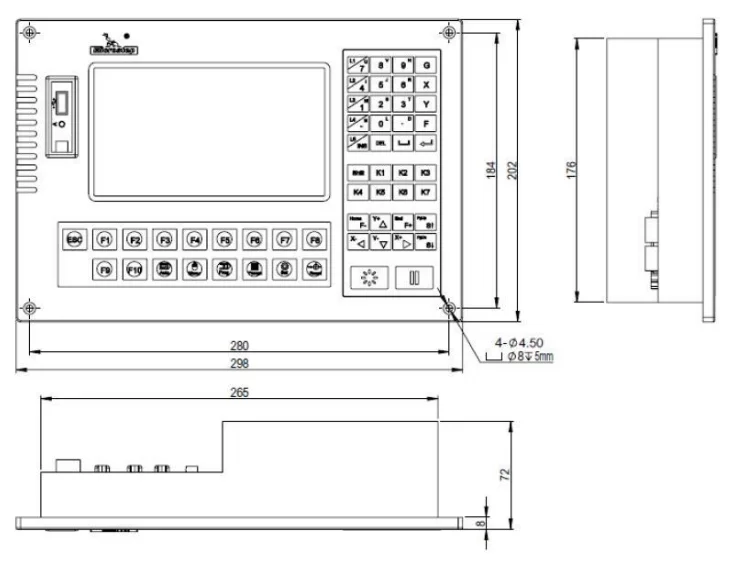

3.Size:
