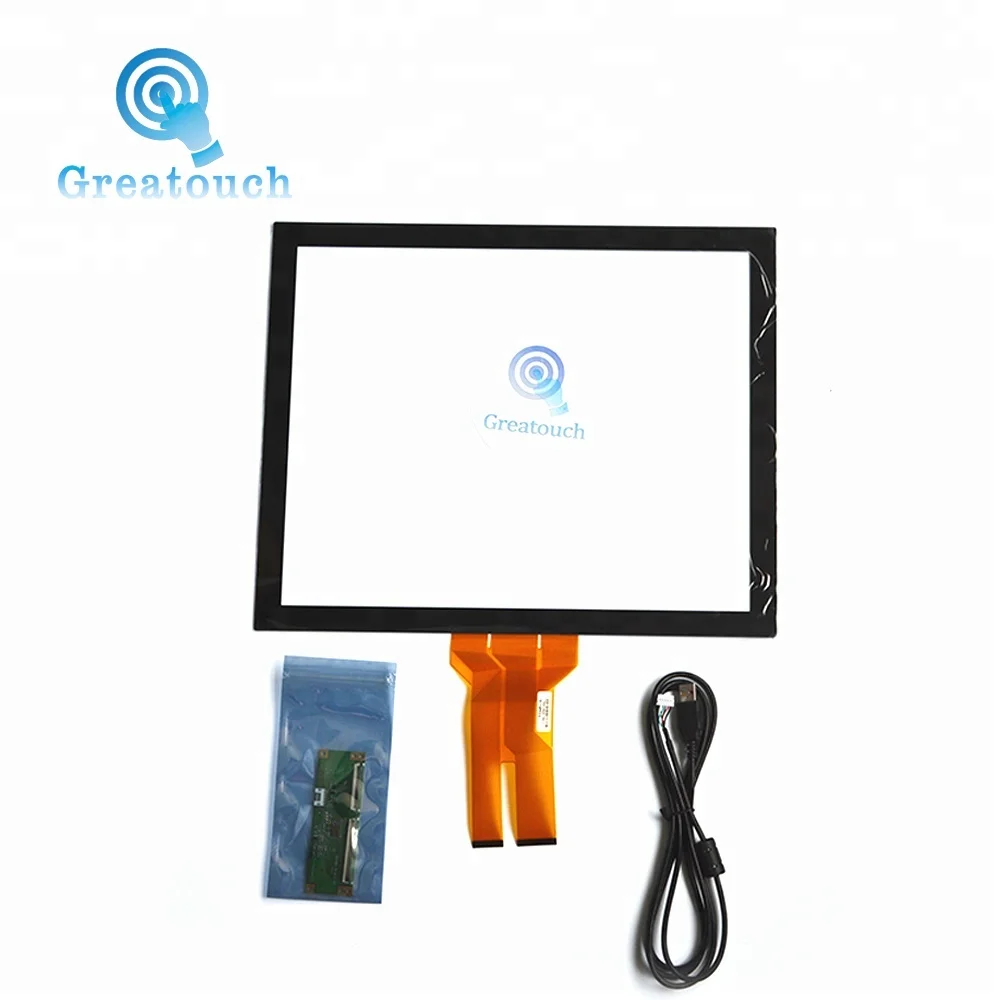

Multi touch panel/17 Inch Projected Capacitive Touch Panel/PCAP touch screen
- Category: Projection Screens >>>
- Supplier: Quanzhou Greatouch Technology Co. Ltd.
Share on (62495018737):
Product Overview
Description
Multi touch panel/17 Inch Projected Capacitive Touch Panel/PCAP touch screen
Product Description
| Specification: | |||
| Available size | 10.1"-65" | Touch points | 10 points |
| Structure | (G/G)Cover glass+Sensor Glass | TP Thickness | 2.0-5.0mm |
| Ratio | 4:3/5:4/16:9/16:10 | Transparency | ≥90% |
| Surface hard | 6H | Power supply | USB 5VDC |
| Drive form | COB | Relative Humidity | 90% at 60°C |
| Operating system | Windows 7/8/10, Linux and Android | Response time | Average < 10 ms |
| Working environment | -30 °C -- +75 °C | Stroage environment | -40 °C -- +85 °C |
| Driver | No need (usb plug and play) | Warranty | 1 Year |
| Linearity | 1PT:+/-1mm,10PT:+/-2.5mm | Touch life | >300,000,000 times |
| Interface to Host/Master | USB2.0 Full speed | Control Type | PCBA cotrol board |
| Oscillator Frequency | 12MHz | Min. Report Rate | 10PT: 80Hz |
| Max. operating frequency | 100 MHz | ESD.Air discharge | 8KV |
| Adapter ripple | Vpp<50mv | ESD.Contact discharge | 4KV |
| Power Consumption | Active Mode:<30mA, Idle Mode: 5mA | ||
| Max.Resolution | 4096x4096 (Automatic matching) | ||
Features :
1. Super-thin,and transparent appearance
2. High definition, Stable touch
3. Well-positioned ,and support multi touch points
4. Through the glass or other objects to touch just like gesture
5. The size can be customized
Functions :
1.Highest resolution, precise smooth touch and fast response
2.Accuracy up to 99% proficient in writing, no break no drift
3.Long lifetime,any point can withstand more than 30 million times touch
4. Dustproof and Waterproof & durable, scratch-resistant,anti-interference ability
5.Operating systems strong compatibility --
6.Intelligent automatic calibration, use forinternal / external variety of environments,
7. Easy to install with LCD monitor,maintenance free

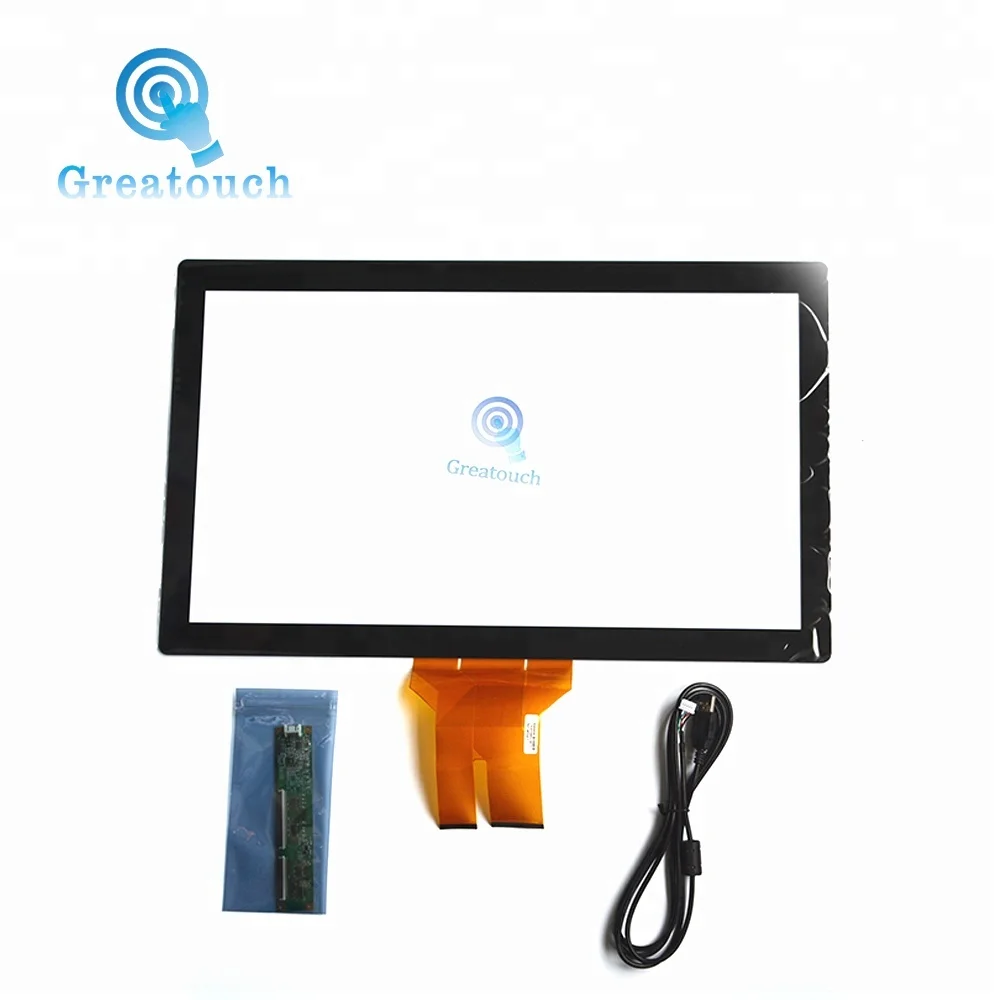

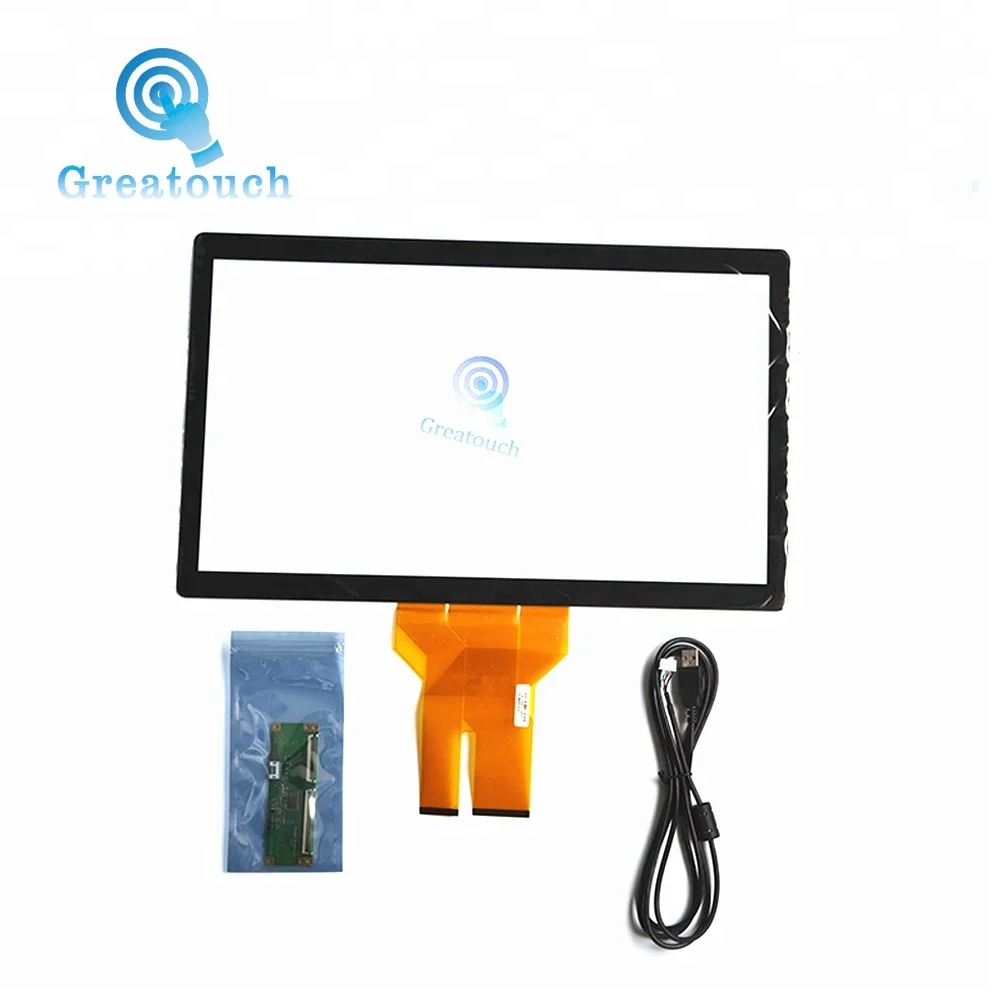

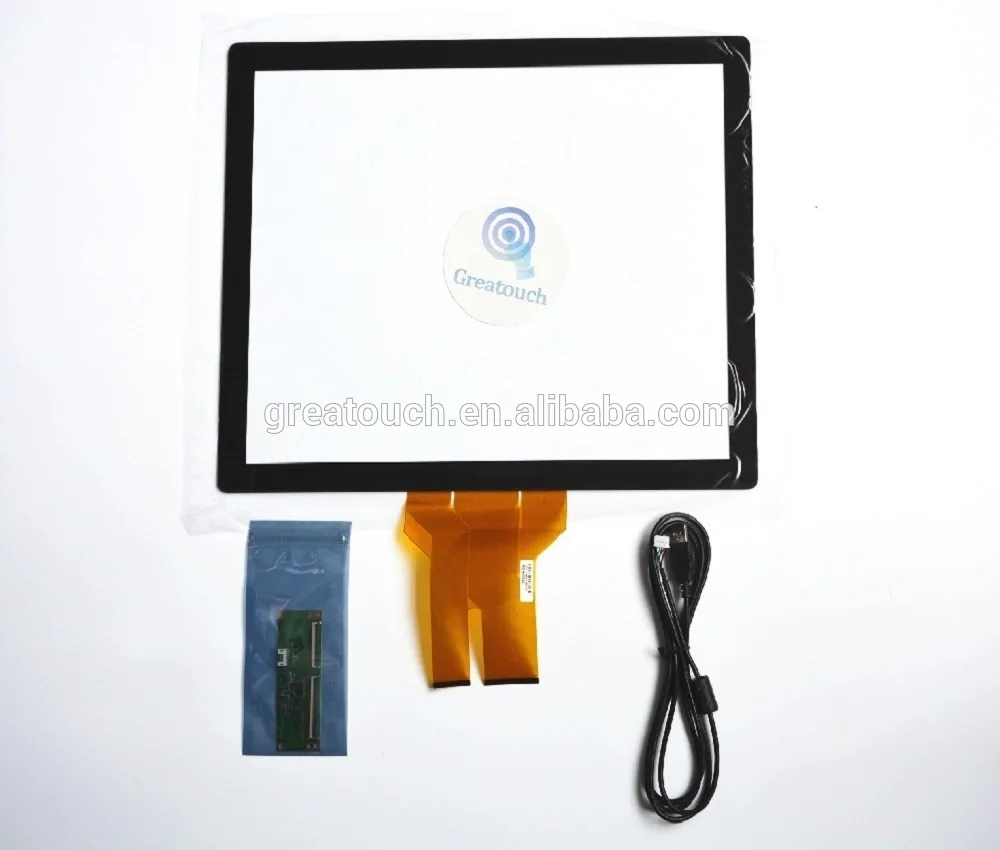

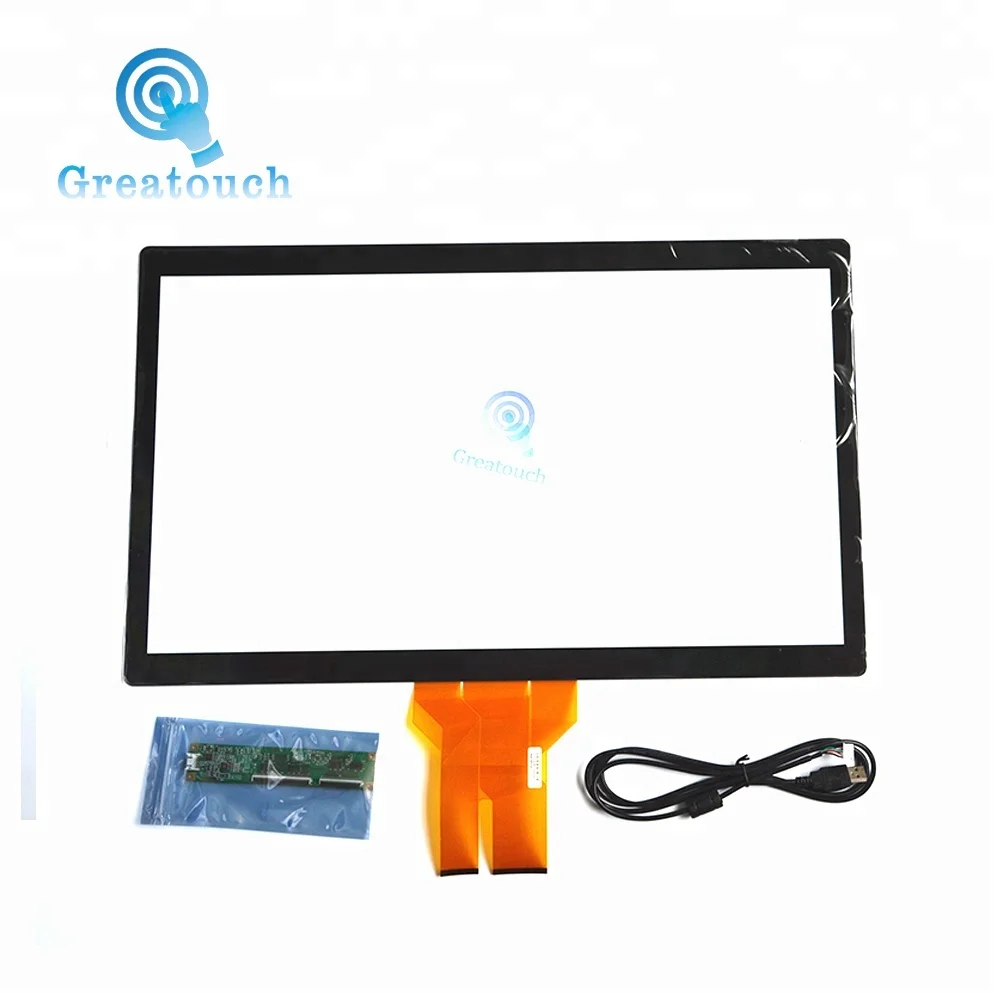

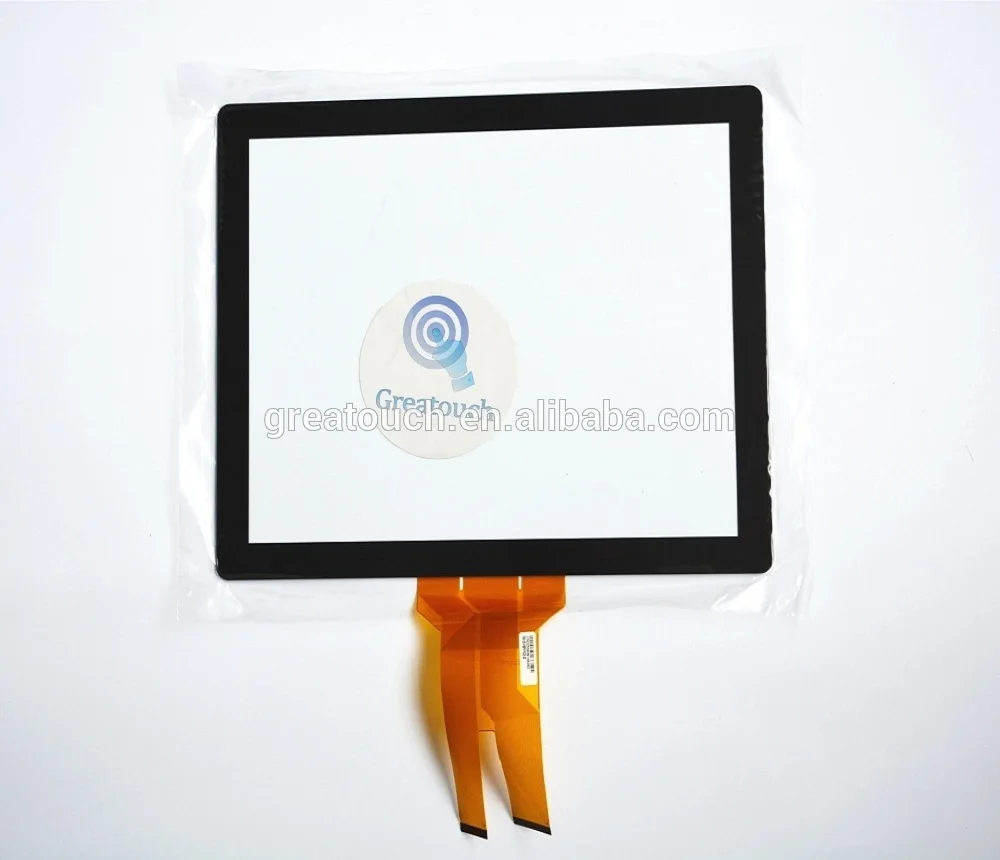

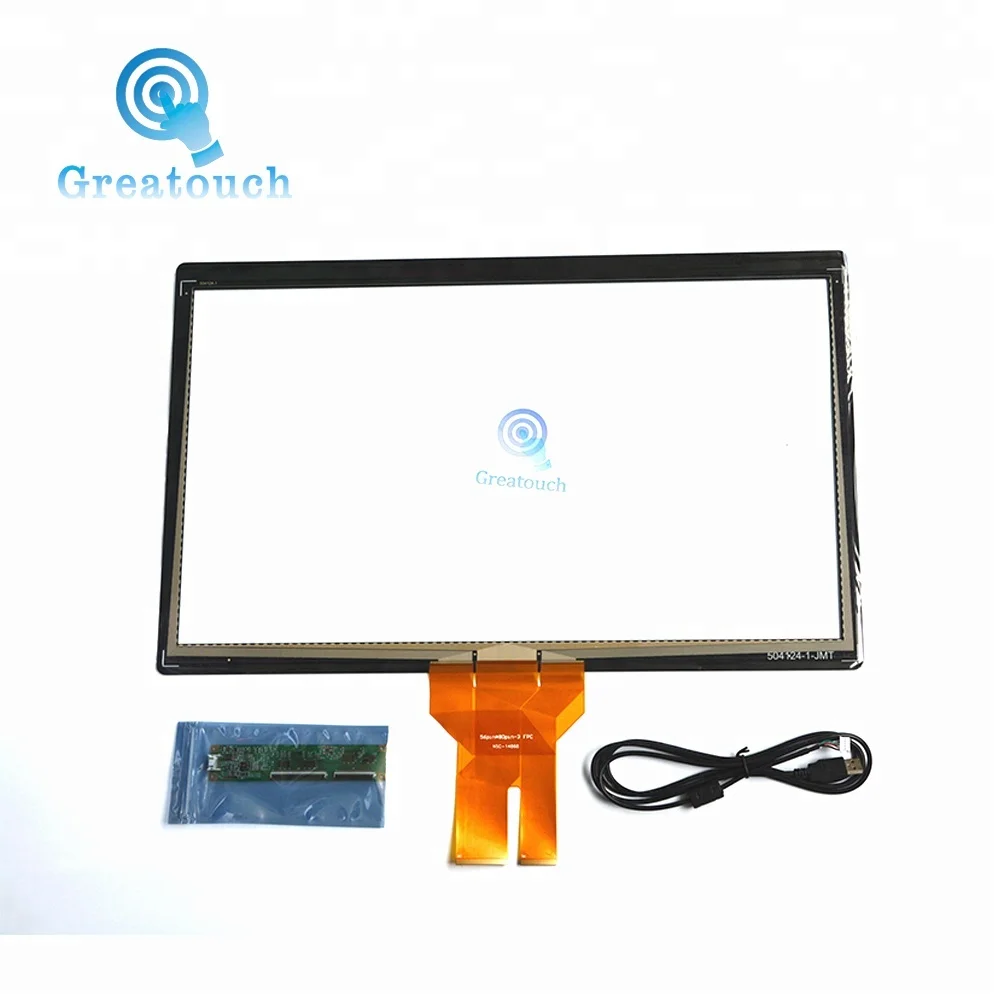

Products Show:
Application

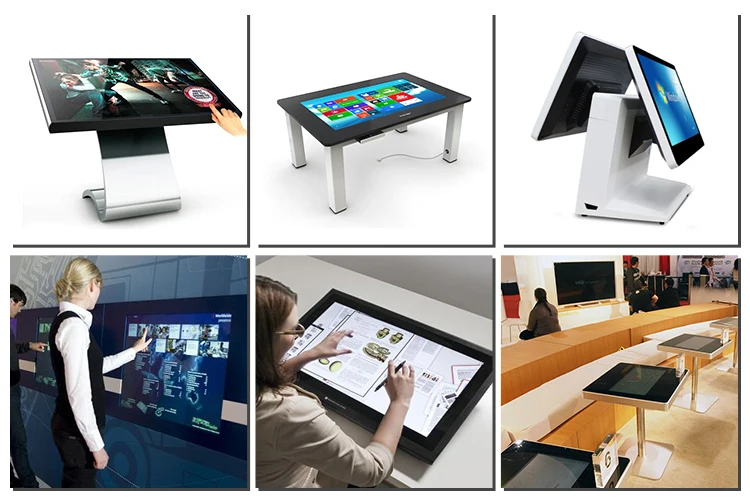

The capacitive touch screen has been used in many areas, such as office, teaching, entertainment equipment and so on.
Related product
The following is our other hot products, welcome to click to view.
Company Information
Our partner
Packaging & Shipping
FAQ
Q1: Are you a factory or a trading company?
A: We are a OEM/ODM factory.
Q2: What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T,Paypal and Western Union.
Q3: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery.
Q4: What will you do if the product be nature damange within warranty time and how about out that time?
A: Well, we will give some quite simple questions to help us confirm the damaged part. Once it confirmed, the free replacement will be send. Also, we will just request a very low price for replacement part, if the product out of warranty time.
Q5: Do you give any discount?
A: I'll surely try my best to help you get those by the best price and good service at the same time.
Q6: Can I customize the product I ordered?
A: Abusolutely yes, customizatiion offer from customers are most welcome in our company.
