DPP 80 Double Aluminum Automatic High Frequency Alu Alu Blister Bard Packing Machine
DPP 80 Double Aluminum Automatic High Frequency Alu Alu Blister Bard Packing Machine
DPP 80 Double Aluminum Automatic High Frequency Alu Alu Blister Bard Packing Machine
DPP 80 Double Aluminum Automatic High Frequency Alu Alu Blister Bard Packing Machine
DPP 80 Double Aluminum Automatic High Frequency Alu Alu Blister Bard Packing Machine
DPP 80 Double Aluminum Automatic High Frequency Alu Alu Blister Bard Packing Machine
DPP 80 Double Aluminum Automatic High Frequency Alu Alu Blister Bard Packing Machine

DPP 80 Double Aluminum Automatic High Frequency Alu Alu Blister Bard Packing Machine

Share on (62495107501):


Price:$5,899.00 - $6,999.00

Quantity:


Product Overview

Description


Products Description

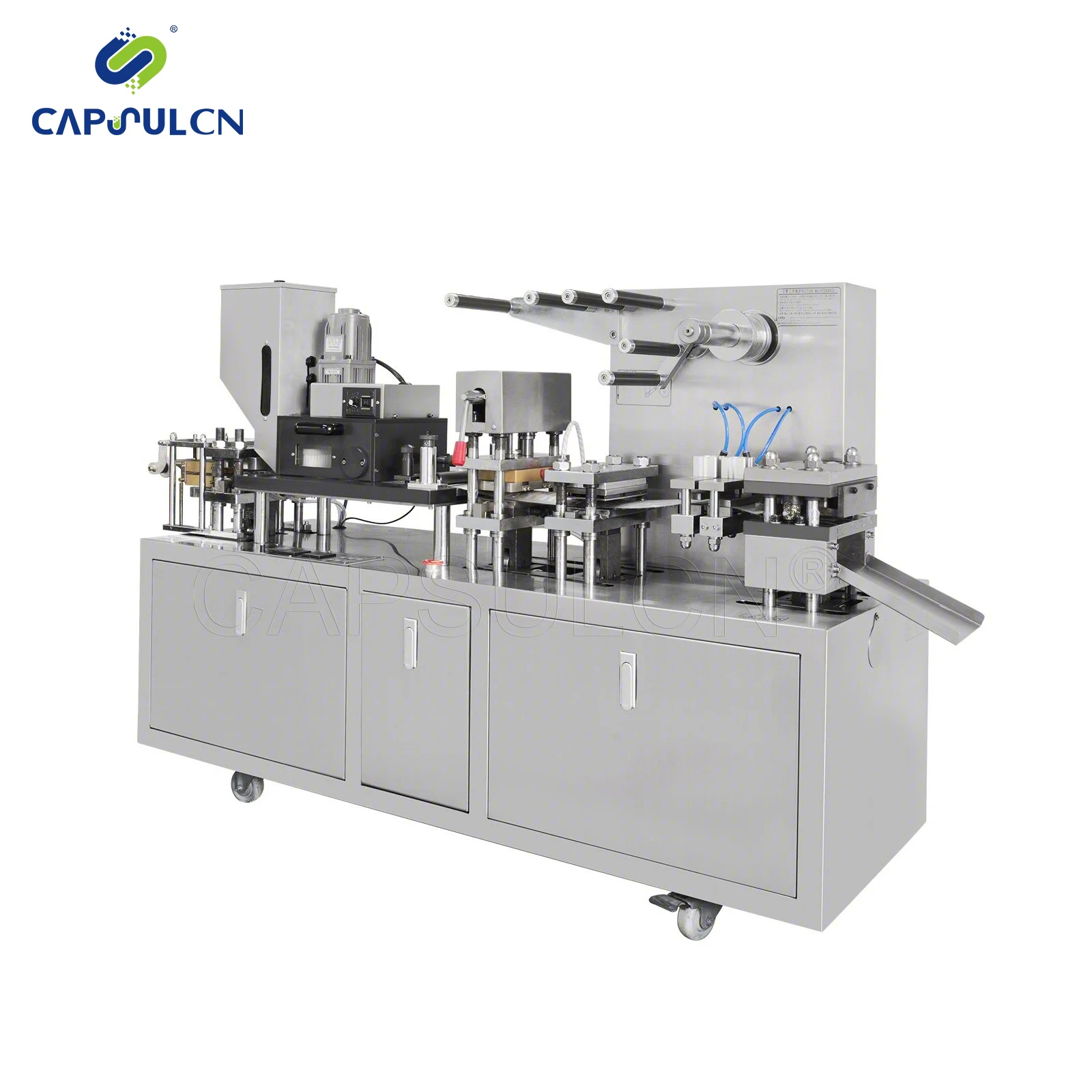

DPP-88 Automatic Blister Packing Machine
The product is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory, and featured by compact machine body, easy operation, multi-function, stroke adjustable, long durability etc, it is suitable for the Alu-PVC package of medicine, food, electric parts etc. Aided forming Pre‐cutting Inspection and rejecting control systems. Print mark registration Automatic feeder.
Product Paramenters
DPP Automatic Blister Packaging Machine
DPP-80
DPP-140
DPP-250
Blanking frequency
PVC-AL: 10-40 times/min AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
Adjustable scope of feed travel
30-100mm(adjustable)
30-120mm(adjustable)
30-140mm(adjustable)
The max forming area and depth
120mm×90mm×20mm
150mm×120mm×26mm
240mm×130mm×26mm
Wrapper: ALU
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper: PVC
Length: 130mm,
thickness: 0.25-0.5mm
Length: 160mm,
thickness: 0.25-0.5mm
Length: 250mm,
thickness: 0.25-0.5mm
Wrapper: PTP
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper:Dialysis paper
Length:130mm, specification:50-100 gram
Length:160mm, specification:50-100 gram
Length:250mm, specification:50-100 gram
Power of forming heating
1.5KW
2.4KW
3KW
Power of sealing heating
1.5KW
2.4KW
3KW
Main motor power
0.75KW
1.5KW
1.5KW
Machine Voltage
380V/220V 50Hz
Capacity of air compressor
≥0.2m3/min
Pressure: 0.4～0.6MPa
≥0.2m3/min
Pressure: 0.5～0.7MPa
≥0.2m3/min
Pressure: 0.5～0.7MPa
Overall dimension
2070mm×650mm×1060mm
2350×580×1500 mm
3100×670×1650mm
Weight
560Kg
800KG
1500KG
(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, Filling machine and Capsule Size.) Contact us>>
Recommend Products
Product packaging
Company Profile
Certifications
Exhibition
Customer Photos
FAQ
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Rui'an Zhejiang province. We are warmly welcome you visit our Factory if you have a travel plan.

Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer
picture for you. If chance, we can take video online and show u.

Q: How can I trust you for the first time business?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of the transaction.

Q: How about the after service and guarantee period?
A: We make the guarantee time 12 months from the machine's arrival in buyer's facility and we have a professional team with anexperienced technician to serve abroad and do the best after service to assure the machine whole life usage.

Q: How do we contact you?
A: Please leave a message and click "send" to send us an inquiry.

Please find the contact information our this page, so you can contact us through Email, WeChat, Skype, WhatsApp, QQ, Facebook,
phone and etc.
