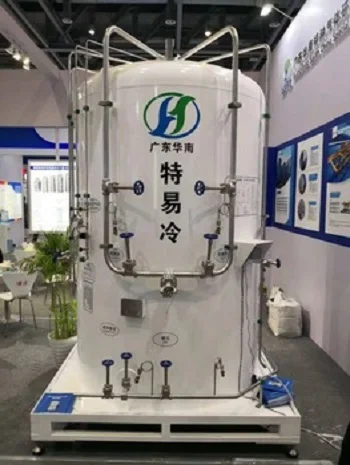

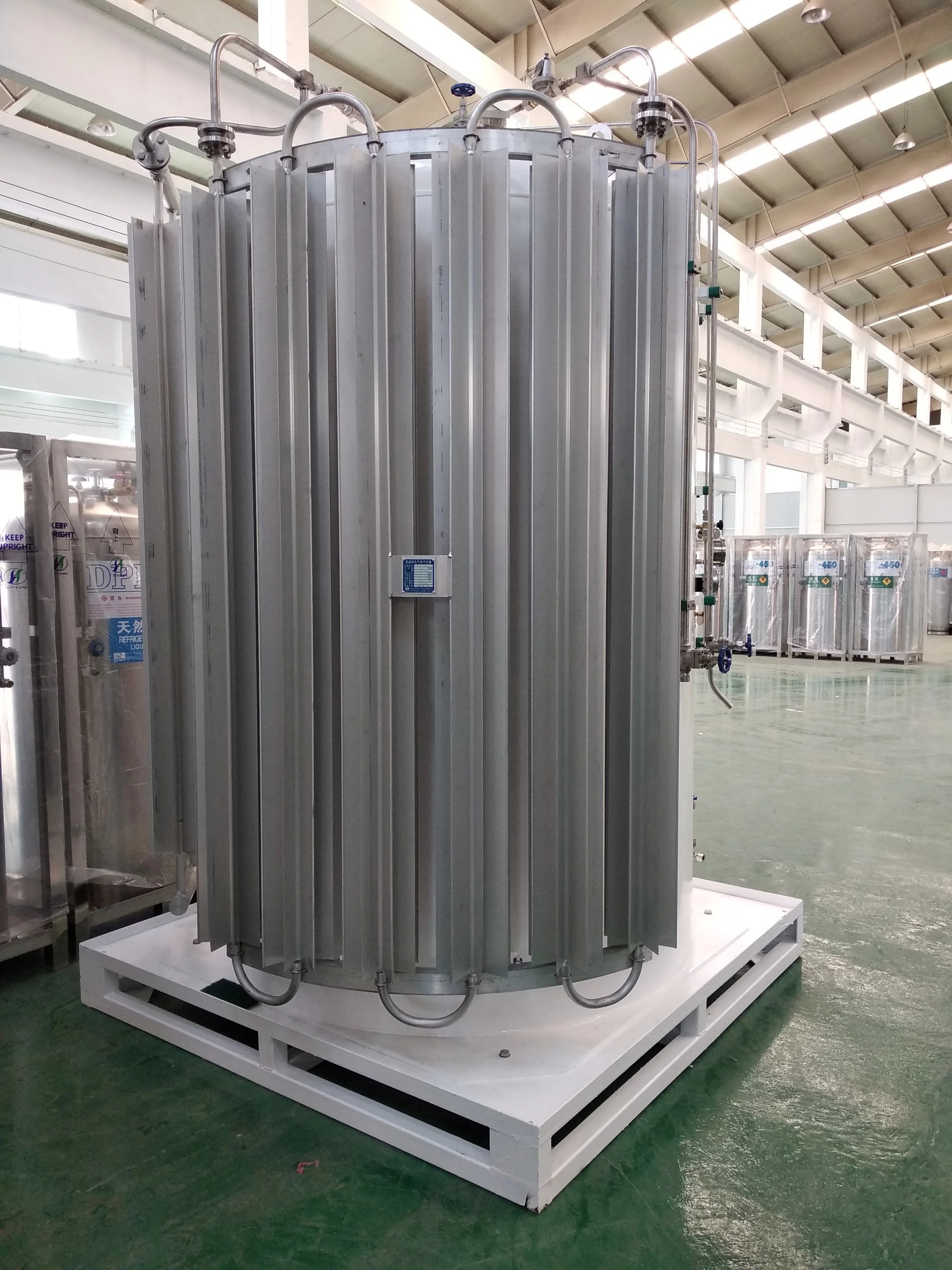

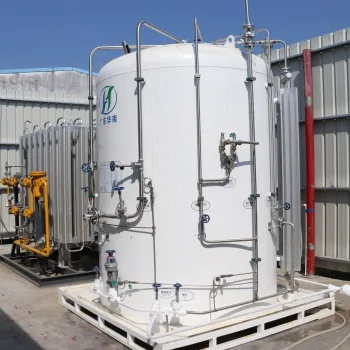

3m3 5m3 Stainless steel micro cryogenic bulk tank cryogenic liquid pressure vessel for gas filling
- Category: >>>
- Supplier: South China Special Gas Institute Co. Ltd.
Share on (62495239351):
Product Overview
Description
Product Description
Micro tank is a pressure vessel which is used for filling and storing dangerous chemicals such as LO2, LAr, LN2, LCO2 and LNG. The maximum working pressures available are 0.8Mpa, 1.6Mpa, 2.4Mpa and 3.4Mpa; the nominal volumes available are 1M3, 2M3, 3M3 5M3, 7.5M3 . The micro tank is suitable for transporting vaporized gases when it’s connected with a vaporizer.Micro tanks are pressure vessels with inner and outer container double layers structure. The inner container is made of stainless steel suspended in the outer container with supporting devices. The space between the inner container and the outer container is wrapped with heat insulated material and vacuum withdrawn.Relevant safety regulations must be complied with when installing, using or maintaining the micro tank.

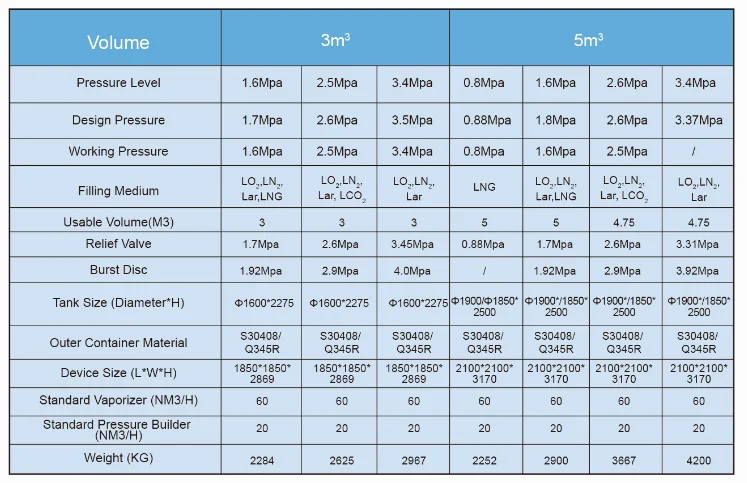

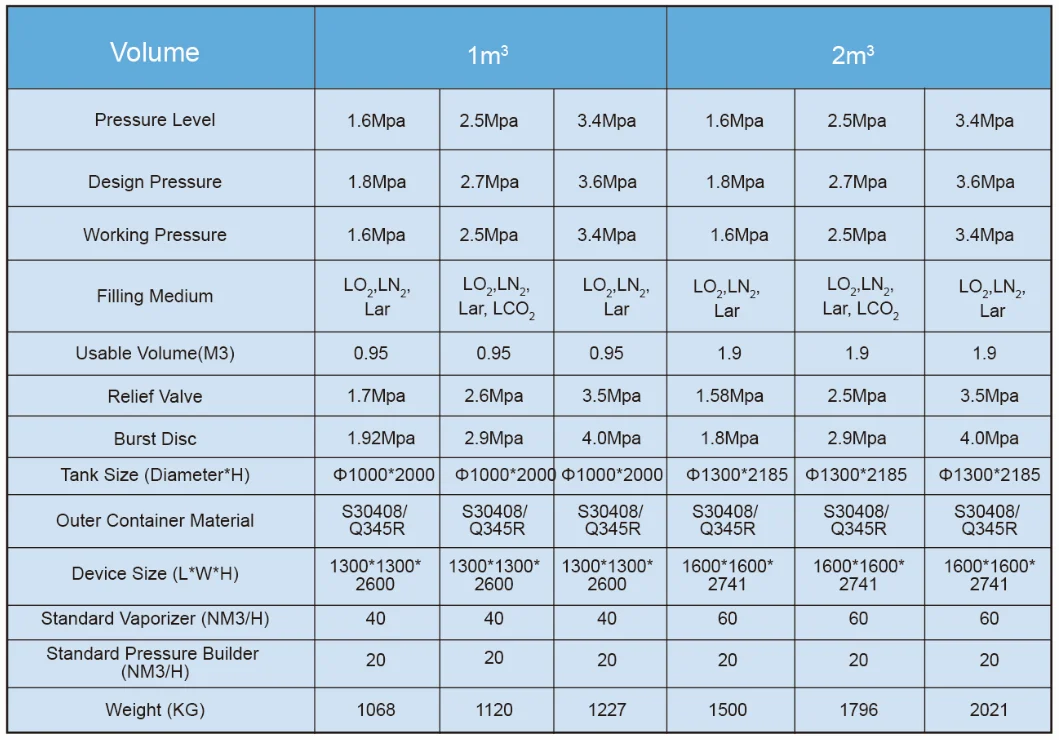

Product Paramenters

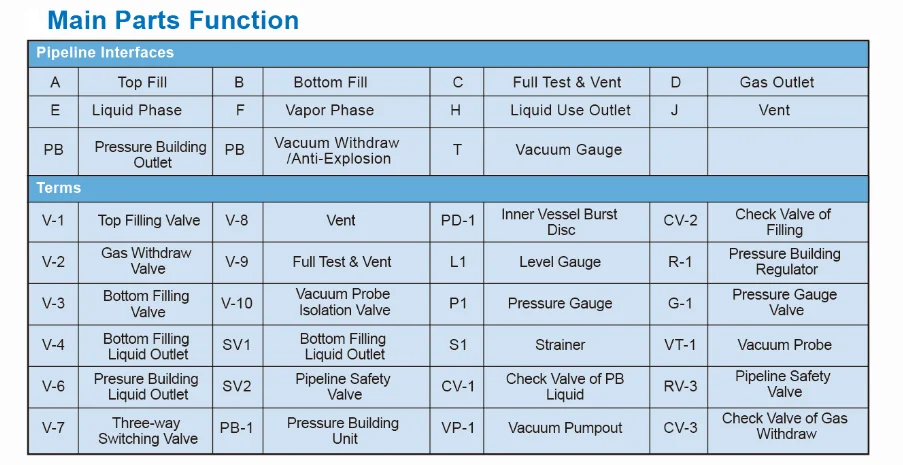

Flow Chart

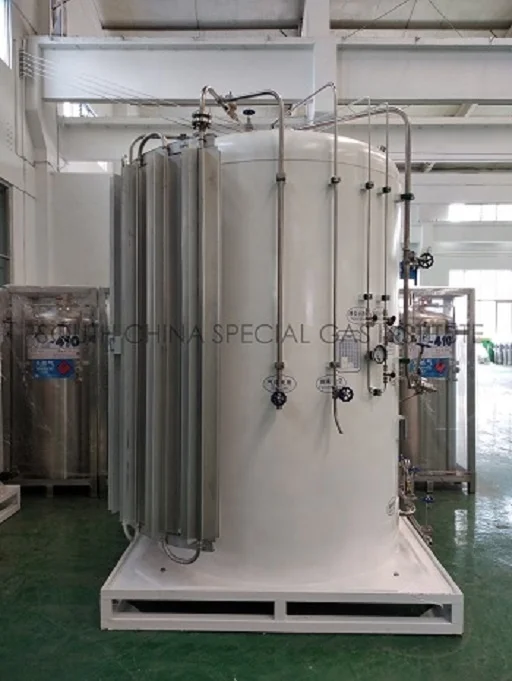

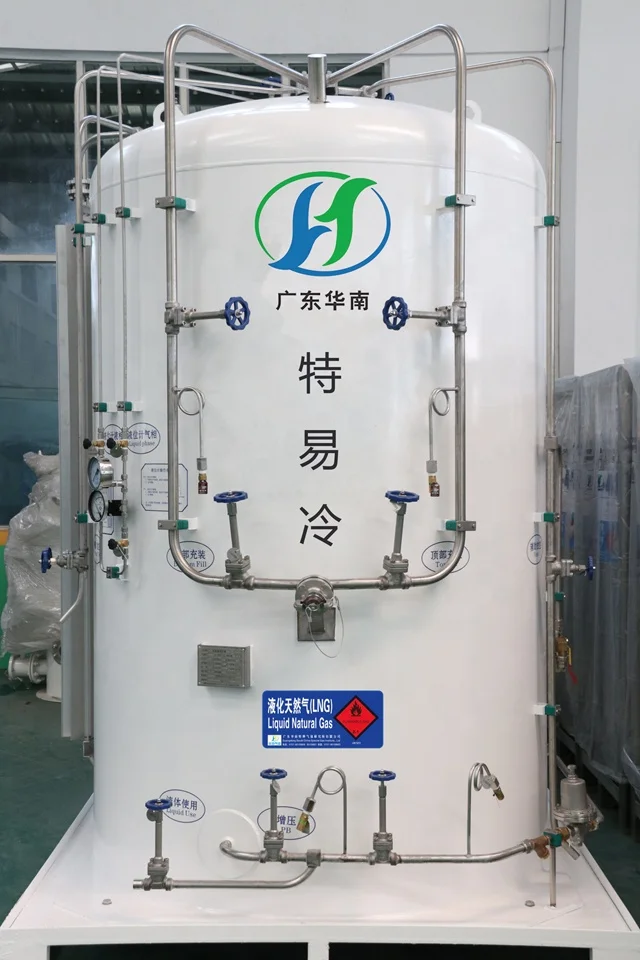

Details Images
Metal Sheet Rolling
S30408 Inner Tank Welding
Sea-Climate Withstands Painting

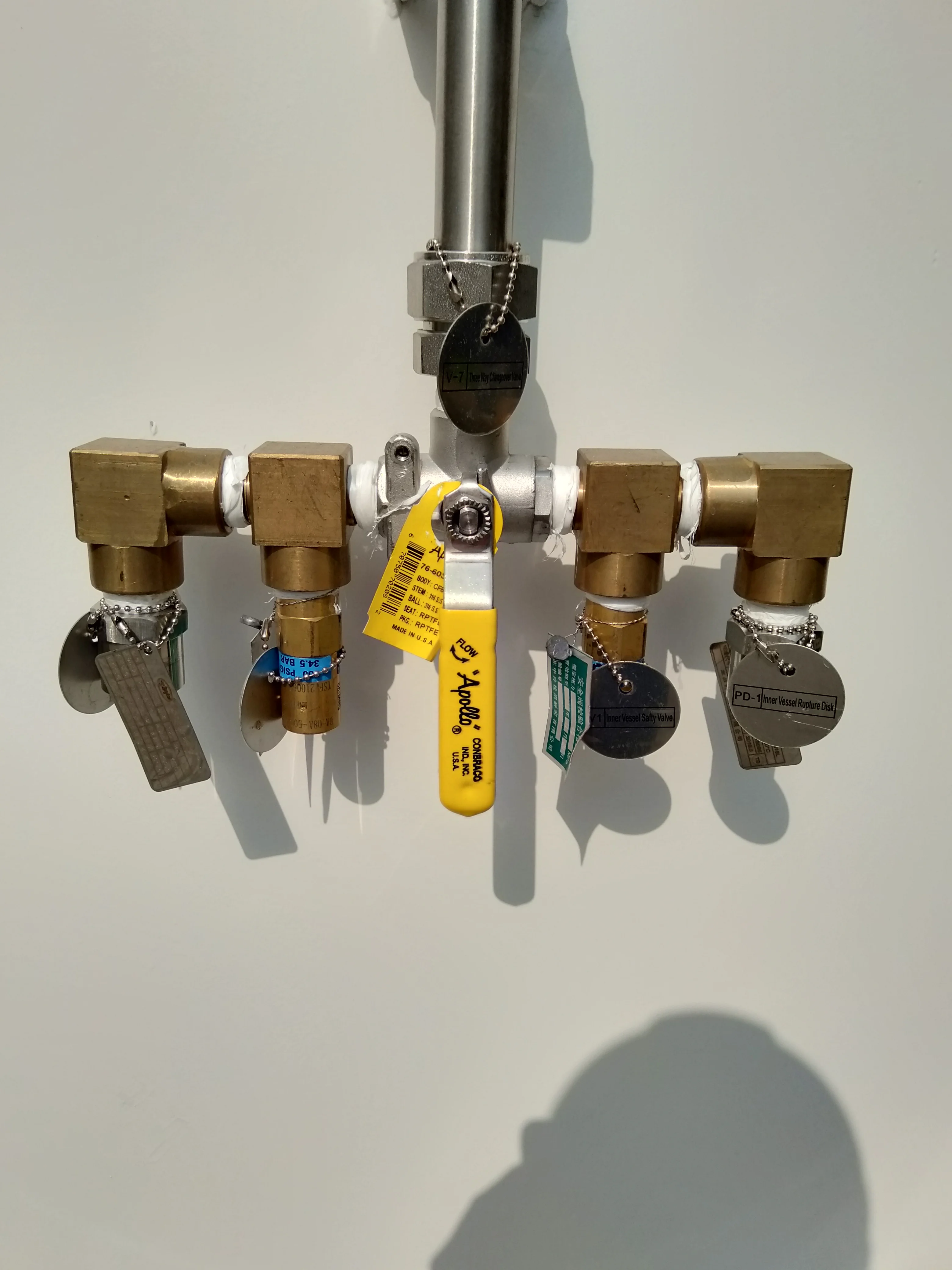

Nozzles Assembling
Pipeline Testing
Finish product Inspection

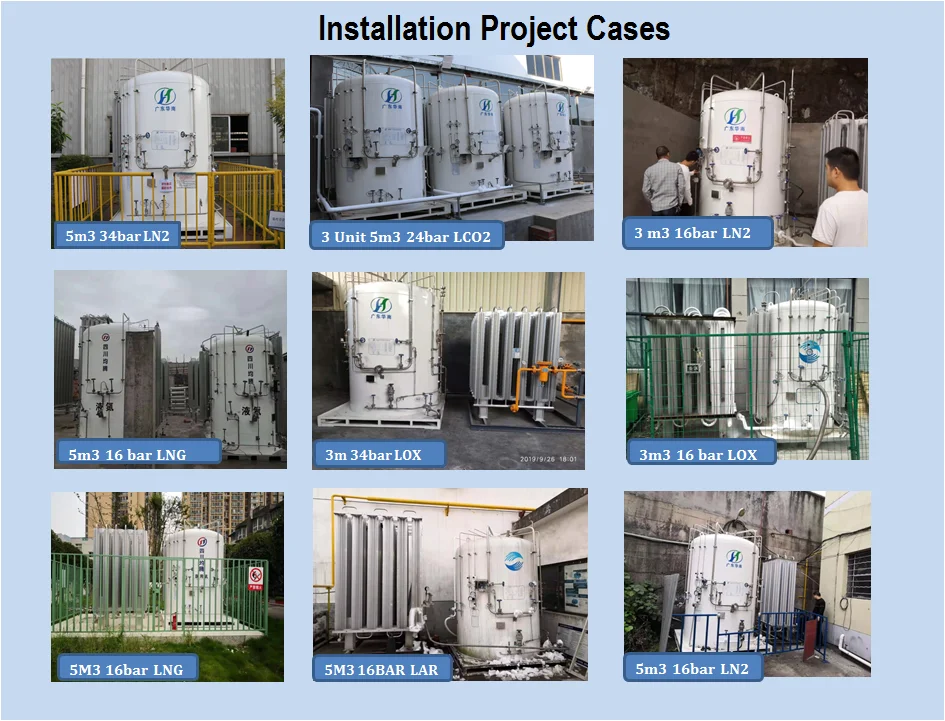

Project Install Case

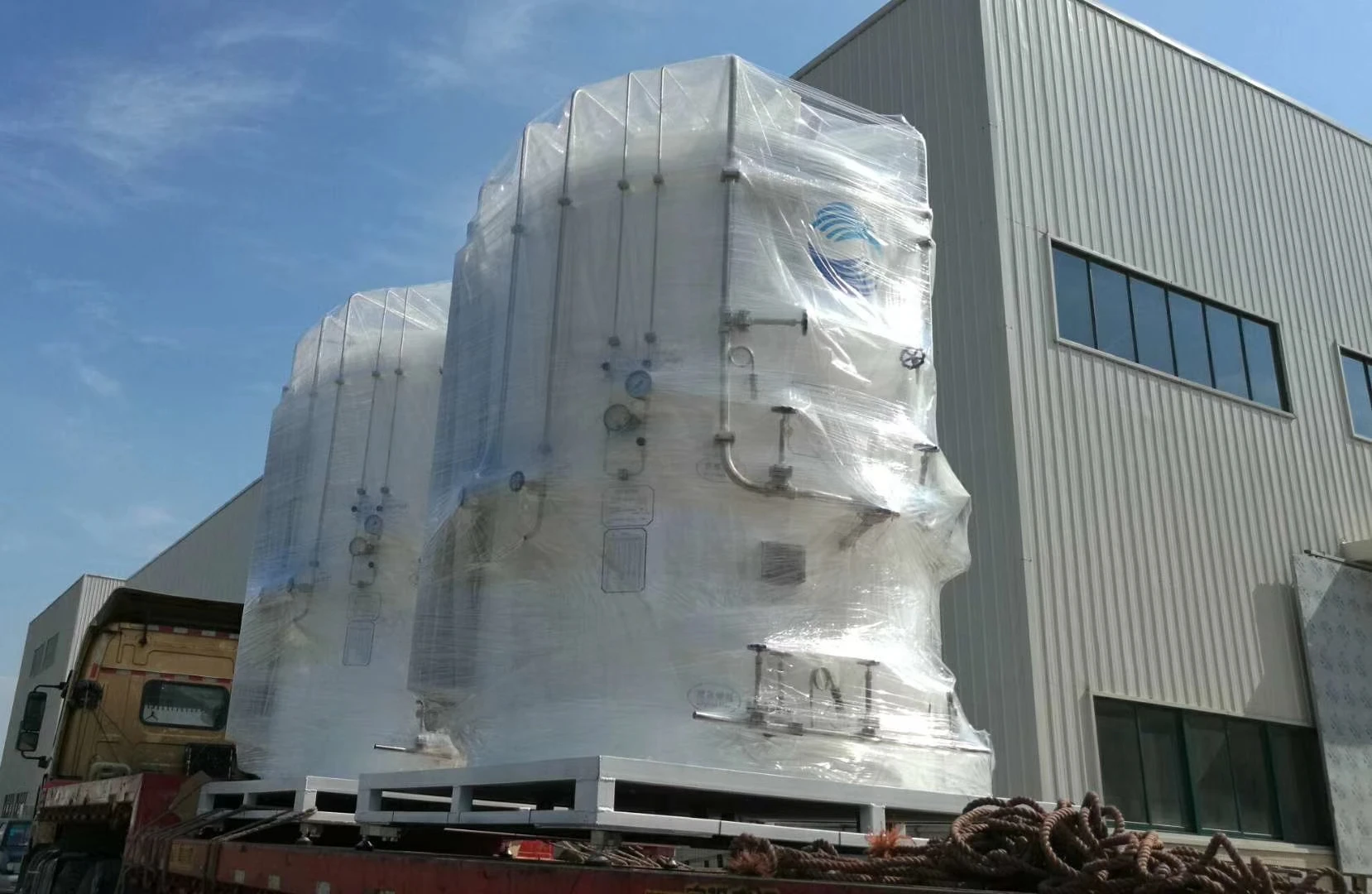

Packing &Shipping
