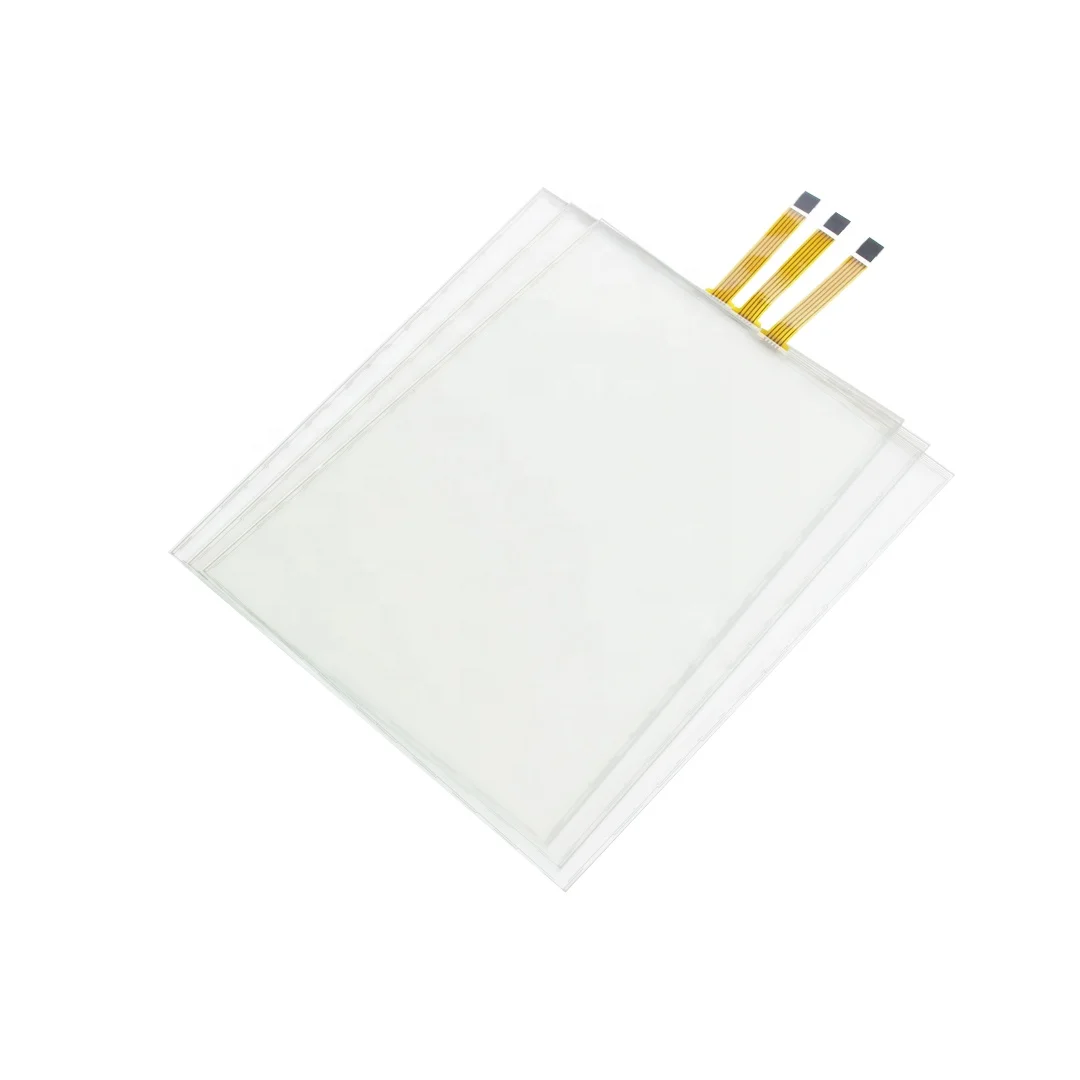

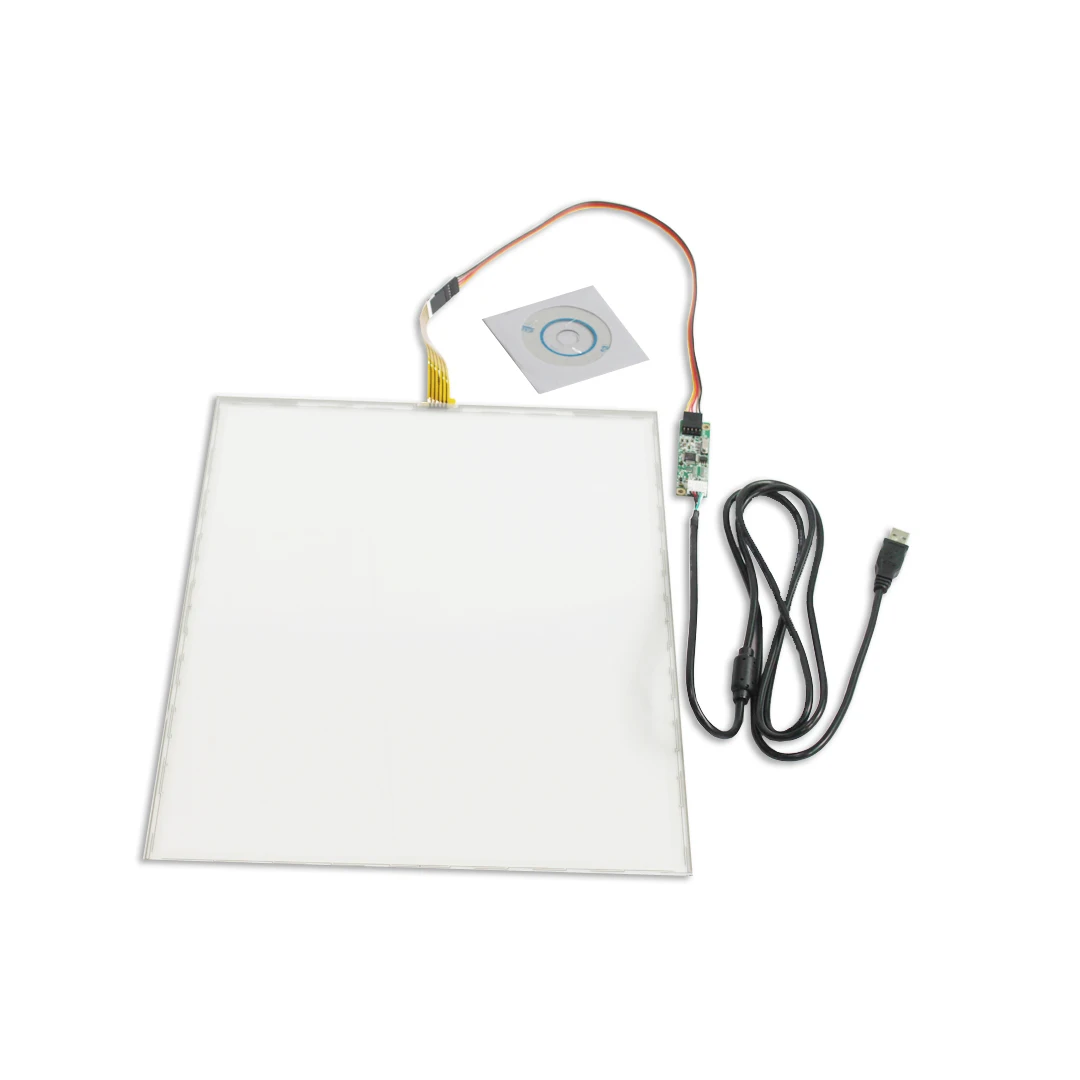

2021NEW 10.4 12.1 15 17 19 Inch 5 Wire Resistive Touch Screen With Usb Industrial Monitor
- Category: >>>
- Supplier: Quanzhou Greatouch Technology Co. Ltd.
Share on (62495472359):
Product Overview
Description
Product Description
Specification: | |||
| General Size | 10.4 inch To 22 inch | Fit in with | Panel display device |
| Input Method | Finger or gloved hand | Supply voltage | DC5V |
| Durability | >35 million touches | Positional Accuracy | <1.5% |
| Light Transmission | 82% | Clear surface | <3% |
| Antiglare Surface | <4% | Anti-Newton | <10% |
| Linearity | X<1.5%, Y<1.5% | Response | <15ms |
| Insulation | >20MΩ/25V(DC) | Heat Cycle | 70°C /240 hrs |
| Cold Cycle | -40℃/ 240hrs | Operation Temperature | -10°C ~ +70°C |
| Operation Humidity | 20%RH ~ 85%RH, no condensing | Storage Temperature | -40°C ~ +80°C |
| Storage Humidity | 10%RH ~ 90%RH, no condensing | Endurance | No acting damage at DC/50V60sec |
| Thermal Cycle | -40°C ~70°C [60 min./cycle] *10 cycles | ||
| Resolution | Based on controller resolution of 4096x4096 | ||
| Circuit Resistance | X:20~250Ω,Y:20~25Ω (See Figure 1) | ||
| Active Force | Stylus or Finger or Similar <45g~110g | ||
| Operation System | Win7/8/10/ XP / 2000 / NT4.0 / ME / 98 / 95 / Dos / Linux / Mac OS | ||
| Waterproof | Not damaged by running water applied to the active area | ||
| Gloss | 90±20 gloss units tested on a hard-coated front surface Accordance with ASTM D 2457 | ||
Products Advantage:
1. Flexible,very light weight,easy installation.
2. 4096x4096 HD resolution,high precision, fast response.
3. USB port, touch a correction, high stability, and never drift.
4. Touch intensity, high sensitivity, touch-free drift.
5. Can withstand more than 10 million times touch Click.
6. You can use a pen, finger, gloved hand, and many other media touch touch,
7. Can be adapted to harsh environments, such as splashing drops of water flow down, etc.
8. Supports single touch point, one-time calibration.
9. Product through CE, FCC, RoHS certification, stable and reliable performance.
Products Application:
1.Car computer and GPS
2.Open touch TV/PC
3.Touch POS
4.LCD/LED touch monitor
5.Touch all-in-one pc
6.Touch Kiosk and other devices
Products Show:
Application
The capacitive touch screen has been used in many areas, such as office, teaching, entertainment equipment and so on.
Related product
The following is our other hot products, welcome to click to view.
Company Information
Our partner
Packaging & Shipping
FAQ
Q1: Are you a factory or a trading company?
A: We are a OEM/ODM factory.
Q2: What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T,Paypal and Western Union.
Q3: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery.
Q4: What will you do if the product be nature damange within warranty time and how about out that time?
A: Well, we will give some quite simple questions to help us confirm the damaged part. Once it confirmed, the free replacement will be send. Also, we will just request a very low price for replacement part, if the product out of warranty time.
Q5: Do you give any discount?
A: I'll surely try my best to help you get those by the best price and good service at the same time.
Q6: Can I customize the product I ordered?
A: Abusolutely yes, customizatiion offer from customers are most welcome in our company.
