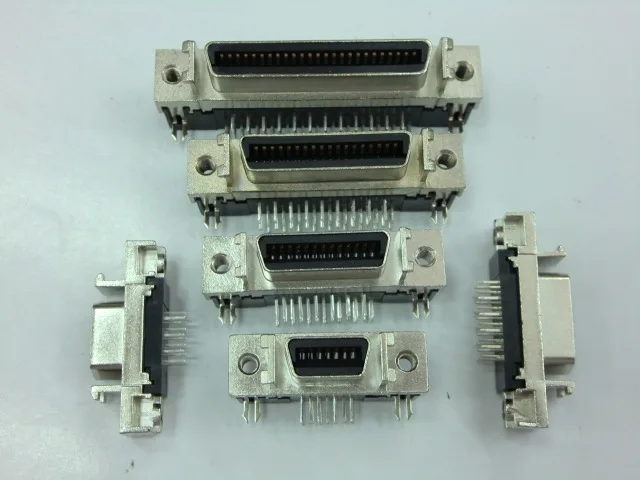

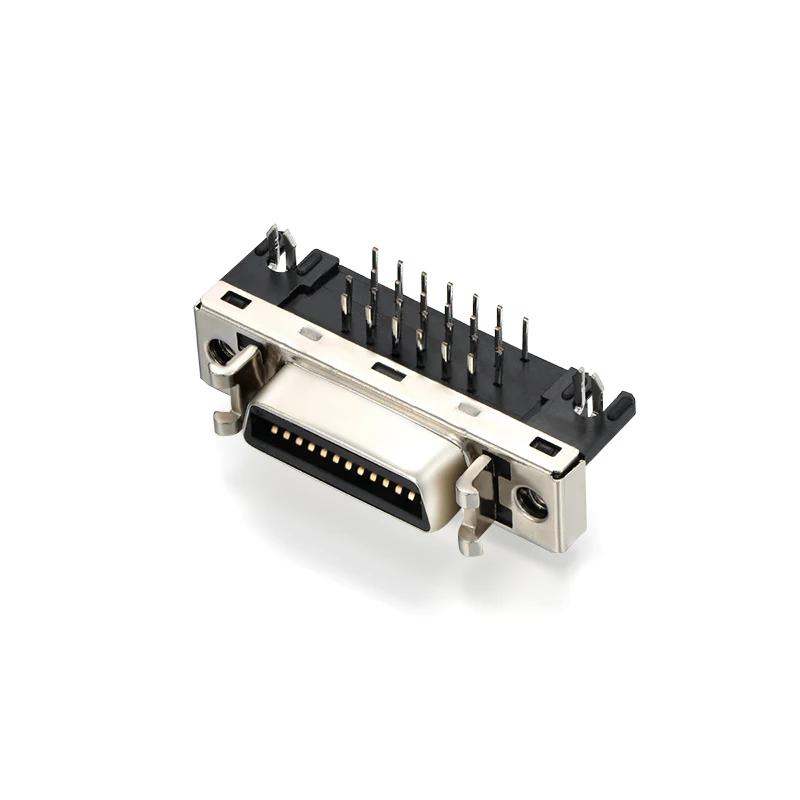

Female Vertical 90 Degree CN Type 26 Pin MDR SCSI Connector for PCB Mount
- Category: >>>
- Supplier: Wuhan Link Signal Electronics Technology Co. Ltd.
Share on (62495539286):
Product Overview
Description
Product Description
Product Specifications | ||
Product Series | Link-Signal SCSI Connector | |
Product Type | SCSI HPDB/HPCN | |
Gender | Male/Female | |
Number of Contacts | 14, 20, 26, 36, 50, 68, 100 Pin (optional) | |
Pitch | 1.27 mm/0.8mm/1.0mm/2.16mm | |
Orientation | Straight/Right Angle | |
Termination | PCB Soldering/Cable Soldering | |
Contacts | Copper Alloy with Gold Plated | |
Shell | Plastic/Zinc Alloy/Nickle plated over copper | |
Housing | Plastic thermoplastic P.B.T UL94V-0,black | |
Steel | SPCC Nickel plated | |
Screw / Nut | Nickel-plated | |
Electrical characteristics | ||
Operating Temperatures | -50℃~85℃ | |
Contact Current Rating | 1Amp | |
Dielectric Withstanding Voltage | 500V AC | |
Contact Resistance | 35mΩ maximum | |
Insulation Resistance | ≥500mΩ minimum | |
Product Categories
Application
Widely used in Camera, Scanner, Midi, Computer, S-Video ......
Packing & Shipping
Packing:
1. Standard packing:
Individual part with transparent PE bag with label---Carton with label
2. At buyer's option, OEM package is available.
Individual part with transparent PE bag with label---Carton with label
2. At buyer's option, OEM package is available.
Shipping:
1. Samples and Small quantity order
FEDEX/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass production.
FEDEX/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass production.
FAQ
FAQ
1: Do you provide samples ? Is that free or need to charge.
Yes, samples supply is acceptable. Samples cost depends on the requested quantities .
2: How long is your delivery time?
2: How long is your delivery time?
Normally it will take 1-3 days if the goods are in stock. Delivery time is about 7-10 days if arranged production.
It also depends on the order quantity.
3: What is your terms of payment ?
3: What is your terms of payment ?
We accept bank transfer, T/T, Paypal & Western Union, or other payment methods.
4: What is your after-sales service ？
4: What is your after-sales service ？
All our the customers can enjoy the after-sales service for“one year quality warranty, and lifetime technical support”.
