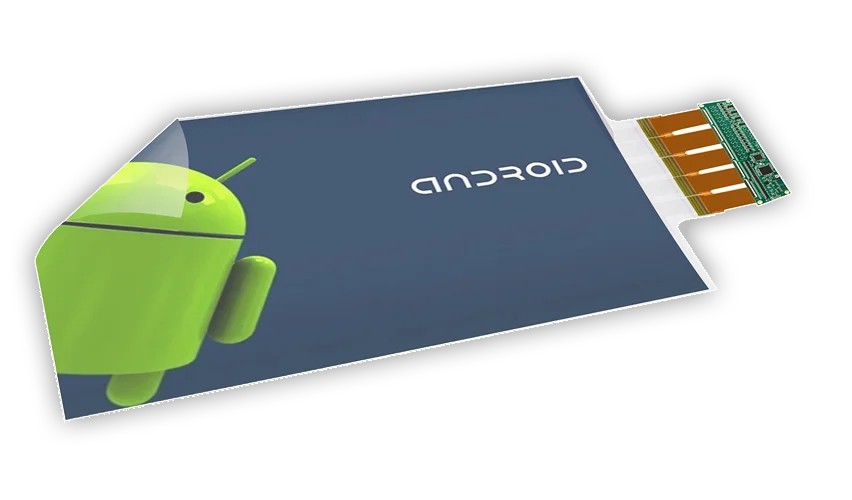

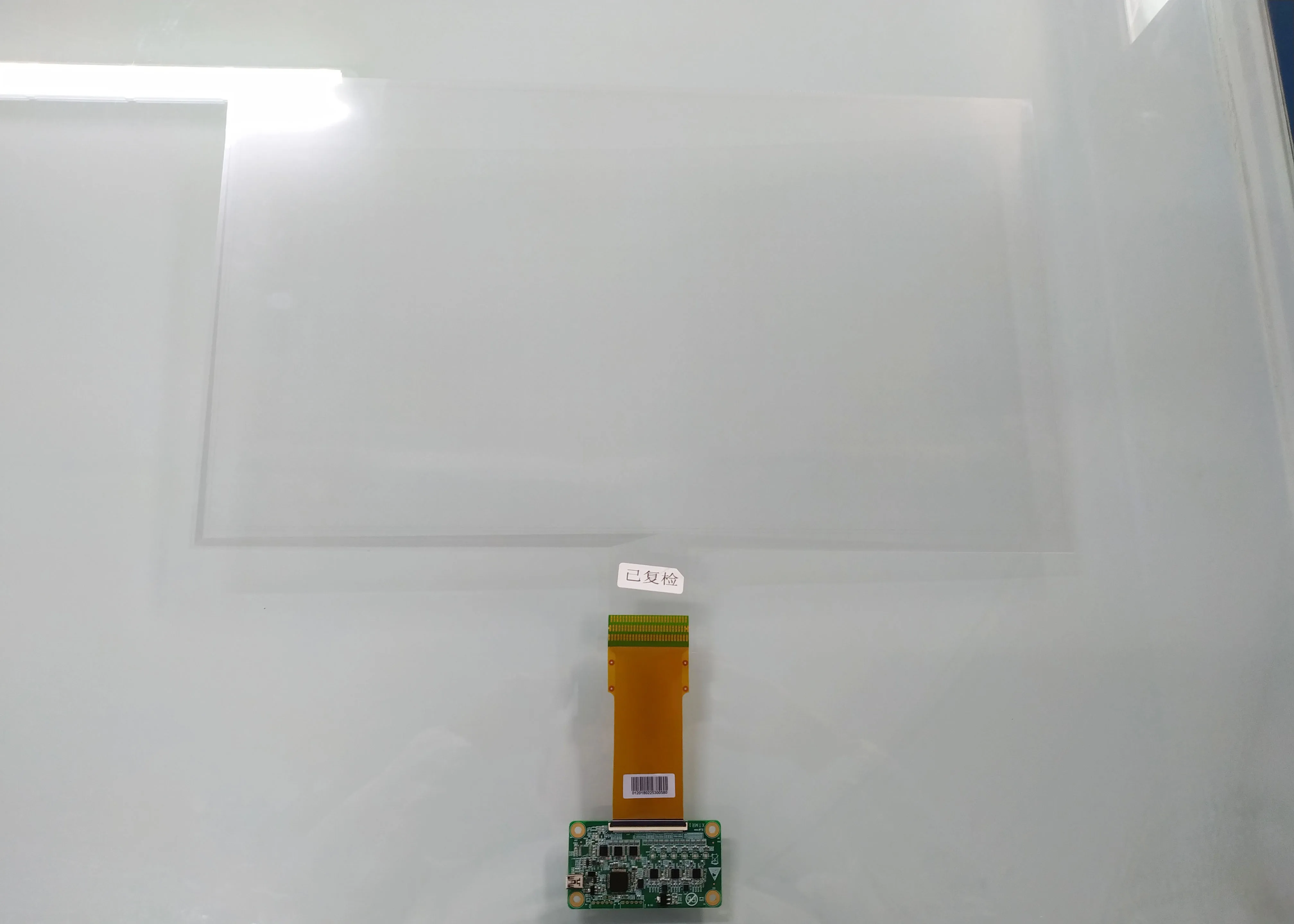

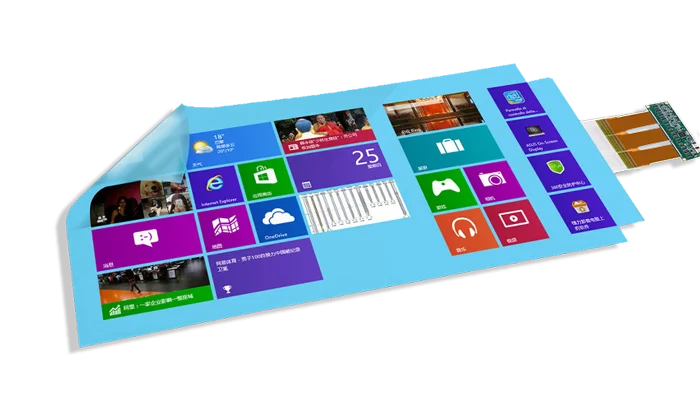

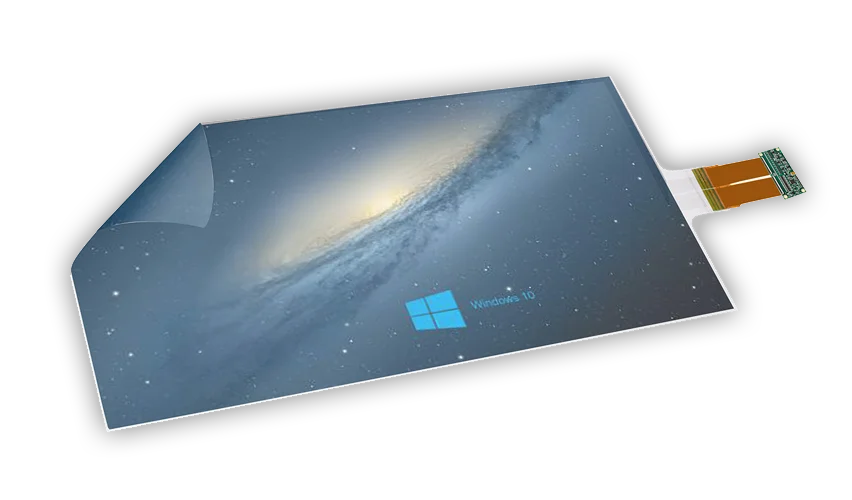

2021 Best Price 17 19 32 43 55 65 75 86 Inch interactive monitor blackboard capacitive touch sensor screen membrane foil film

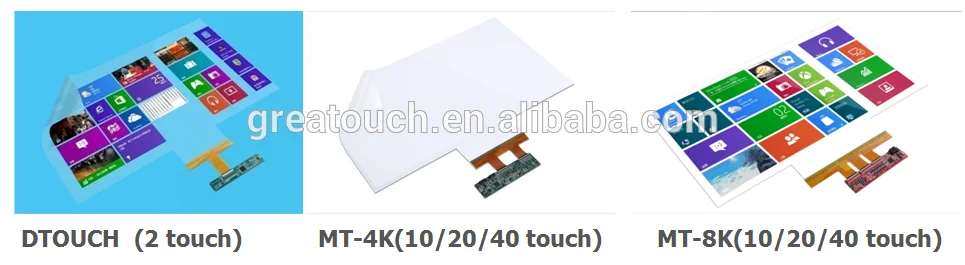

Greatouch Touch Foil Versions :

Dtouch could work through maximum 20mm glass,Mtouch-12mm glass.

But Multi touch version with more sensors and performs better in accuracy,response,anti-interference.

Interactive touch foil Main Feature:

1. Safety and robust Anti-scratch, laminate on the back of glass Waterproof, dust-proof, bullet-proof, Acid-proof, No expose components, safety. No mechanical components with long life

 Industrial temperature range: –20 °C to + 80 °C

2. Art and Sci-Fi High transparency ≥97%, glass-level transparency No bezel of touch area Thin and light, the sensor thickness only 0.17mm Thru-glass touch, the maximum thickness of glass can reach 20mm. Only hands valid, no touch action of metal, plastic,and so on.

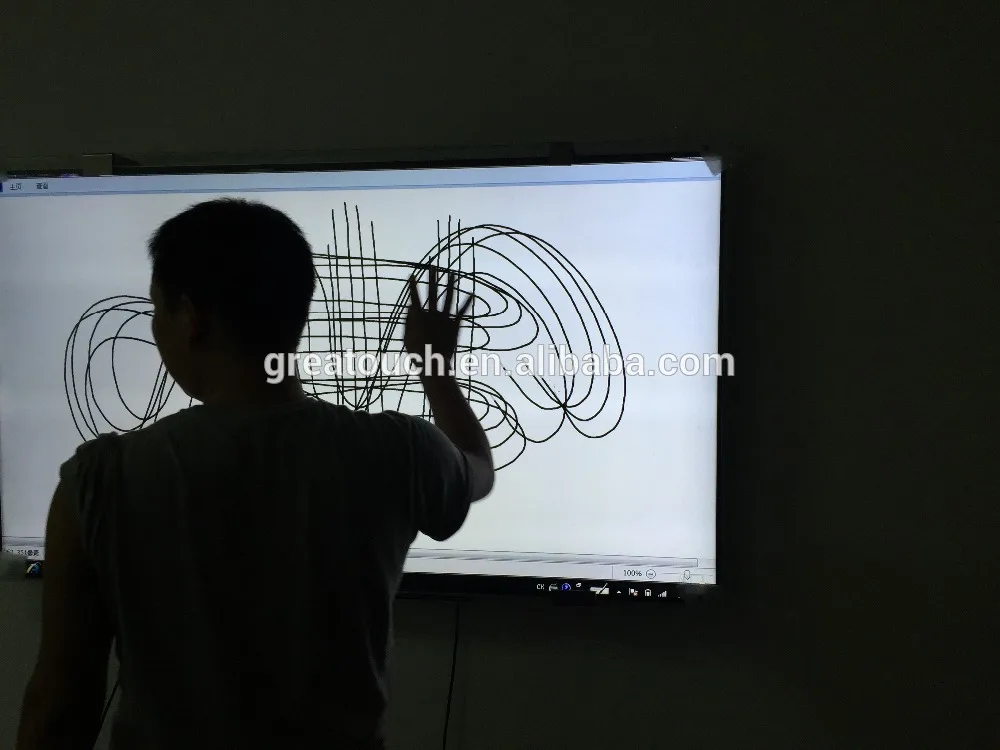

3. Excellent experience Zero pressure touch, even with glove. Mouse function with Zoom in/out and rotation. 2 points Multi-touch, Support TUIO & Windows Native multipoint port Precise touch & real-time response Rapid handwriting performance

4. Advanced features Low power consumption, the maximu power consumption is only 0.5w

Flexible, could be applied to curve surface touch screen The film sensor could be laminated on any smooth non-metallic flat Various size from 30" to 100", lowest cost customization.

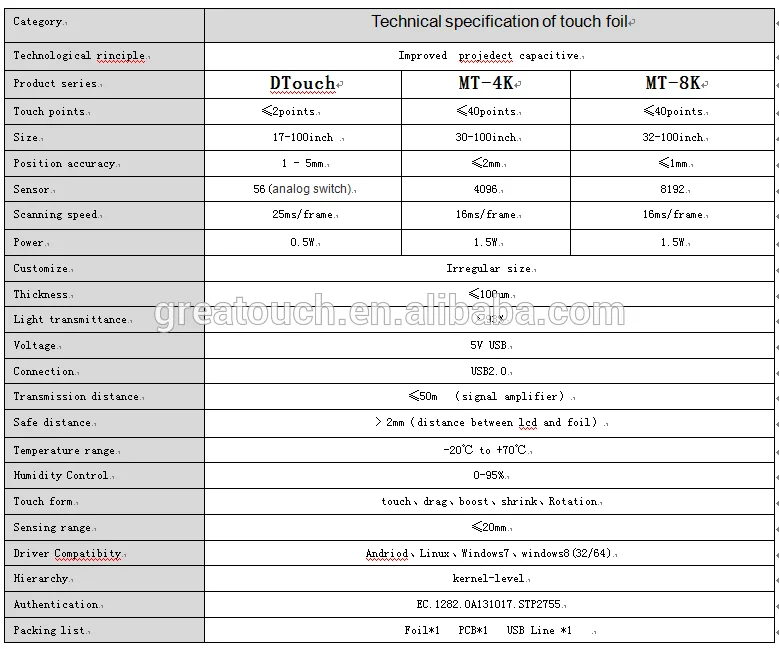

Technical Specification:

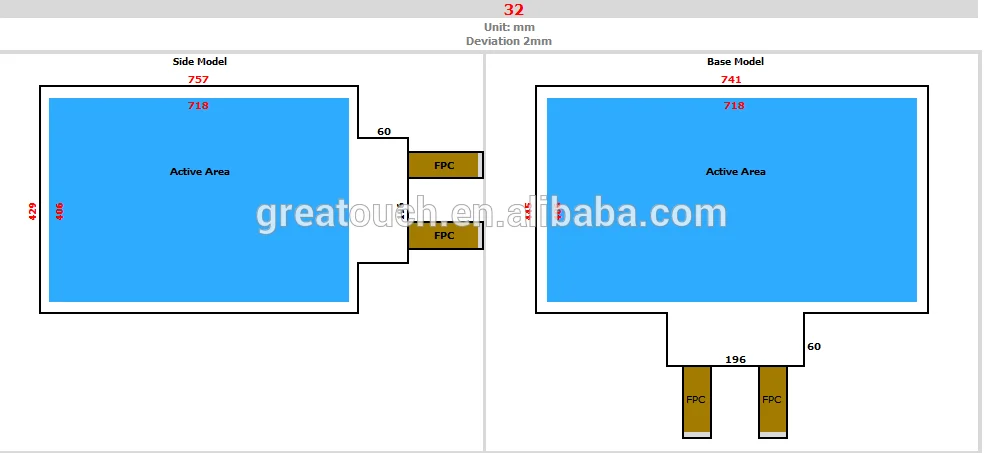

Tail location Model (take 42inch as example):

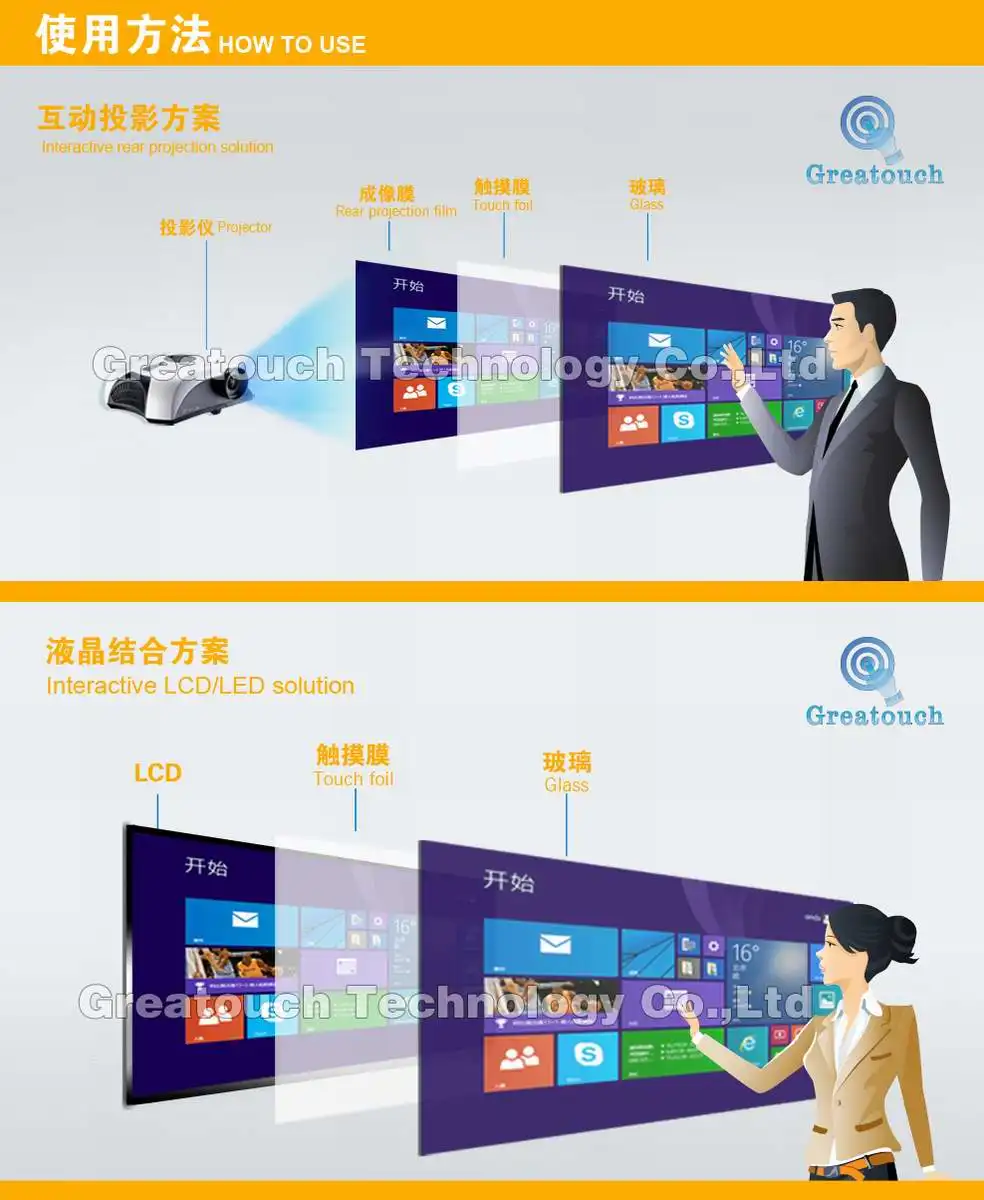

Application reference :

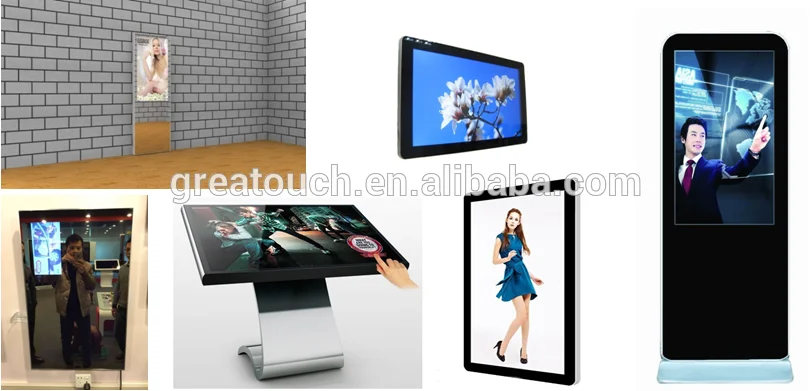

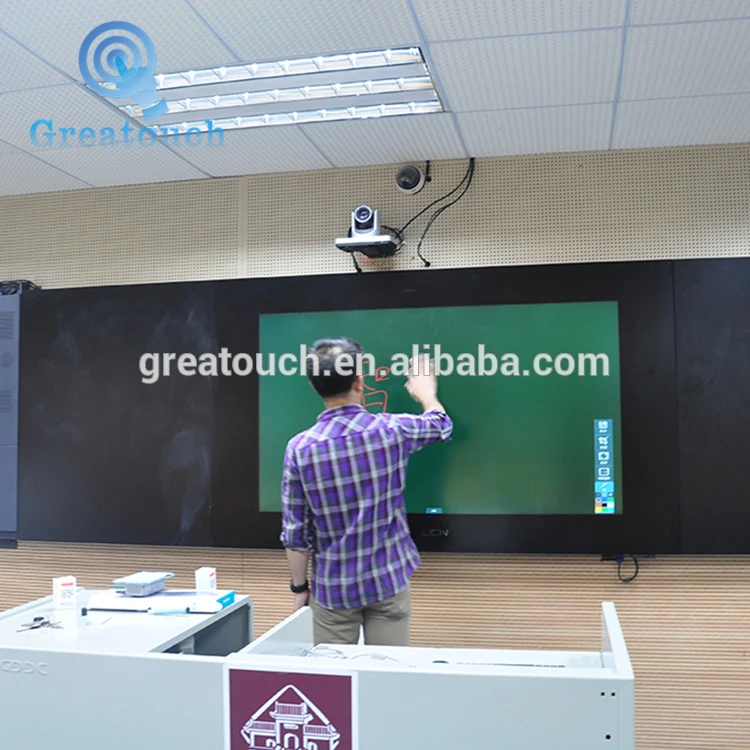

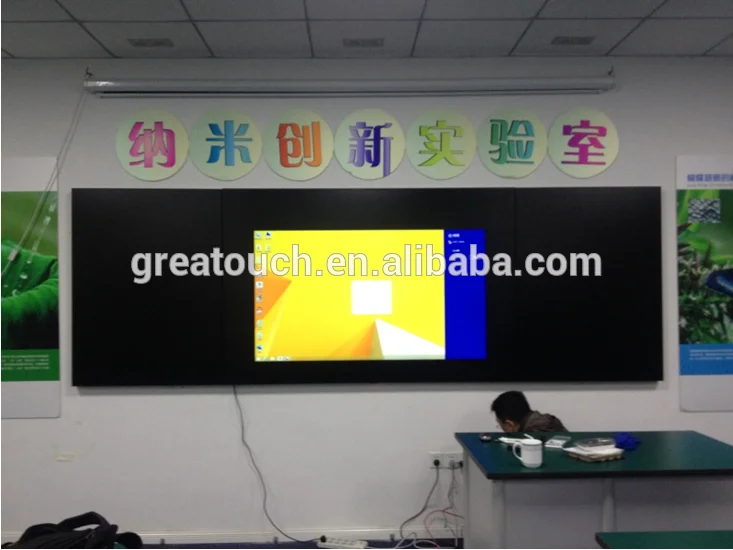

1. Interactive touch table, interactive glass, interactive blackboard, large format touch screen. interactive shop window.

 2. Interactive digital signage, touch table, kiosk. touch wall, touch mirror, etc.

1.The touch foil has no response

Possibility 1: the goldenfinger is connected the circuit board with wrong side.

Possibility 2: not tick Mouse Output.

2. Super-strong electromagnetic interference would lead to instability of the waveform and bounce of the mouse pointer. Try the follows to resolve:

Answer1:   Adjust the distance between LCD screens and touch foils.

Answer2:  Isolated power supply would be better.

Answer3: Correct grounding

Answer4:Add filter or shielding.

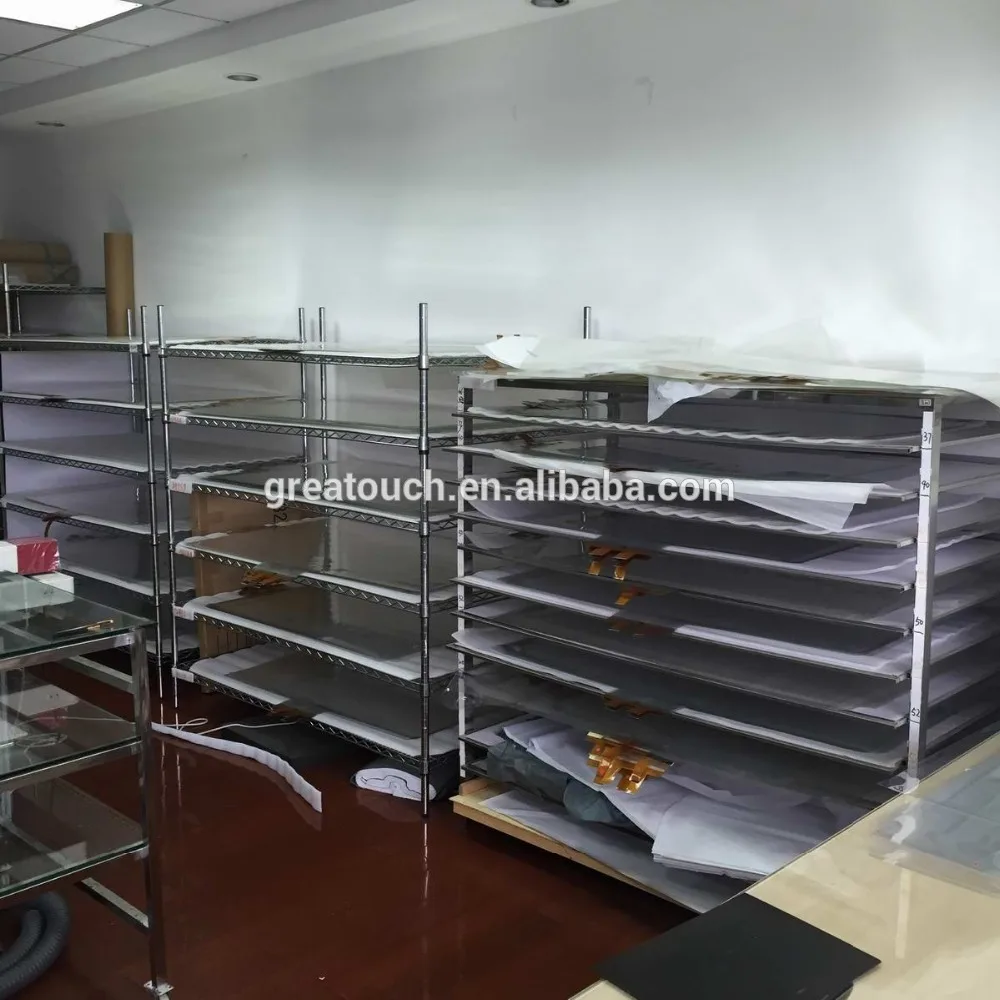

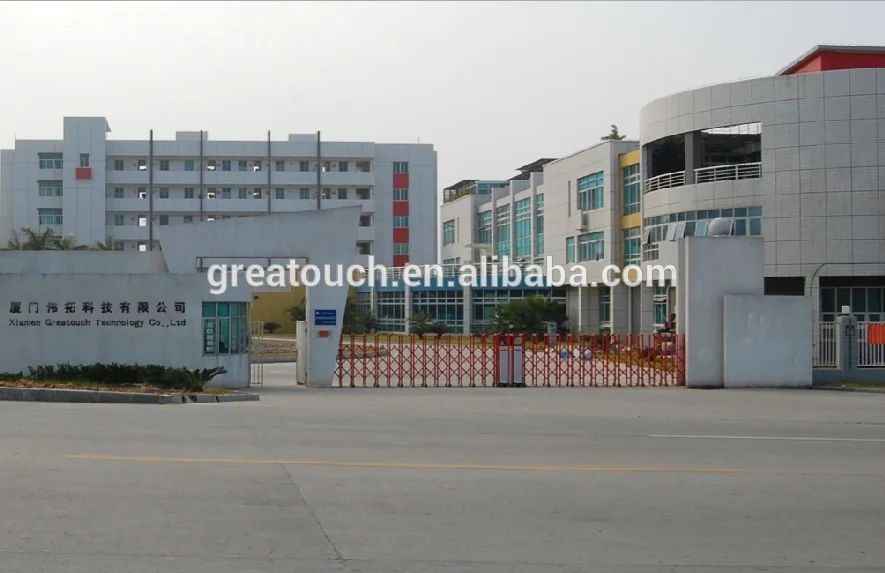

Xiamen Greatouch Technology Co., Ltd. was established in 2001 and is located in Xiamen, China. Our company integrates the research, development, production, marketing, sale and service together. We specialize in producing infrared single-touch, dual-touch and multi touch frame overlay, optical touch screen, projected and surface capacitive touch screen, surface acoustic wave (SAW) touch screen, 4 wire and 5 wire resistive touch screen, interactive touch foil film through glass, touch LCD monitor, Multi-touch LCD monitor, touch kiosk and advertisement POS, etc.
