Product Overview
Description

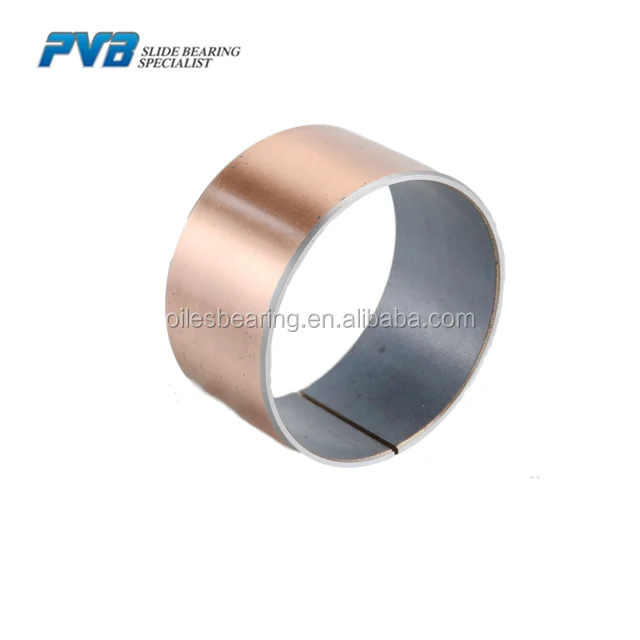

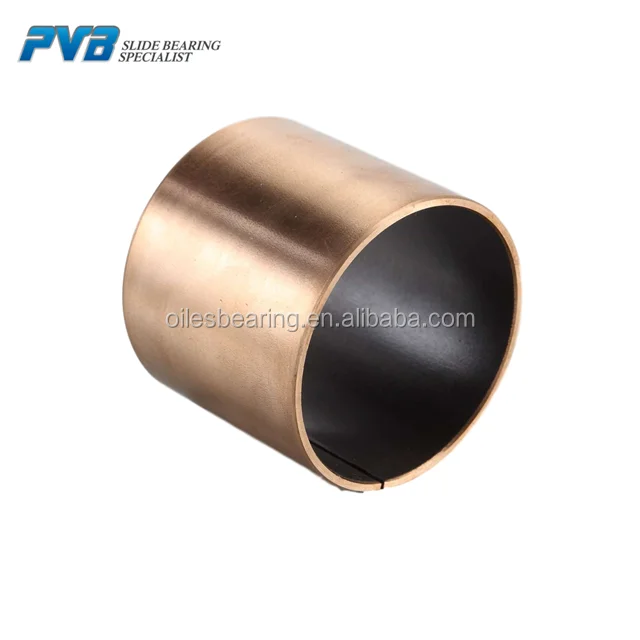

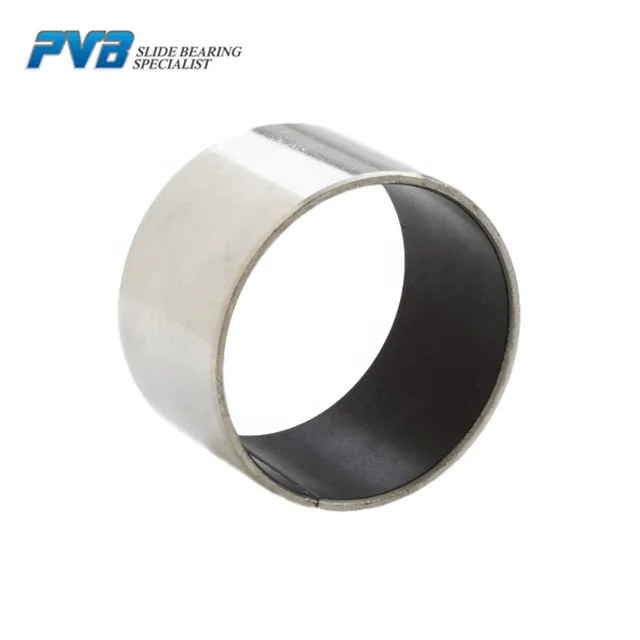

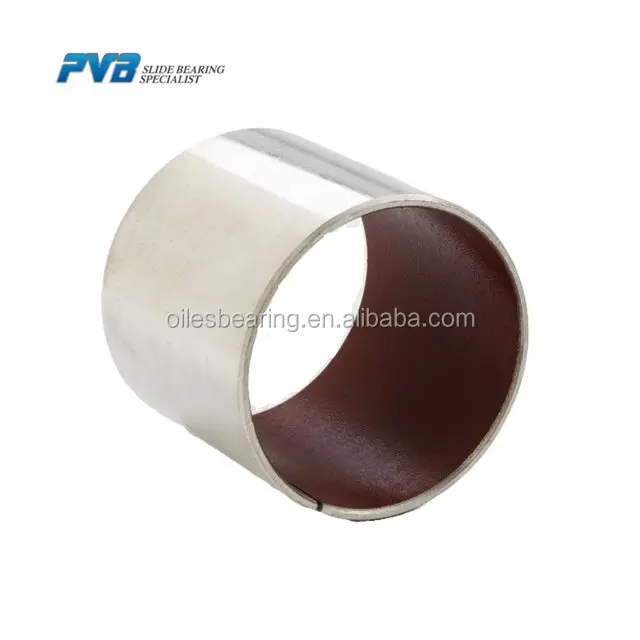

HD700-7 Cylinder du bushing 85*30 95*30 80*30, bucket DU bush, Excavator boom pin bushing bearing
Material Sturcture
Material: Steel Back + Porous Bronze Sinter +PTFE
Technical Data
| GENERAL | Unit | Value | |
| Maximum load, p | Static Dynamic | N/mm2 N/mm2 | 250 140 |
| Operating temperature | Min Max | °C °C | - 200 280 |
Coefficient of linear thermal expansion | Parallel to the surface Normal to the surface | 10-6/K
10-6/K | 11
30 |
Features
- PVB014 self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
- Bushing material suitable for lubricated applications
- Anti-friction bearing suitable for linear, oscillating and rotating movements
Application
shock absorber, dampers and etc

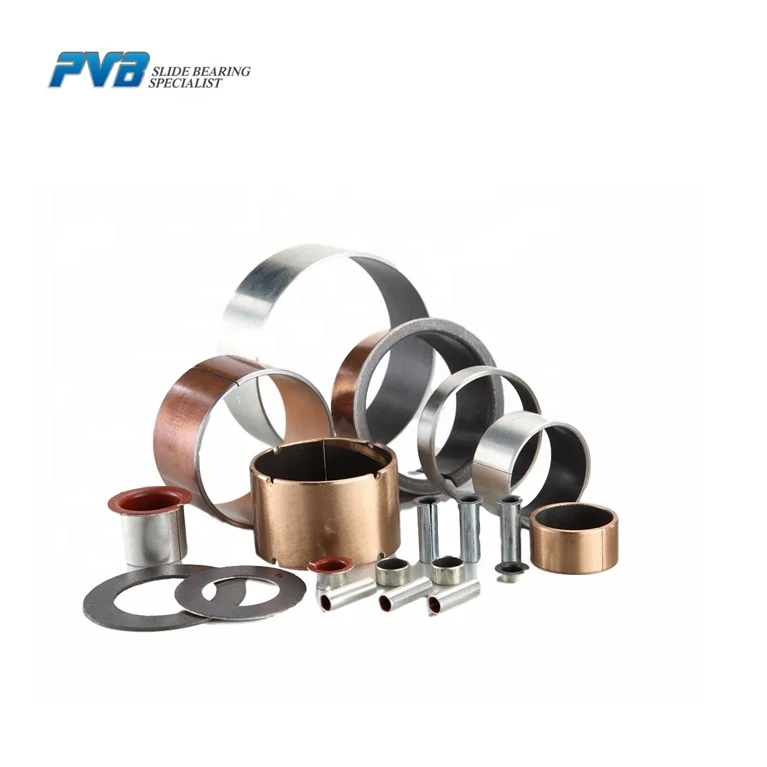

We also sell all kinds of bushings as follows:
| PC | Boom | Arm | Bucket | HD | Boom | Arm | Bucket | |
| PC60-3 | 65*30 | 60*30 | 55*30 | HD400-5 | 70*30 | 75*30 | 65*30 | |
| PC60-5/6/7 | 65*35 | 60*35 | 55*35 | HD512 | 75*30 | 80*30 | 70*30 | |
| PC100-5 | 65*30 | 75*30 | 60*30 | HD550SEV | 80*30 | 85*30 | 80*30 | |
| PC120-5/6 | 70*30 | 75*30 | 65*30 | HD700G | 80*40 | 90*40 | 80*40 | |
| PC100-3 | 65*30 | 75*30 | 65*30 | HD700-5/7 | 85*30 | 95*30 | 80*30 | |
| 20HT-3 | 90*40 | 100*40 | 80*40 | HD770SEII | 85*40 | 90*40 | 85*40 | |
| PC200-3 (O) | 85*40 | 95*40 | 75*40 | HD800SEV | 85*30 | 100*35 | 85*30 | |
| PC200-3 (N) | 85*45 | 95*45 | 75*40 | HD800VII | 85*30 | 100*40 | 85*30 | |
| PC200-5/6/7 | 85*40 | 95*40 | 80*40 | HD820 | 85*30 | 100*35 | 80*30 | |
| PC220-1 | 90*40 | 110*50 | 90*40 | HD850G | 85*40 | 90*40 | 85*40 | |
| PC220-2 | 90*30 | 100*50 | 80*30 | HD880SE | 85*40 | 90*40 | 85*40 | |
| PC220-3 | 90*35 | 95*35 | 90*35 | HD900-5 | 85*30 | 105*35 | 85*30 | |
| PC220-5/6 | 90*40 | 110*40 | 90*40 | HD900-7 | 90*30 | 105*35 | 85*30 | |
