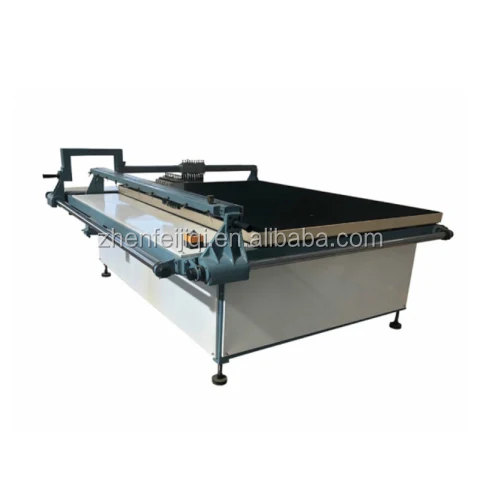

Full Automatic Multi function Laminated Glass Cutting Machine
- Category: >>>
- Supplier: Qihe Zhenfei Machinery Co. Ltd.
Share on (62495841897):
Product Overview
Description

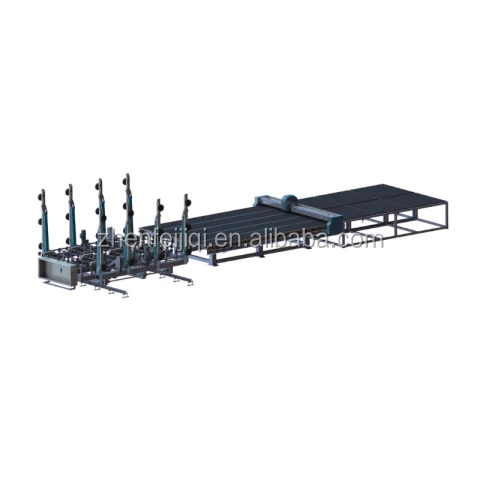

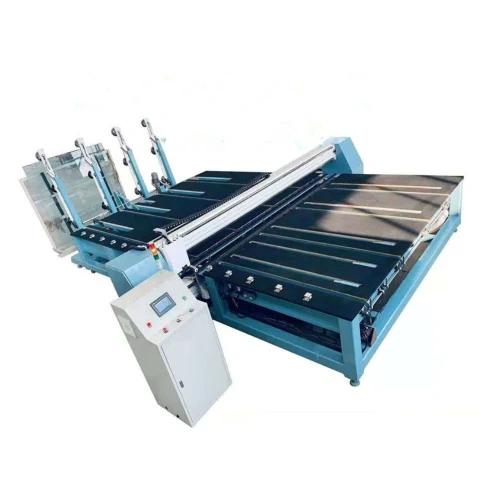

Full Automatic Multi-function Glass Loading Cutting Machine:
Glass loading, cutting functions together.
1.Cutting circles, squares and any shapes you want
2.Scanning shapes and conversion cutting path into cutting software, do not need to drawing
3.Automatic optimize cutting path to save more much glasses
4.Using temper 45# steel rack ensure higher precision and stability
5.Customize available ,any size color or functions you need.
Table size | 3660*2440mm |
Thickness of cutting glasses | 2~19mm |
Accuracy | ≤0.15mm |
Speed | 0~180M/min(adjust as you need) |
Machine size | 4900(L)*3300(W)*1400(H)mm |
Height | 900±50mm |
Transmission | X,Y,Z axis is Japanese YASKAWA and KHK Precision gear device |
Cutting set | adopt air press and spring; 360 degree`s cutting head turn, up and down cutting. Available of any shapes of glass |
Oil supply | automatic oiling device. Oil hydraulic adjustable. |
Positioning device | optical scanning positioning system |
Personnel requirements | requirements: knowing basic knowledge of cutting and computer operation |
II. Mechanical part:
Main Bearings | Japanese NSK |
Transmission belt/pulley | Barbieri of Italy |
Countertop | imported kangpeite waterproof/fireproof panel |
Rack | KHK, rails: silver(Taiwan) . |
Cutter wheel/wheel clamp | Germany Bohle |
Surface of table | Korea industrial belt(black) |
Cutting set | air press and spring;(the ideal effect) |
Delivery device (Optional) | auto-sensing device(five belts transmission and two close to auto-sensing switches to achieve automatic sensing and transmission; reducing work of staff ) |
III. Electrical parts:
Console screen | Using PC computer to control with micro-soft windows interface |
Voltage | 380V/50HZ with a regulator device |
Servo System | Japanese YASKAWA |
Control Systems | USA control card |
Drive | The Delta brand. |
Pneumatic Original | Japanese SMC(main components) |
Contact Person: Ms.Sailing
Whatsapp/wechat: 0086 13361033782
Guarantee & Aftersales service:
1)Guarantee the complete machine for 12 months, except the consumable parts.
2) 24-hours technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
