High Quality Custom Wholesale Dual Port Side D SUB HDR 15P Connector
- Category: >>>
- Supplier: Dongguan Yili Electronic Technology Co. Ltd.
Share on (62496314513):
Product Overview
Description
Product Description

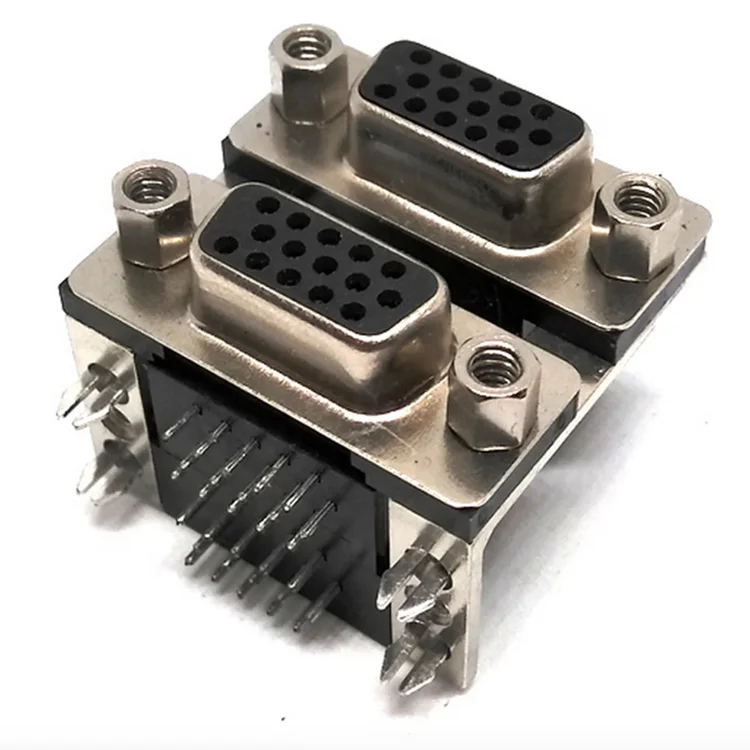

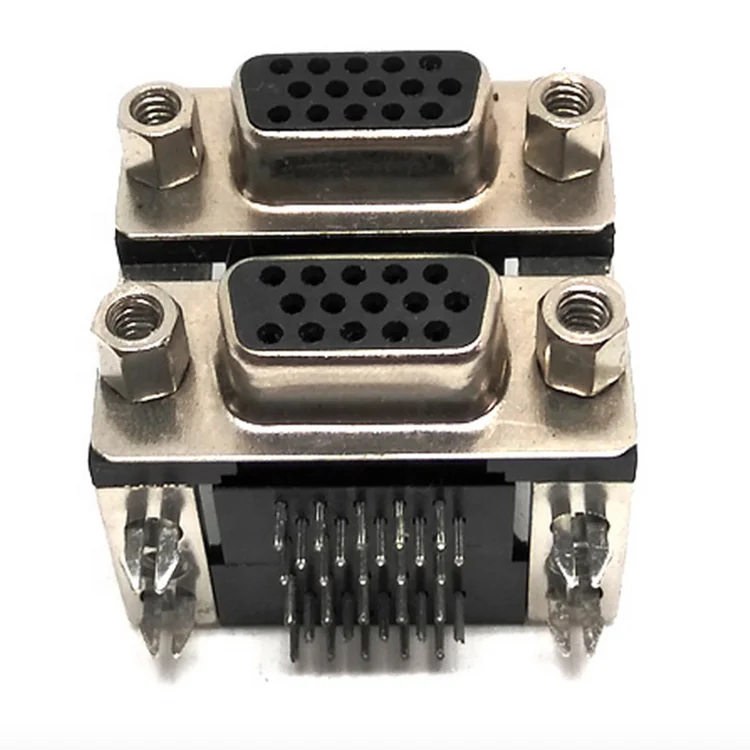

High Quality Custom Wholesale Dual Port Side D-SUB HDR 15P Connector
Colour | Black |
Application | Computer |
Material | Brass |
Connector type | Dip |
Pin Number | 30Pin |
Terminal Material | Copper Alloy |
Terminal Plating | Gold Plating |
Insulator Material | PBT |
Specification:
1.MATERIAL:
1-1.OUTSIDE SHELL: SPCC
1-2.HOUSING:PBT
1-3.TEMINARL: COPPER ALLOY
2.PLATING SPECIFICATION
2-1.TERMINAL: GOLD PLATED.
2-2.SHELL: NICKEL PLATED.
3.MECHANICAL PERFORMANCE
3-1.INSERTION FORCE: 5N~20N.
3-2.WITHDRAWAL FORCE: INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY: 5000 CYCLES.
4.ELECTRICAL PERFORMANCE
4-1.CURRENT RATING: 1.5A
4-2.LLCR: CONTACT: 40mΩ MAX(INITIAL).
4-3.INSULATION RESISTANCE:UNMATED: 100MΩ MIN.
4-4.DIELECTRIC WITHSTAND VOLTAGE: 100V/AC.
5.OPERATING TEMPERATURE RANGE: -25°C~85°C.
6.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.
1.MATERIAL:
1-1.OUTSIDE SHELL: SPCC
1-2.HOUSING:PBT
1-3.TEMINARL: COPPER ALLOY
2.PLATING SPECIFICATION
2-1.TERMINAL: GOLD PLATED.
2-2.SHELL: NICKEL PLATED.
3.MECHANICAL PERFORMANCE
3-1.INSERTION FORCE: 5N~20N.
3-2.WITHDRAWAL FORCE: INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY: 5000 CYCLES.
4.ELECTRICAL PERFORMANCE
4-1.CURRENT RATING: 1.5A
4-2.LLCR: CONTACT: 40mΩ MAX(INITIAL).
4-3.INSULATION RESISTANCE:UNMATED: 100MΩ MIN.
4-4.DIELECTRIC WITHSTAND VOLTAGE: 100V/AC.
5.OPERATING TEMPERATURE RANGE: -25°C~85°C.
6.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.
