Wuling Motors MCVA4O24 electric rear axle
- Category: >>>
- Supplier: Liuzhou Wuling Automobile Industry Co. Ltd.
Share on (62496319956):
Product Overview
Description
Product Description

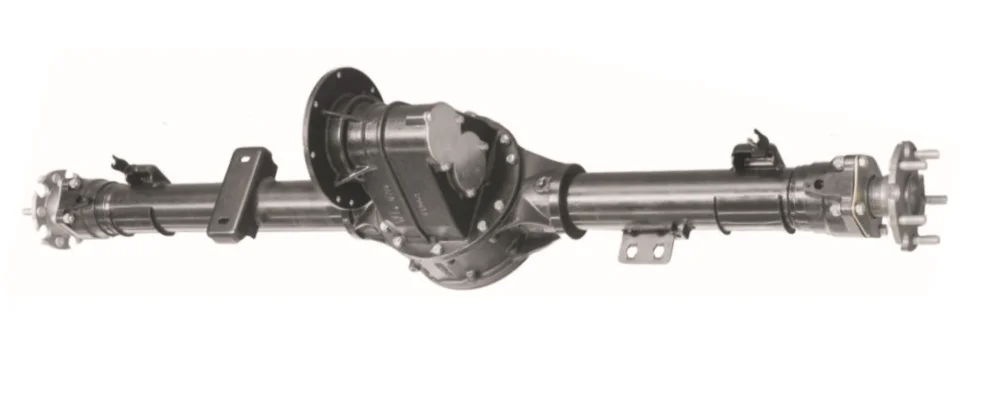

The structure of MCVA4O24 electric driven axle is off-axis intubation axle assembly for mini/ light electric logistics vehicle and pickup.
Type | Unit | MCVA4O24 |
Transmission ratio | - | 9/10.5(variable 8-10) |
Rate input torque | N.m | 95 |
Max input torque | N.m | 230 |
Rated input speed | rpm | 3000 |
Max input speed | rpm | 9000 |
Rated motor power | kw | 30 |
Max motor power | kw | 60 |
Voltage | v | 336 |
Dimension | mm | 1548*396*232 |
Distance between input and output shaft | mm | 192 |
Weight(without brakes) | kg | 70.5 |
Full axle load | kg | 2000 |

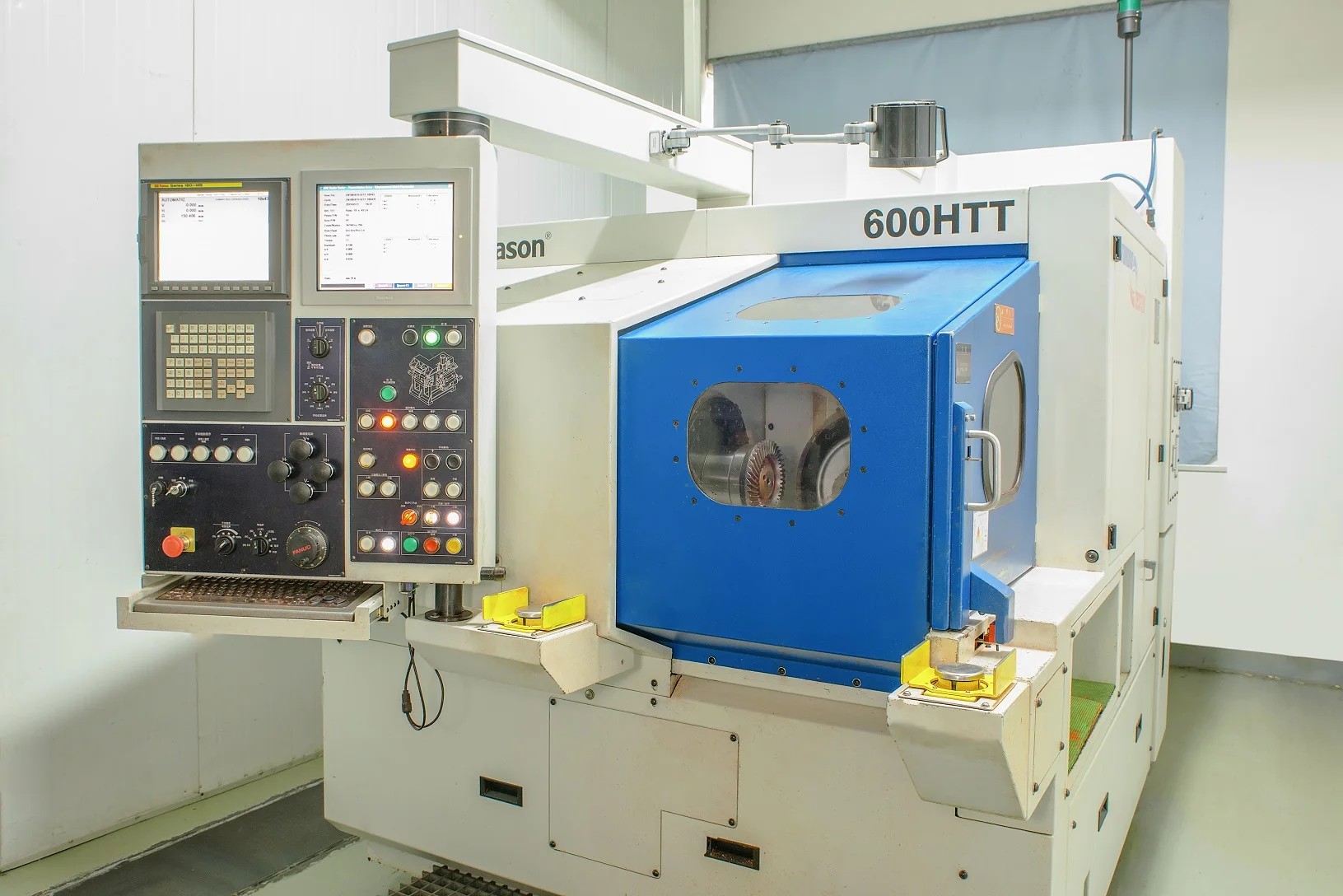

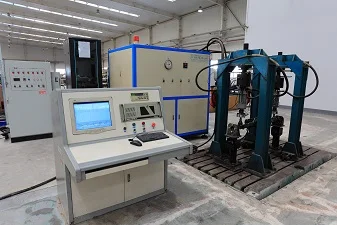

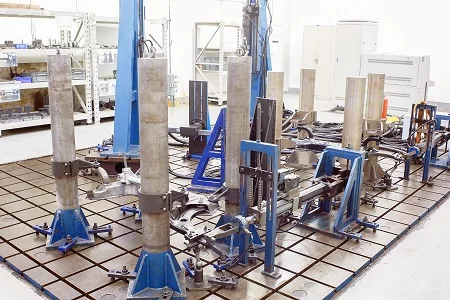

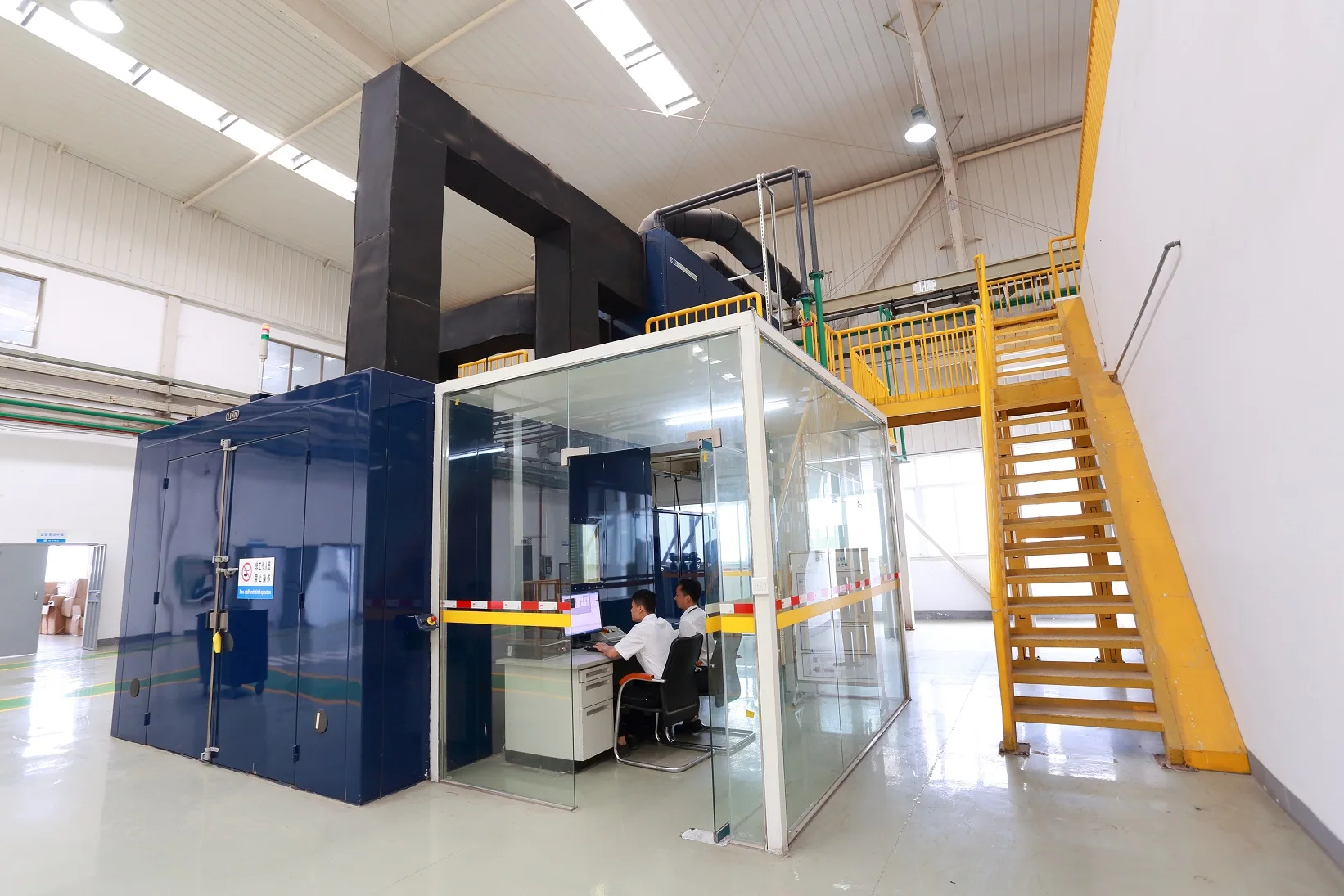

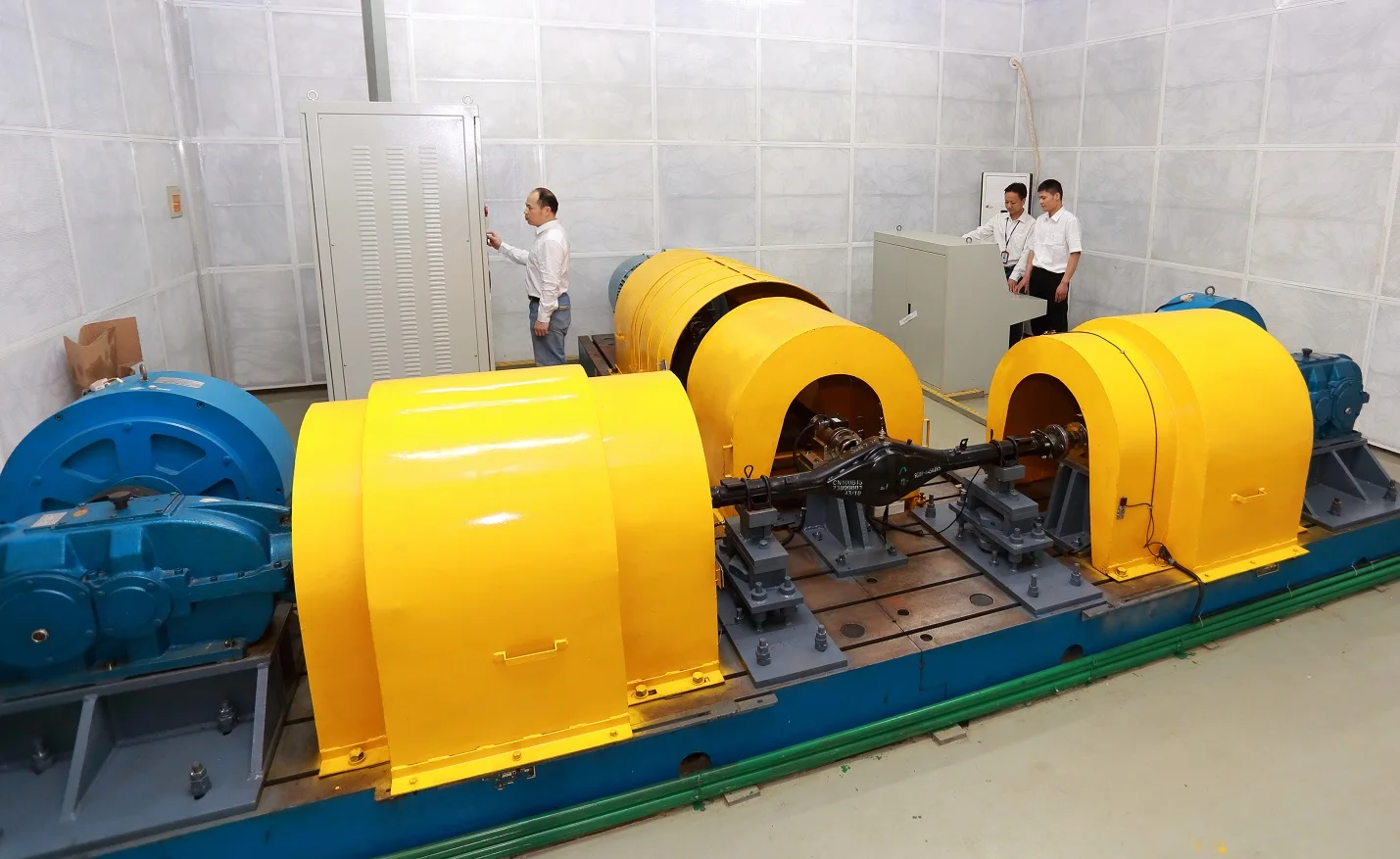

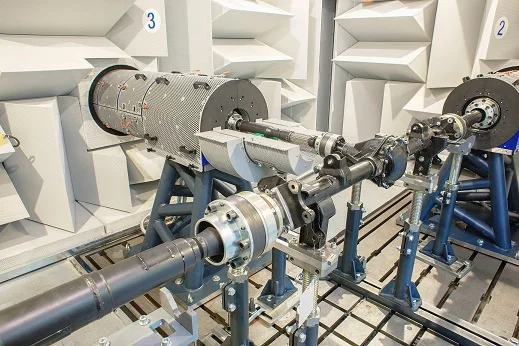

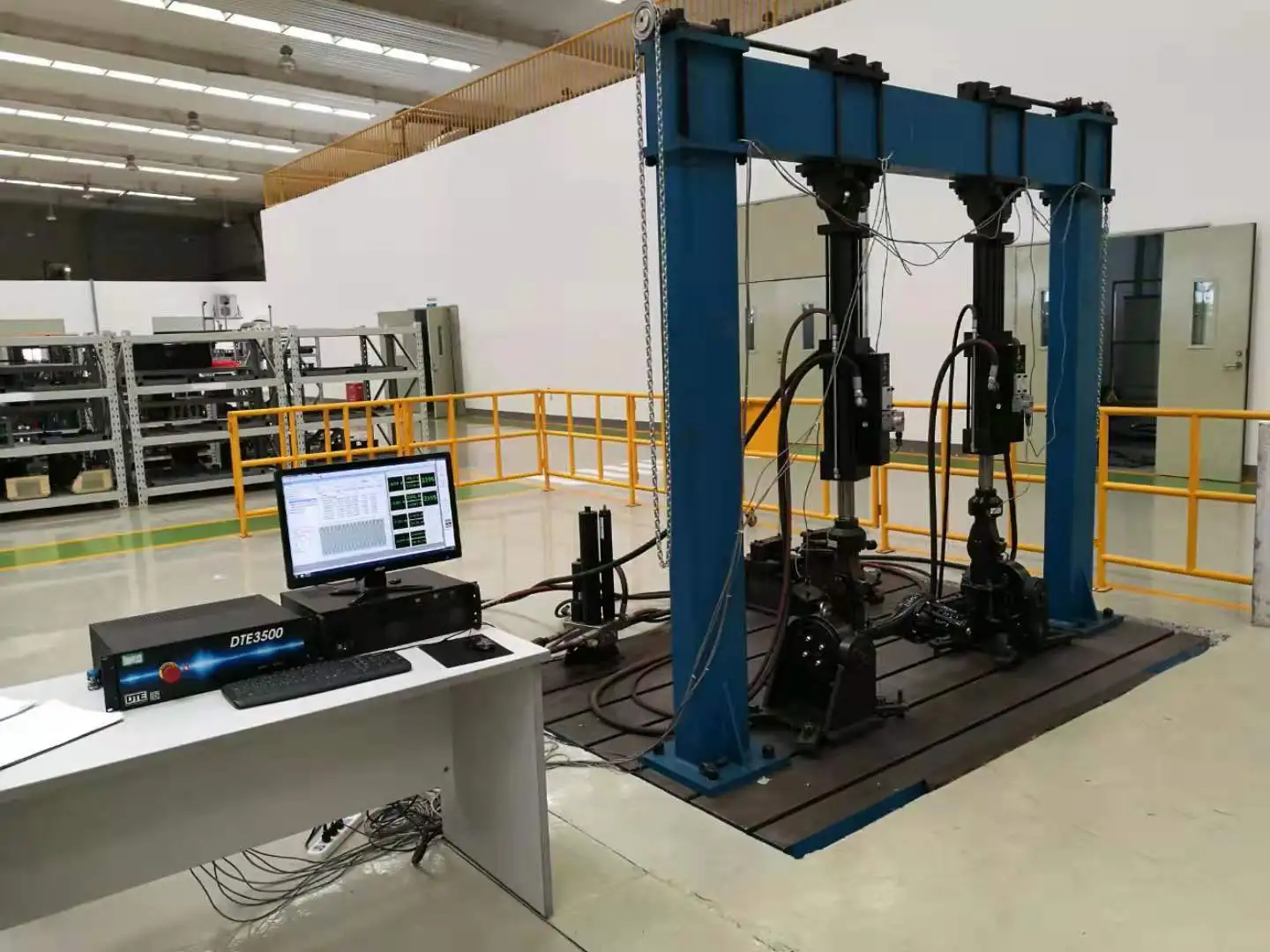

Manufacturing Technique
Company Profile
Liuzhou Wuling Automobile Industry Co., Ltd is a large Sino-foreign joint venture established by Guangxi Automobile Group Co., Ltd and Hong Kong-listed company. Wuling Automobile Group Holdings Ltd(HK0305) based on the integration of original businesses of Guangxi Automobile Group Co., Ltd, including Auto parts, engines and special purpose vehicles, its total assets amounted to 12.731 billion yuan, the annual revenue in 2018 was 16.9 billion yuan.
Related Products
Exhibition
Liuzhou Wulinlg attended the 2019 Automechanika Shanghai .
