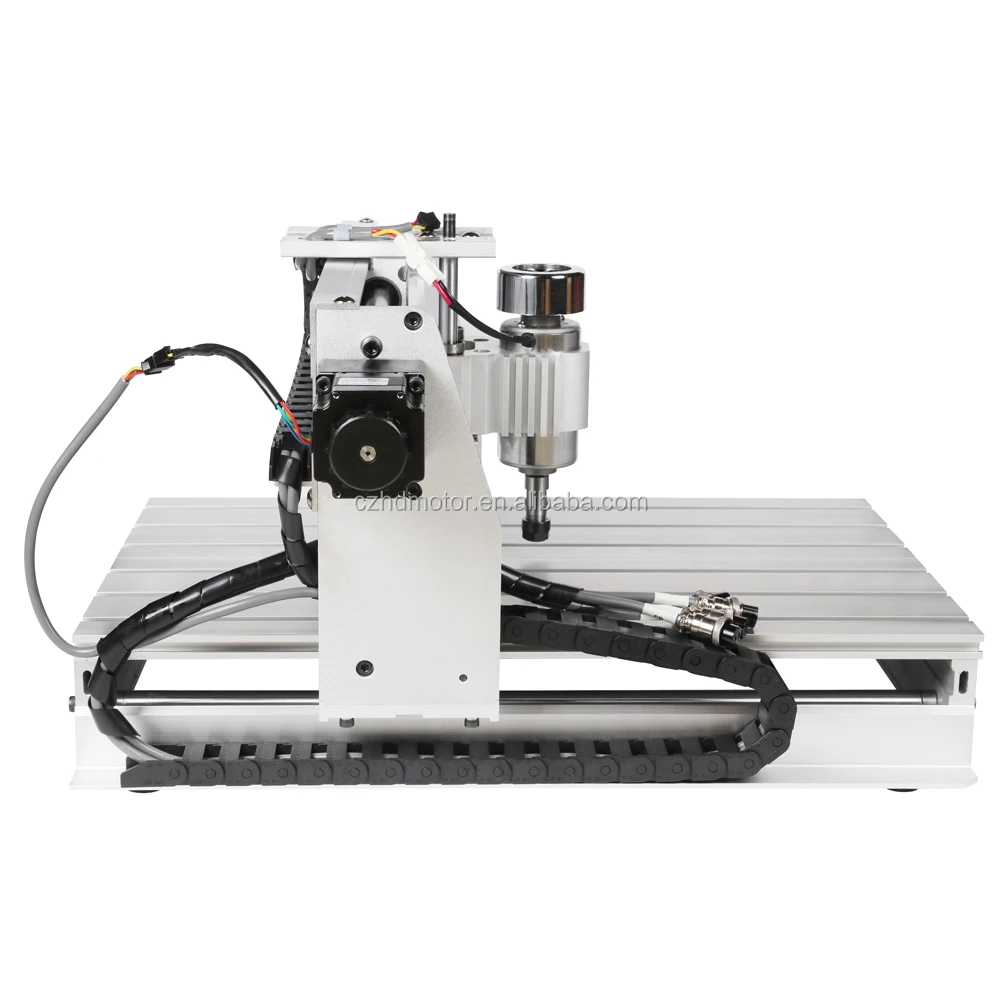

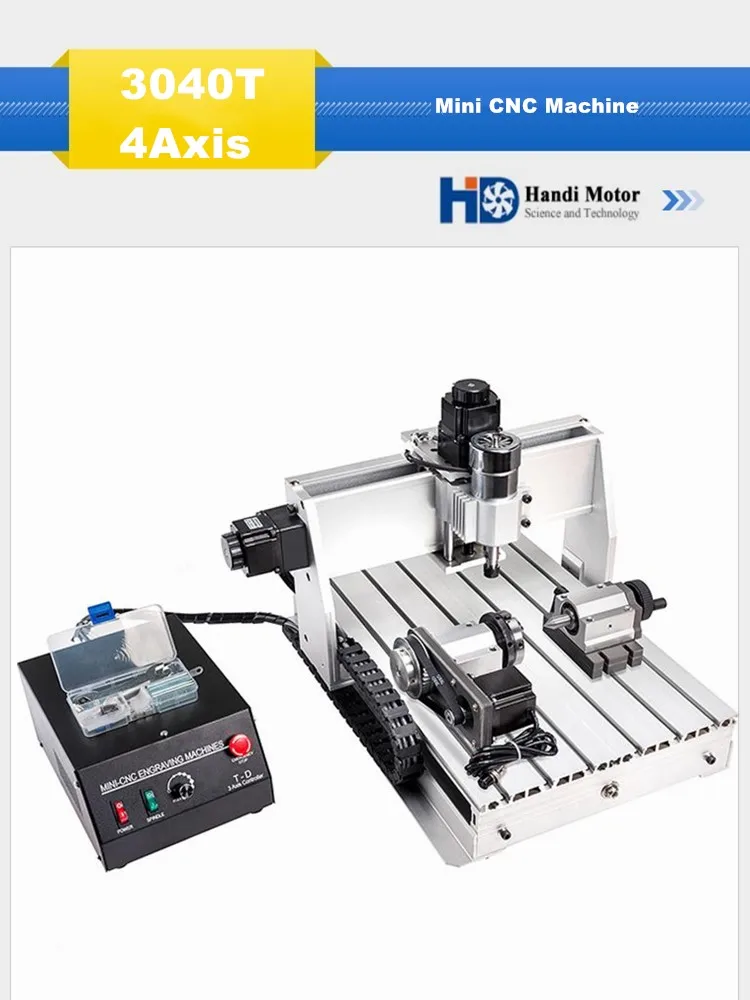

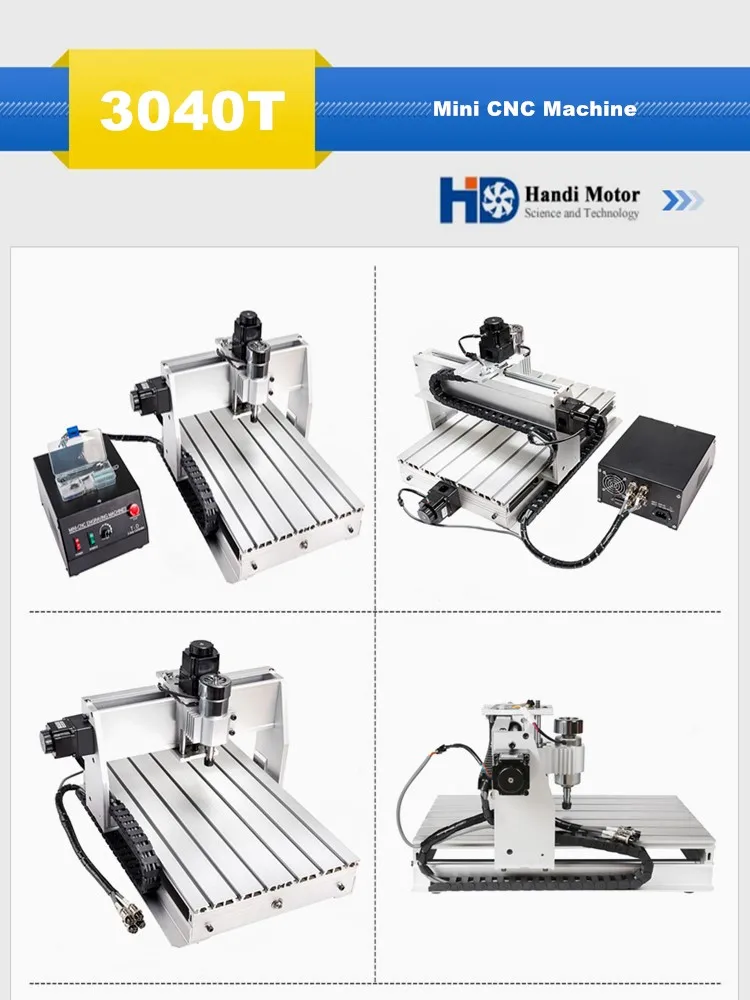

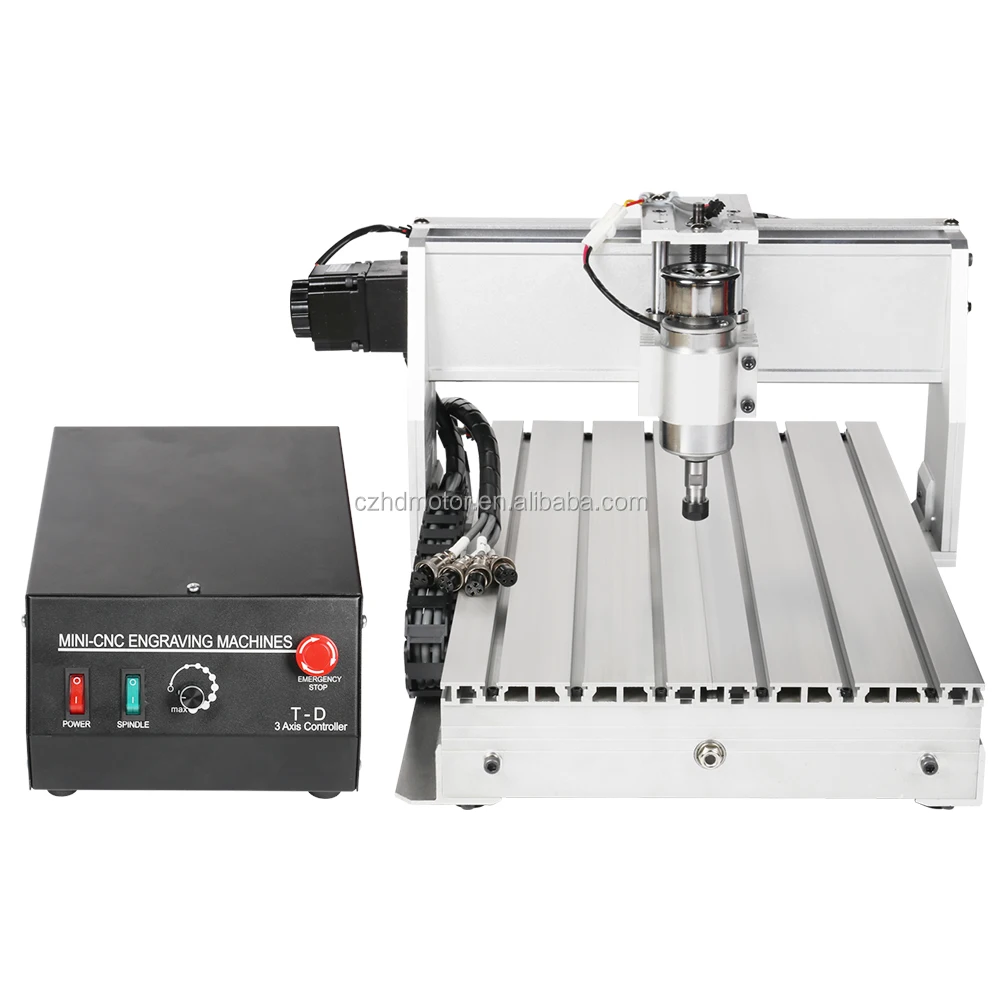

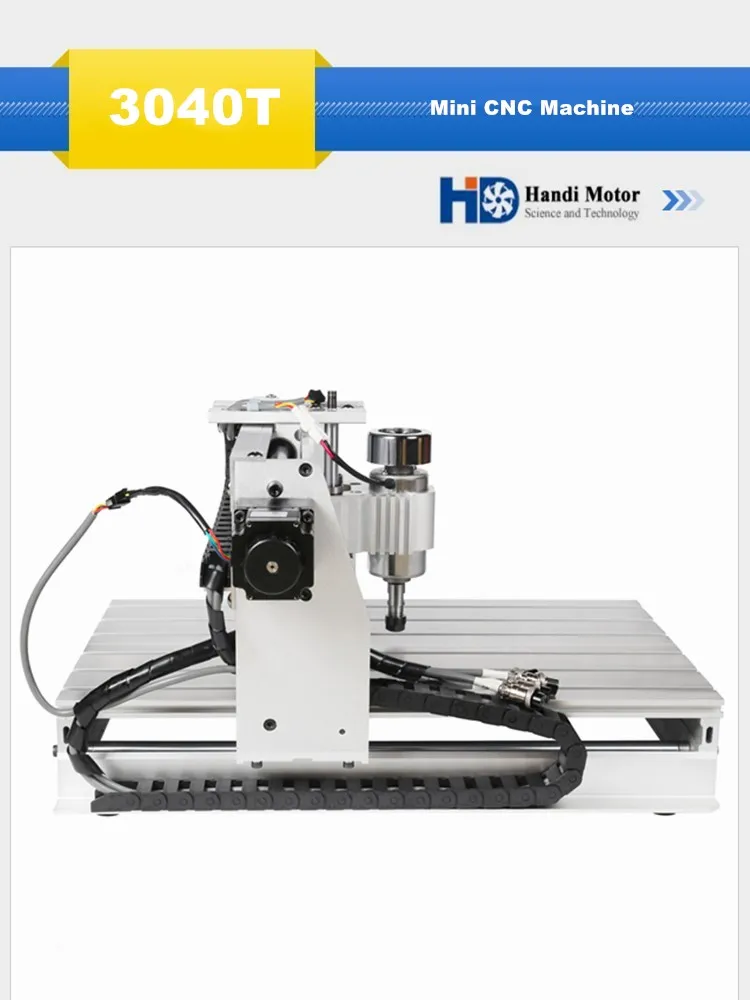

3040T 4 axis 1.5kw 3D Mini desktop CNC Wood Router machine for DIY Cutting Engraving wood carving
- Category: >>>
- Supplier: Changzhou Handi Motor Science And Technology Co. Ltd.
Share on (62496531129):
Product Overview
Description
OptionalHigh quality 3040T 4 axis 1.5kw 3D Mini desktop CNC Router machine for DIY Cutting Engraving wood carving
Product Description
Technical parameter:
Max.stroke | XYZ=290*380*60mm |
Machinable material thickness | ≤70mm |

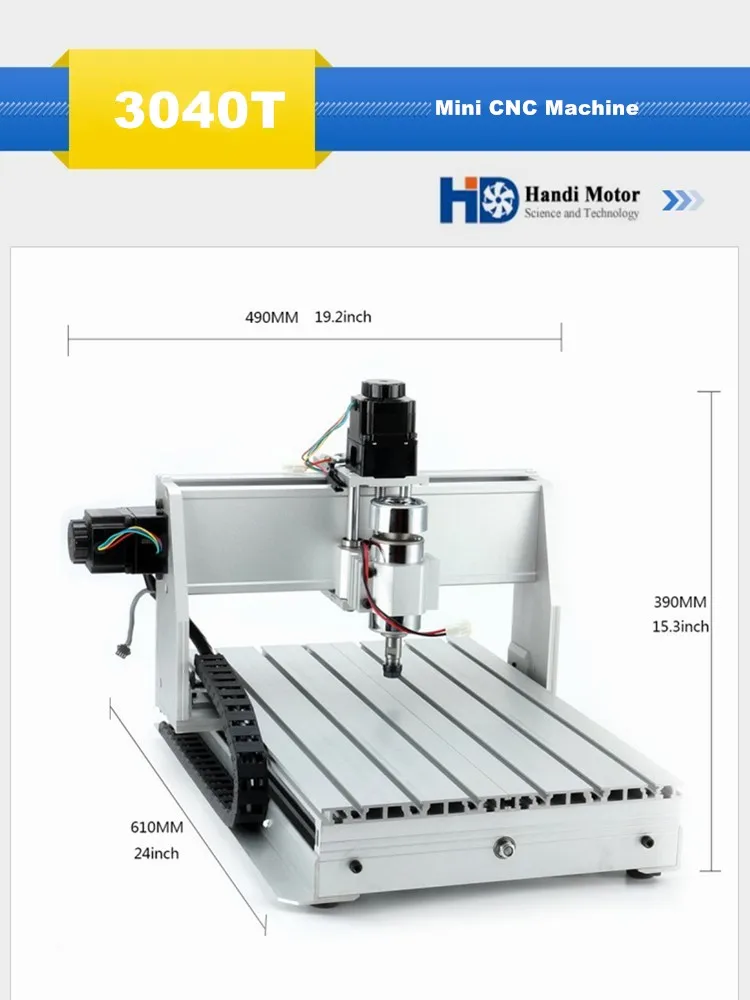

Outline dimension | 525*400*290mm |
Frame material | 6061-T5 aluminium alloy |
Rail type | Chrome plated shaft + linear bearing |
Screw type | T type screw,diameter 12mm,Thread pitch 2mm |
Ball screw,diameter 12mm,Thread pitch 4mm | |
Mechnical resolution | XYZ-shaft:0.0025mm/step |
Positioning accuracy | 0.05mm |

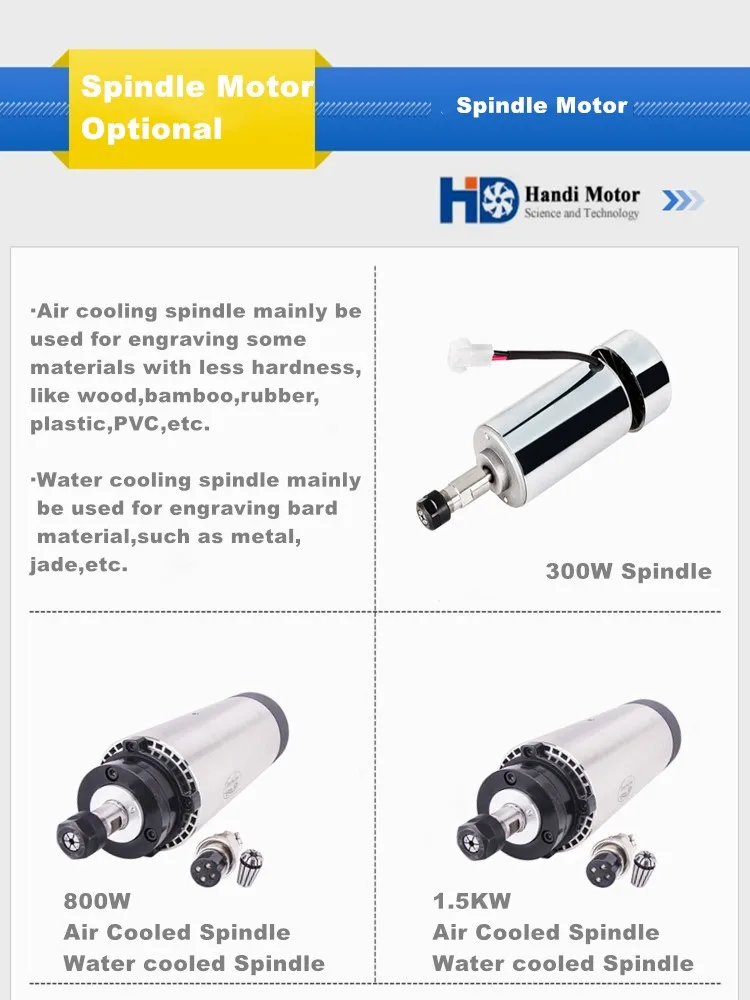

Spindle motor(Optional) | · 300W DC spindle motor · 800W Air cooled/Water Cooled Spindle motor · 1.5KW Air cooled/Water Cooled Spindle motor |
RPM | 11000rpm/min |
Chuck type | ER11(3.175mm,6mm) |
XYZ motor | Stepper motor JK57HS41-2004XB-01AF |
Stepper drive | High performance, each axis can independent drive |
Feed rate | 1500mm/min |
Communication interface | USB2.0 |
System requirement | WIN-XP or WIN-7 |
Order code | G code/.nc/.ncc/.tab/.txt |
Voltage | Input 85V-240VAC(400HZ) |
Operation environment | Temp.:5℃-40℃;Humidity:35%-80% |
Why choose this?
Why choose this Machine?
1.Simple operation and installation.More steady and strong equiped with aluminum alloy frame materials

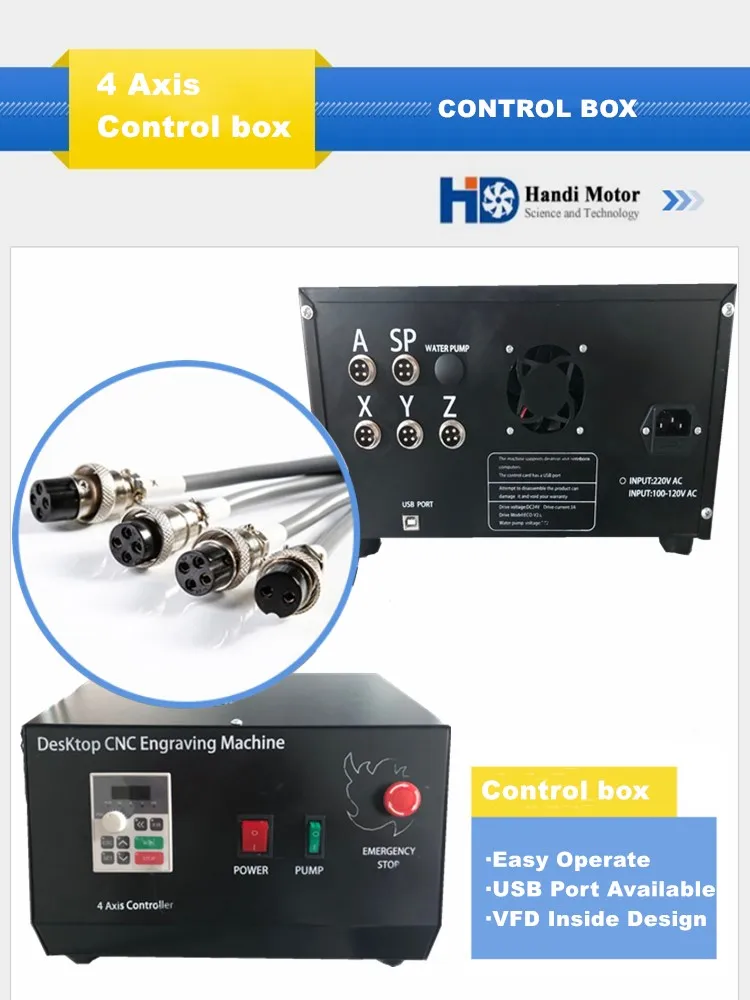

2.Can be controlled by computer,Mach 3 software is simple and intellgent,Can control the engraving more precise.Emergency stop button enhance security
3.Large 3D engraving in soft wood,MDF board,native wood,PVC,Acrylic we suggest use one or two spiral flute ball bits.Can engraving much more materails by spiral flute bits,such as metal,steel,MDF board,solid wood,composite board plywood,stone.Spindle motor knob is useful for small positioning adjustment ,with steady and strong support structure.Cover plates reducing pollution for the screws and shafts.
4.The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.

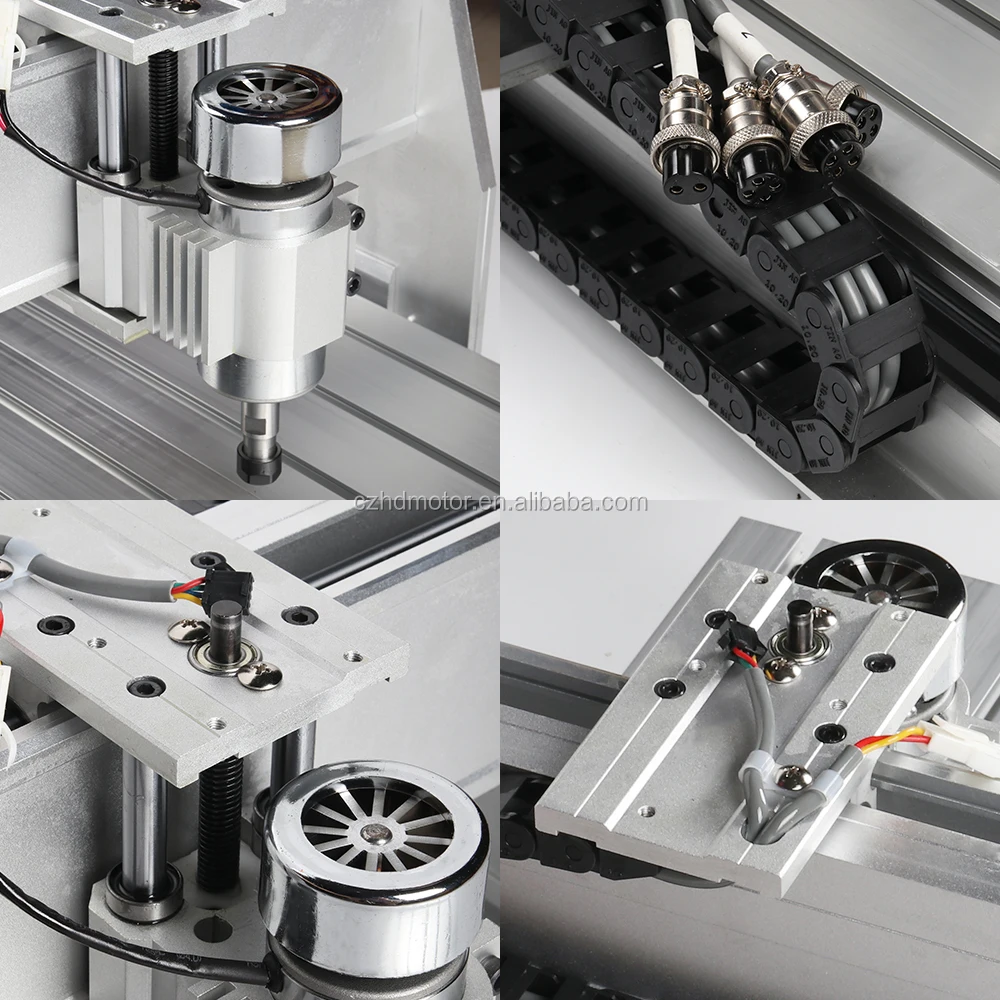

5.The chrome shafts is not easy to deform,suitable for long time use.Flexible coupling can be used for high torque transmission.High Precision Stepping motor makes engraving more precise .
1 year machine part and 6 months electrical parts.
Detailed Images
Usage
Mainly used in PVC, acrylic, plexiglass, color plates,
engineering plastics, Bakelite, wood and soft metal material carving milling, and also suitable for engraving the PCB and wood model mold, crafts, can’t exceed
the limit size plastic boxes, aluminum chassis, the panel cutout hole and milling, but also at a low feed rate for aluminum, copper and other metal materials for three dimensional carving and drilling and milling.
If you want to get more video links and manual, software of this machine, please feel free to contact us.
