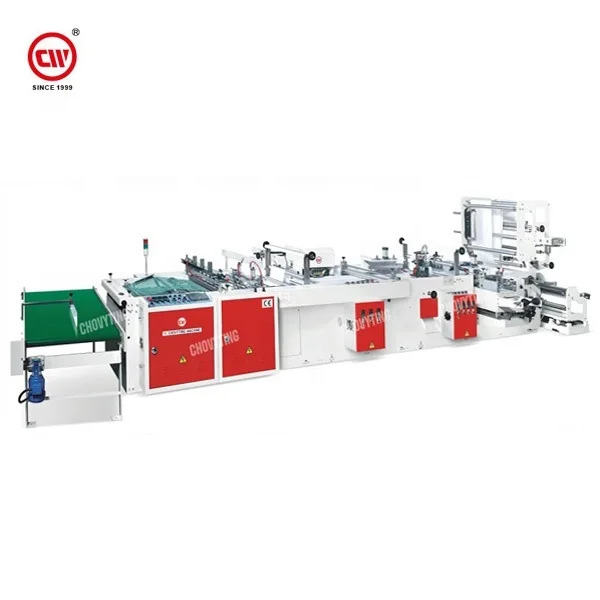

Factory price high performance soft loop handle bag making machine
Brief Indruction:This is machine is special for pruducing soft loop handle bags and die cut handle bags, simple mechanical structure ensure easy operation of machine, it redeuces the cost of machine as well. Economical design for soft loop handle shopping bags and die cut handle bags making. It’s user friendly ergonomic design, rigid construction with resistant to vibration
Make soft loop handle part and collect bags automatically
Picture as reference

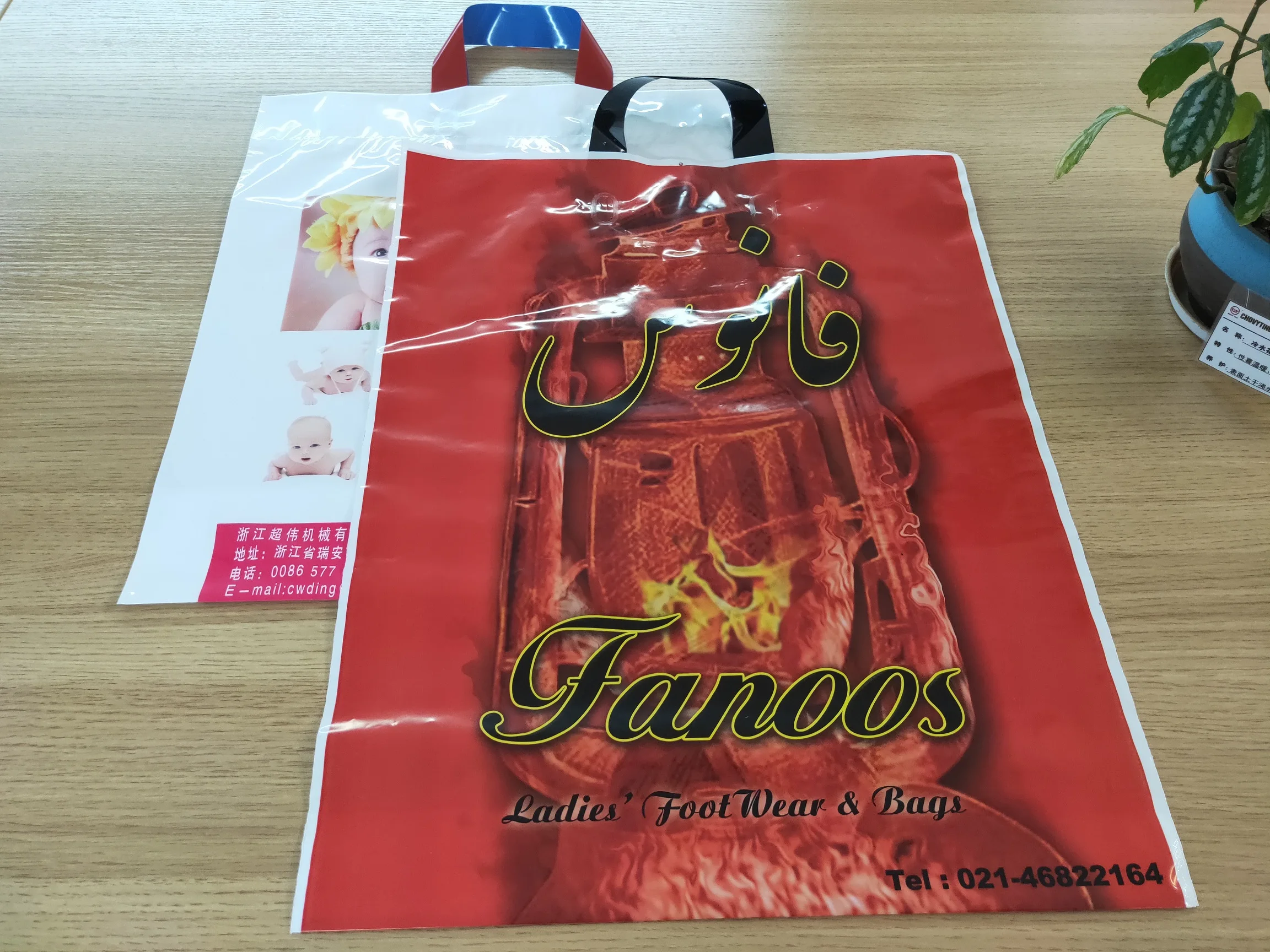

Sample bags:
Details Images:

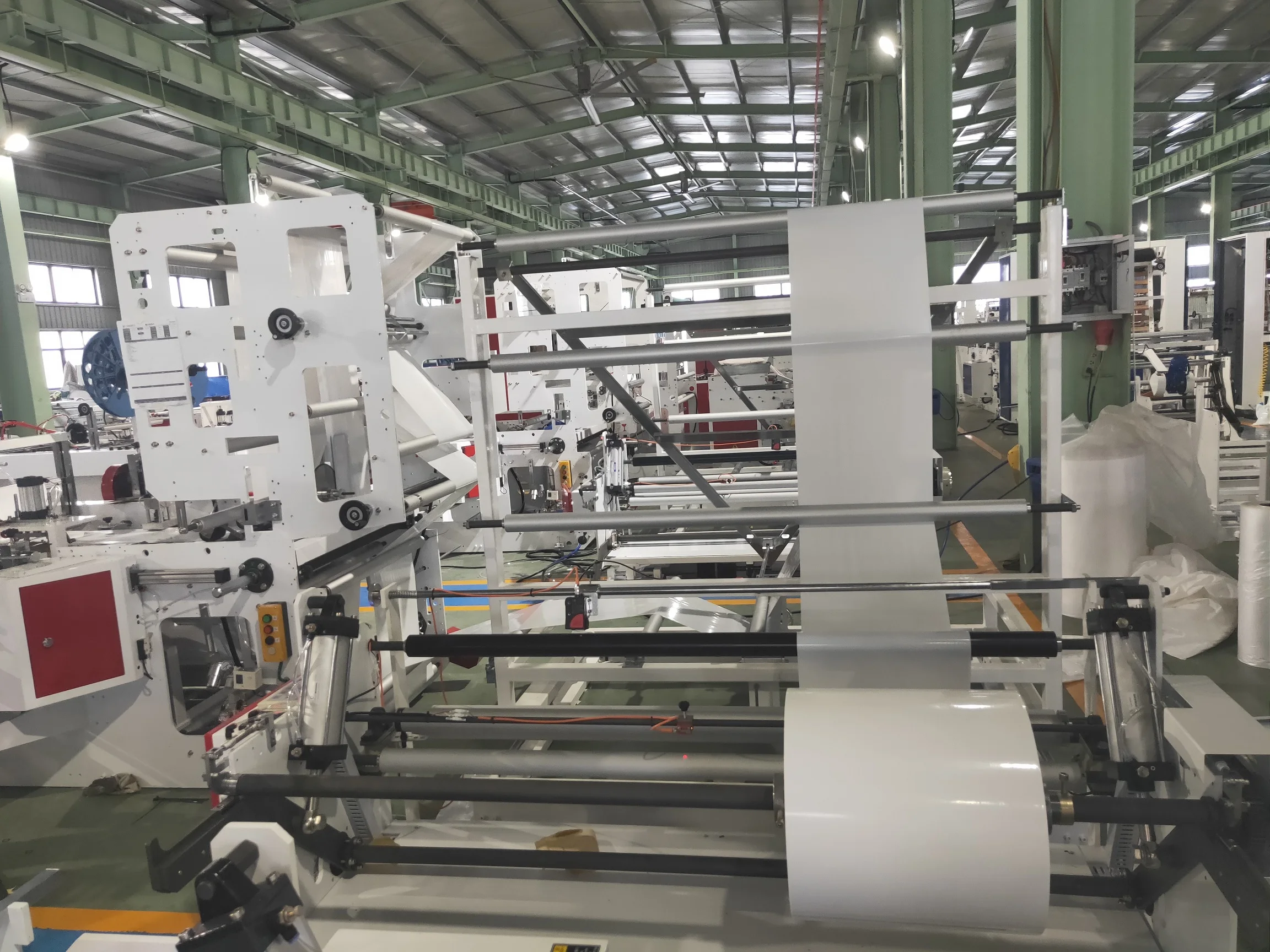

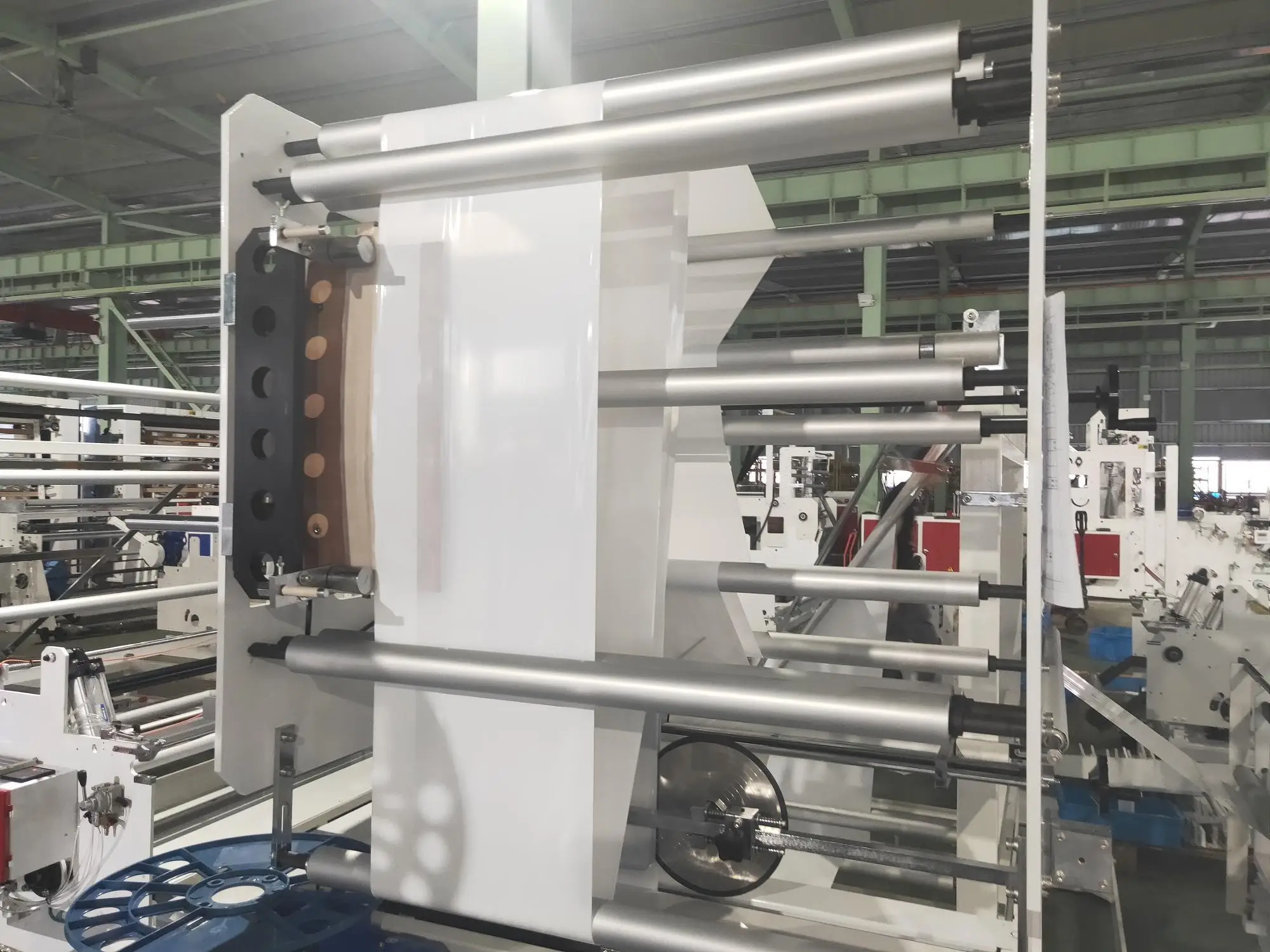

Unwinder part

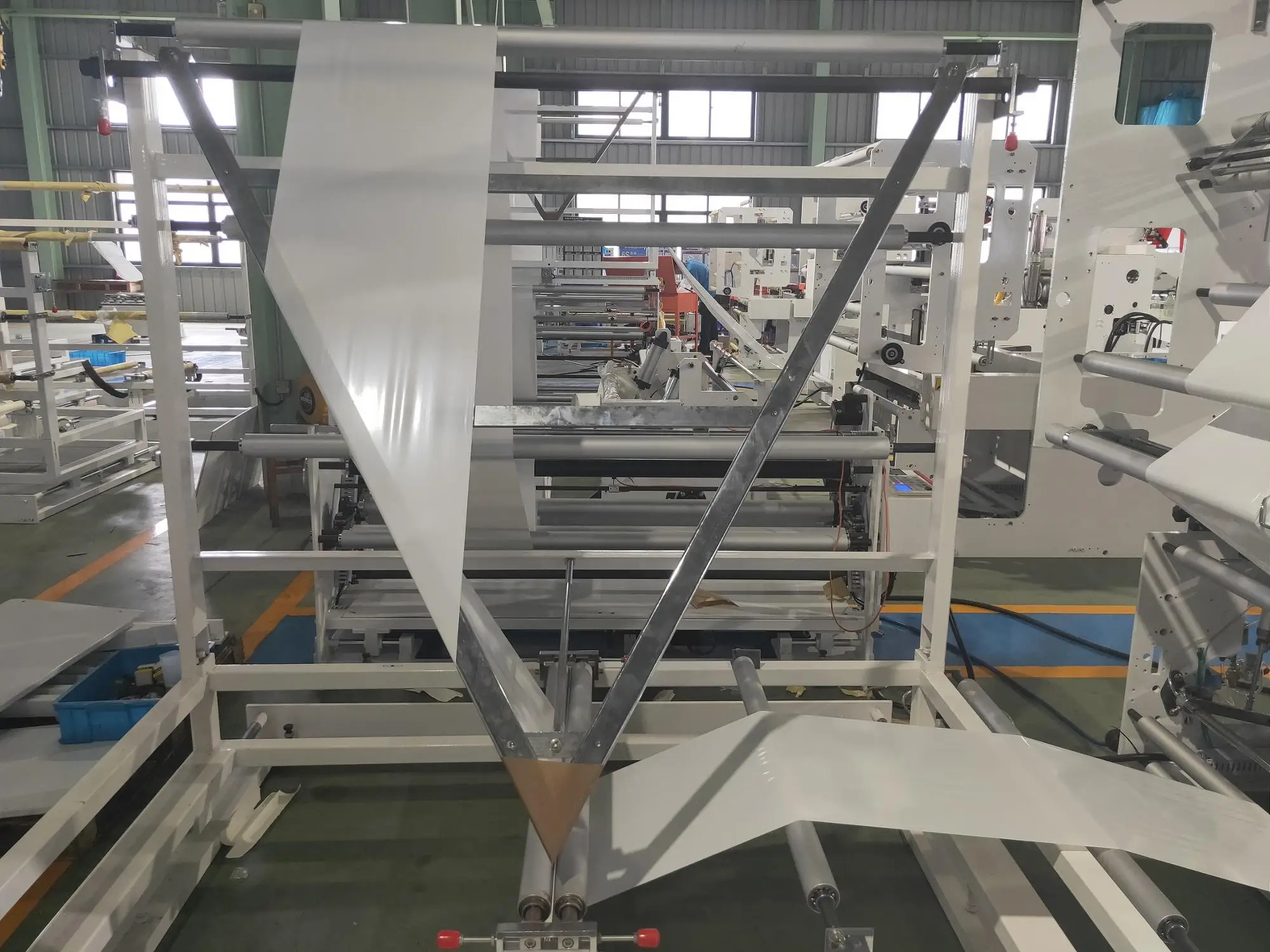

Triangle folding part
Top fold & continuously sealing & bottom gusset part

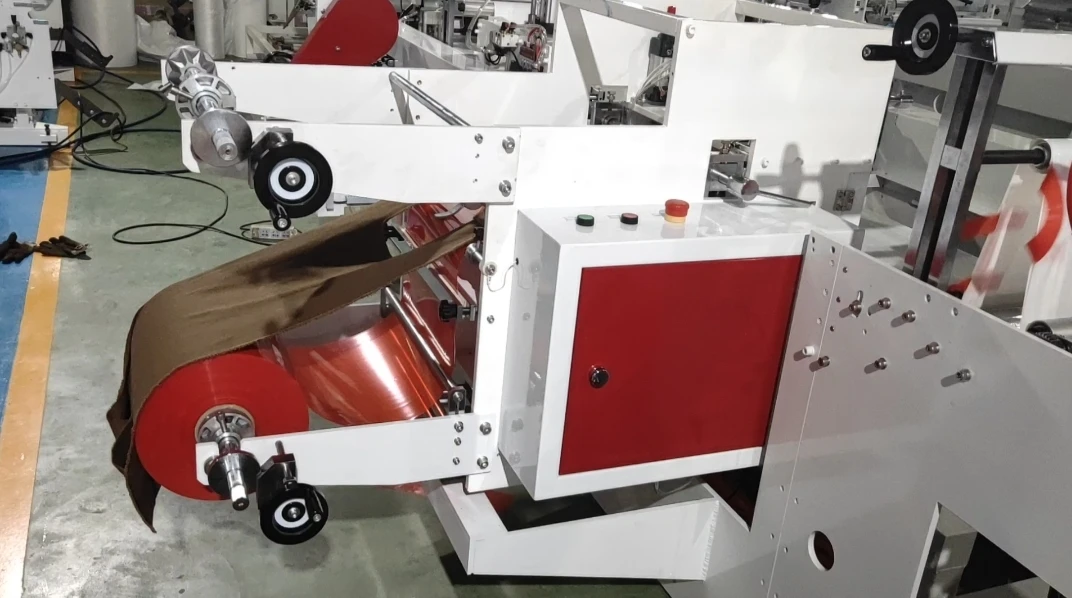

Soft loop handle unwinding part
Auto collection part
Technical Parameter :
Model
CW-800ZD
CW-800LP
CW-800SP
CW-800PD
Length（Height） of bag making
750mm
750mm
750mm
750mm
Width of bag making
600mm
600mm
600mm
600mm
Top folding age
50-75mm
50-75mm
50-75mm
50-75mm
Bottom gusset
20-70mm
20-70mm
20-70mm
20-70mm
Speed of bag making
Soft loop handle bag
60pcs/min
60pcs/min
Patch handle bag
60pcs/min
60pcs/min
Poly draw handle bag
65pcs/min
65pcs/min
Die cut handle bag
80pcs/min
80pcs/min
80pcs/min
80pcs/min
Total power
13KW
10KW
10KW
10KW
Machine weight
3500kg
3200kg
3200kg
3200kg
Machine dimension (L*W*H)
8.2*3.1*1.87m
6.2*3.1*1.87m
8.2*3.1*1.87m
8.2*3.1*1.87m
Air compressor(not included)
7HP
6HP
6HP
6HP
Machine Components
