High Configuration Vin Chassis Number Dot Peen Stamping Machine

Dot Peen Marking Machine Specifications

Main technical performance:

1. Marking range: 80mm × 30mm (different tyes has different marking area, can also be customized according to requirements)

2. Product model: LYQD-SC1503

3. Marking speed: 1-6 characters / second,

4. Marking depth: 0.1-2mm, depending on the hardness of the material;

5. Marking position: plane of workpiece (two-dimensional, three-dimensional)

6. Marking content: English, numbers, punctuation, Chinese, graphics, two-dimensional code, barcode, etc .;

7. Marking function: It can automatically print the production serial number (the number that increases regularly); VIN code, production date, etc.

8. Control method: human-machine dialogue;

9. Material hardness requirements: HRC≤75:

10. Machine weight: Marking Head about 3kg, total weight: 10kg, gross weight 12kg.

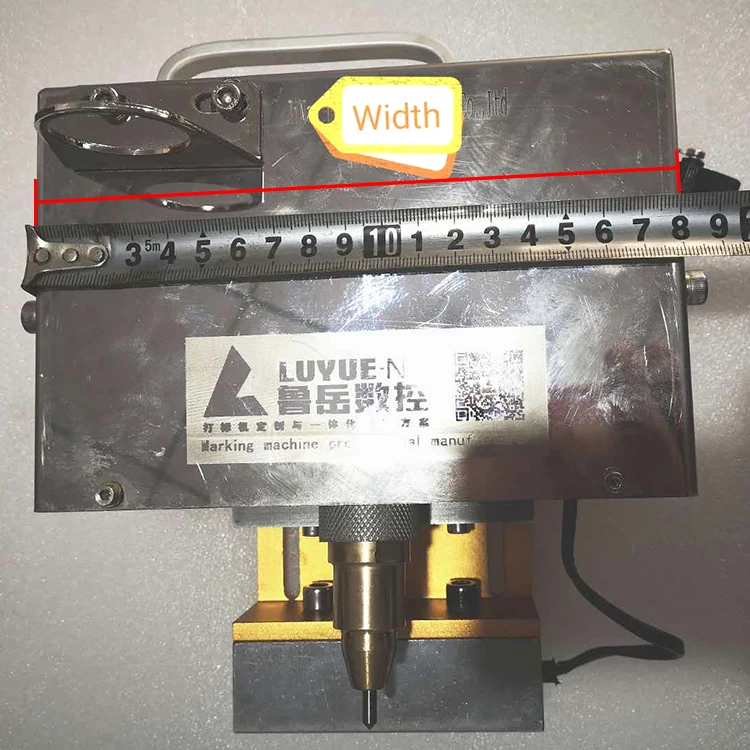

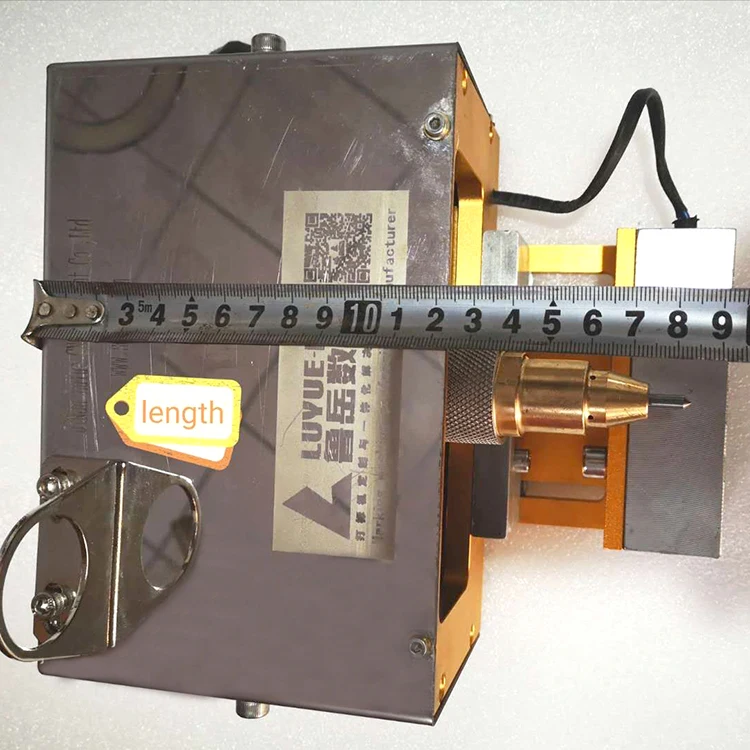

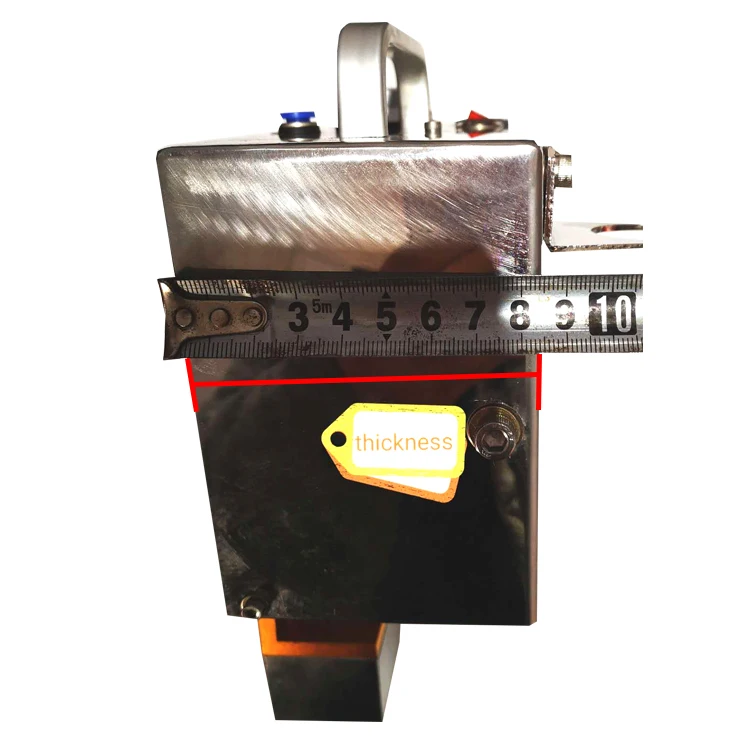

11. Marking head size: 18cm*18cm*8cm.

Equipment using conditions:

1. Voltage: 220V ± 10%, 50HZ;  (two-phase power)

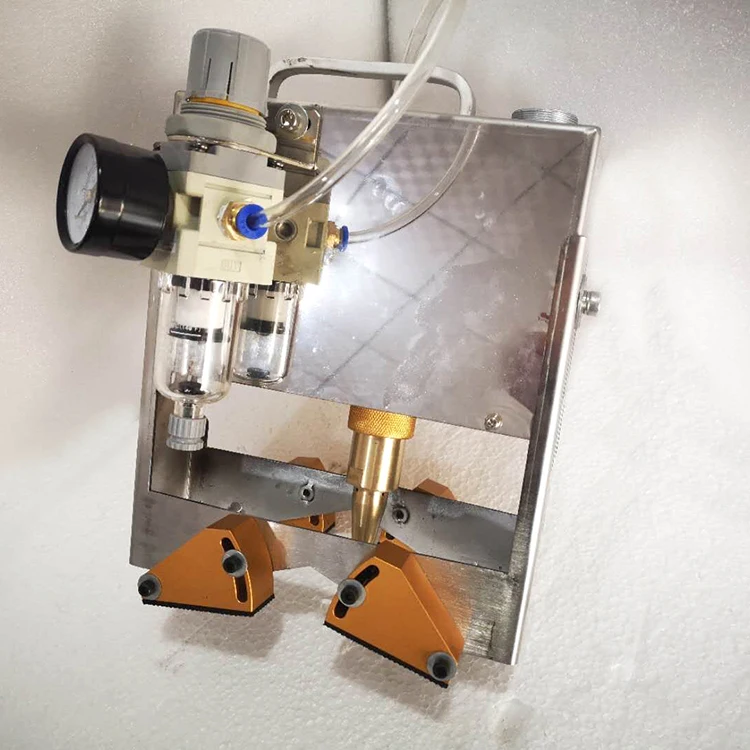

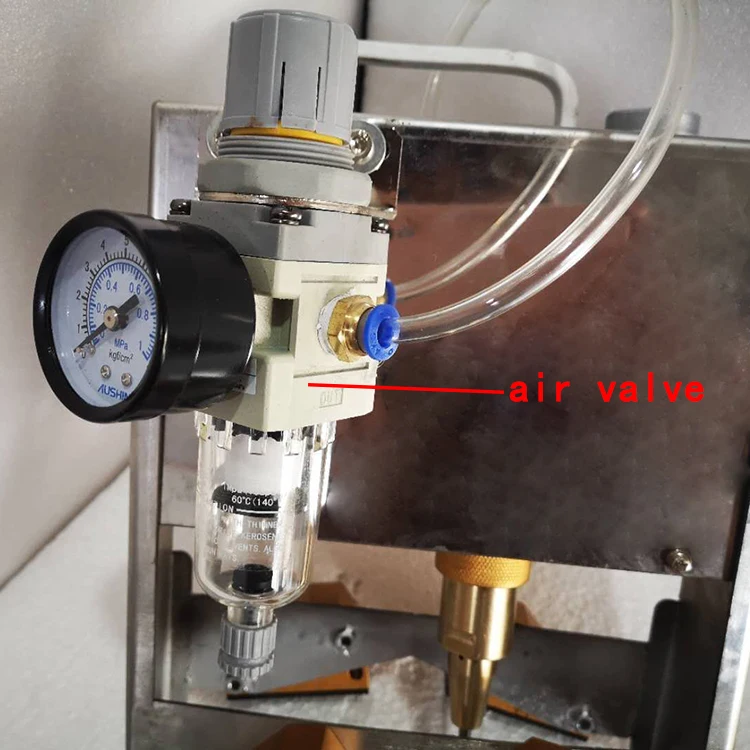

2. Compressed Air source: 0.2-0.6Mpa, dry and pure;

3. Ambient temperature: 0-40 °C;

4. Overall power: ≤400W; the power of the marking machine is about 150w, plus the controller, the overall power of the controller will not exceed 400W

Work Principle:

The computer controls the marking needle to move in the X, Y two-dimensional plane according to the trajectory of the graphic characters edited by the computer. At the same time, the marking needle performs high-frequency impact motion on the workpiece under the action of compressed air, thereby forming a corresponding on the workpiece. Graphic characters

Product advantages:

1. The basic part of the marking head is made of precision molds. The overall processing performance is good, which ensures the high movement accuracy of the marking head and makes the marking characters beautiful.

2. The marking head adopts imported linear motion guide rails, self-lubricating and self-sealing and dust-proof, which ensures the marking head movement has minimal wear, and makes the marking machine run stably for a long time with high accuracy.

3. Our company's pneumatic marking machine adopts imported pneumatic components, using American MAC high-speed Solenoid Valve , with a service life of up to 120 million times;

4. Our company's pneumatic marking machine uses high-speed powder metallurgy steel made in Sweden. The unique heat treatment process makes the needle hardness as high as HRA92, which can print 600,000 characters, and can be used after grinding.

5. Guide Rail: Taiwan Hiwin. characteristics: high precision, low operating noise.

Features

1. Computer editing, controller B (windows system) can be option, small size, light weight, mobile marking.

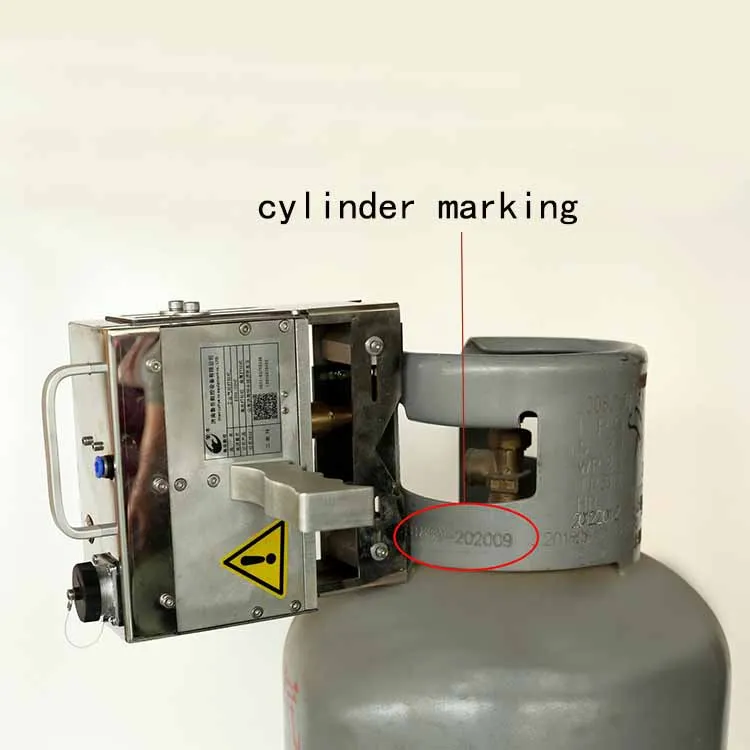

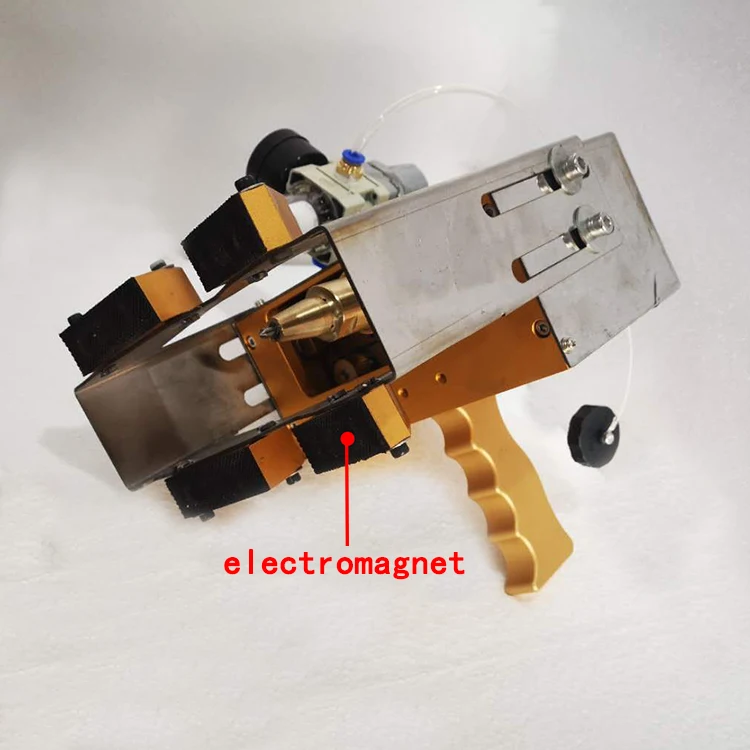

2. Handheld on-site marking for lagrge equipment, heavy workpiece.

3. The controller can automatially increment the serial numbers, trademarks,etc.

4. Permanent marking.

5. Can be easily integrated into industrial production lines.

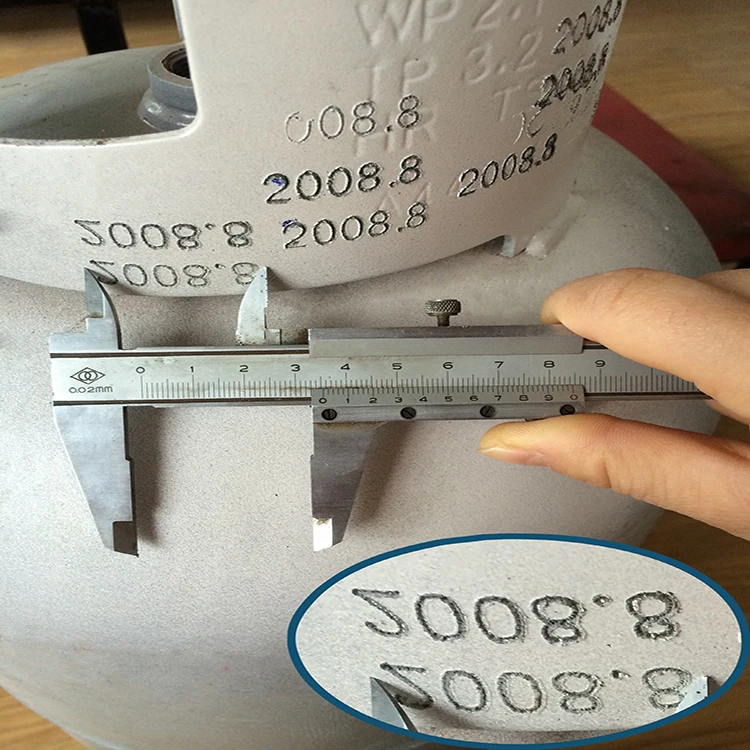

Samples

by Aluminum foil box

1. All our machines are subject to comprehensive inspection and testing by the quality inspection department before shipment.

2. Lifelong technical maintenance for free and spare parts supply.

3. Free training.24 hours technical support.

4. We will provide you with "instruction manual", "operation manual" and "training video".

5. We will also provide online face-to-face training, through our special software, our engineers can control the machine computers and machines, step by step to show you.
