Original concox jimi car GT810 X3 gps tracker with engine stop and two way communication and fuel sensor monitor

Product Overview

Description

Original concox jimi car GT810 X3 gps tracker with engine stop and two way communication and fuel sensor monitor





Model: X3 gps tracker





Key Features:
GPS tracker with real time position & tracking
SOS alarm
Geo-fence alarm
Remote Tele-cut off (petrol / electricity) function
Support ACC detection, real-time reporting car status
Built-in acceleration sensor for vibration/displacement/low battery/power off alert alarm
Multi ways to query position: SMS,APP ,Internet
Heat-resistant design: Special structure provides excellent heat dissipation



More Functions for optional:

RS232 & TTL: Support fuel level sensor, temperature sensor, RFID, etc

Door status detection: Get instant alert when car's door is opened unexpectedly

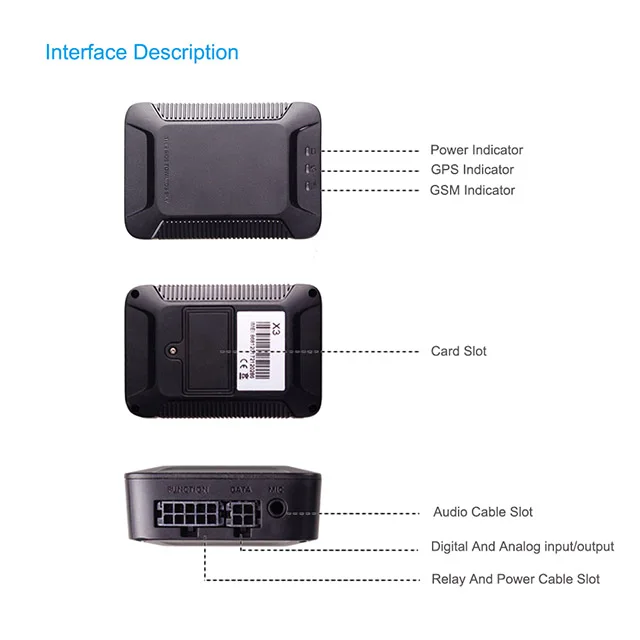

Multiple I/Os: Monitor and control external devices





Specifications:

GSM Specification
GSM frequency	850/900/1800/1900 MHz
GPRS	Class 12, TCP/IP
Memory	32+32Mb
Phase error	RMSPE<5,PPE<20
Max output	GSM850/GSM900:33±3dBm
	GSM1800/GSM1900:30±3Bm
Max frequency error	±0.1ppm
GPS Specification
GPS chipset	MTK high sensitivity GPS chip
Frequency	L1,1575.42MHz C/A code
GPS antenna	Built-in, 25*25*4mm
Location accuracy	<10 meters
Tracking sensitivity	-162dBm
GPS channel	66
Acquisition sensitivity	-148dBm
TTFF (open sky)	Avg. hot start≤1sec
	Avg. cold start≤35sec
Others
Voice monitor range	≤5meters
Battery	450mAh/3.7V Li-Poiymer battery
Working Voltage/current	9-36VDC/45mA(12VDC), 28mA(24VDC)
Operating Temperature	-20℃~ 70℃
Dimension	80.9(L)*55.8.0(W)*23.4(H)mm
Weight	95g
