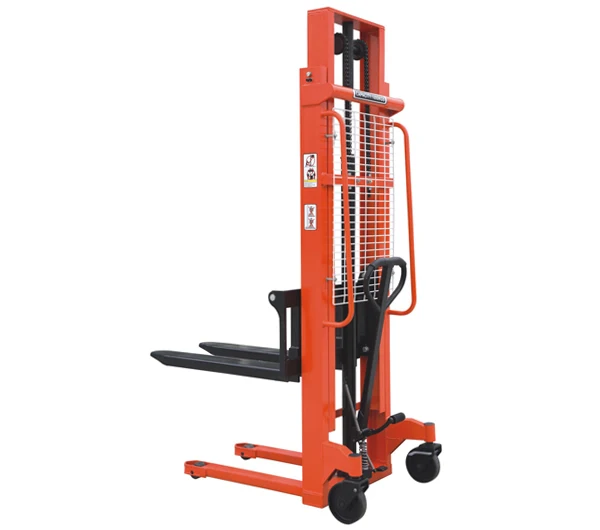

1 ton manual stacker 3m Hydraulic Manual Stacker Hand Forklift manual pallet stacker
- Category: Forklifts >>>
- Supplier: Jinhua Ryder Electrical Technology Co. Ltd.
Share on (62497210299):
Product Overview
Description

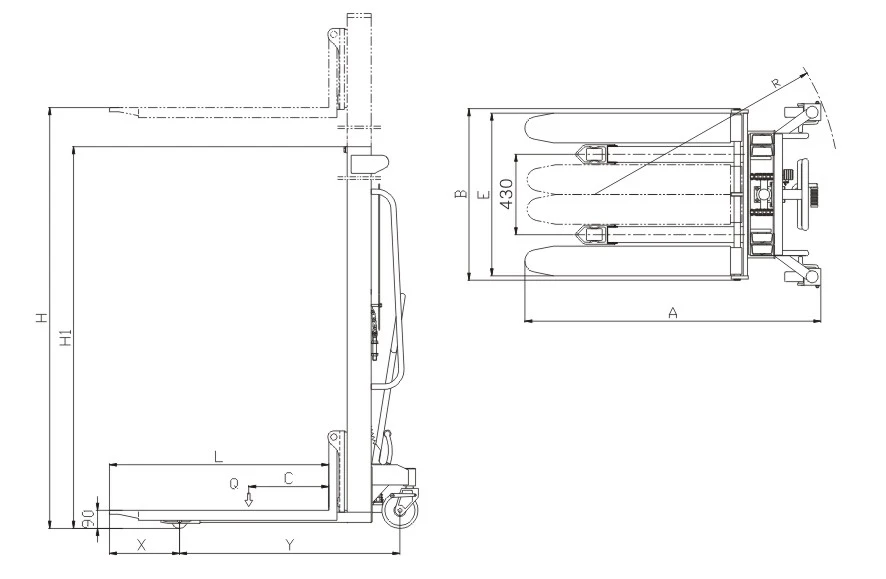

Model Number | MS10-20 | MS10-25 | MS10-30 | |
Rated Capacity | kg | 1000 | 1000 | 1000 |
Load Center | mm | 400 | 400 | 400 |
Min. Fork Height | mm | 90 | 90 | 90 |
Max. Fork Height | mm | 2000 | 2500 | 3000 |
Fork Length | mm | 1000 | 1000 | 1000 |
Fork Width | mm | 300-850 | 320-850 | 320-850 |
Min. Turning Radius | mm | 1250 | 1250 | 1250 |
Wheel Base | mm | 1100 | 1100 | 1100 |
Front Wheel Distance | mm | 210 | 210 | 210 |
Overall Length | mm | 1340 | 1340 | 1340 |
Overall Width | mm | 850 | 850 | 850 |
Overall Height | mm | 1560 | 1810 | 2060 |
Weight | kg | 340 | 355 | 370 |
