BT PON 4 port 1ge 3fe wifi tel ftth ont support OEM gpon onu
- Category: >>>
- Supplier: Shenzhen Baitong Putian Technology Co. Ltd.
Share on (62497282273):
Product Overview
Description
Product Description
Our company offer OEM OR ODM service, any details please kindly send us inquiries,thanks.
BT-PON 4 port 1ge 3fe wifi tel ftth ont support OEM gpon onu
The BT-601GB is an FTTH GPON optical network unit with high performance and low power consumption. It provides subscribers with multicast services and enables their access to Internet to cater for the broadband access demands of families.
Company Introduction
BT-PON has more than 10 years experience in fiber optical equipment industry since 2008. We're specializing in research and development of FTTX solution, especially in ONU and OLT technology. OEM & ODM are available.Our products cover G/EPON ONU/OLT,EOC, POE switch and other FTTX project equipment so on. Products have exported to more than 20 countries and regions around the world.
Specification
Hardware Specifications | ||

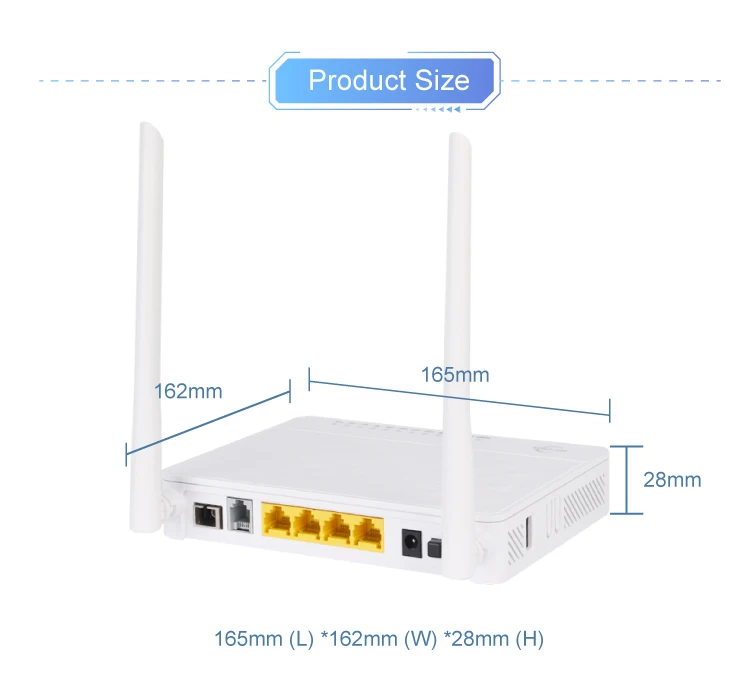

Size(L*W*H) | 165mm (L) *162mm (W) *28mm (H) | |
BT-601GB | 1*GPON | |
BT-601EB | 1*EPON | |

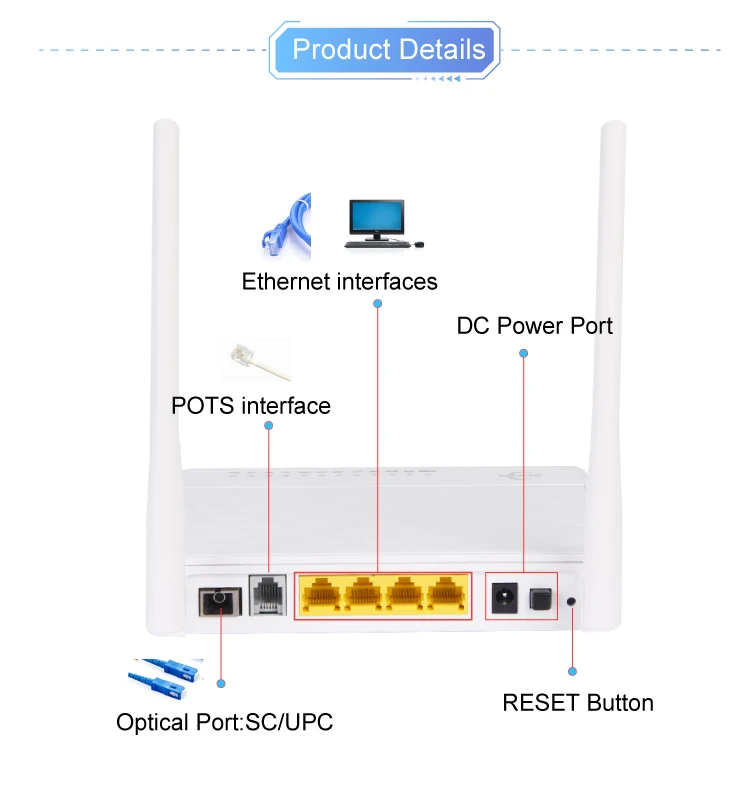

User interface | 1GE+3FE+VOIP+2.4G WLAN+1USB | |
4FE+VOIP+2.4G WLAN+1USB | ||

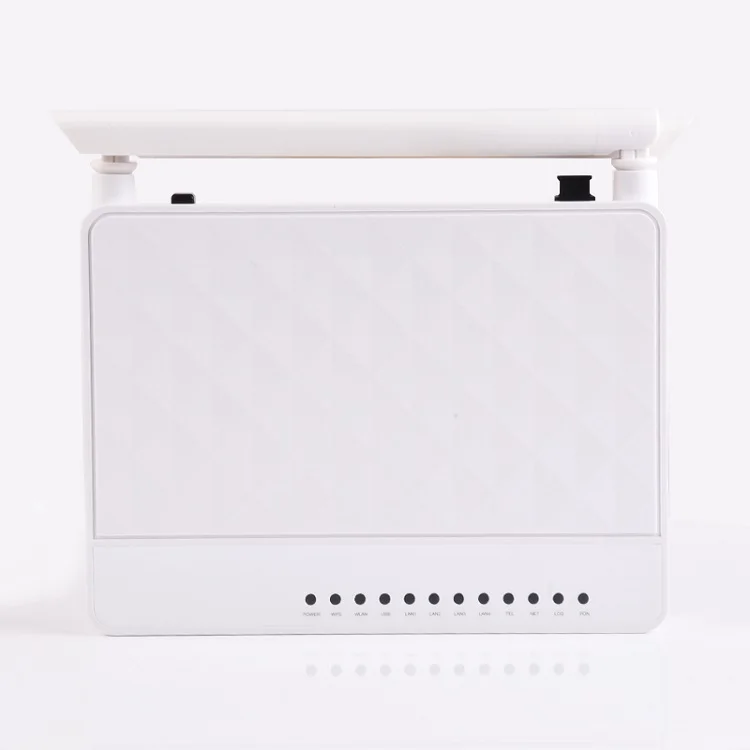

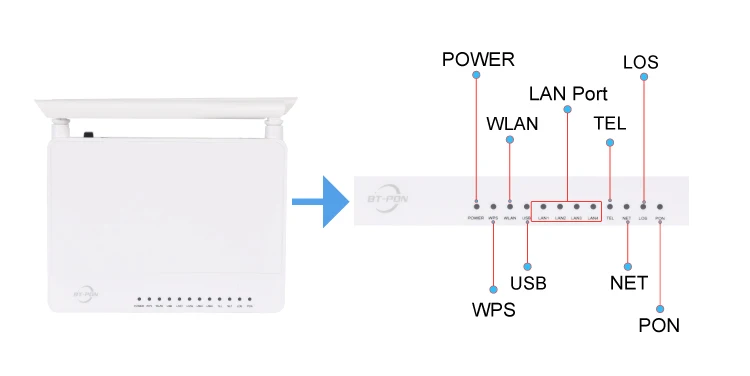

Indicator light | POWER/WPS/WLAN/USB/LAN1/LAN2/LAN3/LAN4/TEL/INTERNET/LOS/PON | |
Button | Power switch Button, Reset Button, WLAN Button, WPS Button | |
Weight | 300g | |

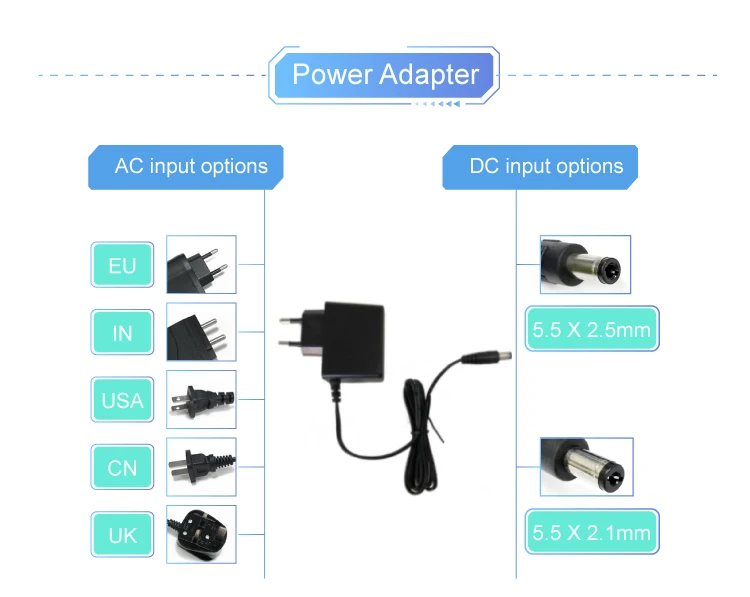

Power adapter input | 100V~240V AC,50Hz~60Hz | |
PowerSupply requirement | 12V DC,1.5A | |
Power consumption | <10w | |
Working temperature | -10°C ~ +45°C | |
Environment humidity | 5% ~ 95% (Non-condensing) | |
PON Interface | ||
Module type | SFP PX20+ SC/PC | |
Working wavelength | up 1310nm,down 1490nm | |
TX Optical power value | 0.5~4dBm | |
RX Optical power sensitivity | -27dBm | |
Transmission distance | 0~20km | |
Transmission rate | Uplink 1.244Gbps;downlink 1.244Gbps | |
Ethernet interface | ||
Interface type | RJ45 | |
Interface parameters | 1*10/100/1000Mbps and 3*10/100Mbps or 4*10/100Mbps auto adaptive Ethernet interfaces | |
Wireless | ||
Working mode | IEEE 802.11 b/g/n | |
Antenna pattern | 2T2R External antenna | |
Antenna gain | 5dBi | |
Wireless bandwidth | Support 20MHz/40MHz | |
Interface rate | Maximum rate 300Mbps | |
SSID | Up to 4 SSID broadcasts are supported | |
POTS interface | ||
Interface type | 1* RJ11 | |
Voice agreement | SIP | |
Codecs | G.711/G.723/G.726/G.729 | |
Integrated circuit protocol | Gr-909 protocol is applicable | |
The BT-601GB supports the functions as follows:
1.Uses GPON uplink that is compliant with ITU-T G. 984 series of standards
2.Integrate OMCI and TR-069 remote configuration and maintenance
3.Compatible with Huawey,ZTE and Fiberhome OLT
4.Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
5.Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
6.WAN support networking bridge, router and bridge/router mixed mode
8.Offers a 300Mbps WiFi Router for Home WiFi applications
7.POTS integrated circuit test complies GR-909
10.IPv4 and IPv6, ensuring compatibility and usability in both IP network types
9.Support flexible QinQ VLAN,DHCP server/relay and IGMP/ MLD multicast monitoring function
2.Integrate OMCI and TR-069 remote configuration and maintenance
3.Compatible with Huawey,ZTE and Fiberhome OLT
4.Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
5.Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
6.WAN support networking bridge, router and bridge/router mixed mode
8.Offers a 300Mbps WiFi Router for Home WiFi applications
7.POTS integrated circuit test complies GR-909
10.IPv4 and IPv6, ensuring compatibility and usability in both IP network types
9.Support flexible QinQ VLAN,DHCP server/relay and IGMP/ MLD multicast monitoring function
Contact Us
Packing&Shipping

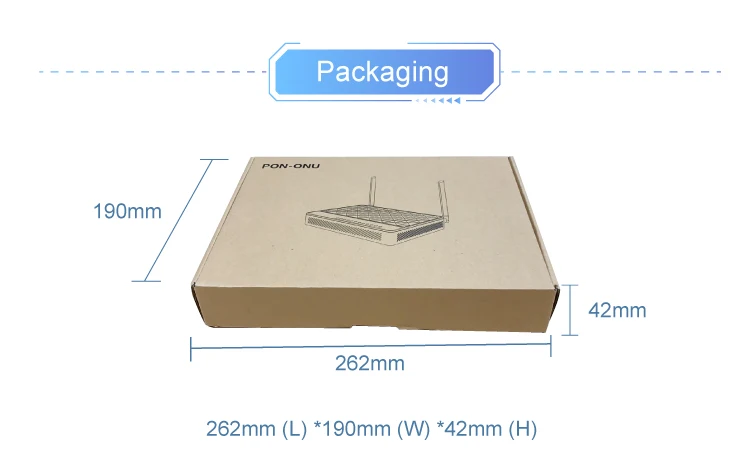

PACKING:
