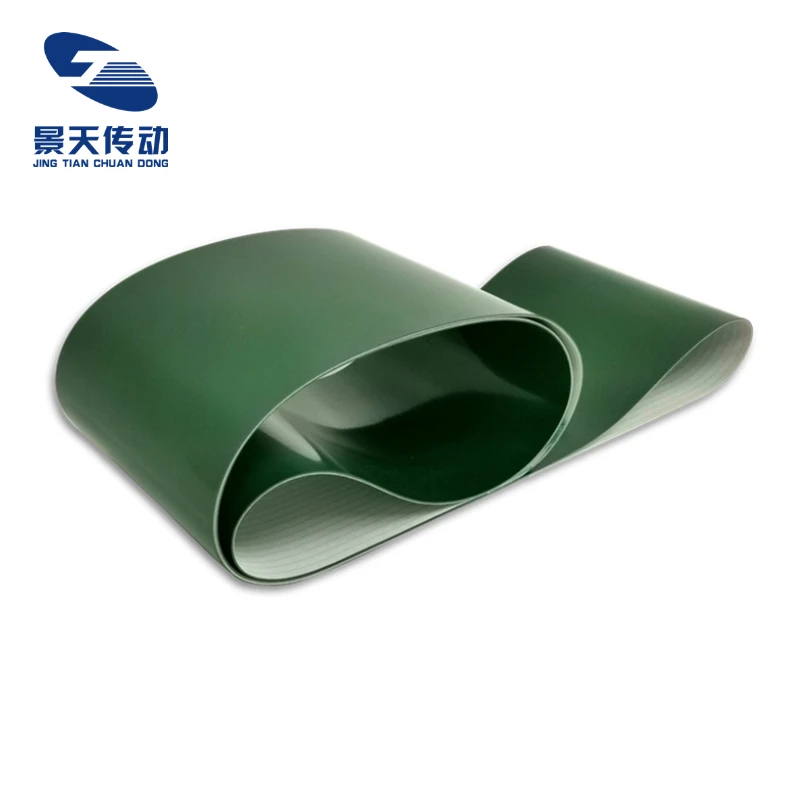

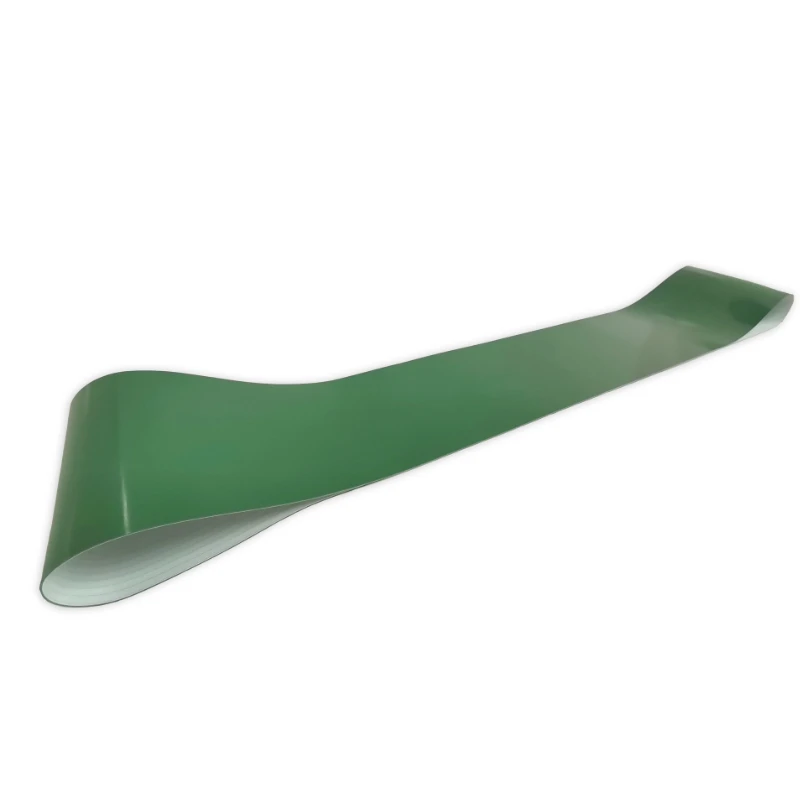

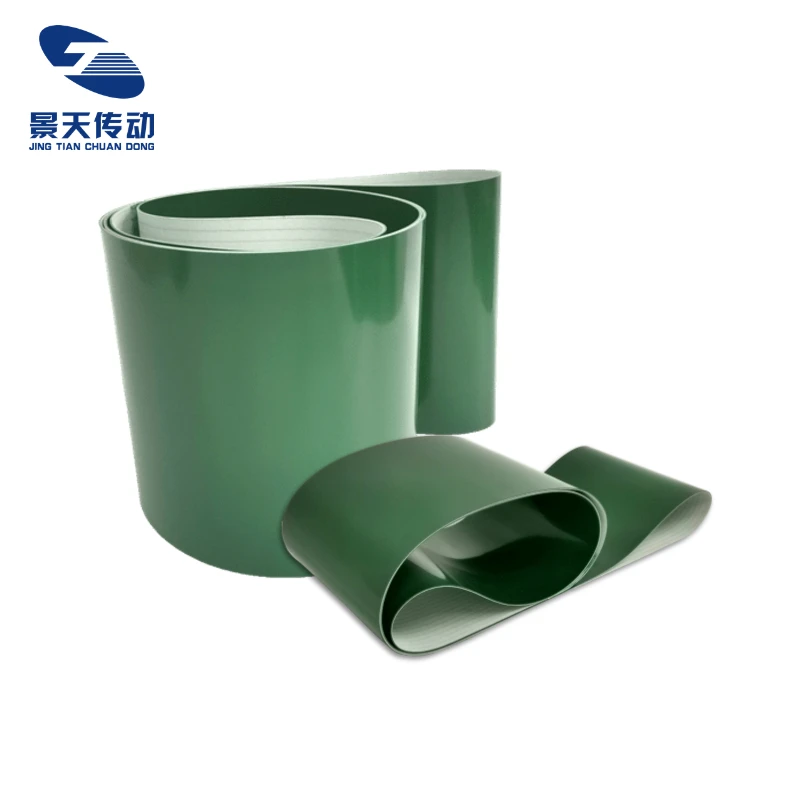

small portable pvc green conveyor belt manufacturer for sale
- Category: >>>
- Supplier: Wuxi Jingtian Transmission Technology Co. Ltd.
Share on (62497301236):
Product Overview
Description
What is PVC conveyor belt?
PVC conveyor belt its adhesive surface material is Polyvinylchloride (Polyvinylchloride, PVC), its composition for polyester fiber
cloth and PVC adhesive composition.Its working temperature is generally from -10° to +80°, and its joint mode is generally
international toothed joint, which has good lateral stability and is suitable for transmission in various complex environments.
cloth and PVC adhesive composition.Its working temperature is generally from -10° to +80°, and its joint mode is generally
international toothed joint, which has good lateral stability and is suitable for transmission in various complex environments.
Company Profile
Product Paramenters
type | The thickness of the (mm) | containers | colour | Hardness | structure | Extension of 1% Required tension (N)Minimum roller diameter | Extension of 1% Required tension (N) | Tensile strength N/mm | Continuous temperature (℃) |
11P1/WD | 1 | pvc | green white Dark green Sky blue black gray | 75 | One cloth one glue | 20 | 4 | 50 | -10—+80 |
21P1.5/WD | 1.5 | green white Dark green Sky blue black gray | Two cloth two glue | 40 | 5 | 80 | |||
21P2/WD | 2 | green white Dark green Sky blue black gray | Two cloth two glue | 40 | 8 | 120 | |||
21P3/WD | 3 | green white Dark green Sky blue black gray | Two cloth two glue | 60 | 8 | 100 | |||
31P4/WD | 4 | green white Dark green Sky blue black gray | Three cloth three glue | 80 | 12 | 150 | |||
31P5/WD | 5 | green white Dark green Sky blue black gray | Three cloth three glue | 100 | 12 | 150 | |||
41P6/WD | 6 | green white Dark green Sky blue black gray | Four cloth four glue | 150 | 15 | 180 | |||
51P8/WD | 8 | green white Dark green Sky blue black gray | Five cloth five glue | 220 | 20 | 230 |
Details Images
size | customizable |

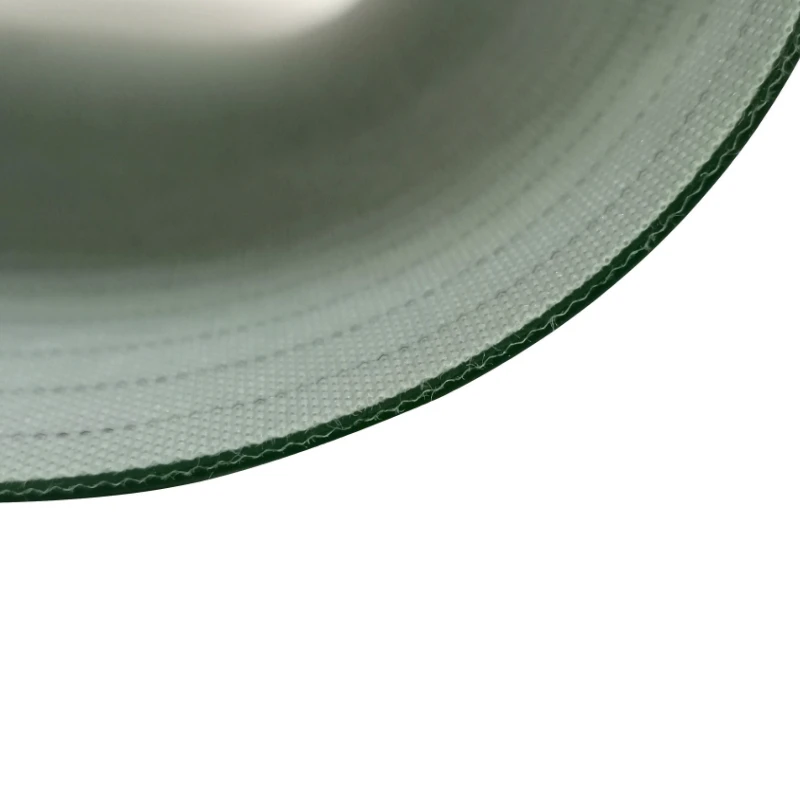

layer of structure | distinct |
electronic engineering | |
medicine | |
mechanical automation | |
electronic engineering |
surface
High quality polyvinyl chloride
Customizable color

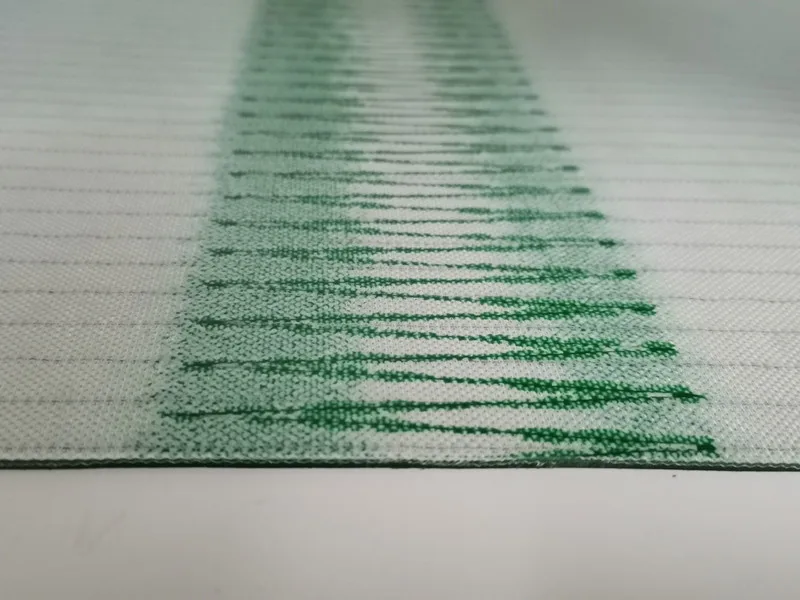

connection
cross
hot melting

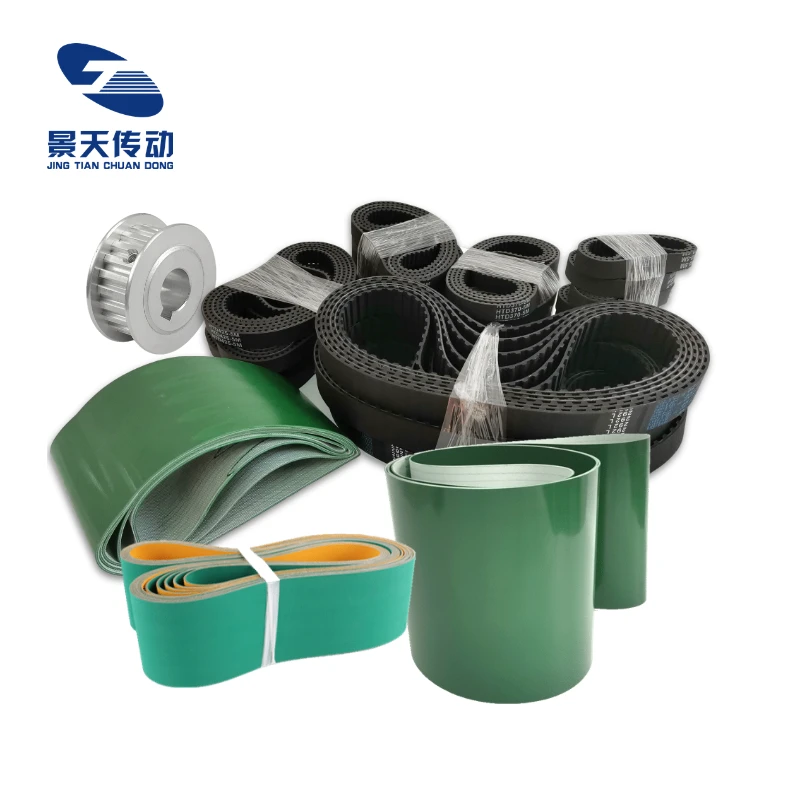

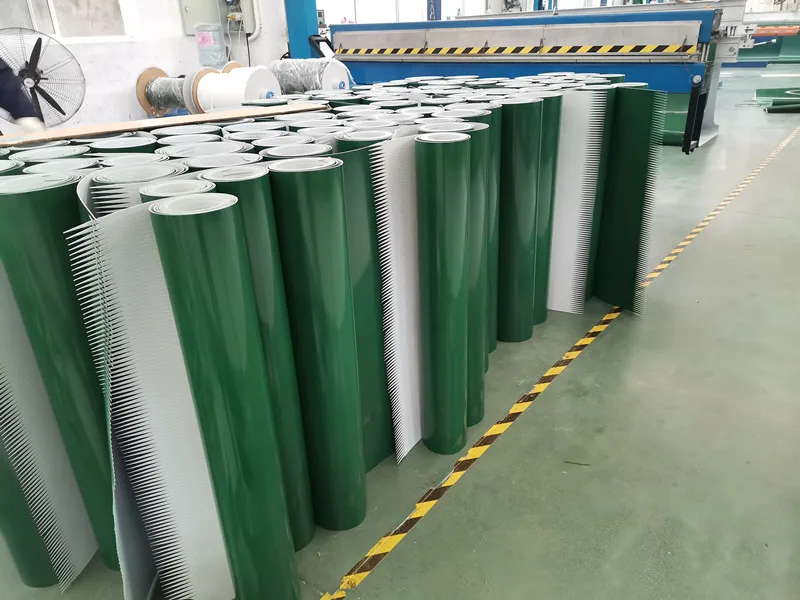

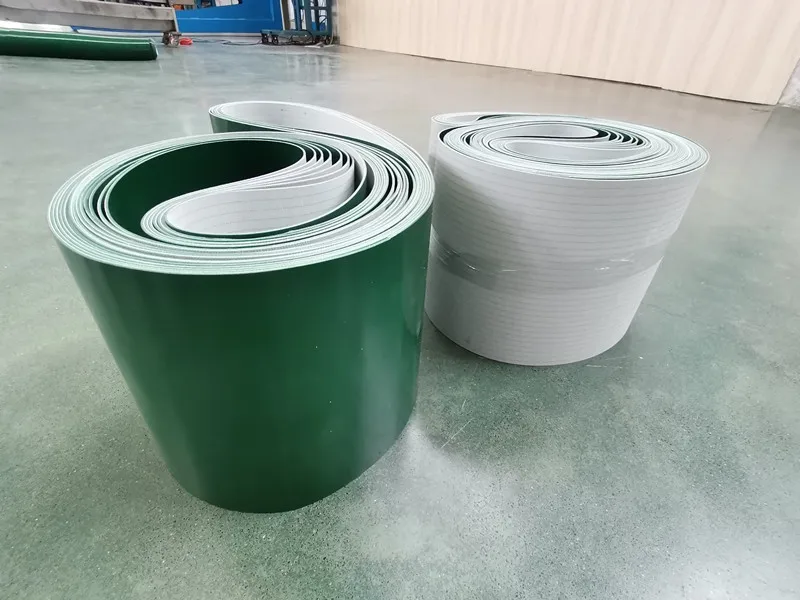

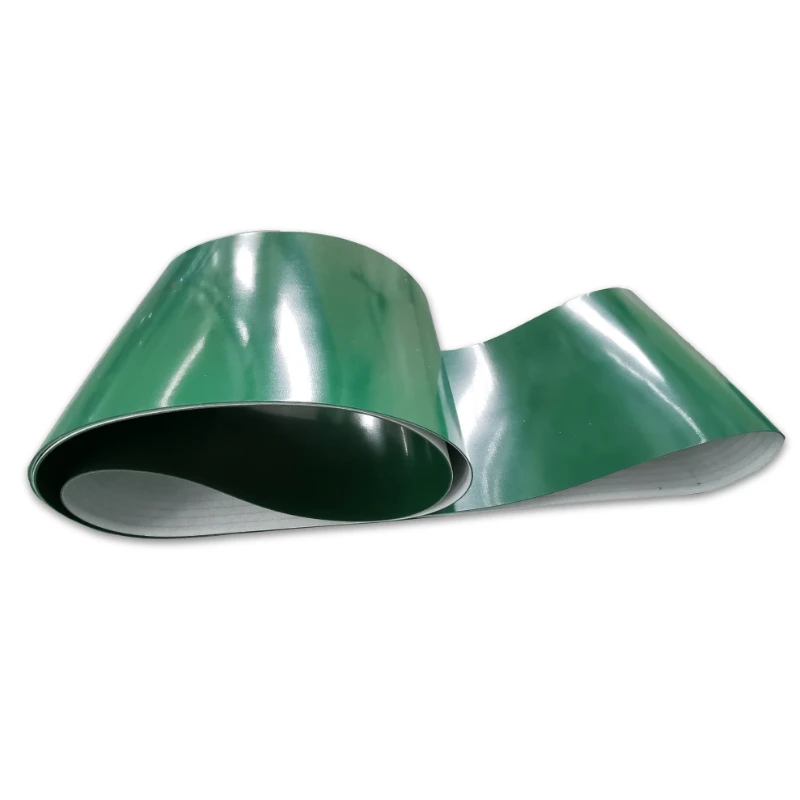

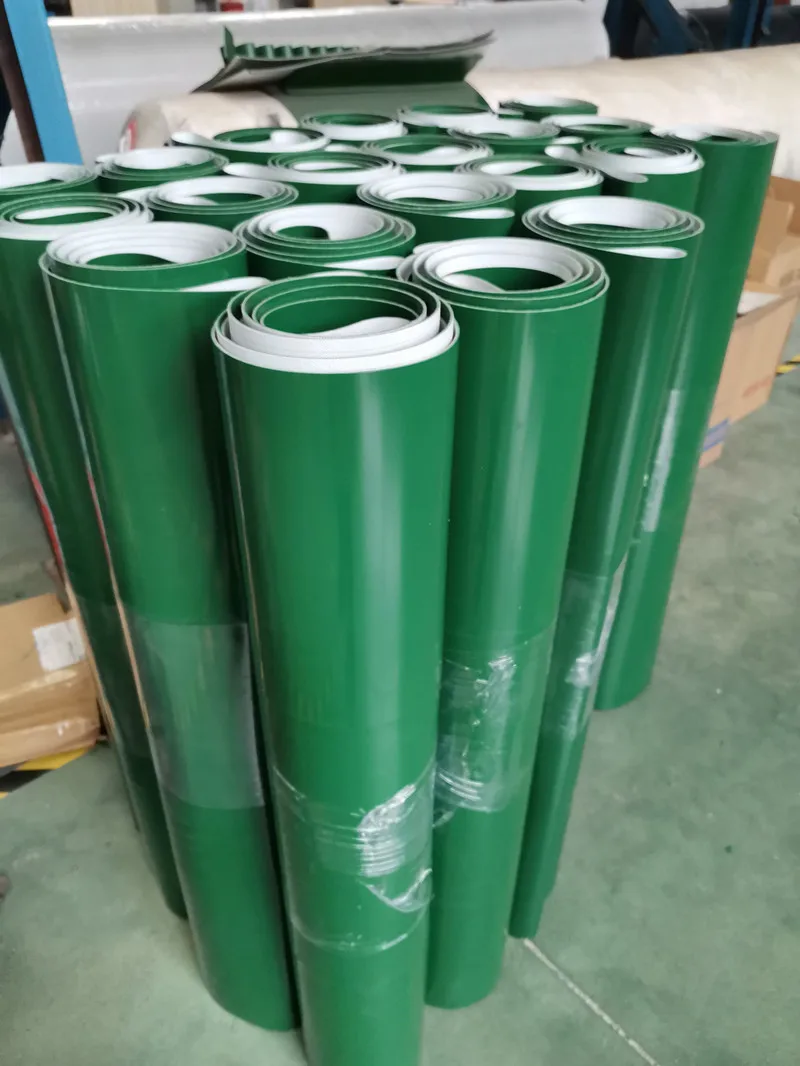

finished product display

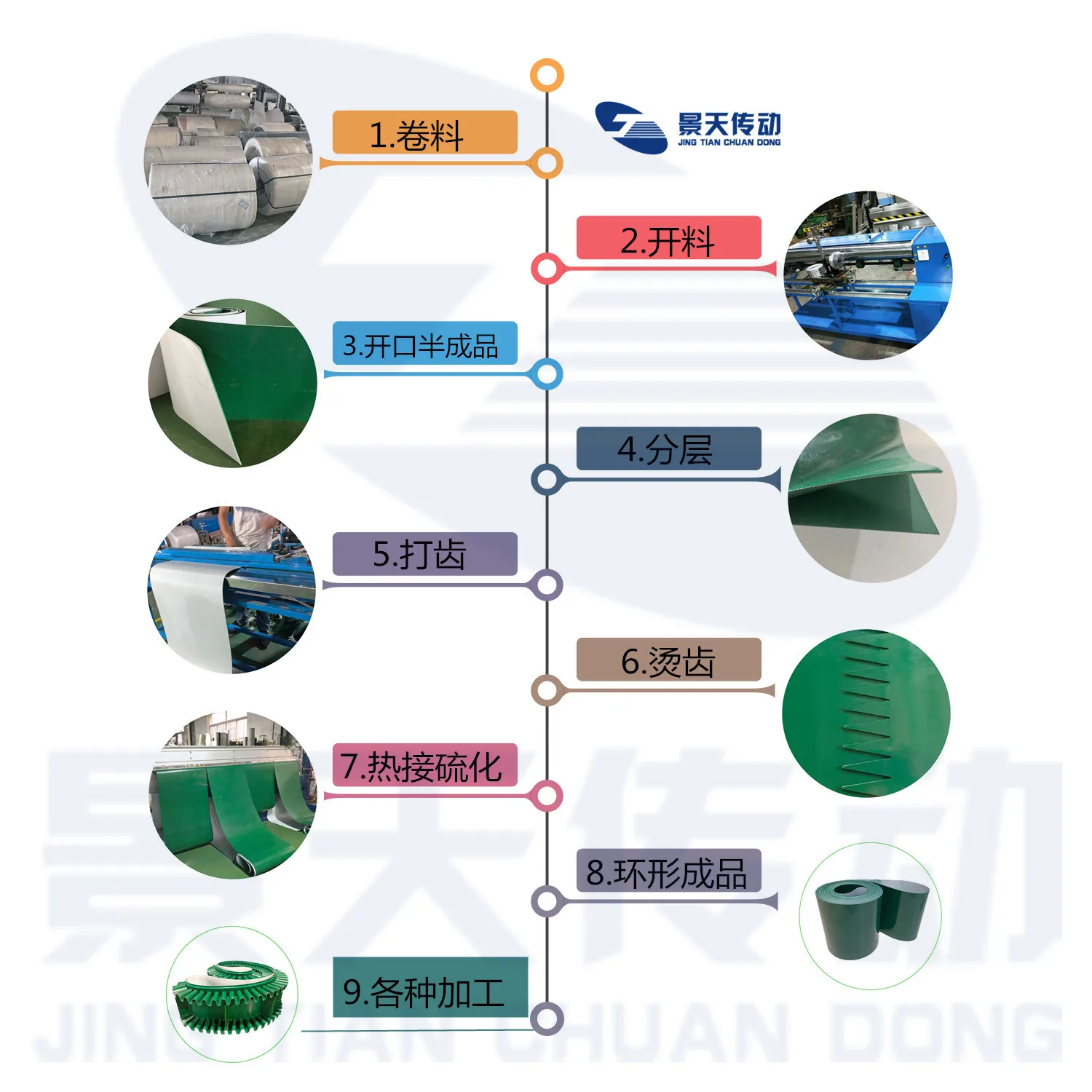

technological process
Customer Photos
FAQ
1. Q: How can I choose the model of conveyor belt?
A: As we make several kinds of conveyor belt, so tell us your demands when inquiry, including the material(pvc or pu…),
thickness, ply, pattern(glossy or others…) , fabric requirements(anti or low noise…)you need, and your other special demands etc.
The most important is application. Then we'll recommend you suitable model based on them.
2. Q: What is the advantage of your company?
A: We are making conveyor belts for more than 10 years. Now we have FOUR production lines, and the width of the line is
3m,2.8m,2m. We have enough exporting experience because we have doing exporting for more than 8 years. We really know the market
and understand what our customers need. So just trust us and have the first trial
3. Q: How long does the whole order being worked out?
A: Normally we will finish the order within 20 days. But if it is an urgent order for you, we can help to make and deliver it 3
to 7 days. However if it is a special belt we have to order the fabric or other material maybe the delivery will be delayed. Any
special situation we will let you know in advance
4.Q: Manufacturer or Trading company?
A: Manufacturer. Presently have 6 production lines, with own test center.
1. Q: How can I choose the model of conveyor belt?
A: As we make several kinds of conveyor belt, so tell us your demands when inquiry, including the material(pvc or pu…),
thickness, ply, pattern(glossy or others…) , fabric requirements(anti or low noise…)you need, and your other special demands etc.
The most important is application. Then we'll recommend you suitable model based on them.
2. Q: What is the advantage of your company?
A: We are making conveyor belts for more than 10 years. Now we have FOUR production lines, and the width of the line is
3m,2.8m,2m. We have enough exporting experience because we have doing exporting for more than 8 years. We really know the market
and understand what our customers need. So just trust us and have the first trial
3. Q: How long does the whole order being worked out?
A: Normally we will finish the order within 20 days. But if it is an urgent order for you, we can help to make and deliver it 3
to 7 days. However if it is a special belt we have to order the fabric or other material maybe the delivery will be delayed. Any
special situation we will let you know in advance
4.Q: Manufacturer or Trading company?
A: Manufacturer. Presently have 6 production lines, with own test center.

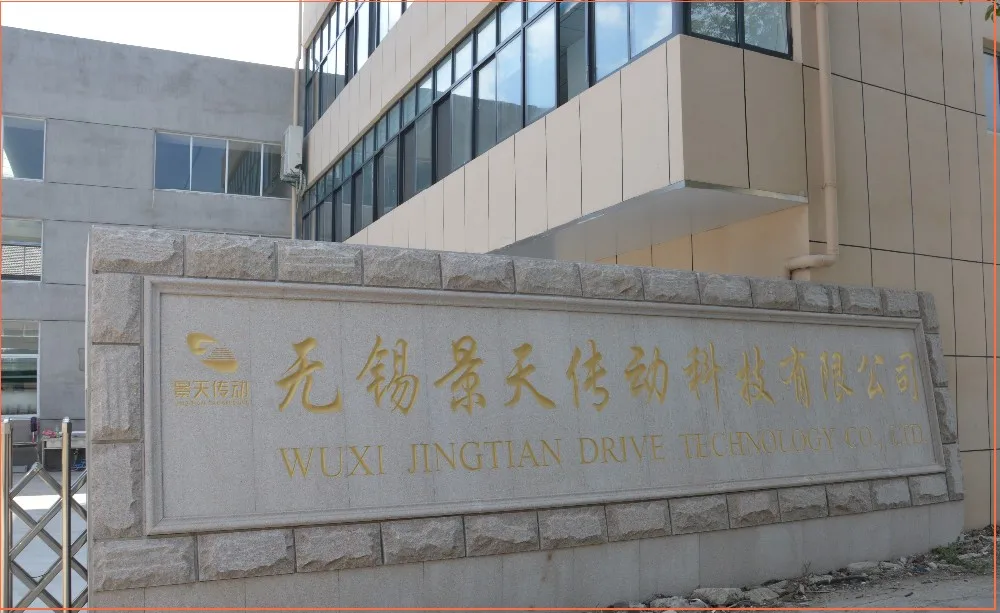

Wuxi Jingtian Transmission Technology Co., Ltd. is a conveyor belt processing enterprise, which has 15 years of experience in
processing conveyor belt industry. It has its own modern workshop, covering an area of about 3300 square meters, with advanced
production machines. It has an excellent sales and research team, and several technicians with rich production experience,
developed a variety of multifunctional conveyor belt services in several countries around the world.
processing conveyor belt industry. It has its own modern workshop, covering an area of about 3300 square meters, with advanced
production machines. It has an excellent sales and research team, and several technicians with rich production experience,
developed a variety of multifunctional conveyor belt services in several countries around the world.
