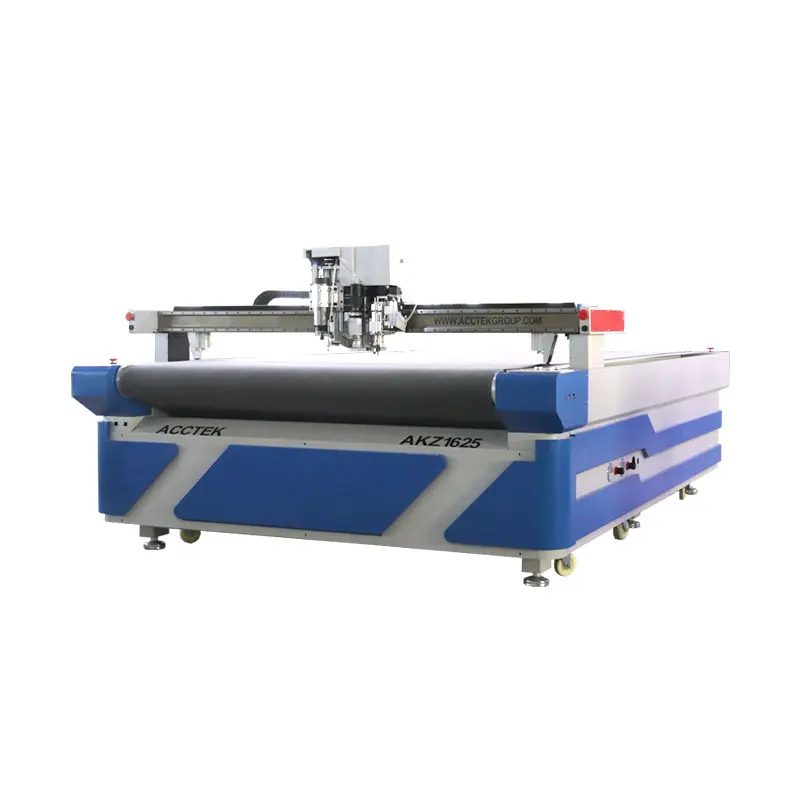

New Oscillating Tangential Knife Cutting 1625 Machine For Leather Fabric cloth
- Category: Cloth Cutting Machines >>>
- Supplier: Jinan AccTek Machinery Co. Ltd.
Share on (62497318240):
Product Overview
Description
Product Description
Features :Automatic Oscillating Knife Fabric Cutting Machine
* Cutting function of oscillation tool:can cut many different materials (such as corrugated paper, cardboard, offset paper, grey board, rubber,honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat )
* Folding function: It can fold corrugated paper, card paper and offset board into perfect folding line.
* Function of dotted line: It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted
line.
* Positioning: positioning with cross red line positioning system.
* Punching function: It can punch hole on the material, such as leather,carton, pvc, carpet and mat ,etc.(optional)
* Drawing function with marker pen (optional).
* Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;* Folding function: It can fold corrugated paper, card paper and offset board into perfect folding line.
* Function of dotted line: It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted
line.
* Positioning: positioning with cross red line positioning system.
* Punching function: It can punch hole on the material, such as leather,carton, pvc, carpet and mat ,etc.(optional)
* Drawing function with marker pen (optional).

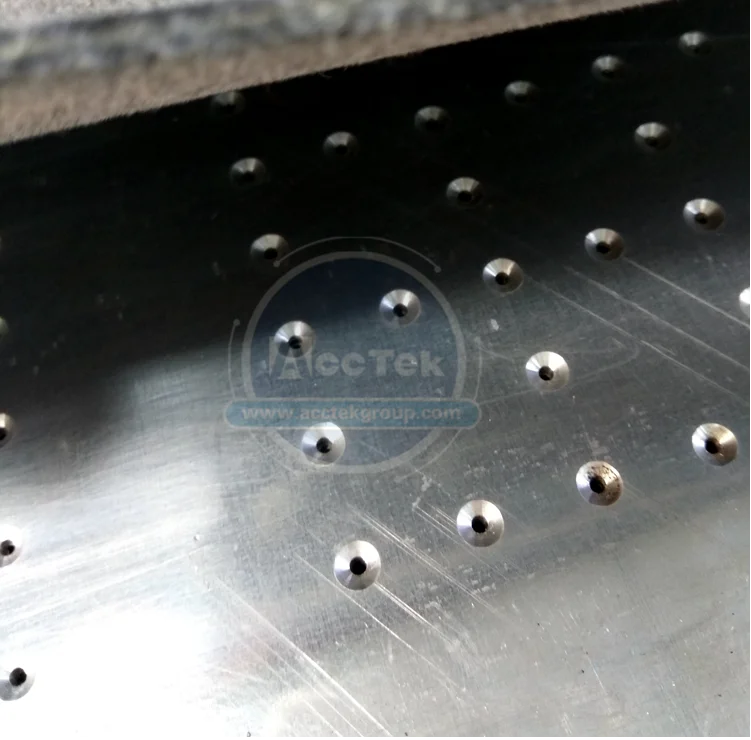

* The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.
* Digital cutting machine was designed easy to install, set-up and operate;* Being equipped with infrared sensor and emergency stop devices, guarantees safety;
* Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;
Specification
Model | AKZ1625 |
Max. Cutting size | 1600*2500mm |
Power | 11KW |

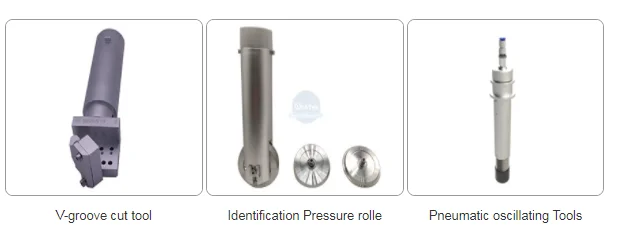

Multifunction Tool Head | Oscillating straight knife/Round knife/pneumatic knife/identification roller/ marker pen holder/puching hole device/V-groove cut tool/CCD camera/tangential knief/ drilling tool/projector/etc. |
Security Device | High sensitive infrared induction |
Cutting speed | Max. 1200mm/s (can be set up according to different materials) |
Movement speed | Maximum 1500mm/s |
Cutting material | Corrugated paper, PVC expansion sheet, kt sheet, thick foam, gray board, paperboard, car sticker, adhesive Sticker, etc. |
Cutting thickness | Maximum 20mm (set according to different materials and tools) |

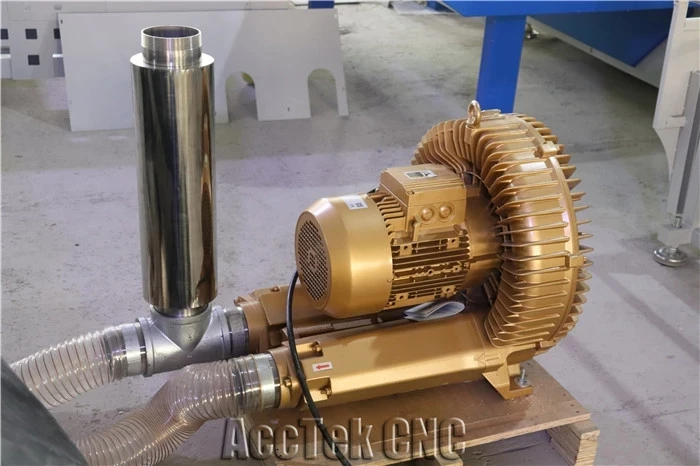

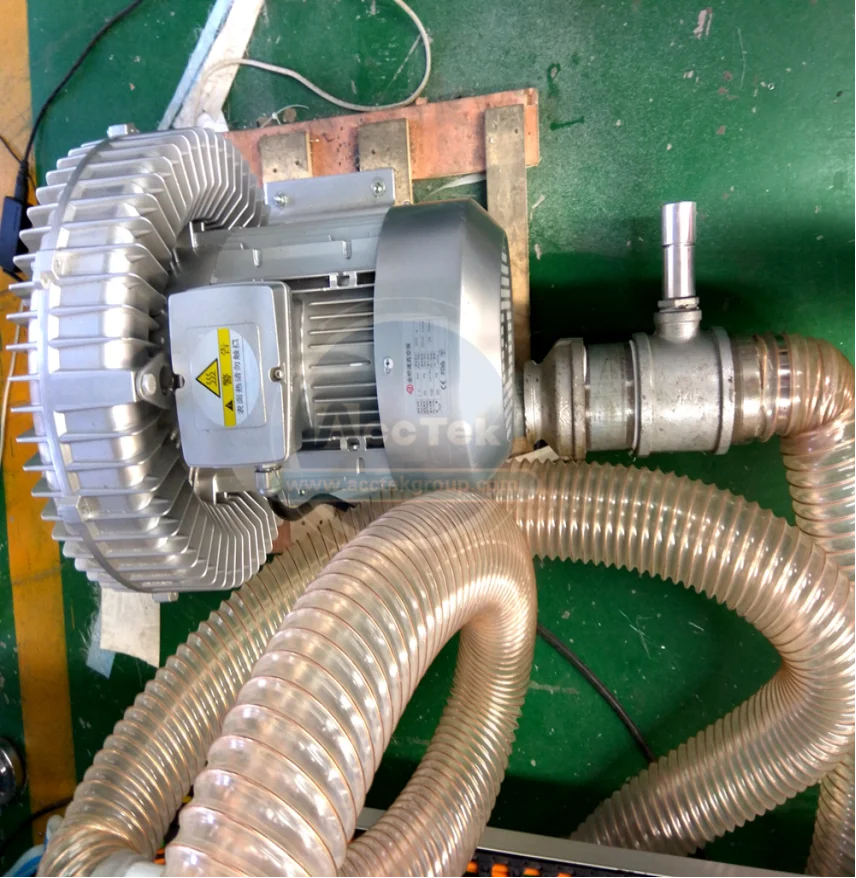

Material fixing method | High power vacuum absorption with felt |
Repeated positioning accuracy | ±0.05mm |
Mechanical Precision | Maximum 0.05mm |

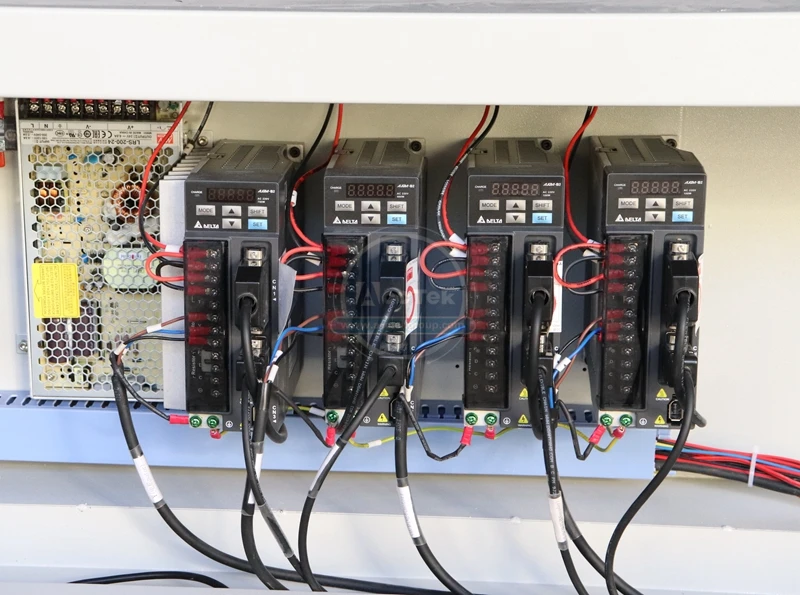

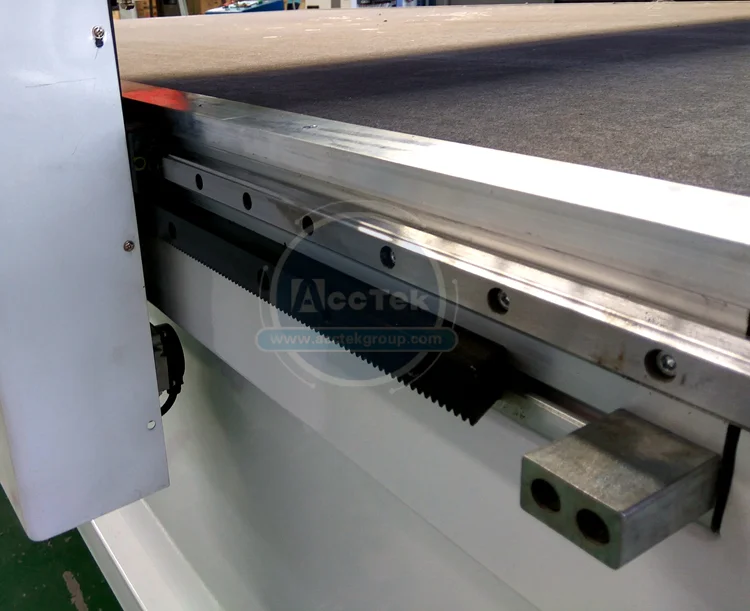

Drive system | Taiwan Delta servo motor, Taiwan PMI linear guide rails |

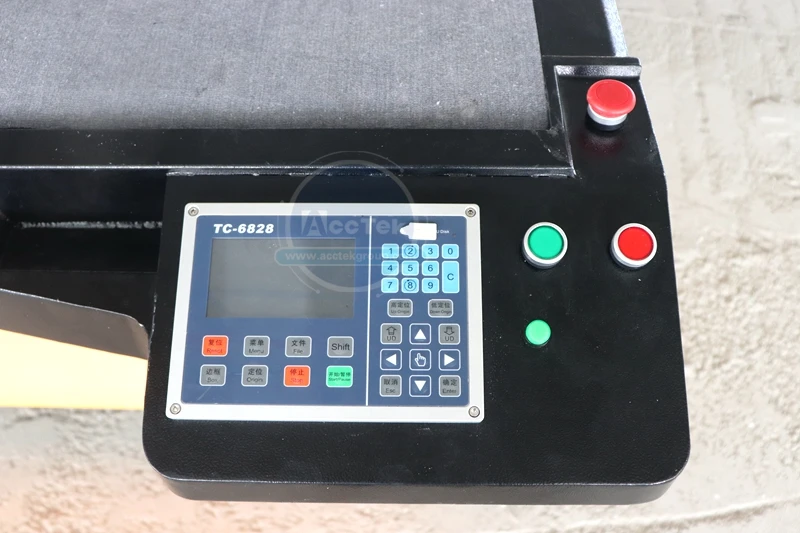

Control system | Chinese Brand RD control system |
Data transmission method | USB port or Ethernet |
Suport file | DXF,PLT,AI,SVG,PDF,NC,DST,DSB, etc. |
Operation environment | Temperature 0-40℃, Humidity 20%-80%RH |
Voltage | 380V/220V/50Hz/60Hz |
Details Images

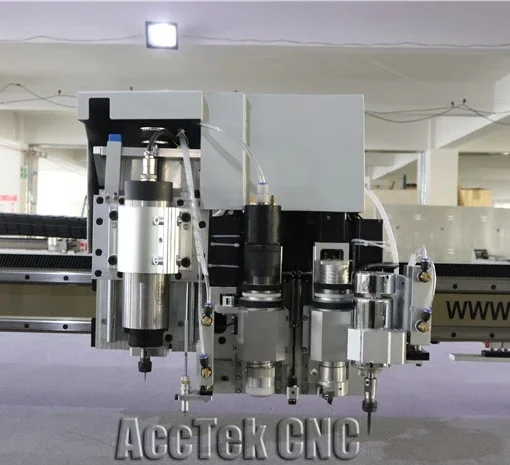

Oscillating Knife
Application Sample
All kinds of Leather, various garment flexible materials, KT board, Chevron board, honeycomb board, car stickers, adhesive, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, composite materials, etc.
It can draw various high precision drawing cutting materials: corrugated board, foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl etc.
Besides EVA foam, CUTCNC digital cutter machine can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board,EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.
It can draw various high precision drawing cutting materials: corrugated board, foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl etc.
Besides EVA foam, CUTCNC digital cutter machine can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board,EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.
Customers feedback

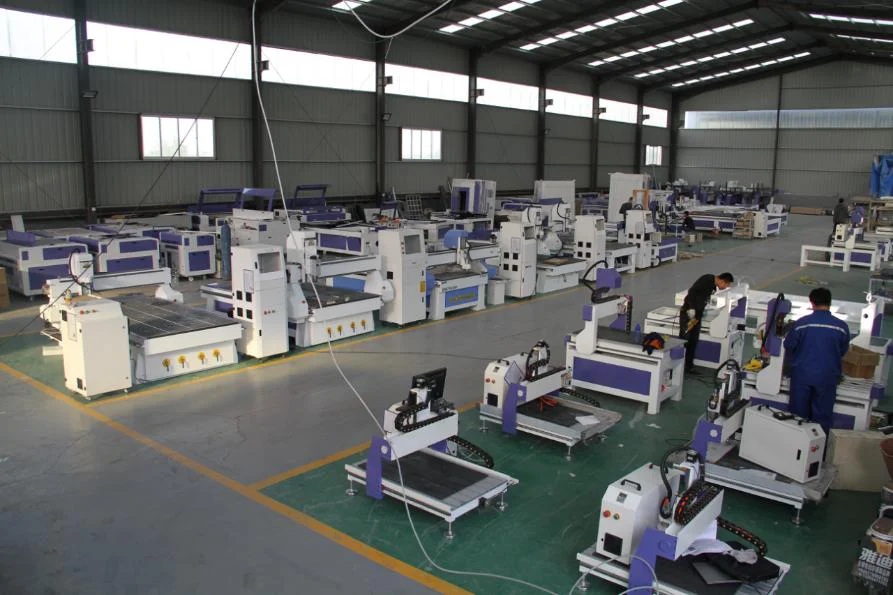

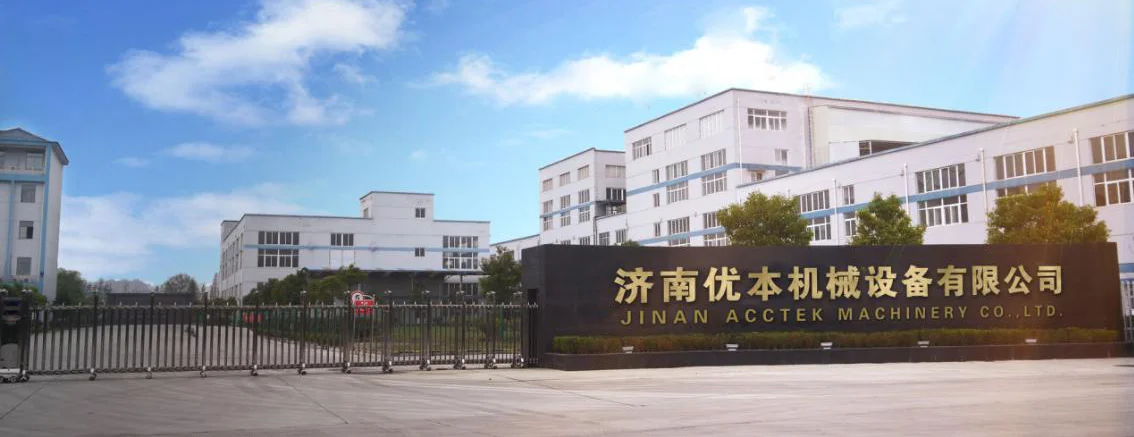

Company Profile
Jinan AccTek Machinery Company specializes in manufacturing CNC Router and Laser machines.Since 2005 we have been based in the Industrial Zone of Jinan City, Shandong Province south of Beijing.
Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control.
These machines are used in many industries, crafts and arts businesses around the world. These include woodwork, metal and stone work, aluminum fabrication, boat building, shop fitting, mold making, to name a few.Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.
We welcome customers and potential business associates from around the world. We can work together cooperatively for mutual benefit.
We welcome customers and potential business associates from around the world. We can work together cooperatively for mutual benefit.
“Our business is to improve your business！”
Packing & Delivery
FAQ
1. who are we?
We are based in Shandong, China, start from 2013,sell to North America(20.00%),Northern Europe(15.00%),South America(15.00%),Africa(10.00%),South Asia(10.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),Western Europe(4.00%),Central America(4.00%),Southern Europe(3.00%),Southeast Asia(3.00%),Oceania(3.00%),Mid East(2.00%),Domestic Market(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
cnc router,laser machine,plasma cutting machine,laser marking machine,stone carving machine
4. why should you buy from us not from other suppliers?
Jinan AccTek Machinery Co., Ltd was located in high technology industry zone of Jinan,which specializes in manufacturing CNC and laser machines since 2005.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian,Korean
We are based in Shandong, China, start from 2013,sell to North America(20.00%),Northern Europe(15.00%),South America(15.00%),Africa(10.00%),South Asia(10.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),Western Europe(4.00%),Central America(4.00%),Southern Europe(3.00%),Southeast Asia(3.00%),Oceania(3.00%),Mid East(2.00%),Domestic Market(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
cnc router,laser machine,plasma cutting machine,laser marking machine,stone carving machine
4. why should you buy from us not from other suppliers?
Jinan AccTek Machinery Co., Ltd was located in high technology industry zone of Jinan,which specializes in manufacturing CNC and laser machines since 2005.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian,Korean
