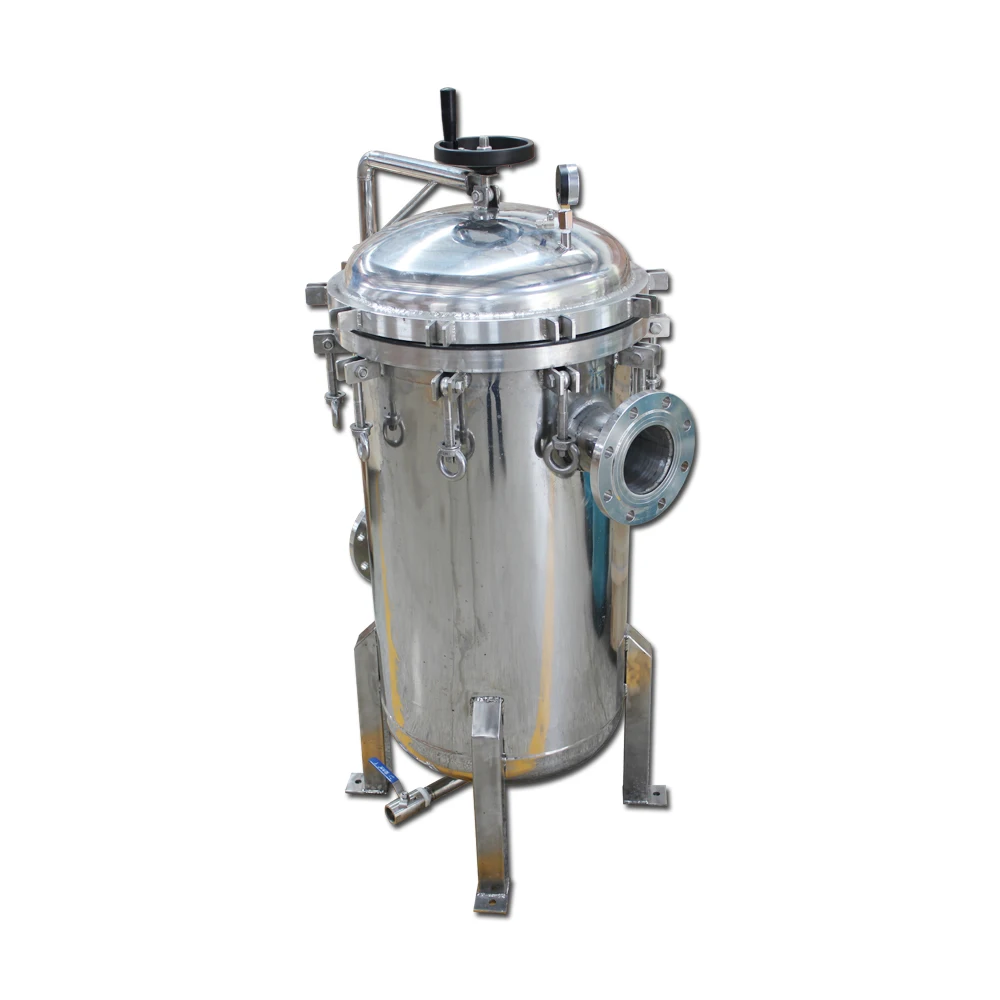

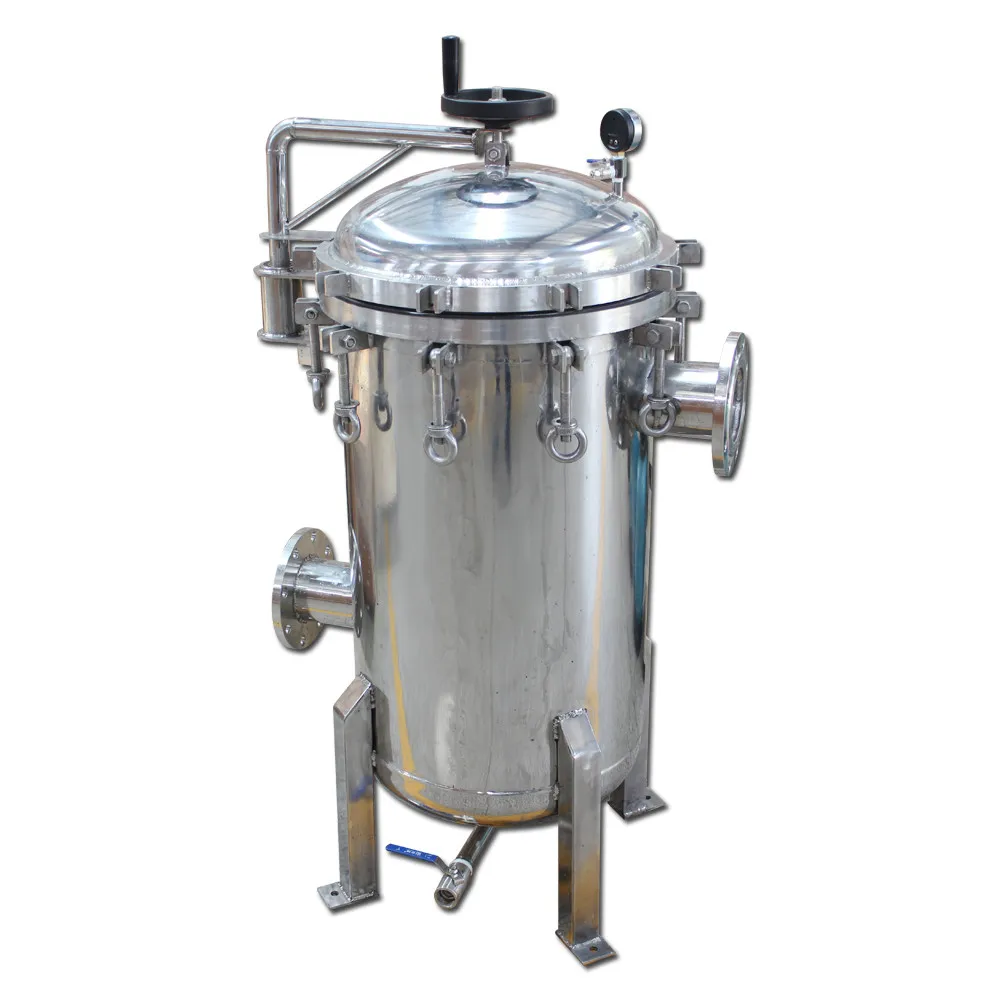

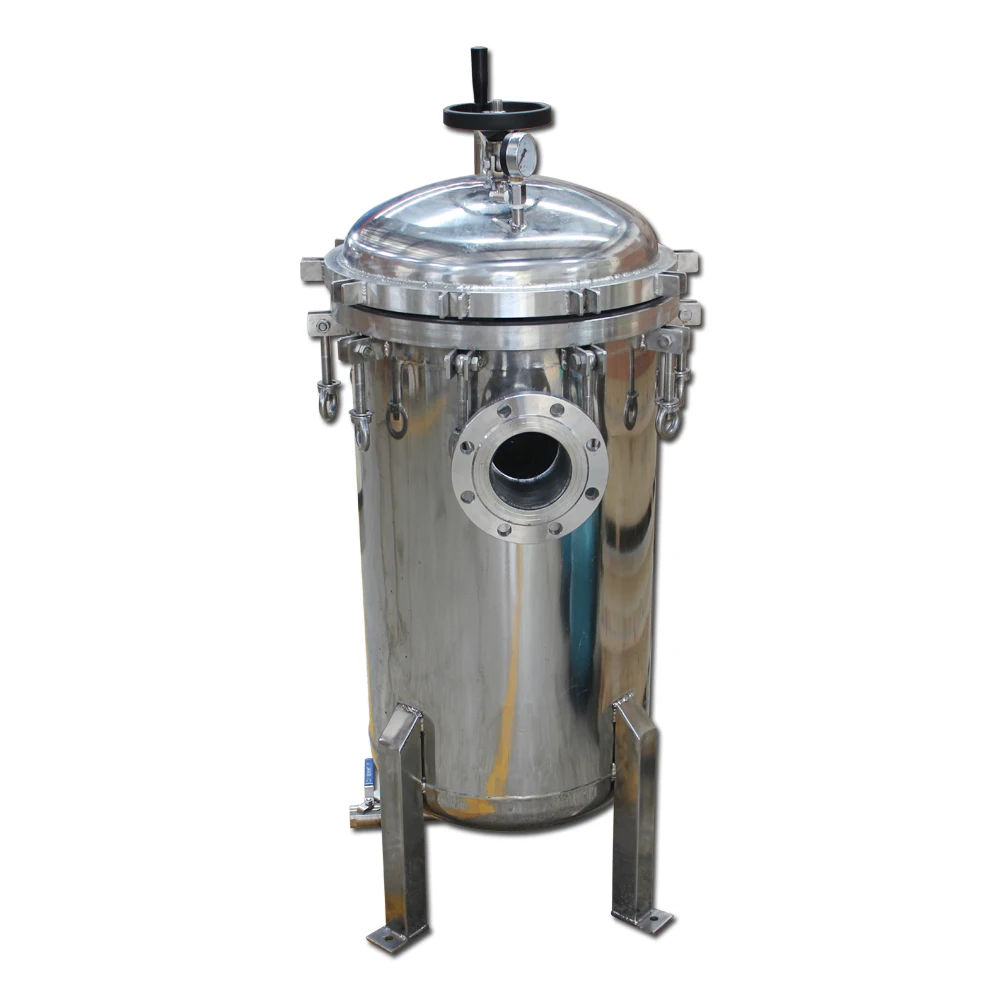

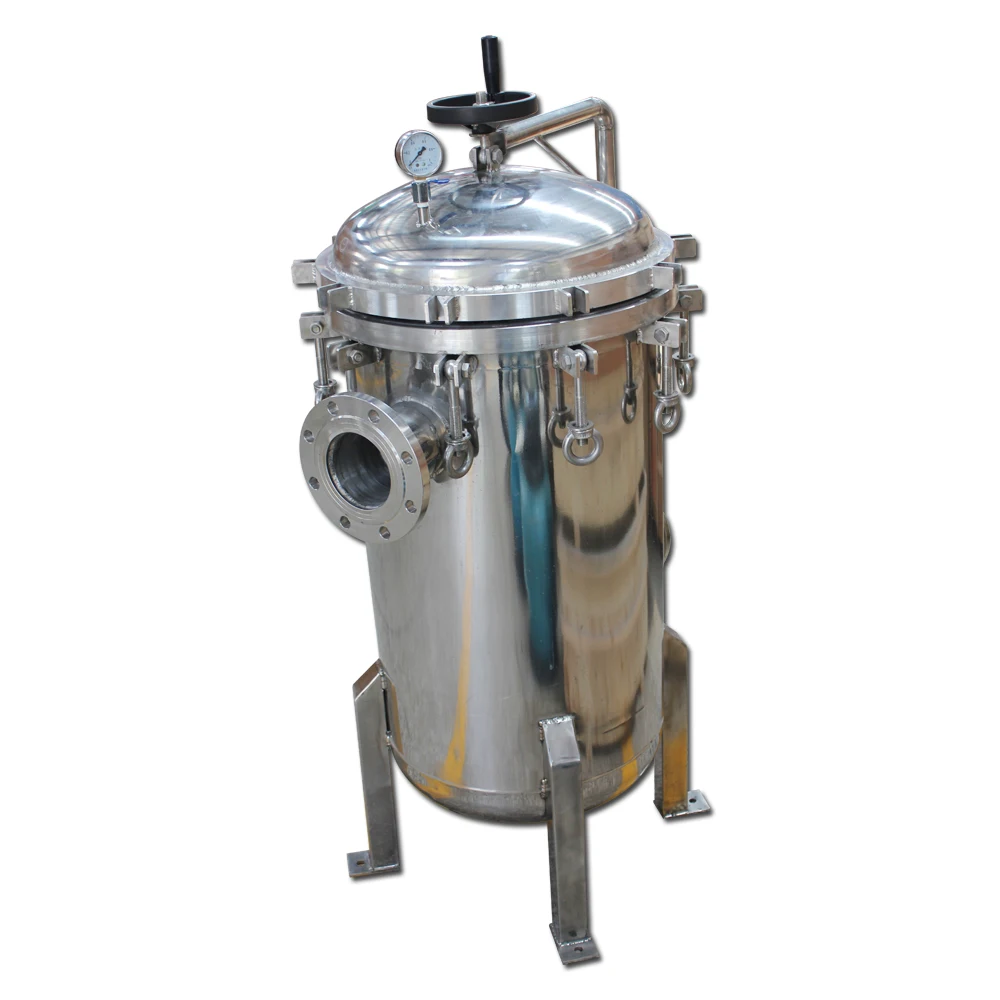

Stainless Steel Two Bag Filter Housings

Product Overview

Description

Stainless Steel Two Bag filter Housings





To customers details

Auto self cleaning water filter

1. What is the flow rate(m3/h or gpm)?

2. What is the filtration degree?---10 micron or 200 micron?

3. What is the working pressure?

4. What is the working temperature?

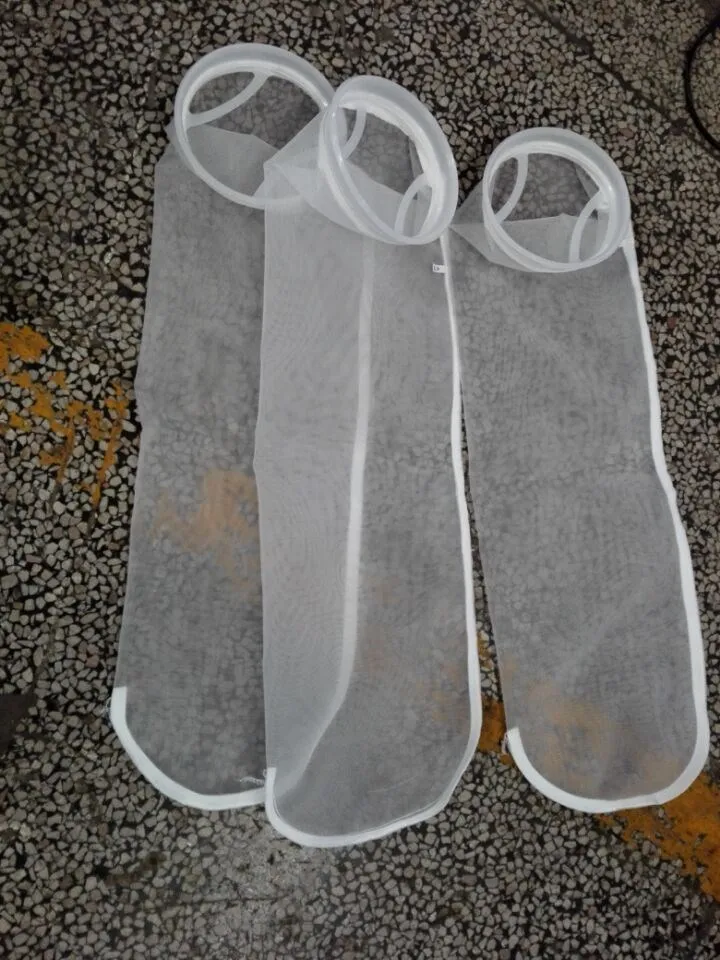

Filter bag

The filter bag inside the metal basket of the filter ,kept the impurities flow into the filter ,and clear liquor flow out through out from the outlet.
The filter bag can be made by PP,nylon,polester,PVA etc according to the separation demand.
Easy to replce and using

Remark

· Max capacity is the reference value based on water test, the actual value can be different because of liquid viscosity, solid content and pressure difference

· The material can be carbon steel, ss304 and ss316L

· ring's material can be customized per customer requirement to meet the material needed to be fitlered







Specification



Model	FLow rate(T/H)	Inlet and outlet(mm)	Size	filter bag	filter area(m2)
YL-1-219	20	DN50	219*410	1# 1pcs	0.23
YL-2-219	40	DN65	219*810	2# 1pcs	0.46
YL-2-400	50-80	DN80	400*810	2# 2pcs	0.92
YL-2-500	120	DN100	500*810	2# 3pcs	1.38
YL-2-550	140	DN100	550*810	2# 4pcs	1.8
YL-2-600	150	DN125	600*810	2# 4pcs	1.8
YL-2-650	160	DN125	650*810	2# 5pcs	1.84
YL-2-750	200	DN150	750*810	2# 6pcs	2.3
YL-2-800	220	DN150	800*810	2# 8pcs	2.5
YL-2-850	240	DN200	850*810	2# 9pcs	2.7





Working principle

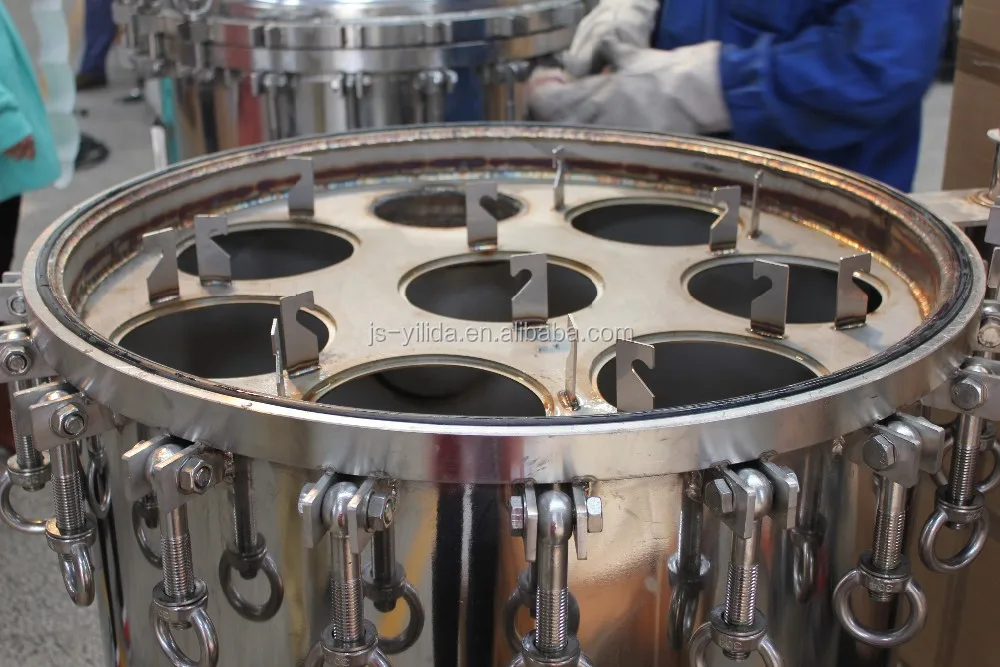

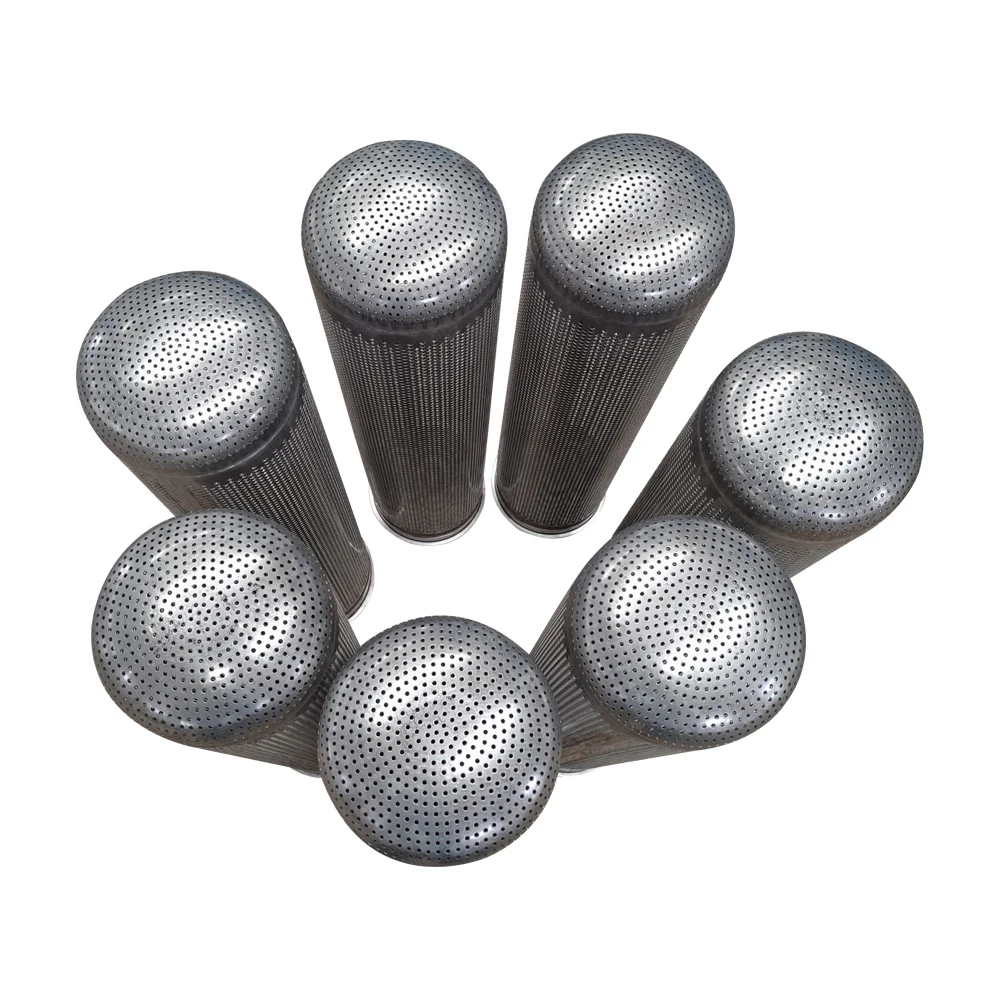

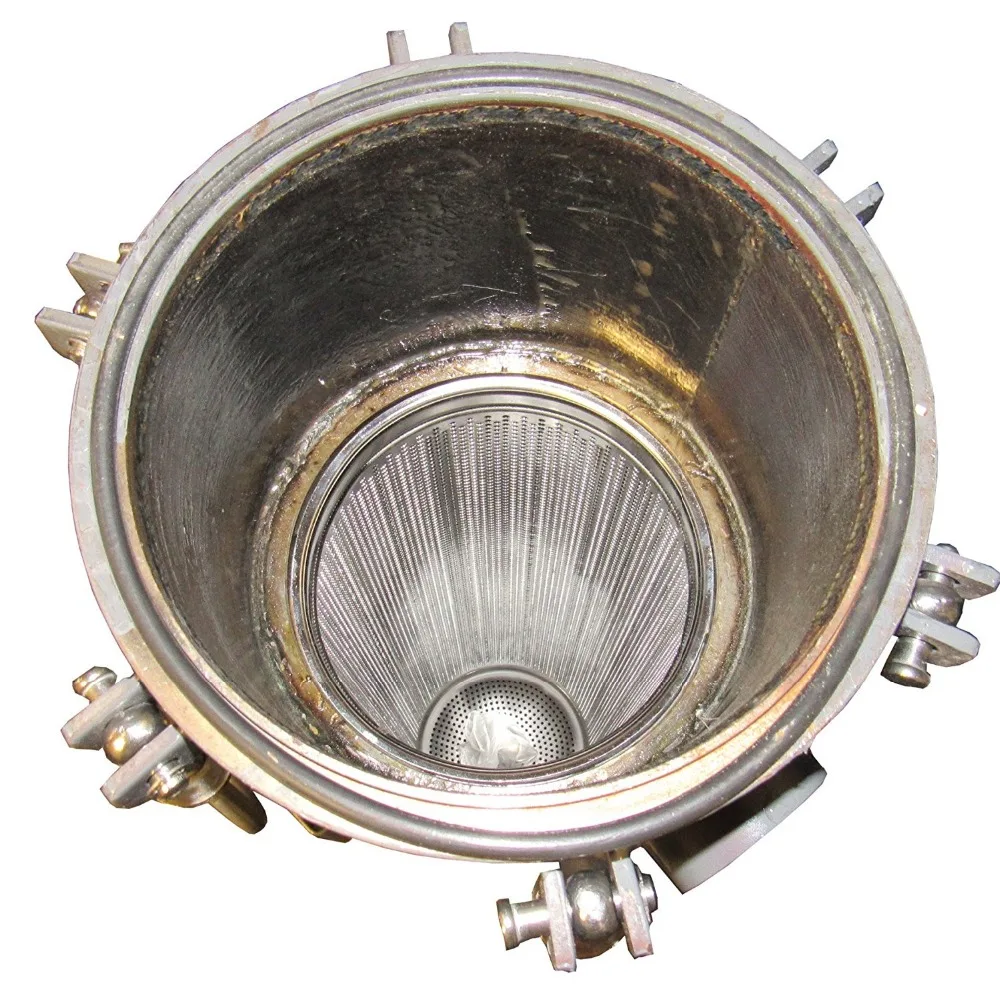

The bag filte is supported by the stainless steel mesh inside. The liquid flows into the chamber via inlet and go through the filter bag. The impurities will be blocked in th filter bag. The filter bag can be reused repeatedly after washing or cleaning. And also the filter bag is easy to change. With no material consumption, this filter has low operation cost.

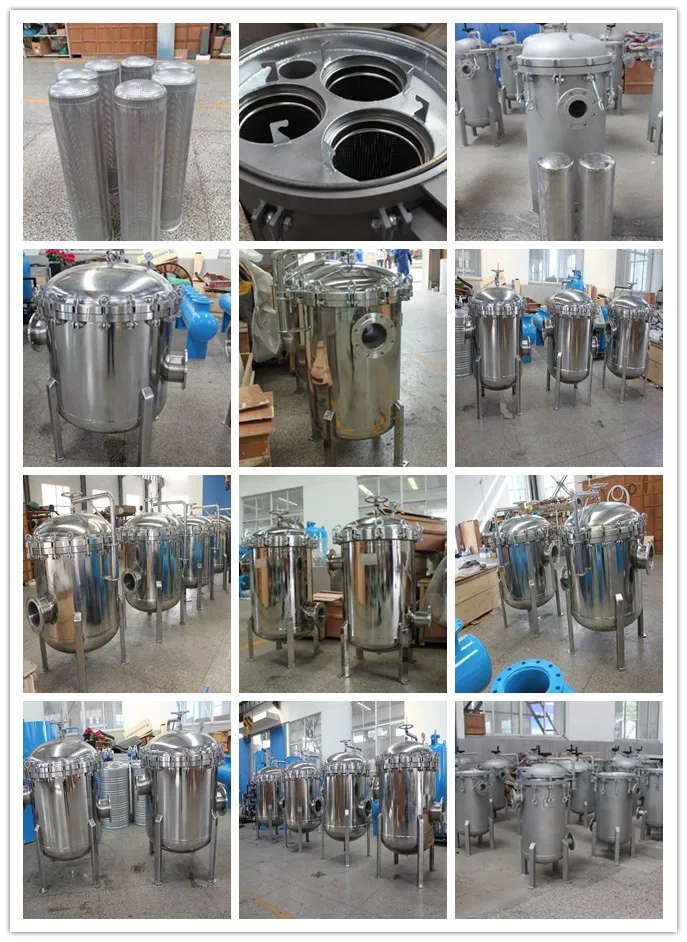

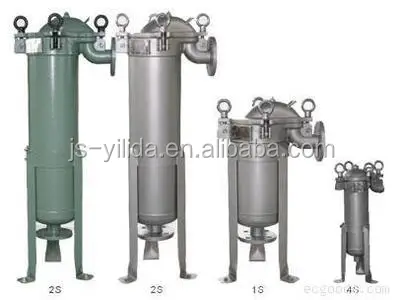

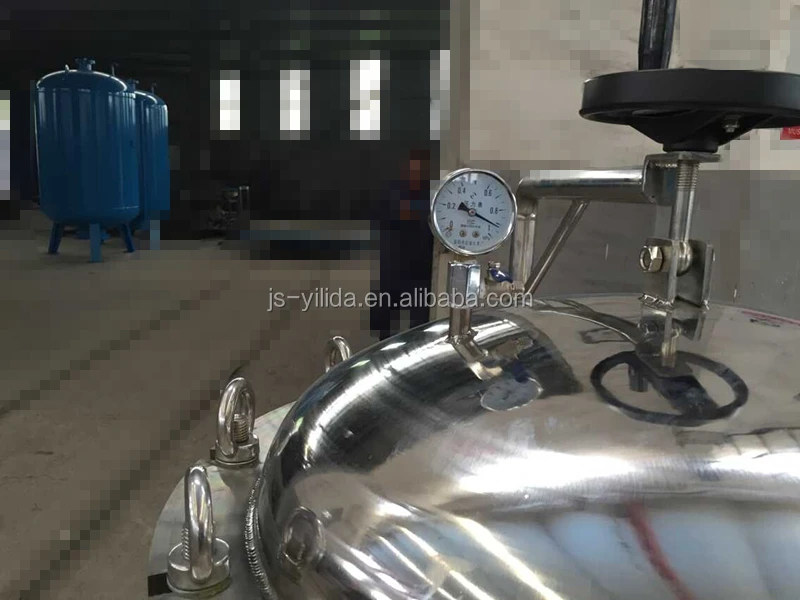

Production images



Our services

1. Accept customized length, Package,logo etc,as you offer your drawing and picture.

2. We will reply to you within 24 hours.

3. Received the payment,we will contact you at the first time and arrange the production and let you
Know the lastest process.

4. Any doublt, pl contact with us, we will help you solve the problem asap.

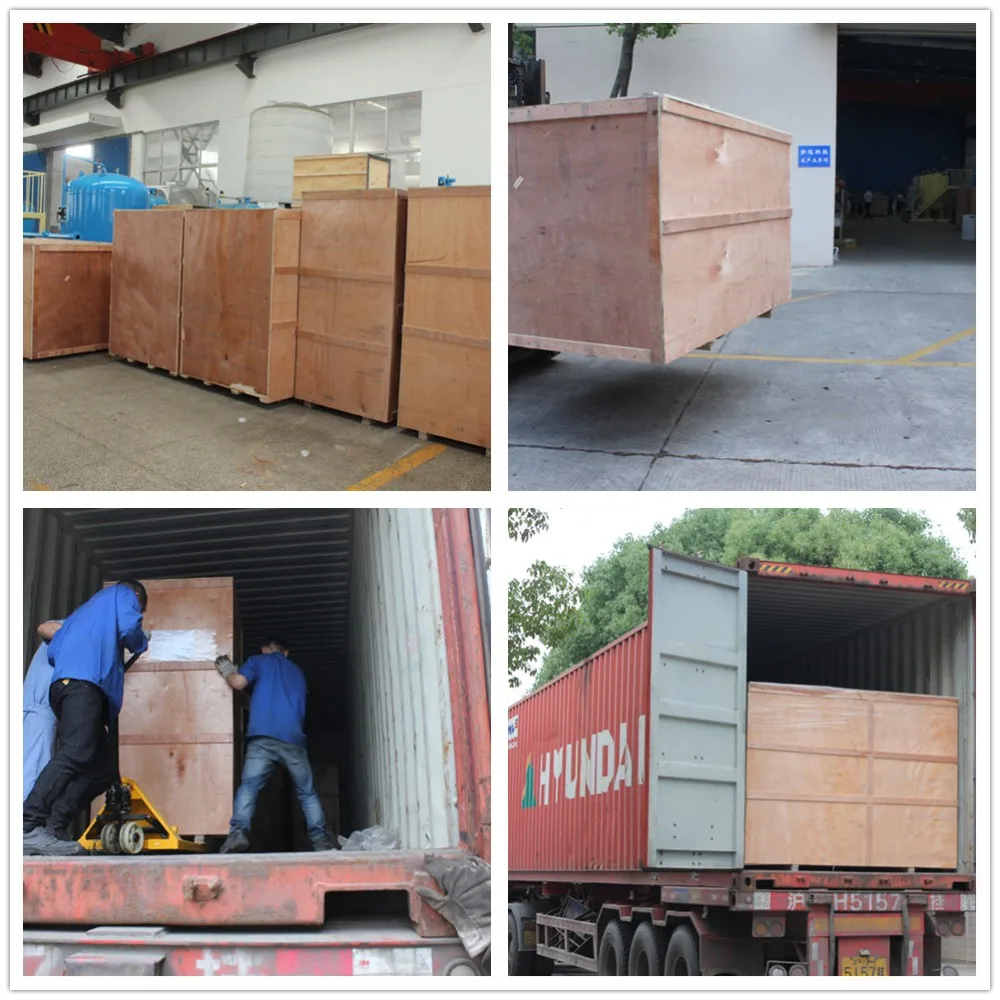

Packaging & Shipping

Packaging
1. All the products are packed in seaworthy wooden cases.
2. Any special requirement for package, please feel free to tell us.



Shipping
offer any delivery method for different quantity.
