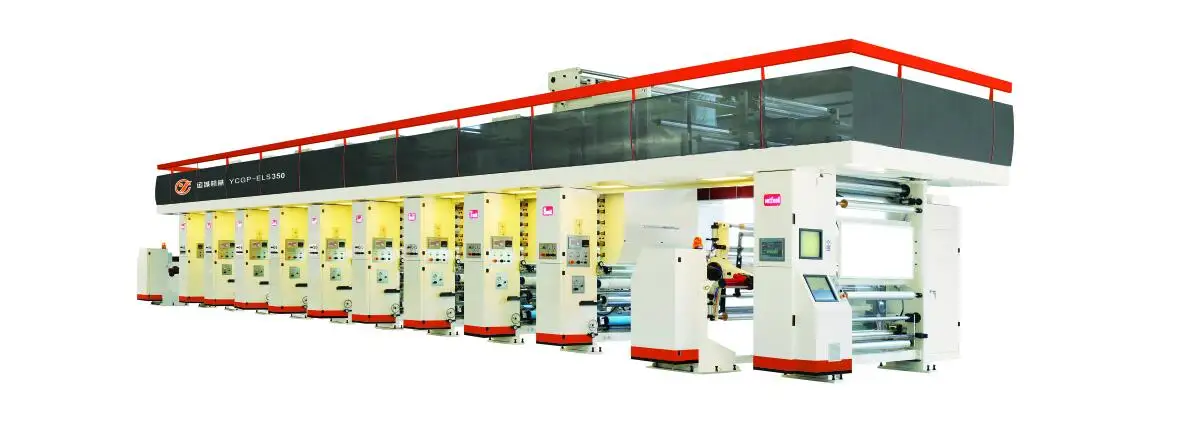

6 Color Rota Printing Machine Rotogravure Printing Machine Price
- Category: >>>
- Supplier: Yuncheng Plate Making Printing Machinery Co. Ltd.Yuncheng Ltd.
Share on (62497421039):
Product Overview
Description
Product Paramenters
Film running direction from unwind to rewind | From left to right |
Printing colors | 8 |
Max. material width | 1250mm |
Max .mechanical speed | 200m/min （版径cylinder dia.≥Φ175mm） |
Unwinding diameter | Φ800mm |
Rewinding diameter | Φ800mm |
Accuracy of registration | Horizontal≤±0.1mm (auto) （constant speed）Longitudinal≤±0.1mm (auto)（constant speed） |
Tension range | 3~25kg |
Accuracy of tension | Unwind and rewind±0.3kg Traction ±0.3kg |
Paper core diameter | Φ76mm× Φ92mm |
Pressure of rubber rollers | 380kg |
Rubber roller hardness | （A）70°~75° |
Diameters of cylinders | Φ120mm~Φ300mm |
Length of cylinders | 1000-1350mm |
Reciprocation of doctor blades | ±5 mm |
Pressure of air source | 0.6Mpa≤P≤1.0Mpa |
Maximum temperature of drying chambers | 80℃ |
Recycling rate of hot air | 0~50% |
Accuracy of temperature controlling | ±2℃ |
Heating style | electricity or steam or gas |
Maximum hot air speed in drying chambers | 25m/s |
Film length in drying chambers | 1.6m 2m for last color |
Printing materials | PET：12~60μm BOPP： 20~60μm CPP：20~60μm OPP： 20~60μm cellophane：20~30μm |
ELS Machine Main features
1.Independent disc type rotary turret with double working positions and wallboard
2.Two unwinding shafts adopt independent active unwind style
3.Automatic web splicing with alarming, the new web will rotate and the pre-drive speed is synchronized with the speed of the machine.
4.The synchronous strip makes the transfer more convenience and little noise
5.Double-cylinder consists of steel and rubber roller
6.The doctor assembly is pneumatic controlled and can be adjusted by a handle in three directions
7.Remote service
8.Separate drive motor inverter
9.Each unit equipped with separate drying system
10.Touch HMI
11.Energy saving and friendly environment

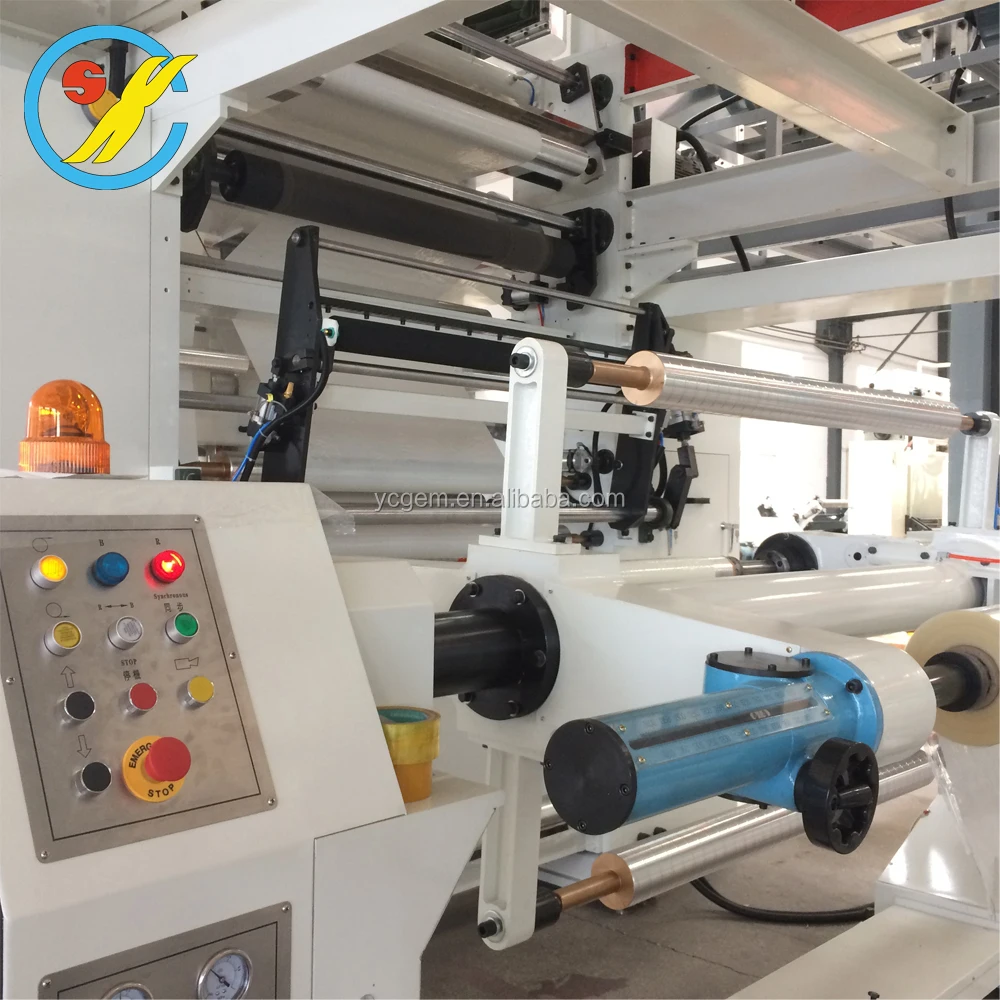

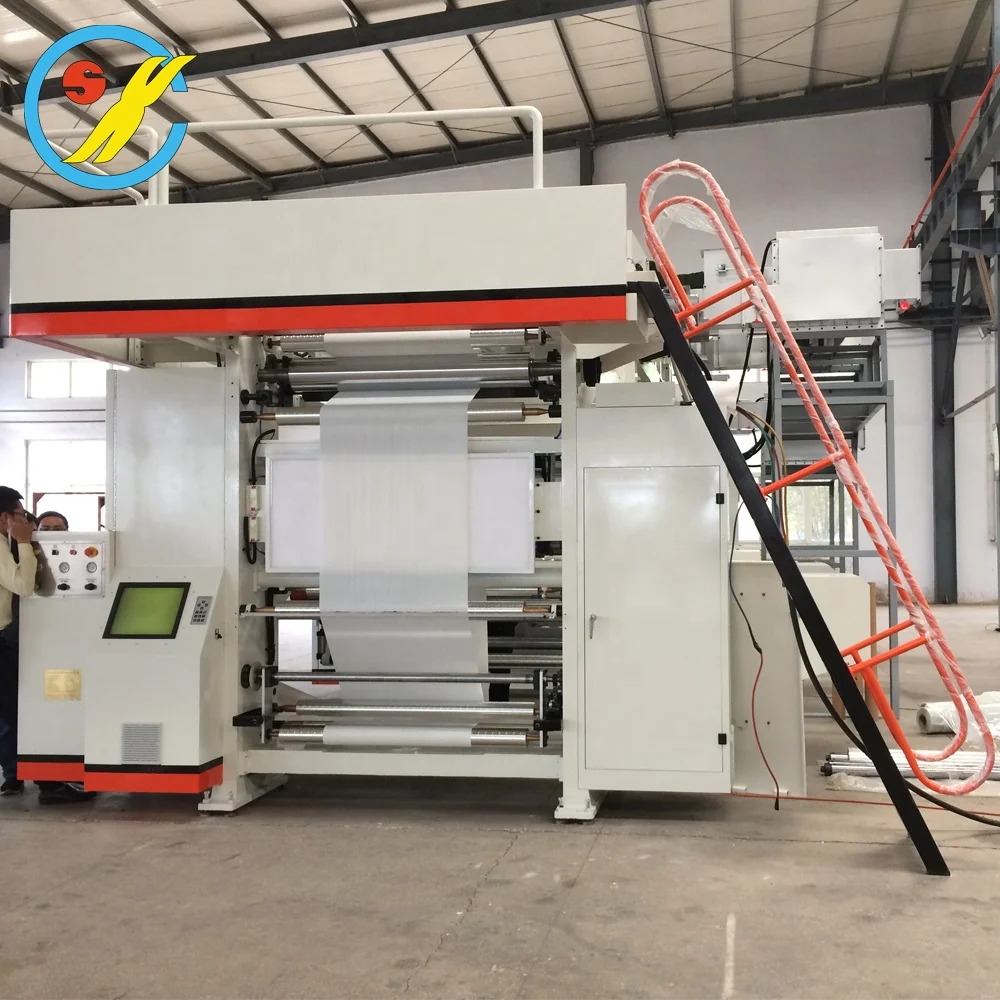

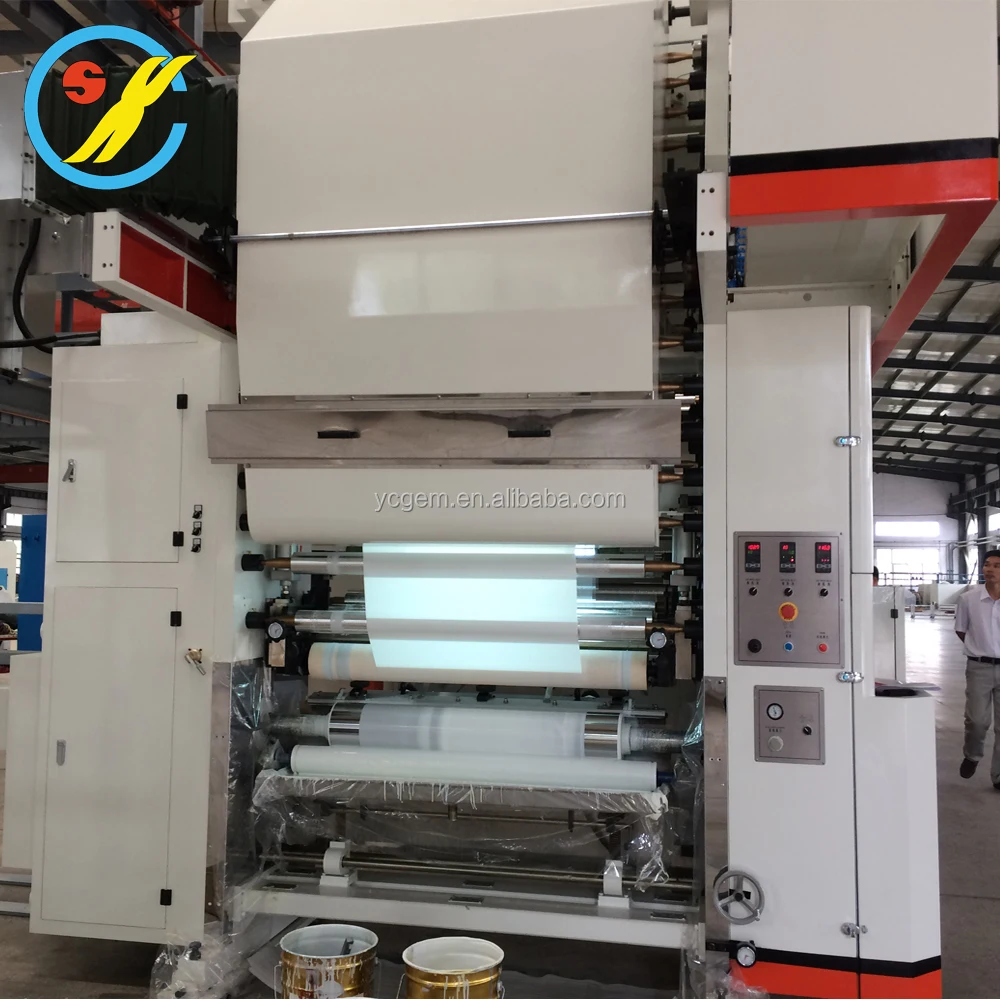

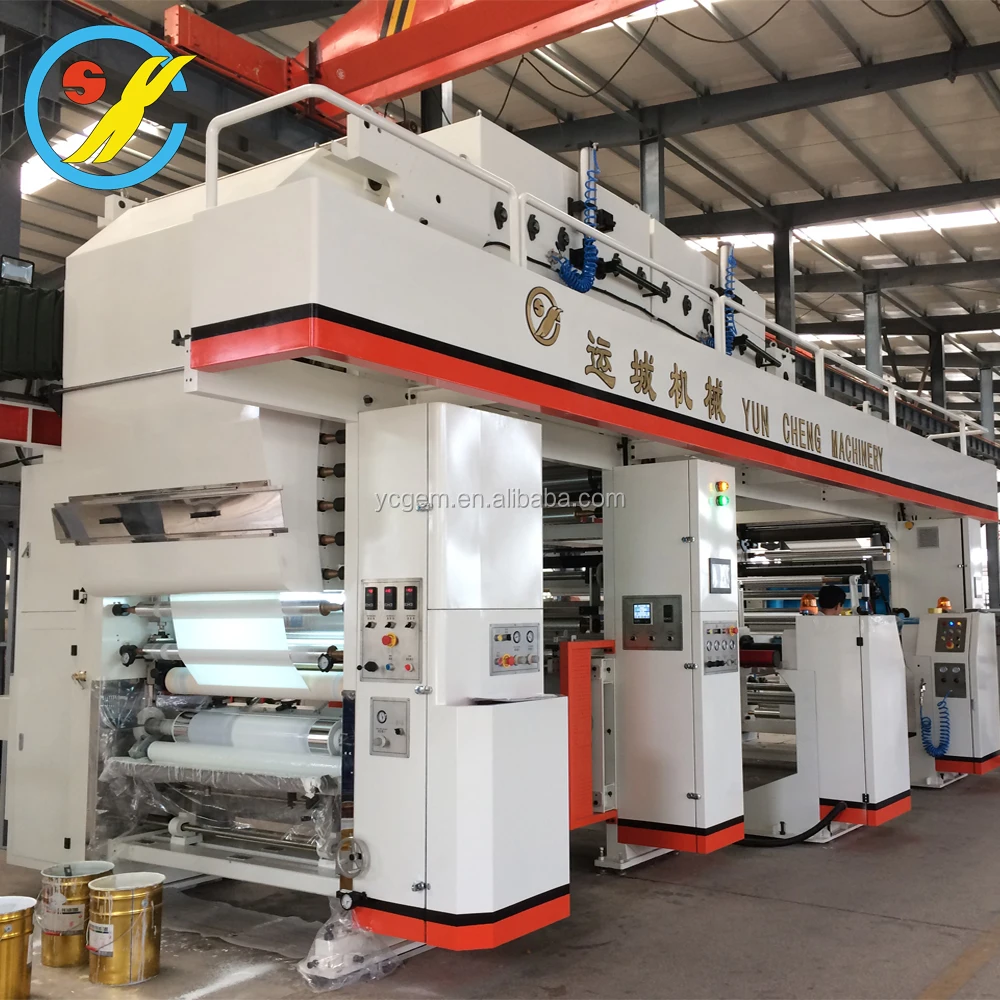

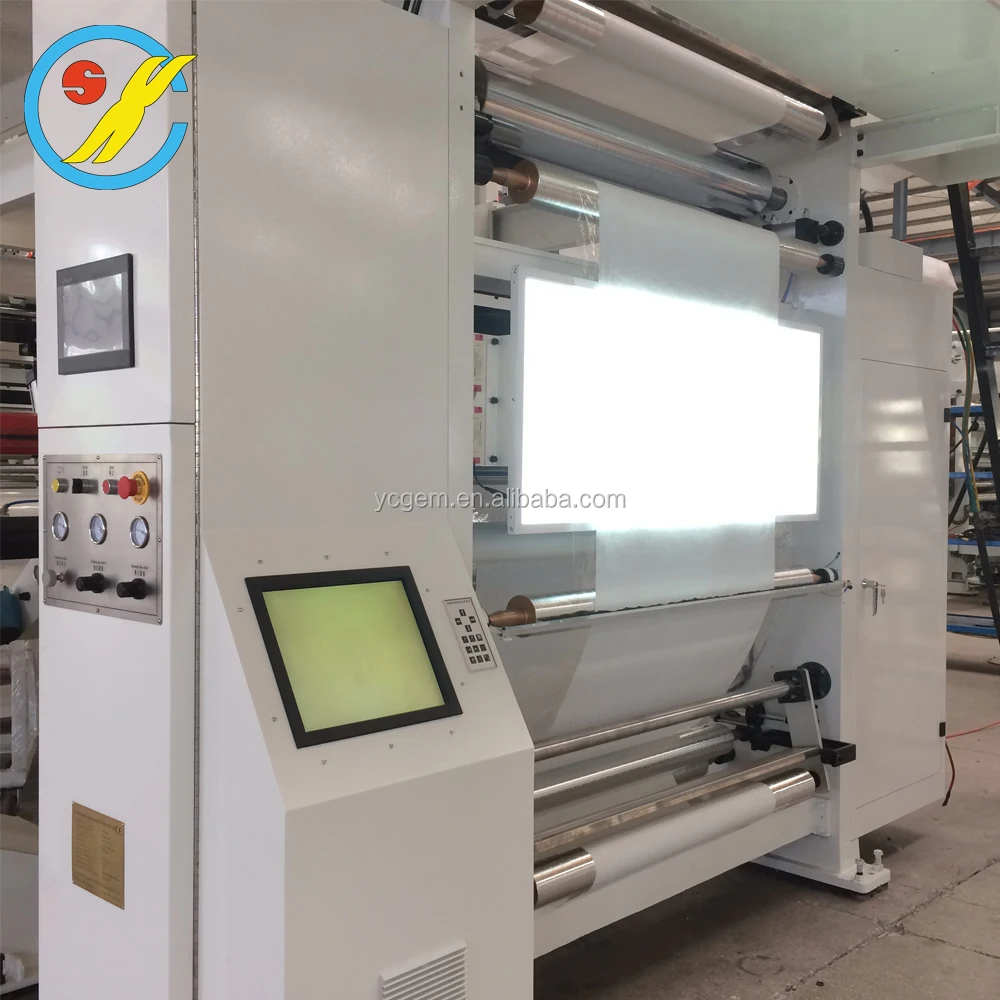

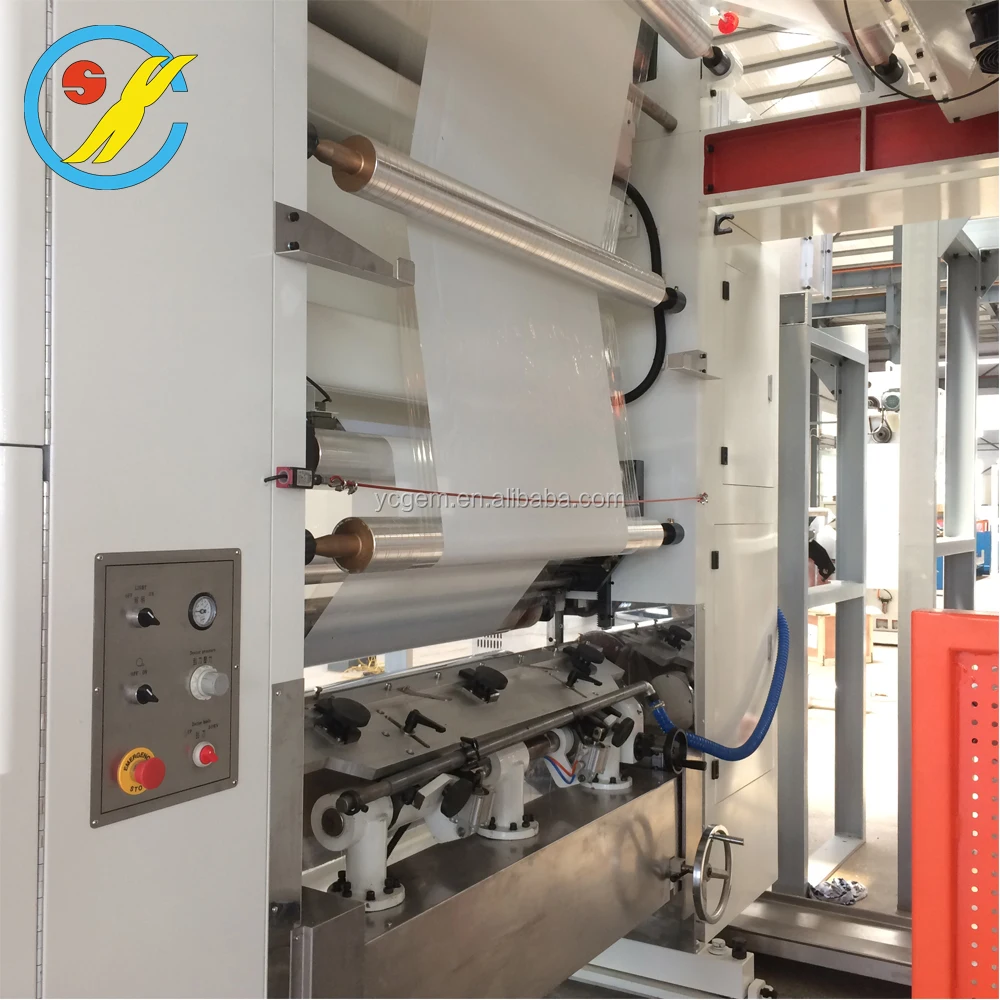

Details Images

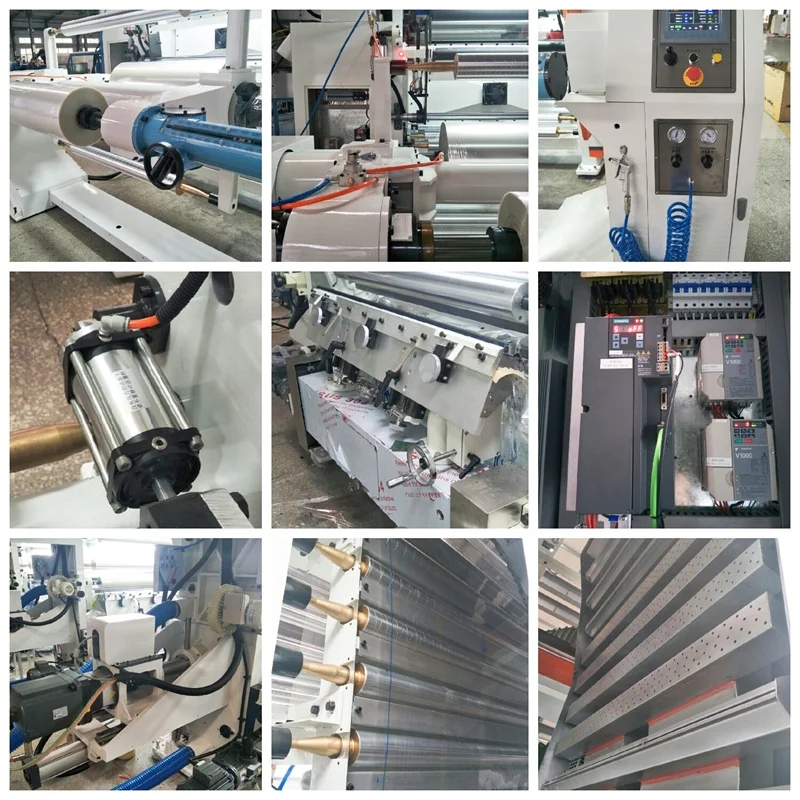

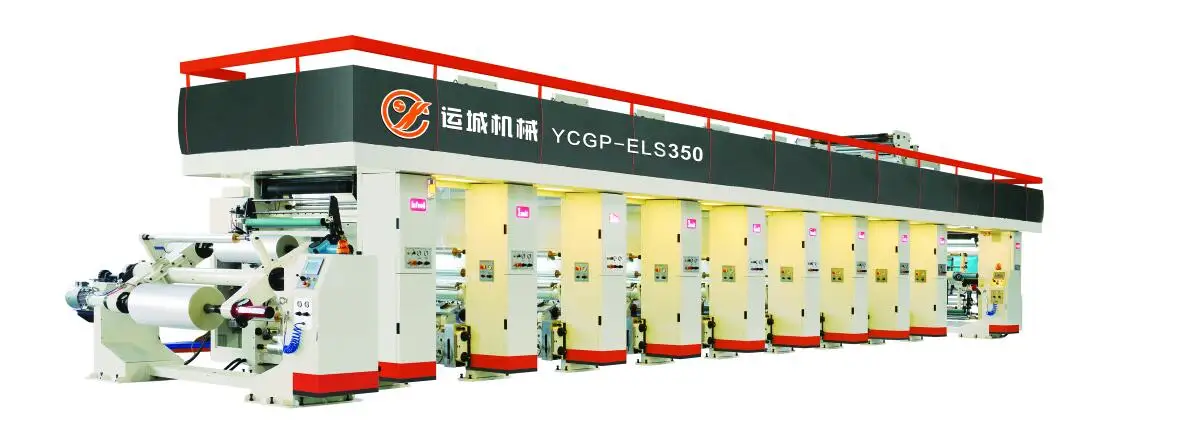

Rotogravure printing machine structures:
- Unwinding unit
- Infeeding part
- Printing part
- Drying part
- Cooling part
- Outfeeding part
- Rewinding unit

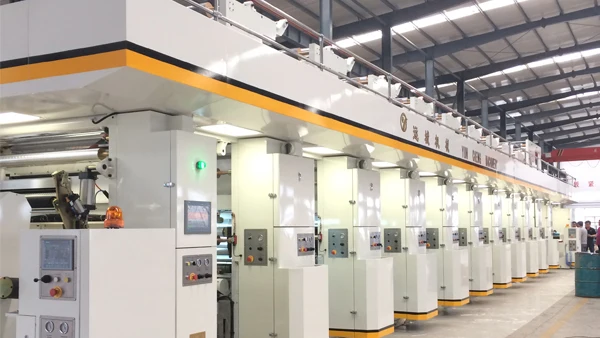

Process workshop
Shipment
We pack the machine parts seperatedly.
Load them into the container
Loaded in full container to destination as customer requirement
Some parts shipped by air
Some parts shipped by truck
Some parts and machine shipped by sea
