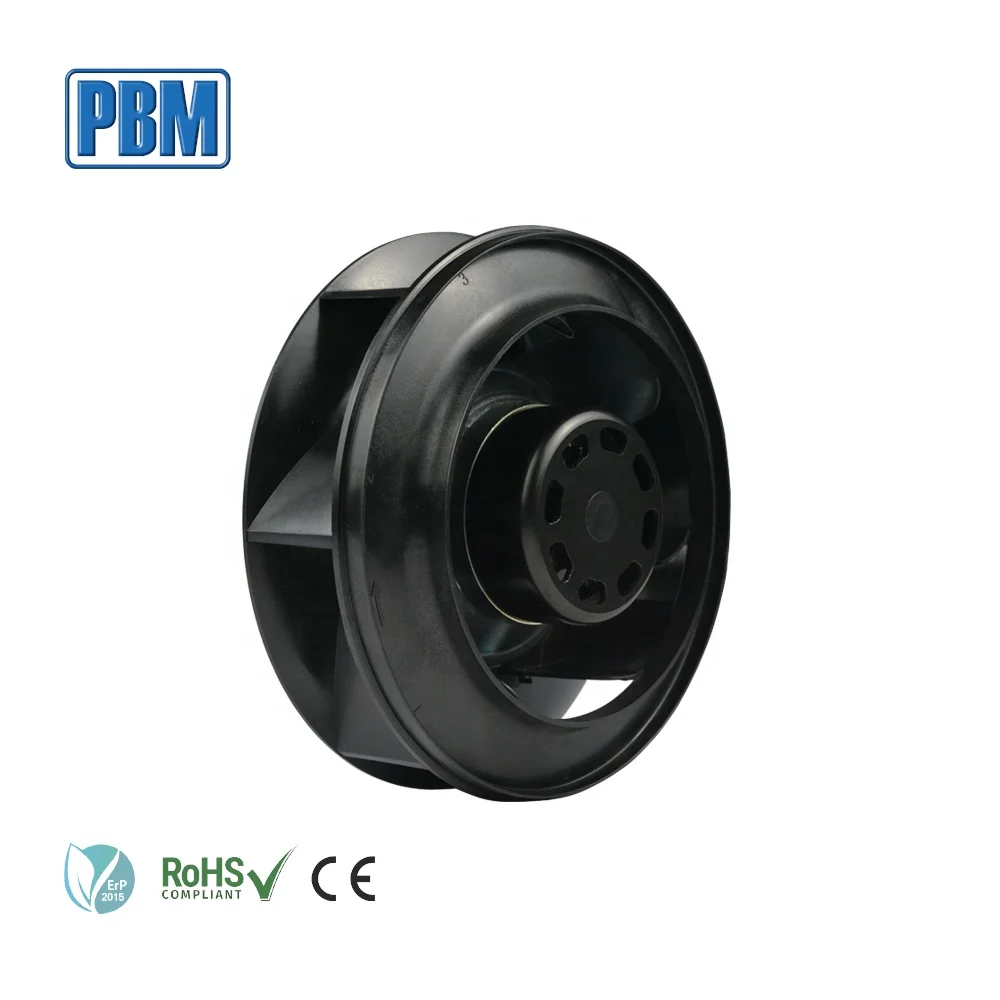

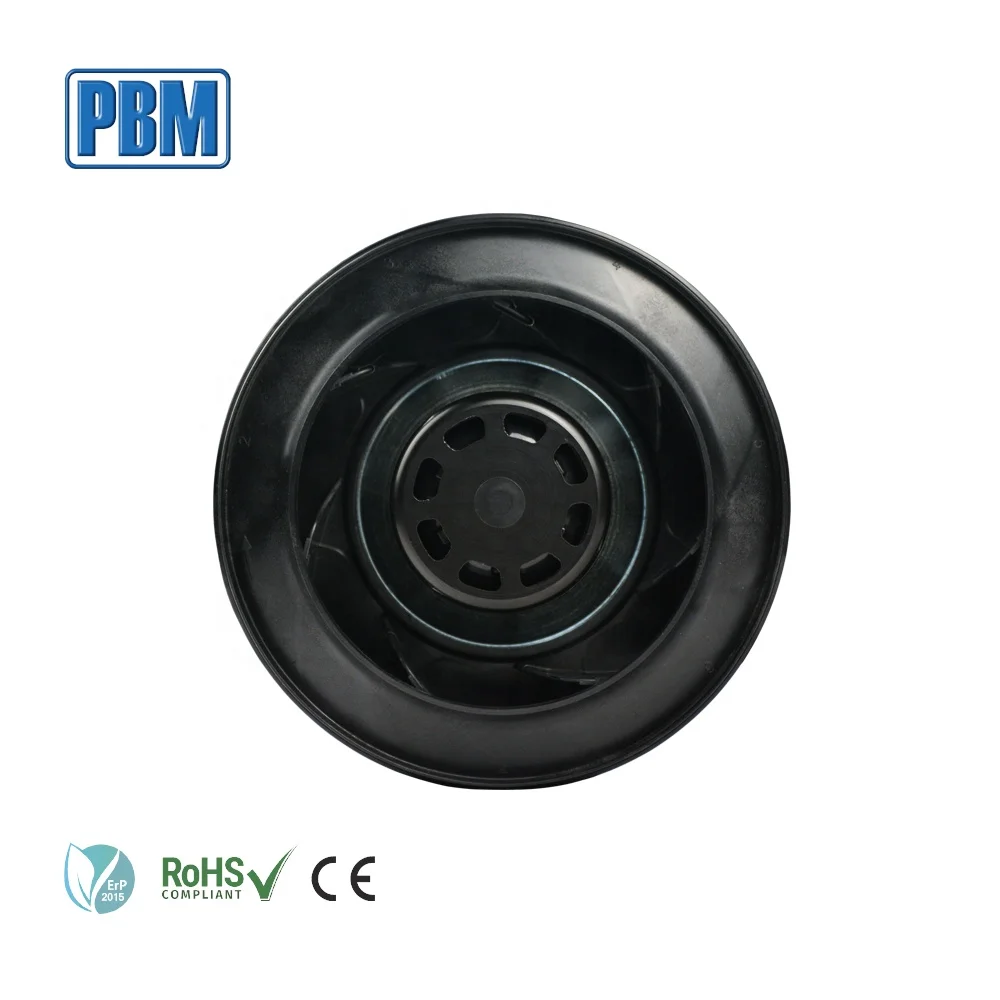

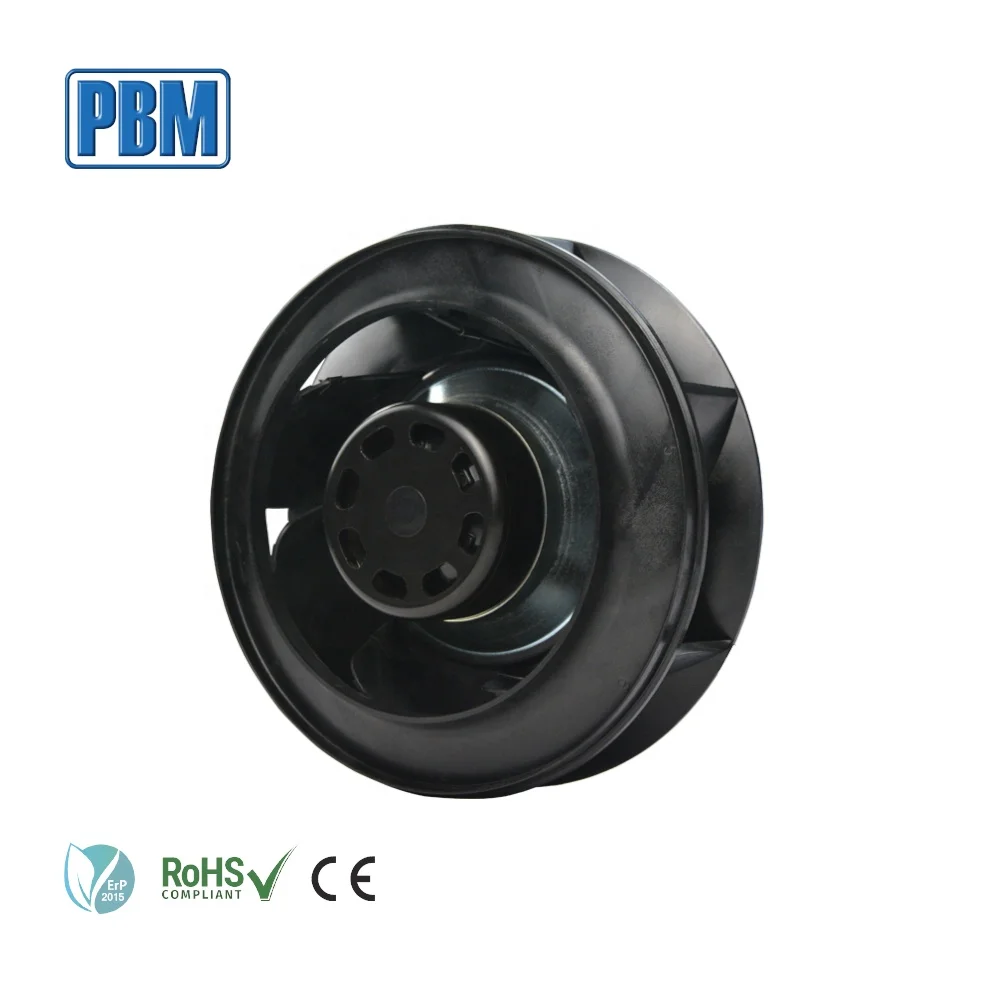

225mm Waterproof DC 24V 48V Centrifugal Ventilation Fan with EC Motor
- Category: >>>
- Supplier: Pbm Motor And Fan (suzhou) Co. Ltd.
Share on (62497466509):
Product Overview
Description
Products Description
IP55 Water and Dust Proof for Longer Lifespan
PBM Waterproof motorized fans adopted leading external motor’s BMC(Bulk/Dough Molding Compounds) overmoulding stator to minimize metal material and motor weight as Ecology construction design compared to conventional EC external motor, offers further benefits when it was used in refrigeration, heating and ventilation applications, industries, products and systems.
Product Specification
1. General Characters
Model | PB3N225B24-RZ0/PB3N225B48-RZ0 |
Rated Voltage | 24 VDC/48 VDC |
Operating Voltage | 16~28 VDC/36~57 VDC |
Rated Speed | 2350 RPM |
Input Current | 4A/2A |
Input Power | 96 W |
Air Flow | 1100 m3/H |
Static Pressure | 690 Pa |
Sound Level | 62 dB(A) |
Protection Type | IP55 |
2. Mechanical
Dimension | Ø225mm X 90mm (see dimension drawing) |
Material of Impeller | Propylene with glass-fiber reinforced |
Impeller Plate | Injection-moulded round sheet-metal plate |
Mounting Position | Any |
Surface of Rotor | Coated in black |
Bearing System | NMB ball bearing |
Lead Wire | Red, Blue(AWG20#), Yellow, White(AWG24#) |
Weight | 1500g |
Package | Standard |
3. Electrical Protection
Locked-rotor Protection | Over-current limiting circuit protects motor from damage at least for 72 hours of locked rotor condition at rated voltage. |
under Locked Rotor | A, Typical inrush current when the motor is trying to re-start under locked rotor conditions is 2~4 times the normal running current reoccurring and for 16~20% of restarting cycle period. B, If he CL function is used this restarting inrush current is about the same as the normal running current. |
Reverse Polarity Protection | No damage if the positive and negative leads are reversed under maximum operation voltage conditions. |
Over Voltage Protection | The circuit will be shut down automaticlly when input voltage over threshold. And re-started when Voltage down to threshold below. |
Soft Start | In 5 seconds after power on and speed control voltage gets to 1.5V or PWM duty cycle at 10% above. |

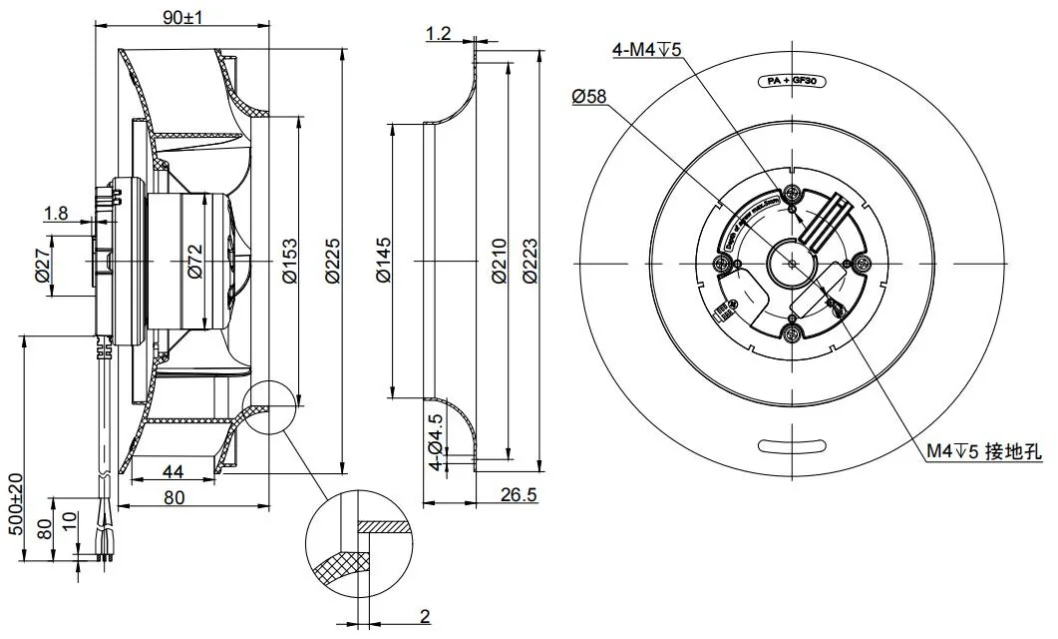

4. Outline Drawing

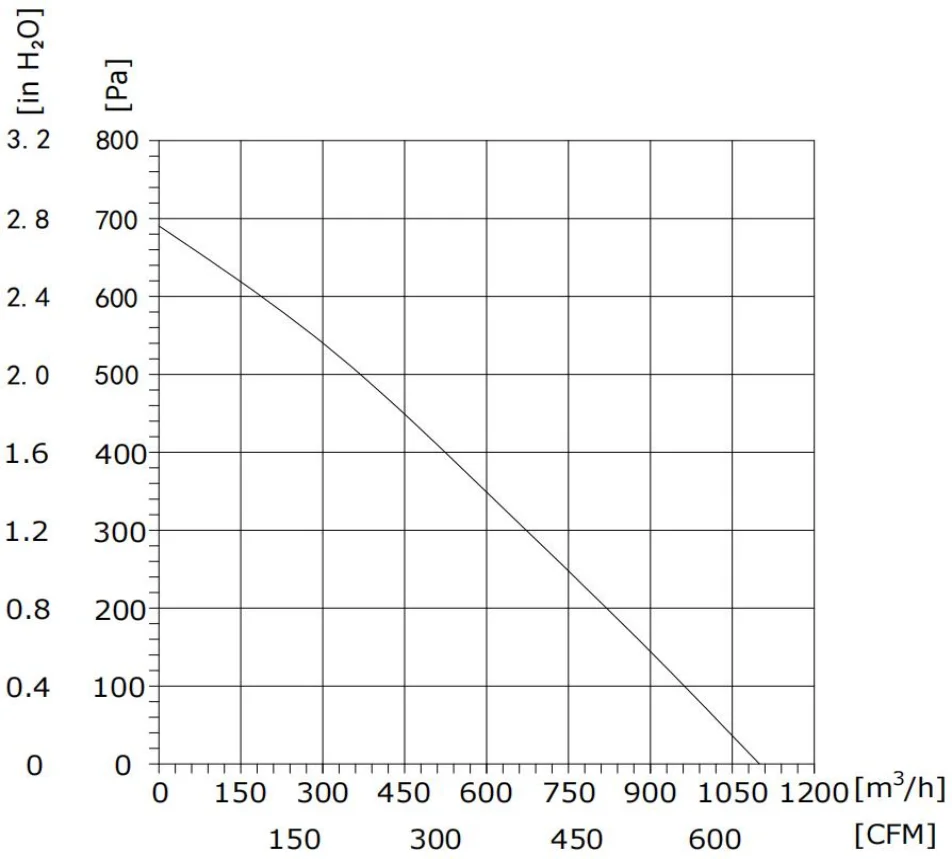

5. Performance Curve

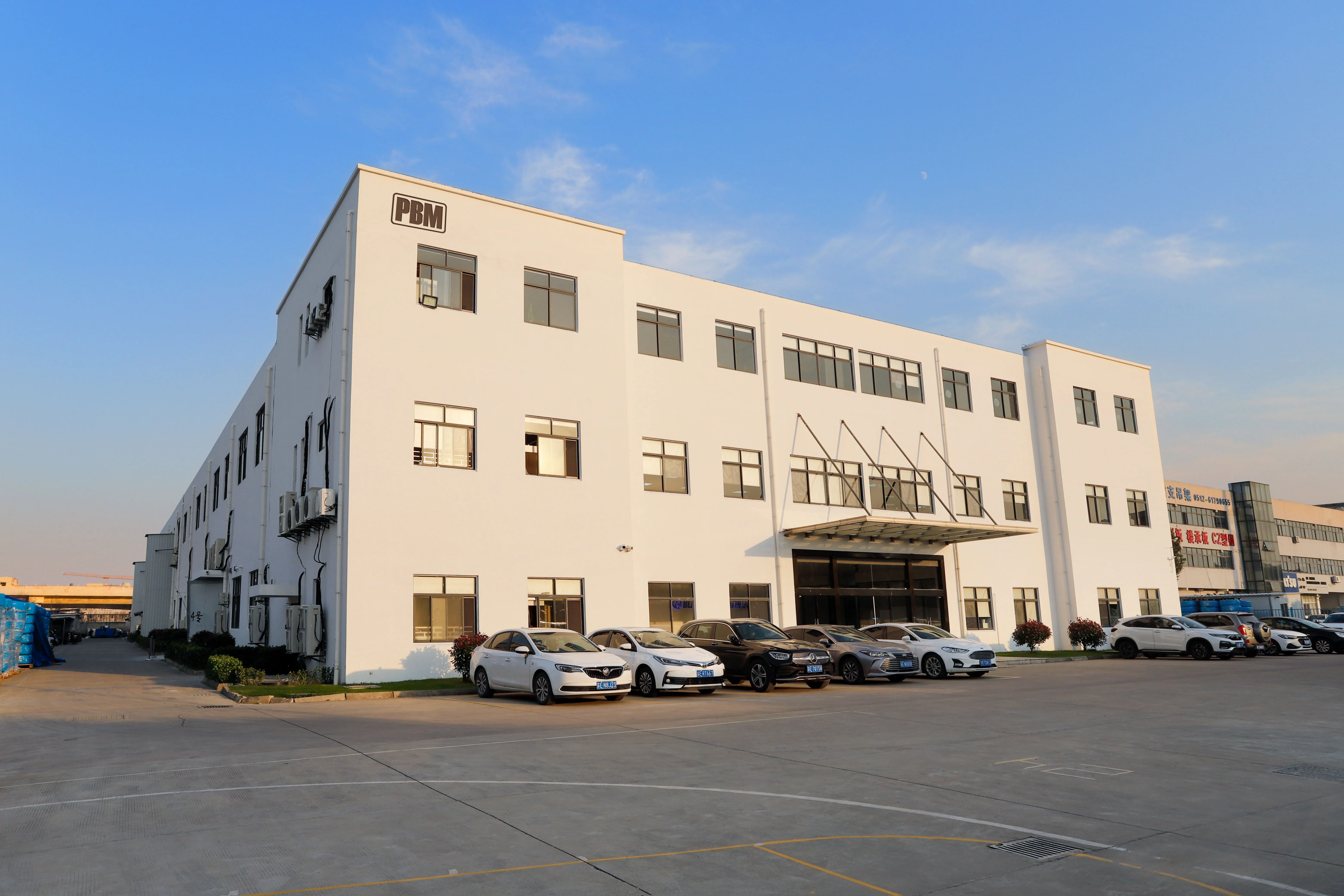

Company Profile
222
PBM is a China mainland EC(Electronically Commutated) brushless motor manufacturing and technology consulting company offering an extensive range of EC motors, fans and intelligent ventilation solutions for air-moving precisely and constantly with maintenance-free throughout the life cycle of products in last decades.
Focus on EC fan only and protecting our world with intelligent energy efficient motor and fan solutions are our goal in an attempt to make tomorrow a greener & Healthier world.

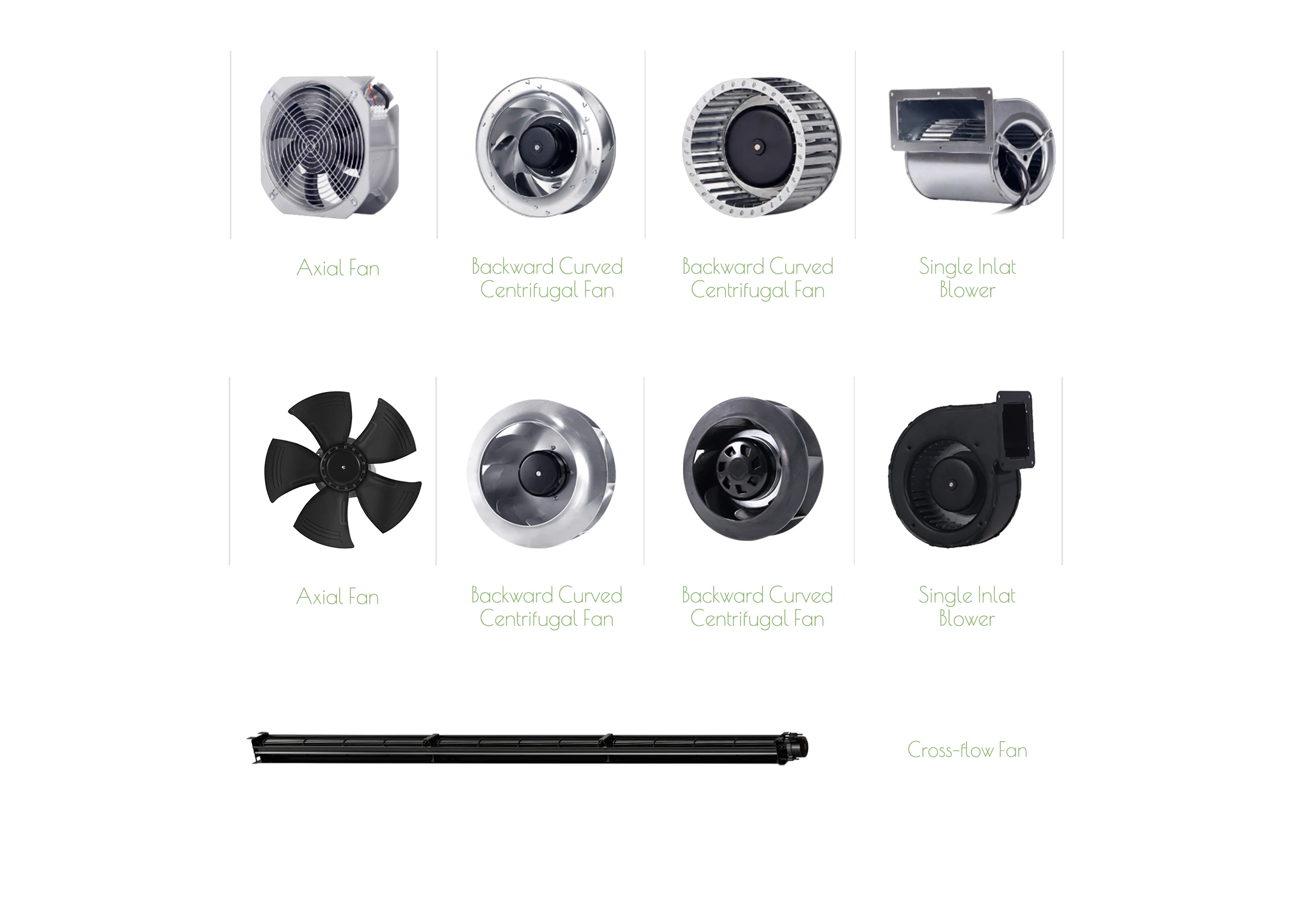

Recommend Products
