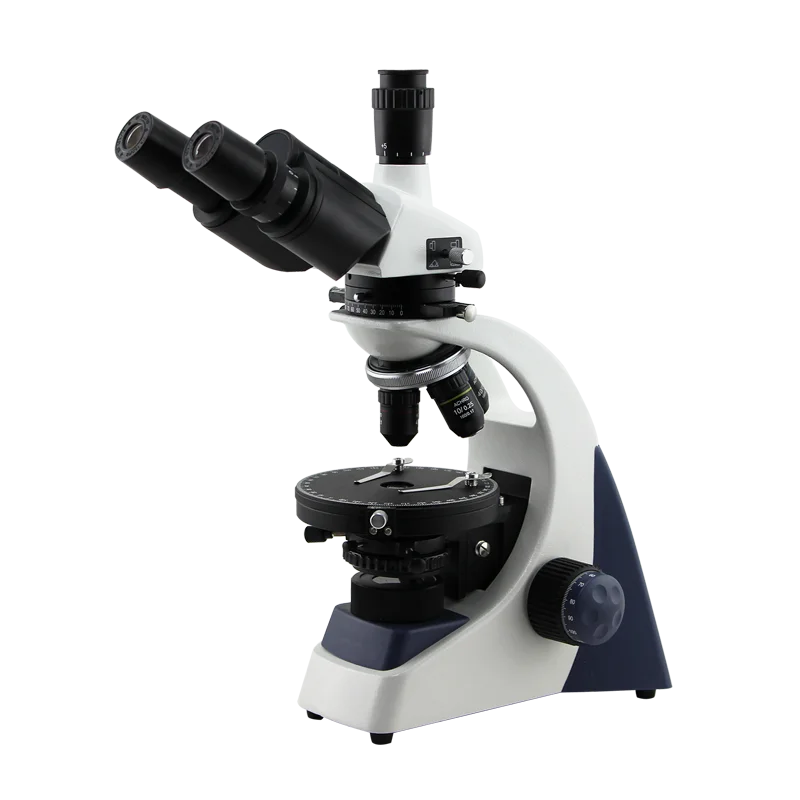

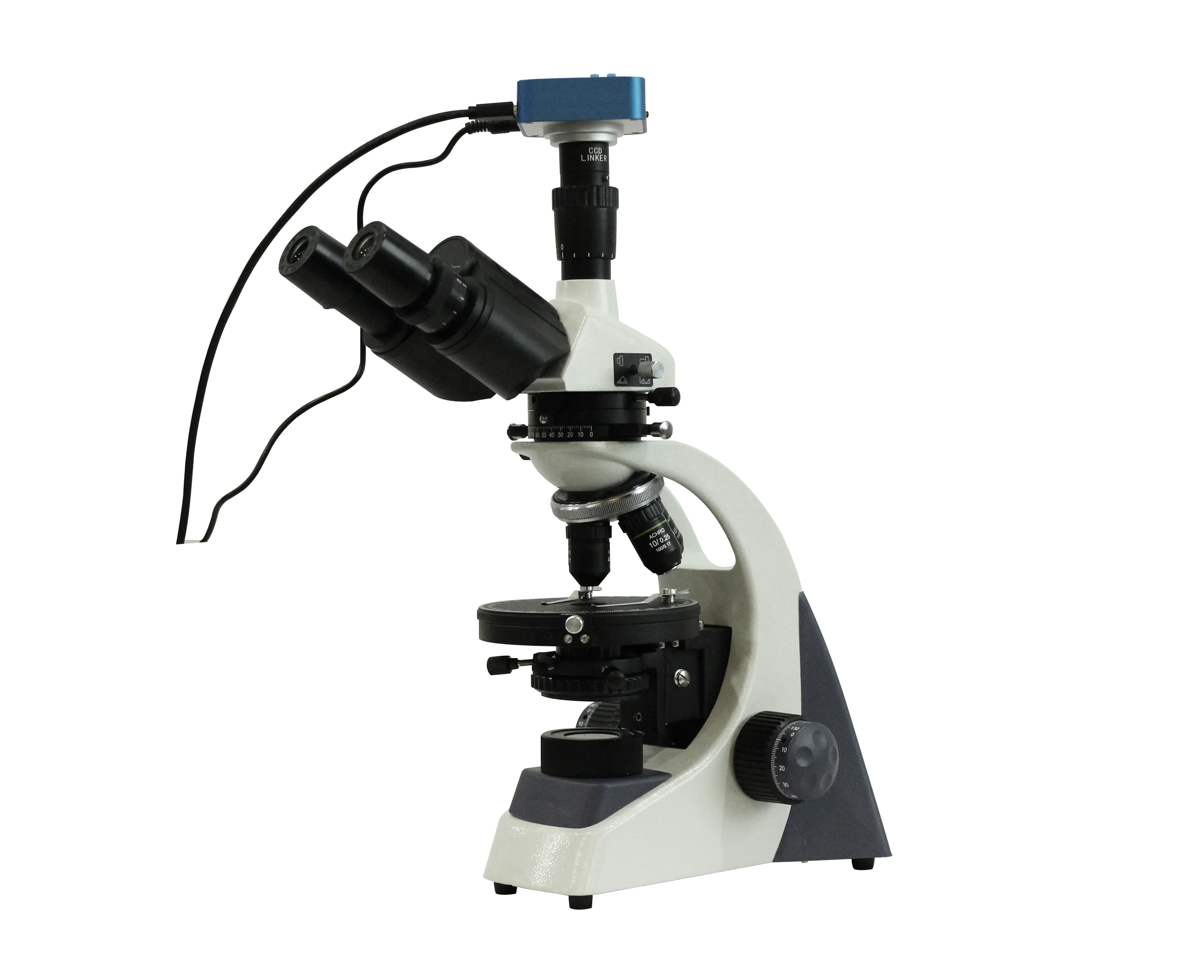

PLJ 137A 40X~1600X Easy Operation Powder Crystal Trinocular Standard Polarizing Microscope with LED Light Source
- Category: >>>
- Supplier: Suzhou Jingtong Instrument Co. Ltd.
Share on (62497555829):
Product Overview
Description
 | 40X~1600X B, Y, G Filters Wide-field plan eyepieces |
PLJ-137A Polarizing Microscope which adopts transmitted illumination system has good performance and clarity images.
It can be used in the observation of transparent crystals, drugs, etc. It is the ideal instrument for studying and researching the birefringent specimen in the fields of geology, medical treatment, chemical medicine etc.
It is also widely used in crystal observation of liquid polymer materials, biopolymers and liquid crystal materials etc.
Features
---Polarizer, λ, λ/4 compensator
---Analyer, 0°~90°, push in/ out from optical path conveniently
---Wide-field plan eyepieces: 10X, field number Φ18mm
---Coaxial coarse/fine focus system, minimum division of fine focusing: 10μm
---360° graduated in 1° increments, rotatable working stage, Φ160mm, minimun vernier division: 6’
 |
Specification
Specification for PLJ-137A | |
|---|---|
Eyepiece | WF 10X (Φ18mm), WF 16X (Φ13mm) |
Eyepiece Tube | Trinocular is inclined 30°, 360° rotatable |
Achromatic Objective | 4X/0.10,10X/0.25,40X/0.65(S),100X/1.25(O,S) |
Total Magnification | 40X~1600X |
Stage | Rotatable stage, diameter Ø160mm, 360° graduated (in 1°increments), minimum vernier division:6' |
Nosepiece | Quadruple (Backward Ball Bearing Inner Locating) |

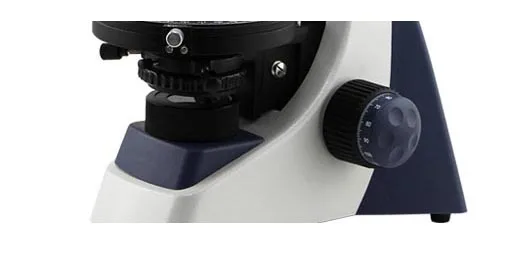

Focusing System | Coaxial coarse/fine focus system, minimum division of fine focusing: 10μm, range: 14mm |
Analyzer | 0°~90° rotary-type analyzer, push out from the optical path |
Polarizer | λ, λ/4 compensator, 360° rotatable |
Interpupillary Distance | 55~75mm |
Filter | B, Y, G |
Condenser | Abbe Condenser N.A.1.25, Φ2-Φ30mm with iris diaphragm, φ32 filter |
Illumination | Built-in LED Lamp, brightness adjustable |
Weight | Net: 4Kg |

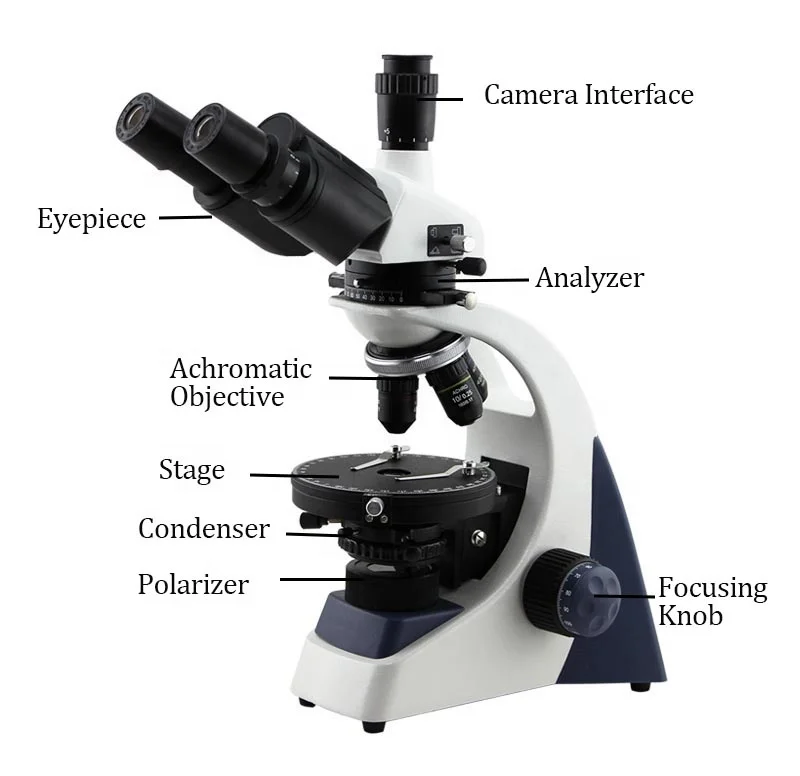

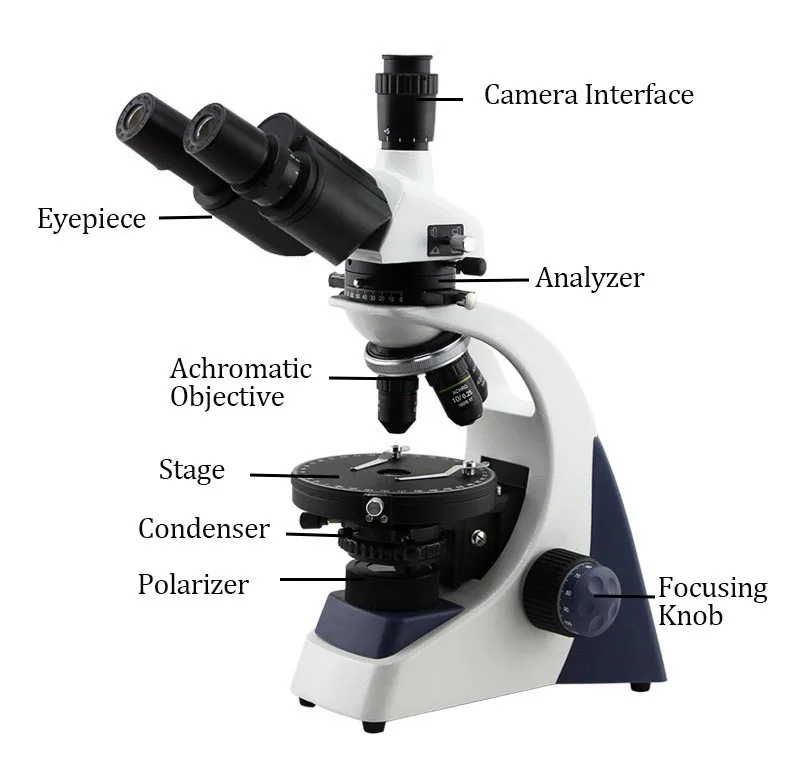

Product Details

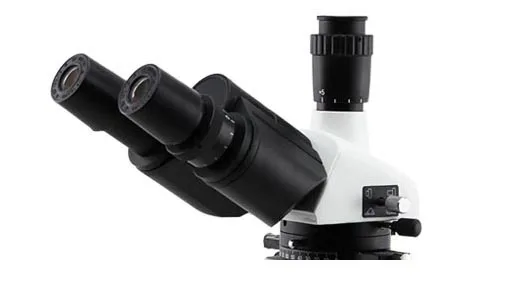

 | Head Wide Field of View, Plan Eyepiece: WF10X (18mm); 16X(13mm) |
Objective 4X/0.10,10X/0.25,40X/0.65(S),100X/1.25(O,S) |  |

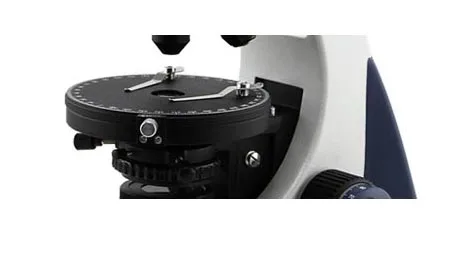

 | Round Stage Rotatable stage, diameter Ø160mm, 360° graduated (in 1°increments), minimum vernier division:6' |
Condenser Abbe Condenser N.A.1.25, Φ2-Φ30mm with iris diaphragm, φ32 filter |  |
Samples
 |  |  |
| Polarized Observe | Polarized Observe | Polarized Observe |
 |

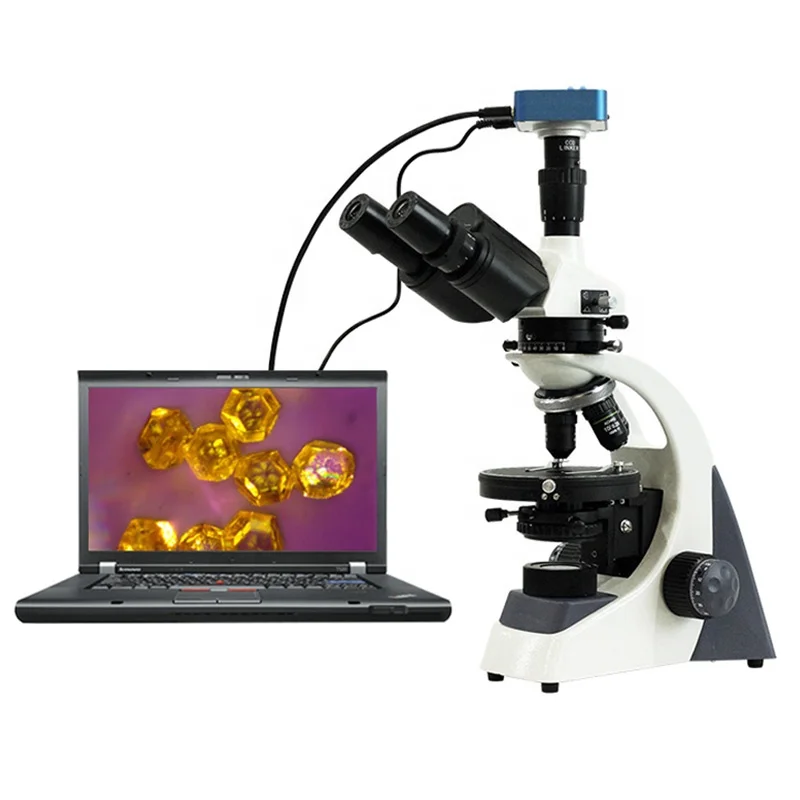

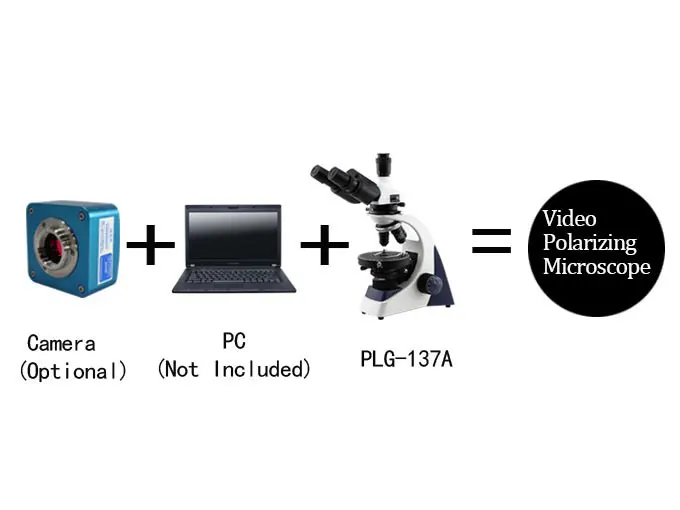

 | Set 1 PLJ-137A + 16MP HD1600 Camera |

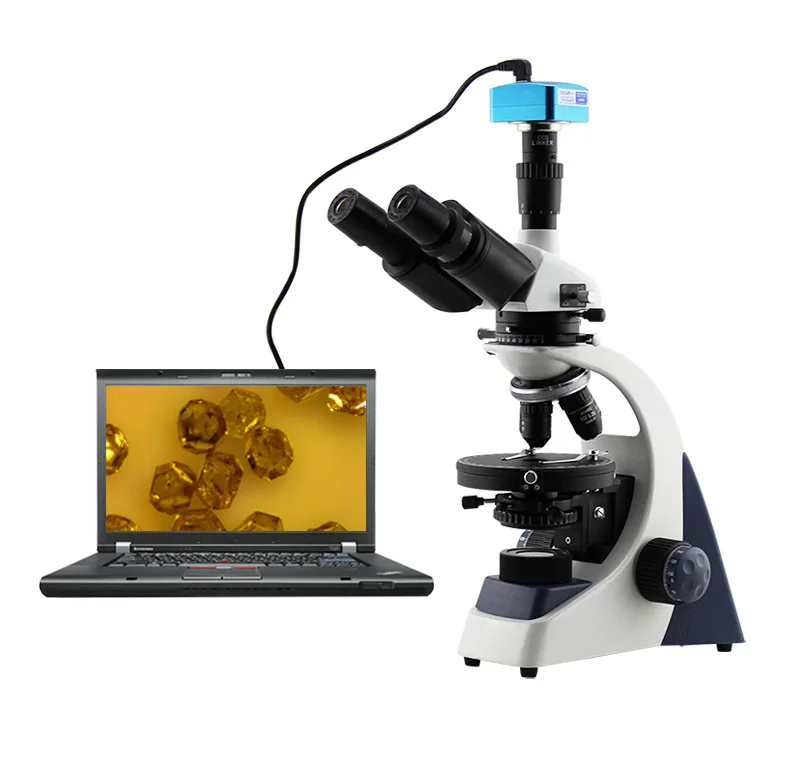

 | Set 2 PLJ-137A + UCMOS Camera (5MP, 9MP, 14MP) |
