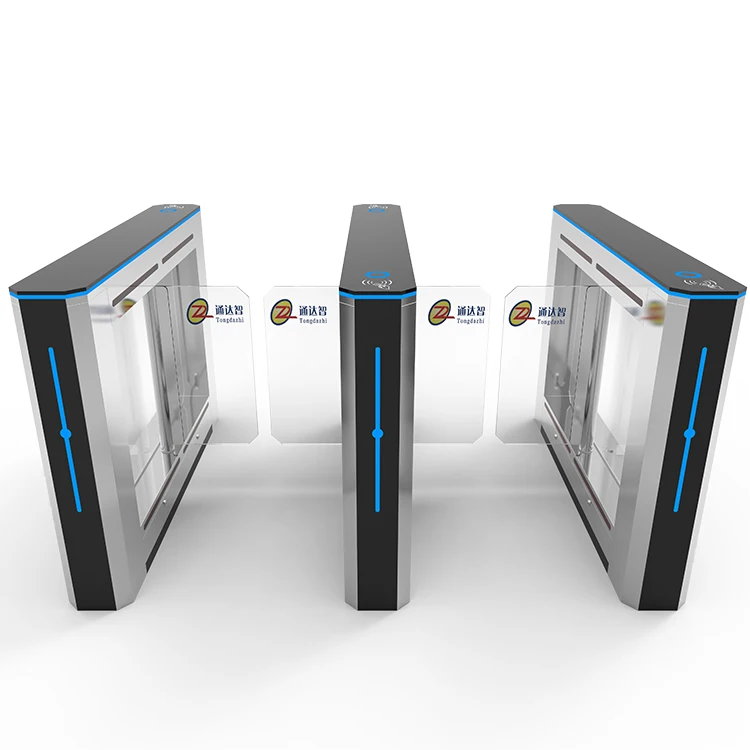

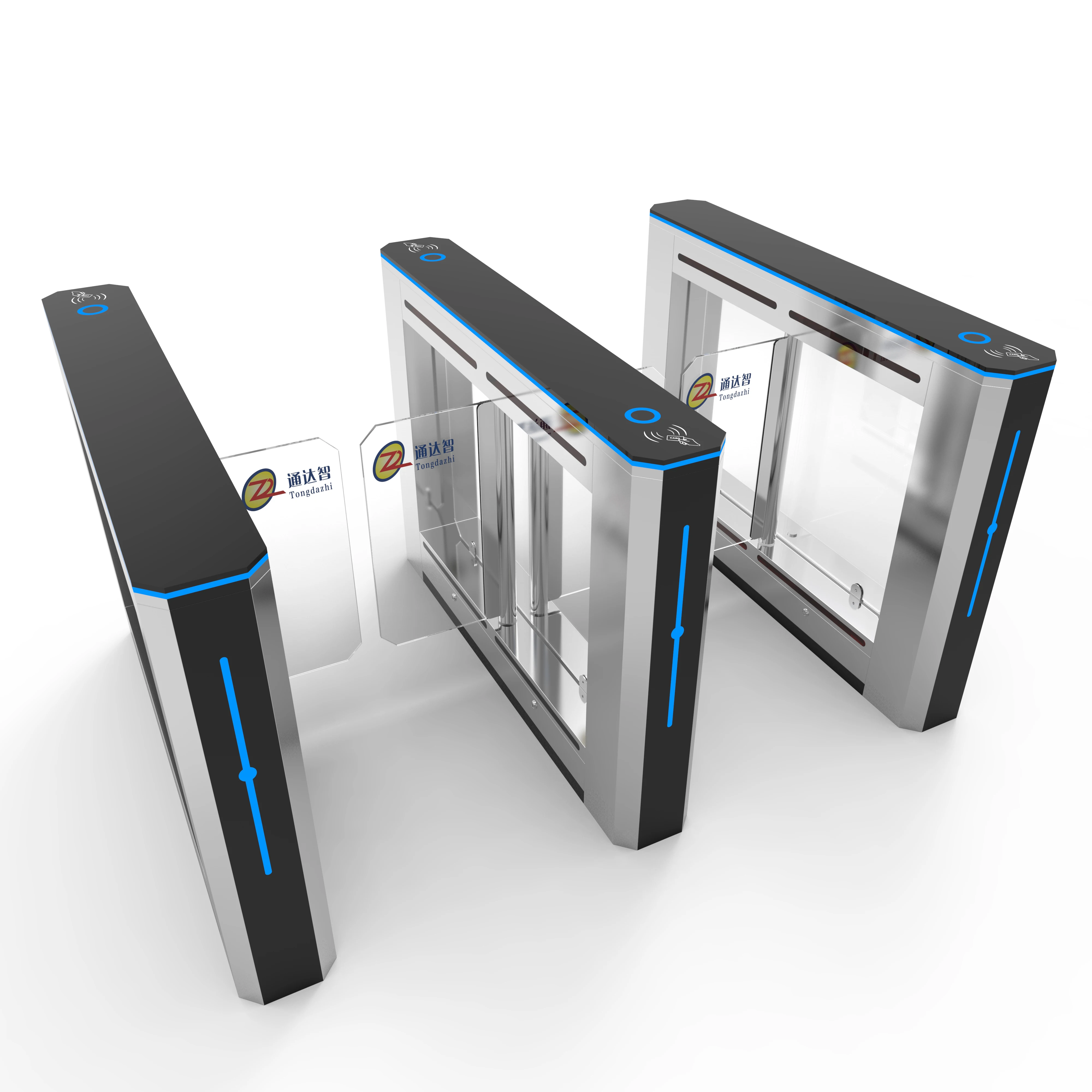

Facial Recognition Swing Barrier RFID Access Control Swing Gate System Gym Swing Turnstile Gate

Product Overview

Description

Facial Recognition Swing Barrier RFID Access Control Swing Gate System Gym Swing Turnstile Gate



Swing barrier Parameters

Structure parameters

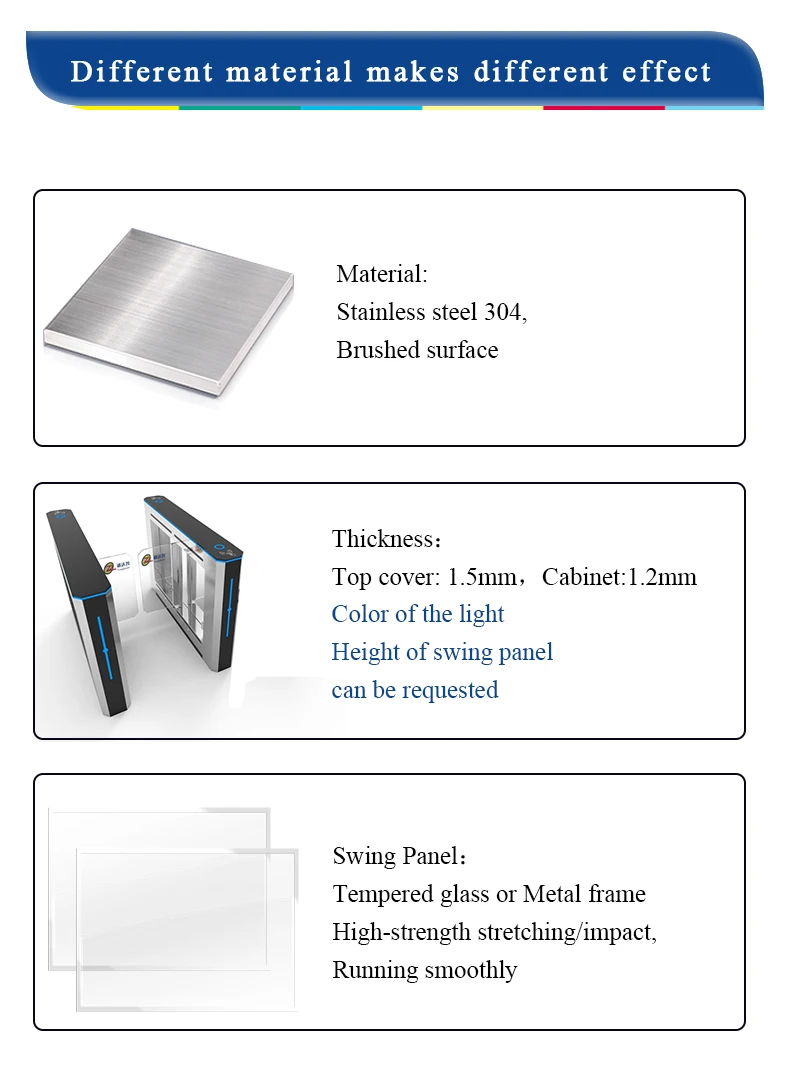

Housing material	304 grade stainless steel
Thickness	cover 1.5mm ,body 1.2mm
Mainboard	Independent development patent mainboard
Arm material	Acrylic
Design	Patent appearance
Technical parameters
Size	1400x185x1000mm
Lane width	≤850mm
Passing speed	35--50 people/min
Open/close speed	0.1--0.6sec
Weight	70KG
Turning angle	90 degree
infrared sensors	6 pairs
MCBF	5.000.000 times
Application	Indoor or outdoor
Rotating directional	Single way or Bi-directional adjustable
Noise	<55db
Operating temperature	-25 to 70℃
Relative humidity	5% to 95%
Package	Carton box inside. Wooden case outside
Electronic parameters
Power supply	110-220V/AC, 50/60HZ
Rated power	100W
Input signal	Dry contact
Driving motor	Brushed motor
Method of position	Limiter



Company Introduce

Shenzhen Tongdazhi Technology Co., Ltd. is a national high-tech enterprise integrating R&D, production,

sales and service. Since its establishment in 2009, the company has been dedicated to becoming a

one-stop service provider for solutions for access control equipment, smart access control systems,

ticket management systems, human-card identification systems, parking systems, and anti-terrorism

roadblock equipment. We develop, design and produce advanced and mature access control systems.

We provide customized hardware and software products and reliable and stable system for customers.

We have independent import and export rights, and our products have been sold in more than

80 countries and regions. We are willing to cooperate with you and share win-win situation to create

a bright future for internet security business.









FAQ

1. How  much sales of this gate TDZ-B286?

    Q: 2019 New design ,saled over 1000pcs

2. Do you have CE /ISO certificate ?

    Q:Of course, we can provide CE ISO copy if you want.

3. How can we install this model?

    Q:It's easy . we have done many jobs before sending you , you just need connect power cable and fixed

 the gate with four screws on the ground, also have complete manual of install and maintenance for reference.

4. If can customized logo?

    Q: Yes, can print your customized logo on the gate.
