Fully automatic universal truck tyre changer machine
- Category: >>>
- Supplier: Shanghai Reach Automotive Equipment Co. Ltd.
Share on (62497699555):
Product Overview
Description
Product Description
Product Description
Model :RH-698
Features

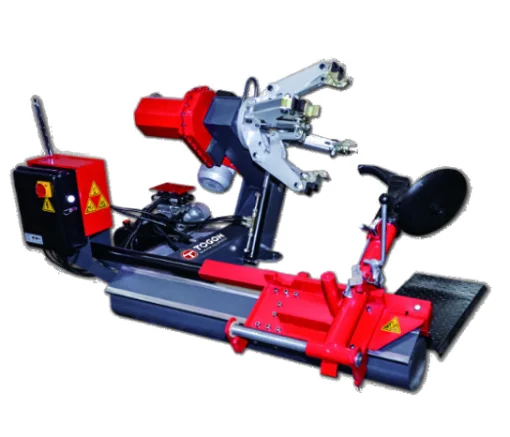

. Fully-automatic truck tyre changer RH-698 universal self-centering chuck rim capacity 14"-42".
. Clockwise and anticlockwise rotation of chuck.
. Ital pump optional.
Specification
| Operation control voltage: | 24v |
Power: | 220/400V 50/60Hz 1P/3P Optional |
Rim diameter: | 14"-42" |
Max.wheel weight: | 1600kg |
| Max.wheel width: | 1050mm |
Max.tyre diameter: | 2300mm |
Hydraulic pump motor: | 2.2kw 380v-3ph(220v optional) |
Gearbox motor: | 2.2kw 380v-3ph(220v optional) |
Bead breaker force: | 3300kg |
Machine weight approx: | 760kg |
Overall dimension approx: | 2500x2000mm |
Outside dimension: | 2230mm*1970mm*1050mm |
