Digital Process without Negative Film
McLantis UV-CTS computer to screen system eliminates of films. Large savings in labor and materials. Image files can be uploaded to remote production facilities with timely distribution and file security.

Simple and Quick Process
A fully digital McLantis computer to screen system workflow provides better control in terms of product quality and quality
assurance. Complex screen job are eliminated by McLantis computer to screen system, leading to faster turn-round times, higher
process reliability and fewer remakes.

Latest TI DMD Chip 1080P for High Resolution and Sharp Dots
Using the latest USA Tl's graphics generator digital micromirror device (DMD) chip to generate digital images, McLantis CTS provides higher resolution and sharp dots by the new generation DMD which has 1920x1080 pixels, against the previous generation XGA DMD 1024x768 pixels.
McLantis UV-CTS computer to screen system exhibits wider tonal ranges, better detail and easier printability of halftones and detail. A max. 25400 DPI McLantis UV-CTS system outperforms negative film stencils. Easy screening from 100 LPI to 200 LPI. The accuracy of the image placement on the screen allows for much shorter set-up times on press and color consistency.

Consistent Screen Quality with Dynamic Focus; No More Image Seam
A uniquely designed optical system with a +/- 300 micron Depth of focus for consistent exposure quality. Together with the real-time focusing system to overcome the focal length changes of the overall frame, to ensure equal exposure quality of the entire frame.

Maximum 66 Watts Laser Powers for Varieties of Emulsion and High EOM
With option in 16W/22W/33W/44W/66W laser heads and optional for 375nm LED light source or LED hybrid light source, McLantis CTS can consume traditional emulsion with low sensitivity, no need to bind expensive CTS emulsion.




Model
MACSETTER
CTS10
CTS12
CTS15
CTS20
Max. Frame Size(mm)
1000x1200
1200x1300
1500x2000
2000x3000
Min. Frame Size(mm)
400x400
Max.Image Size(mm)
900x1100
1100x1250
1400x1900
1900x2900
Frame Thickness
20mm-45mm
Laser Spot Size
50um
28um (10um and 20um as optional)
Repeatability
5um
5um
Laser Type
UV LD 405nm，UV LED 375nm，LED mix-band light
Laser Power (mass production)
12W/16W/24W/32W/48W，laser current setting 240mAh
Laser Power (limit)
16W/22W/33W/44W/66W，laser current setting 330mAh
Imaging Unit
DMD XGA (1024*768 pixels at 13.68um)
TI DLP technology DMD 1080P (1920x1080 pixels at 10.8um)
Emulsion over Mesh (EOM)
6-400um(not include mesh thickness)
Imaging Time
20-120 s/m2 (testing with 350 yellow mesh，SBQ emulsion)
File Resolution
2400 DPI / 6350 DPI / 12700 DPI / 25400 DPI
Screening
133 LPI
Mode of Focus
Dynamic Auto Focus, depth of focus 300um
Supporting File
1 bit tiff， Gerber274D/X, DXF
Equipment Size
2810*1800*1461
3036*2523*1663
3992*2234*1744
4959*2823*1744
Net Weight
3200KG
3500KG
4800KG
5500KG
Power
Single phase 220V, 50/60Hz, 4KW, compressed air 1L/min
Optional
High precision industrial camera for alignment (intelligent auto scale), air suction table, software one-click imposition





Detailed Images

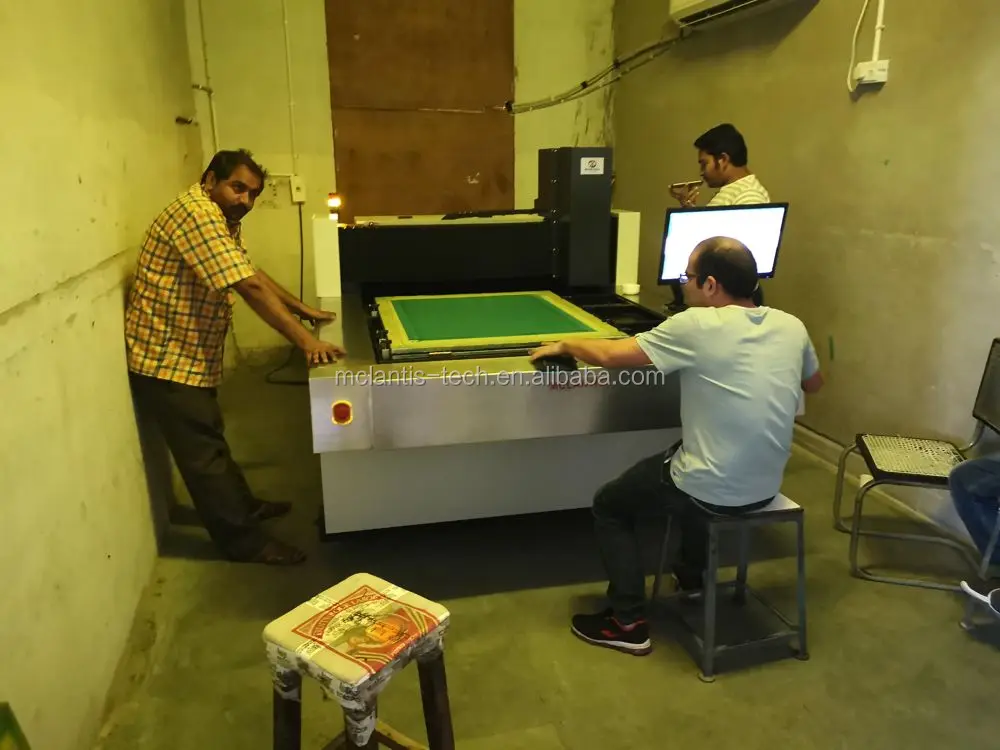

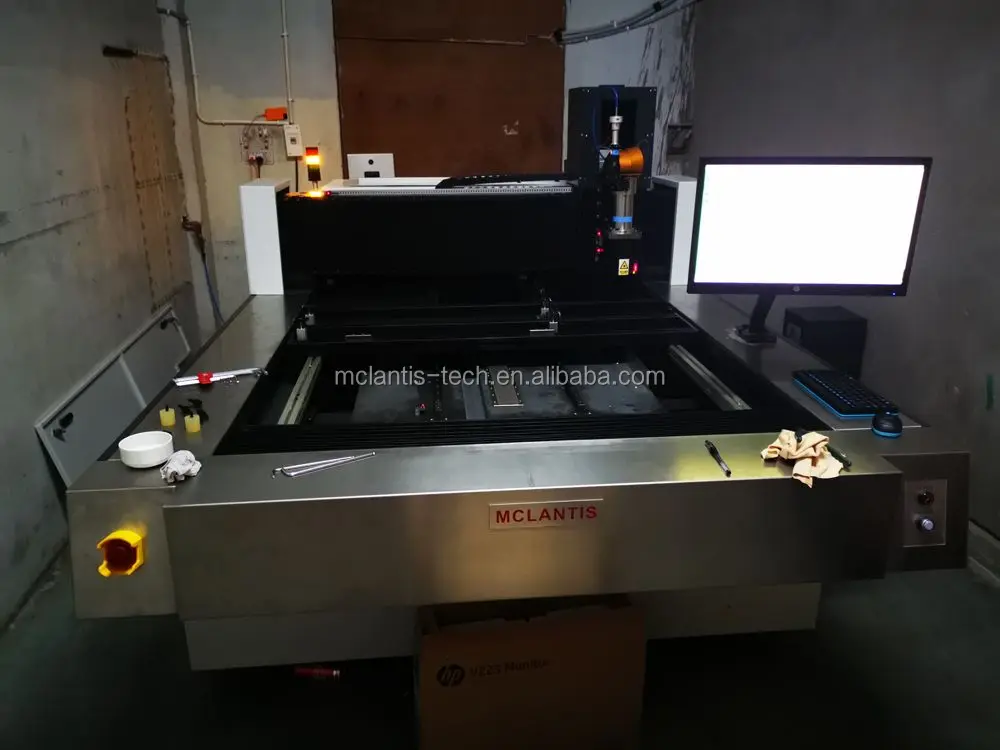

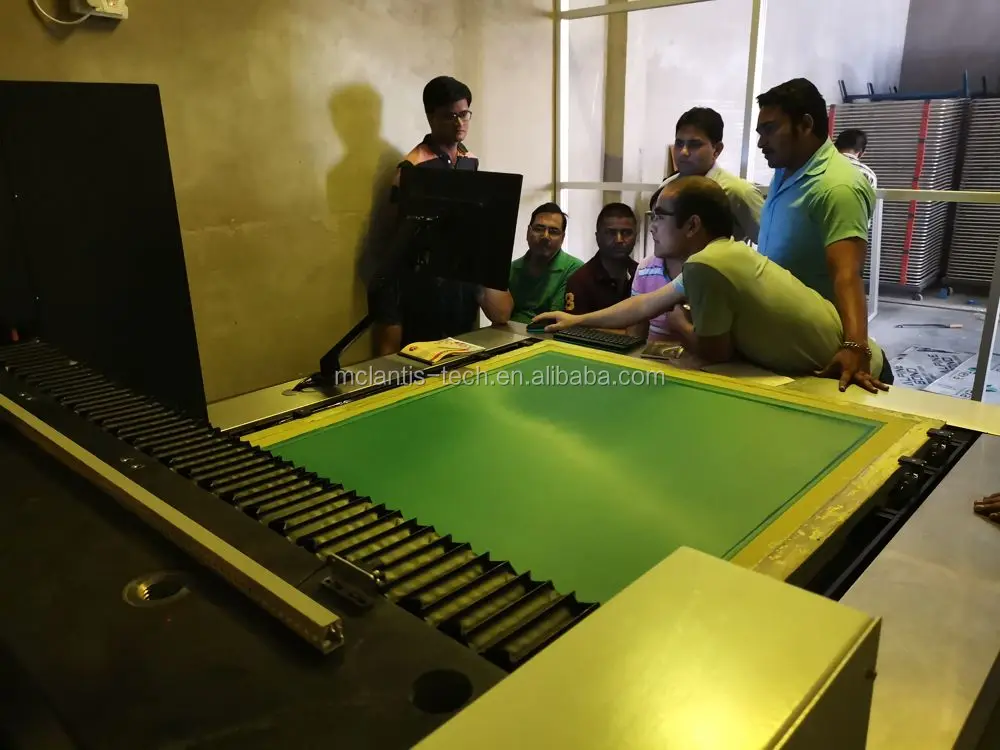

Customer Photos






Packing & Delivery


3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
