Product Overview
Description
Raymond mill, also known as raymond grinding mill, raymond roller mill and raymond grinder, is suitable for grinding non-flammable and non-explosive materials.The finished powder size can be adjusted between 30 and 425 mesh (0.613mm-0.044mm). We have 3 roller Raymond mill, 4 roller Raymond mill, 5 roller Raymond mill, etc. for choice.
Raymond mills can be used to process more than 280 non-flammable and explosive materials with a Mohs hardness of less than 9.3 and a humidity of less than 6%, such as barite, calcite, and potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, insulation, etc.
Configuration of Complete Powder Grinding Plant
1. Crusher to break large stones into smaller ones;
2. Suitable particles to be transferred to Raymond mill;
2. Suitable particles to be transferred to Raymond mill;
3. Finished products, after being ground in the Raymond mill and separated by the classifier. Dust removing system should be equipped, to avoid pollution;
4. Storage of finished products for packaging;
4. Storage of finished products for packaging;
Product Paramenters
Model | Roller Number | Feeding Size(mm) | Output Size(mm) | Power(kw) | Capacity(t/h) | Overall Dimension(mm) |
YGM-65 | 3 | ≤15 | 0.613-0.033 | 15 | 0.4-1.8 | 4100X3300X4500 |
YGM-75 | 3 | ≤15 | 0.613-0.033 | 18.5 | 1-3 | 4300X3500X5100 |
YGM-85 | 3 | ≤20 | 0.613-0.033 | 22 | 1.2-4 | 5300X4100X5200 |
YGM-95 | 4 | ≤25 | 0.613-0.033 | 37 | 2.1-5.6 | 7100X5900X7900 |
YGM-130 | 5 | ≤40 | 0.613-0.033 | 75 | 2.5-9.5 | 7900X8000X9700 |
YGM-160 | 6 | ≤50 | 0.613-0.033 | 132 | 5-18.5 | 12550X5700X8355 |
Details Images
The complete set powder grinding plant normally including the following part :
Jaw crusher / Hammer crusher
Used to crush the raw material into 0-25mm, so that it can grinding by the raymond mill
Electromagnetic vibrating feeder
Used to feed the crushed material into raymond mill evenly
When entering grinding chamber, the raw materials are shoveled up by the shovels and grinded between the rollers and ring

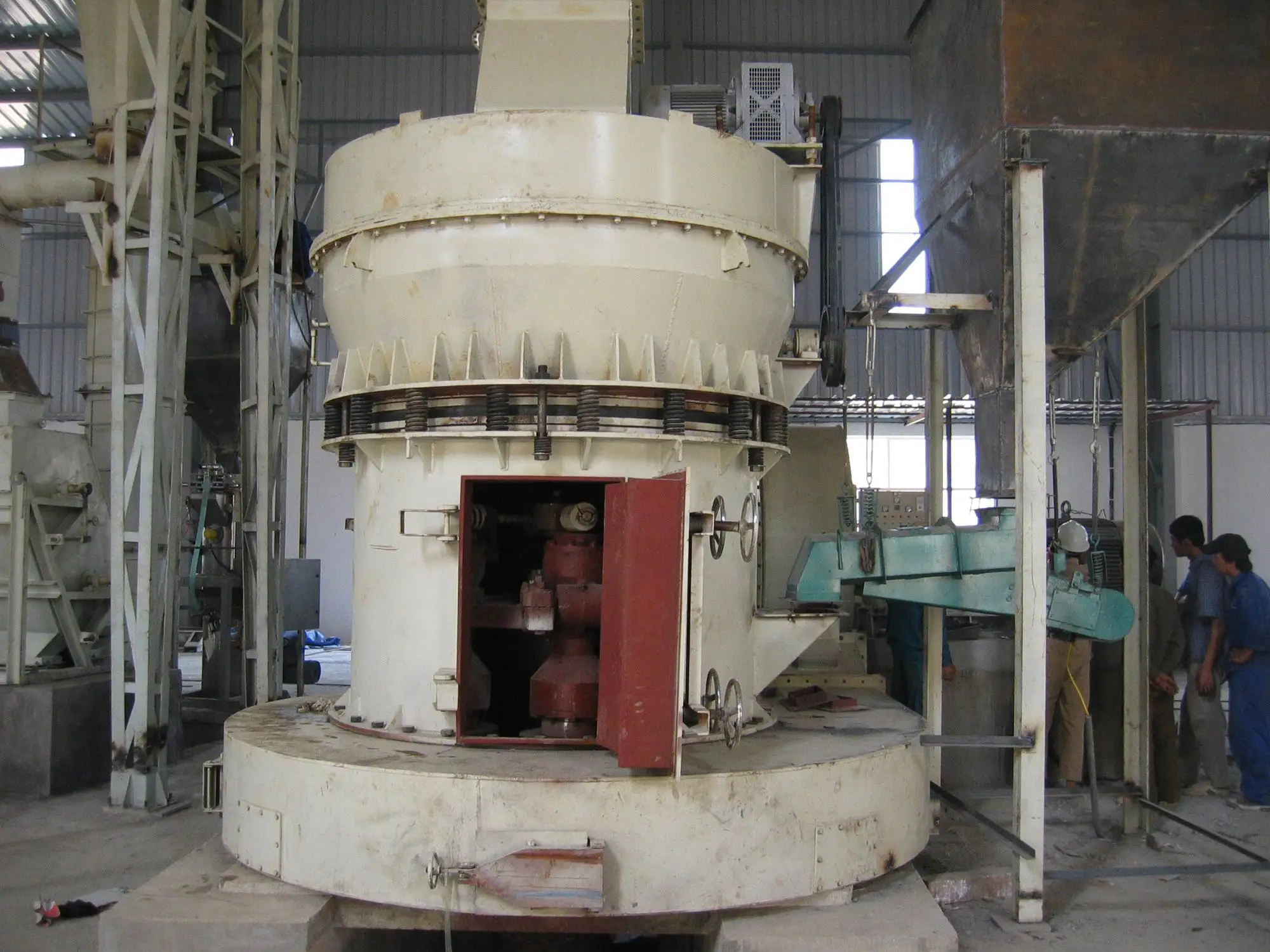

Feeding inlet of raymond mill
Grinding ring and grinding roller .
Blower
Grinded materials are blown into separator by blower for classification. With the function of impellers in the separator, materials without meeting the requirements of the fineness are fallen into grinding chamber for grinding again; materials meeting the requirements of the fineness are blown into cyclone powder collector with airflow through pipelines for separation and collection.
Dust collector and pipe line
The required fine powder is transported through an air tube to a cyclone collector, separated and collected, and discharged as a finished product.

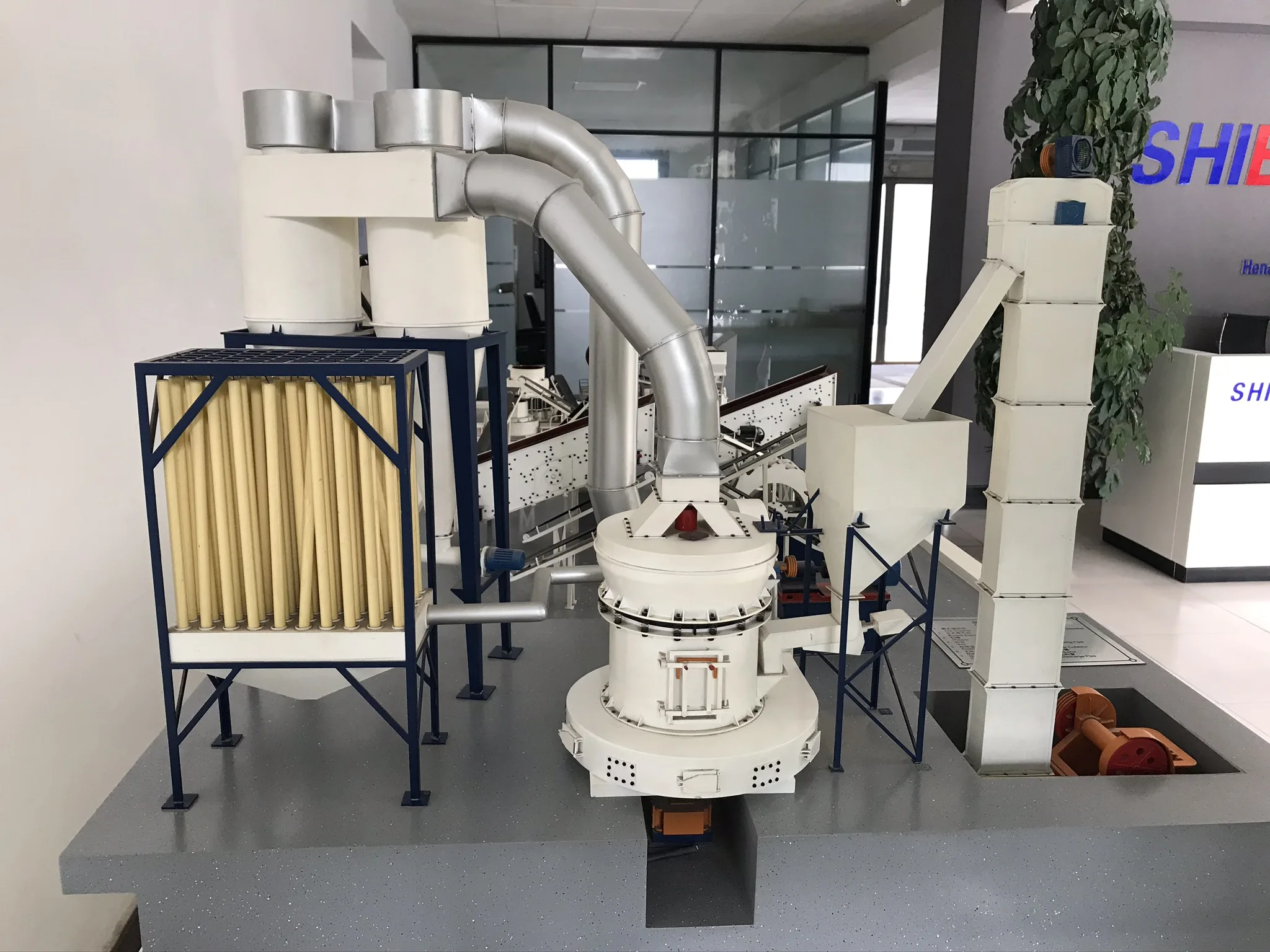

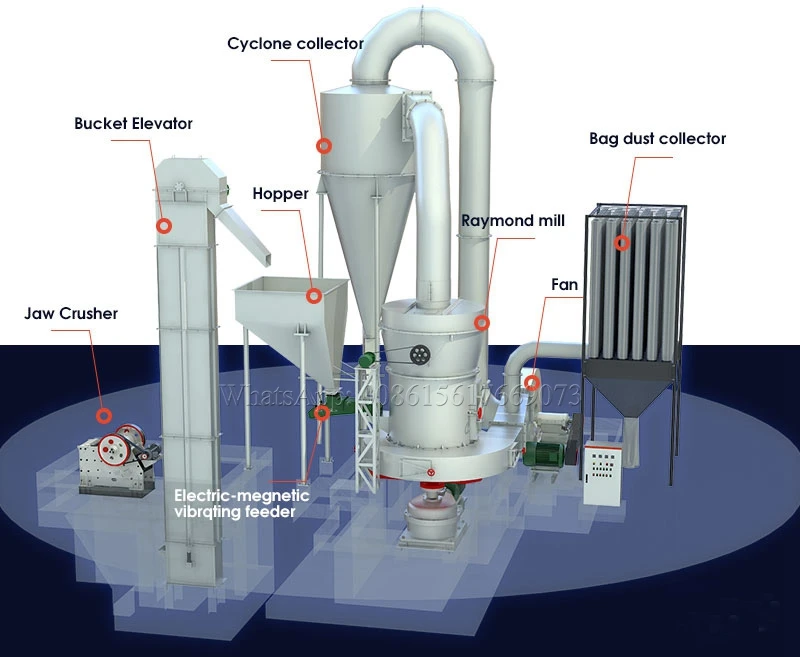

Complete powder grinding plant layout :
Packing and delivery
The machine is nude packing , motor and other accessories are packing in wooden box

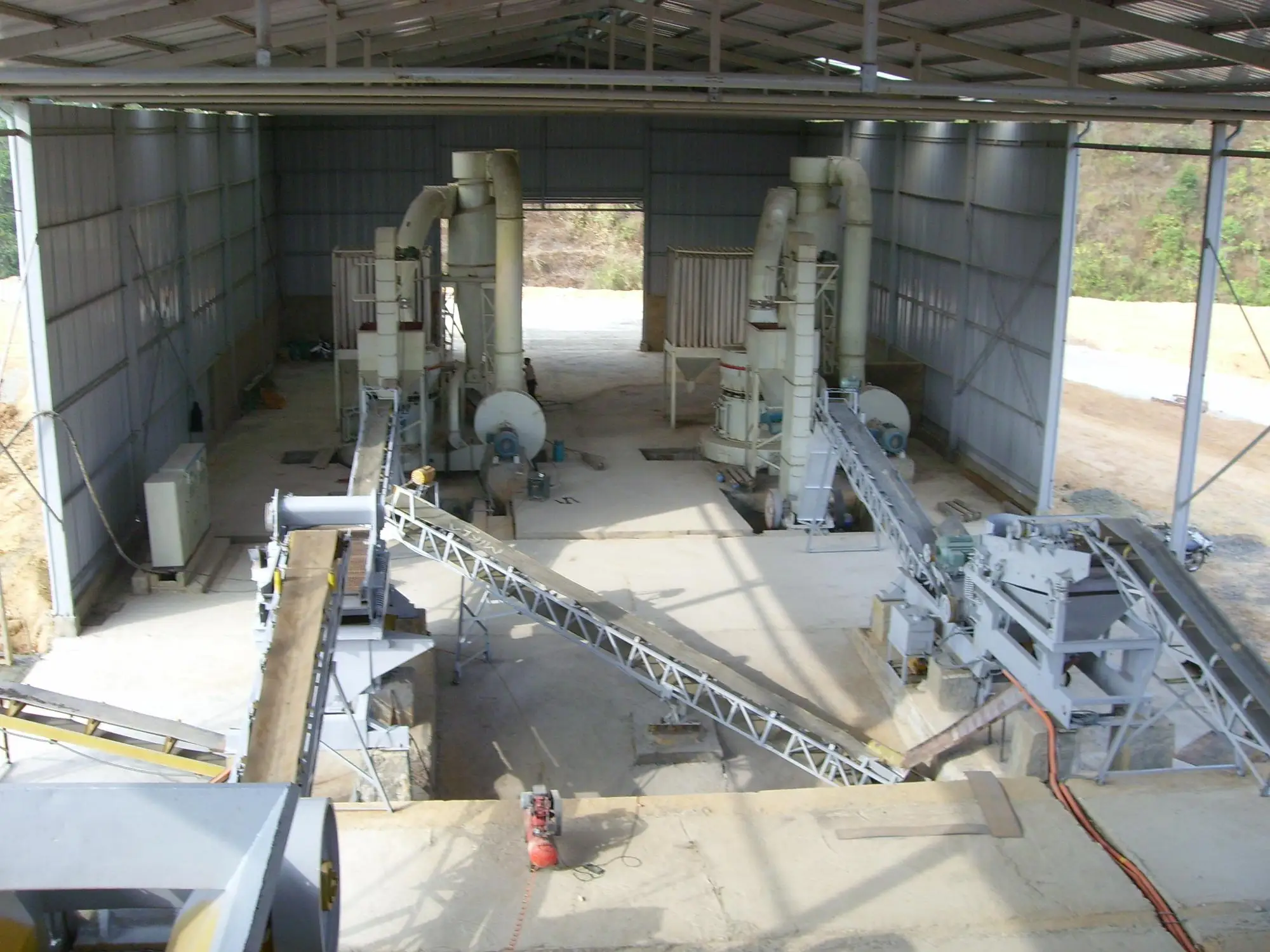

Working site
Project information :
Material : Dolomite
Max feeding size : 430mm
Output size : 325mesh
Capacity : 10 ton per hour
This is a complete stone crushing and grinding production line .
Main equipment : vibrating feeder , jaw crusher , cone crusher , vibrating screen , raymond mill , belt coneyor ect
Company Profile

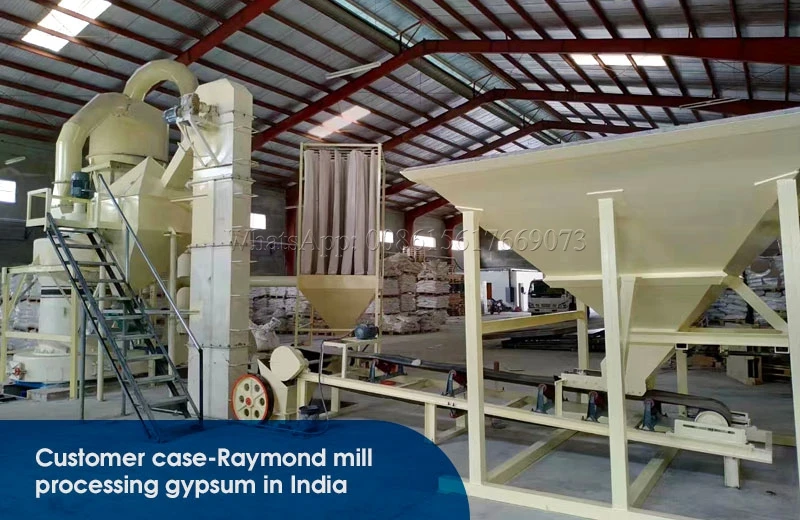

Customer Photos
