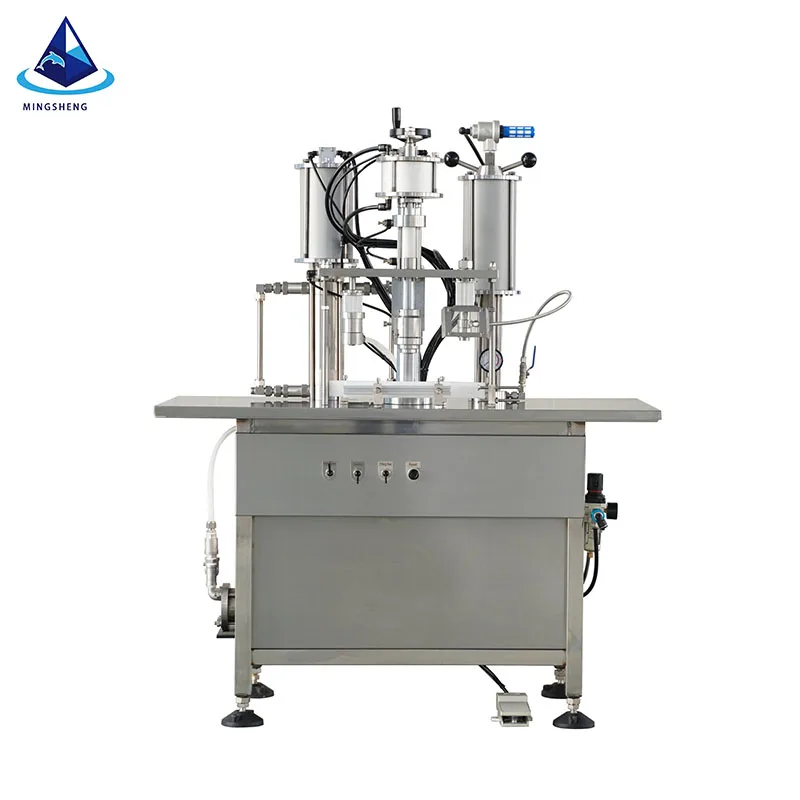

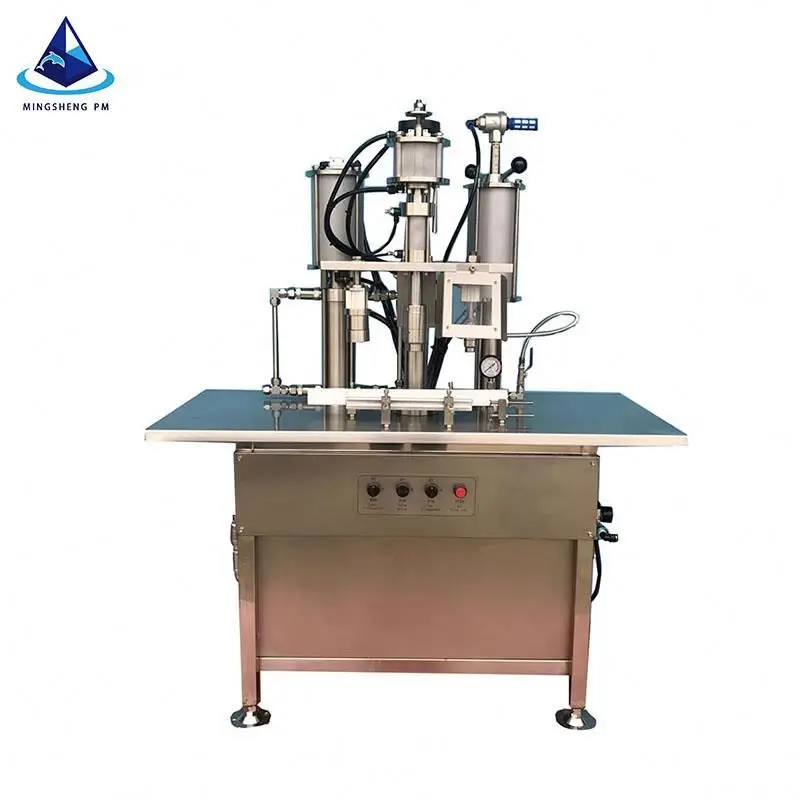

QGB-900C Semi-automatic aerosol filling machine
Product Description
Descriptions
QGB-900C aerosol filling machine, in the design of the contents will be semi-automatic filling machine, semi-automatic sealing machine, semi-automatic filling machine propellant (including booster pump) combined with the completion of a work platform, and can be any single work. Any two machine interaction work, can be adjusted.
Contents of various liquid filling machine for filling medium has good self-priming function. Contains a certain viscosity and concentration of media (such as paints, polyurethane foam sealant for black and white material); semi-automatic sealing machine sealing quality and reliable, and easy to install, larger cylinder seal, the gas pressure 0.25-0.3MPa when the source can also be sealed ; semi-automatic filling machine mainly used for propellant
In the filling (c butane gas, Freon, dimethyl ether and 134a, etc.) no corrosion can be liquefied. Main seals are imported. Applicable to all kinds of aerosol filling valve. Booster pump with large capacity two-way booster. So filling fast, accurate.
The machine small footprint, simple operation. A worker can only complete the whole process of production (labor intensity of production with other domestic manufacturers of semi-automatic sealing machine operator rather), is the preferred aerosol manufacturers.
The design of this machine, all the pneumatic valves are used the national standard pneumatic valves, and all the open design, easy to replace, easy to buy.
The production line has been widely used in food, medicine, health, automotive, environment, fire and aerosol cosmetic products packaging supplies, such as: mousse, hair spray, air fresheners, insecticides, disinfectants, fire extinguishing agents, carburetor cleaner ....
The equipment for a single month of thousands of small and medium manufacturers can use.
Technical Parameters
Model | QGB-900C |
For valves | 1 " (25.4 mm) |
Contents of the filling volume (ml) | 20-450 |
Contents of the input connector | 20 mm diameter stainless steel pagoda connector |
Propellant filling volume (ml) | 20-450 |
Propellant input connector | M22 * 1.5 Anti-teeth (for example, with standard 15KG, 50KG liquefied petroleum gas cylinder butt) |
Filling accuracy | ± 1% |
Aerosol cans for height (mm) | 70-330 |
For aerosol can diameter Diameter (mm) | φ35 to φ70 |
Working pressure (MPa) | 0.5-1.0 |
Maximum Air Consumption (m3/min) | 1 |
Production capacity (cans / hour) | 100 ml per tank filling of liquid propellant calculations, 1200 cans / hour |
Packing size | 1220mm*590mm*1550mm |
Weight | 180kg |

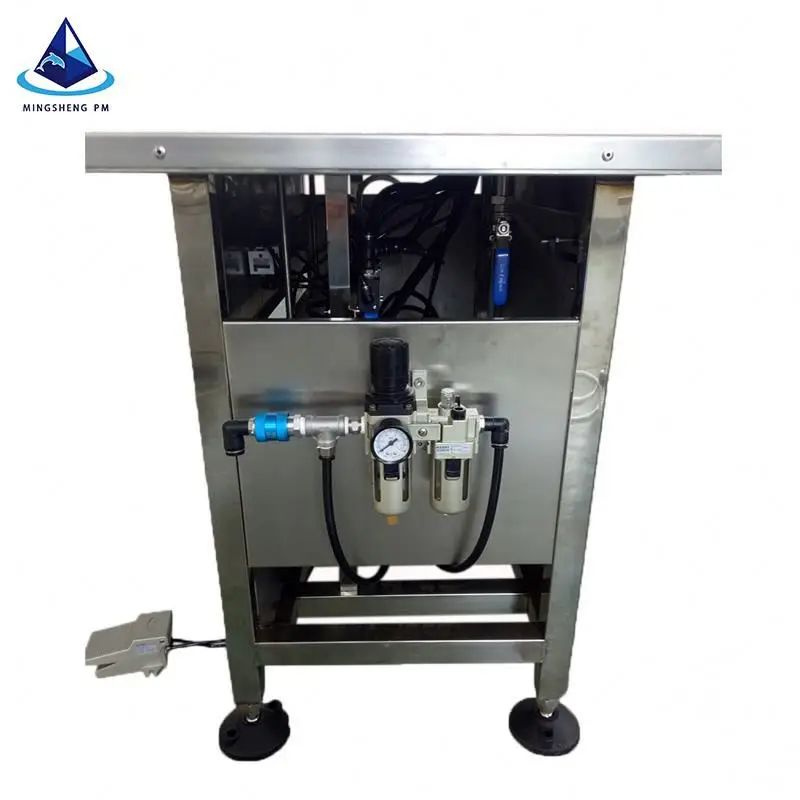

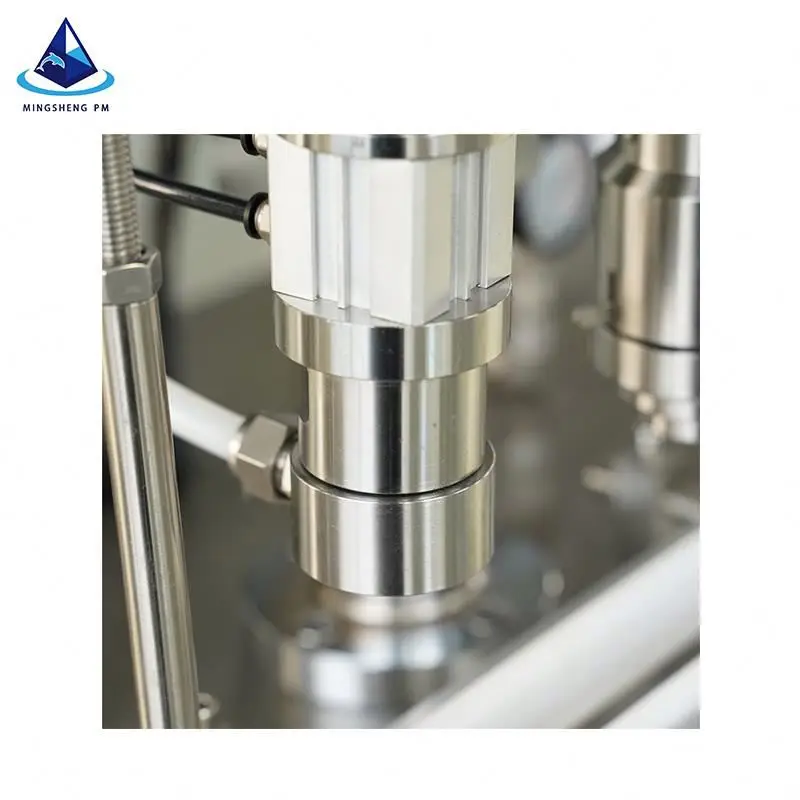

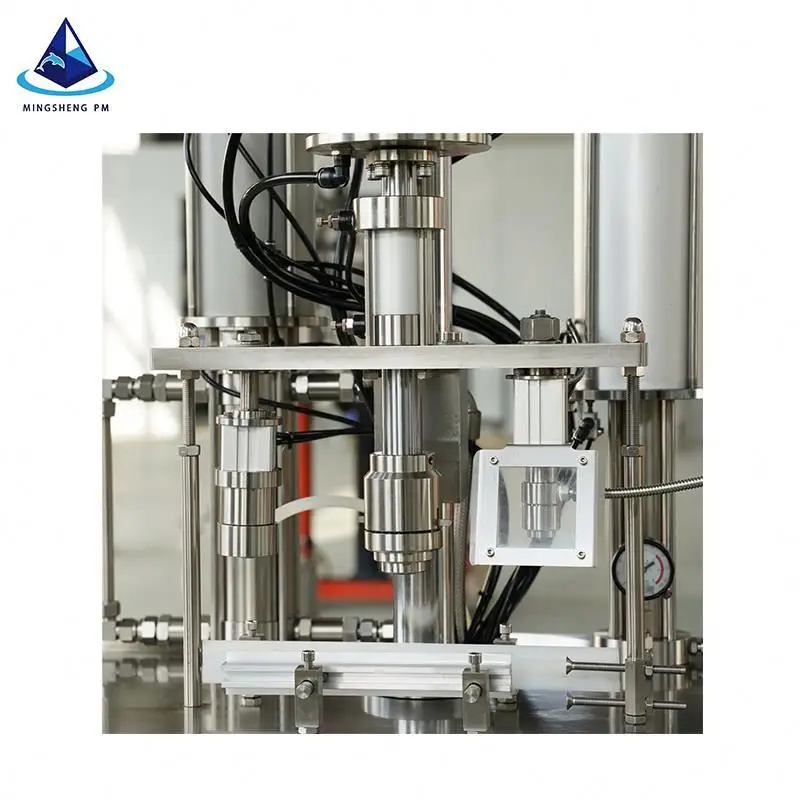

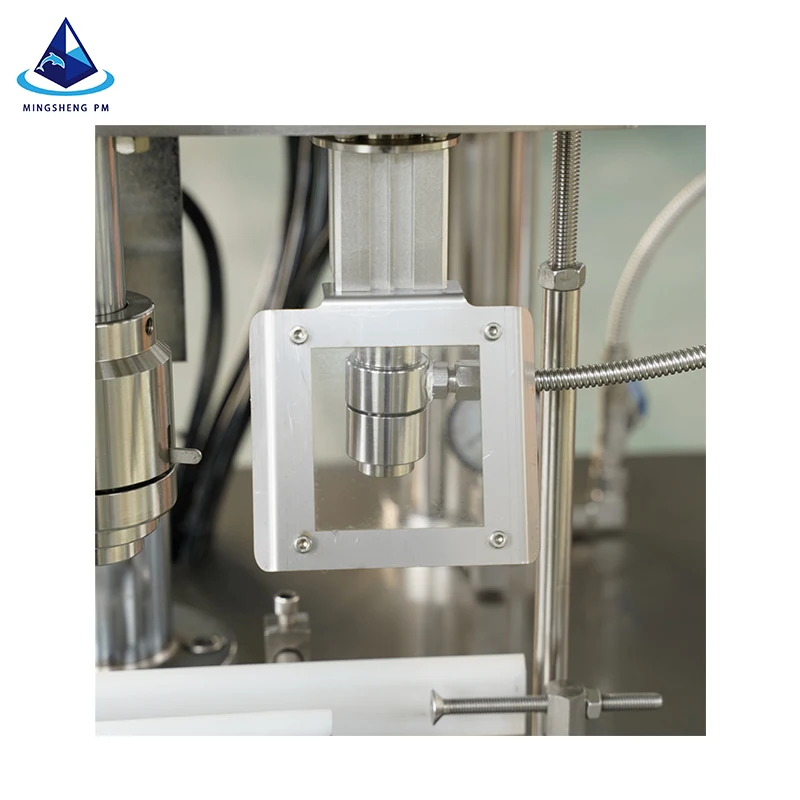

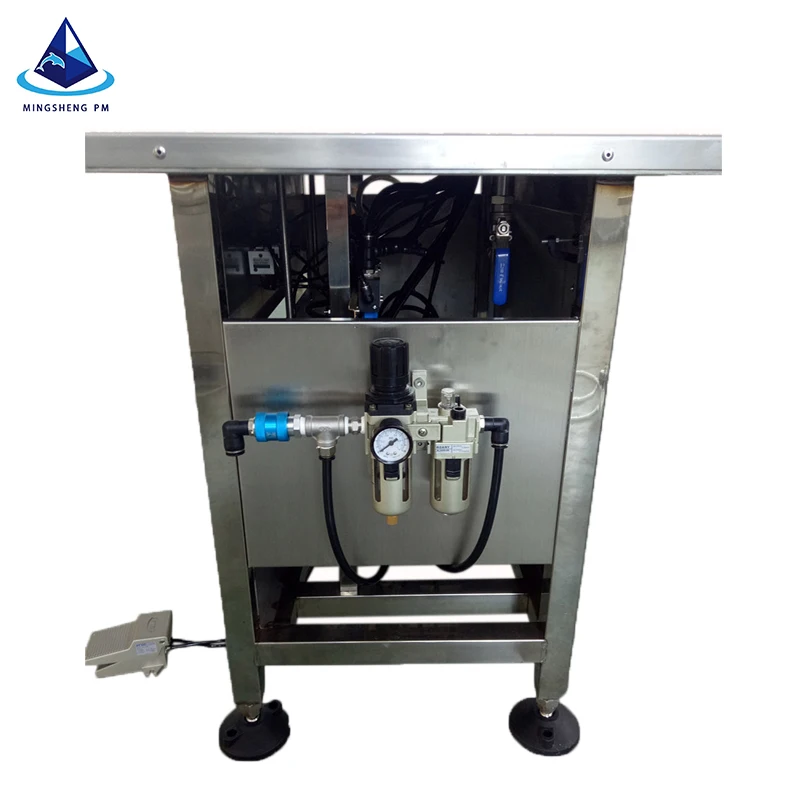

Product Pictures
Sample Pictures
Packaging & Shipping
Packaging:Wooden Case+Film
Our Services
1.One year guarantee for whole machine
2.24 hours technical support
3.Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer’s account.
4.After a year,we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. we also can provide training service which help opeators handle the machine well.
