21HP V Twin Cylinder Water Cooled Vertical Shaft Diesel Engine For Mower Tractor
- Category: >>>
- Supplier: Yancheng Talos Engine Equipment Co. Ltd.
Share on (62498047823):
Product Overview
Description
Product Description

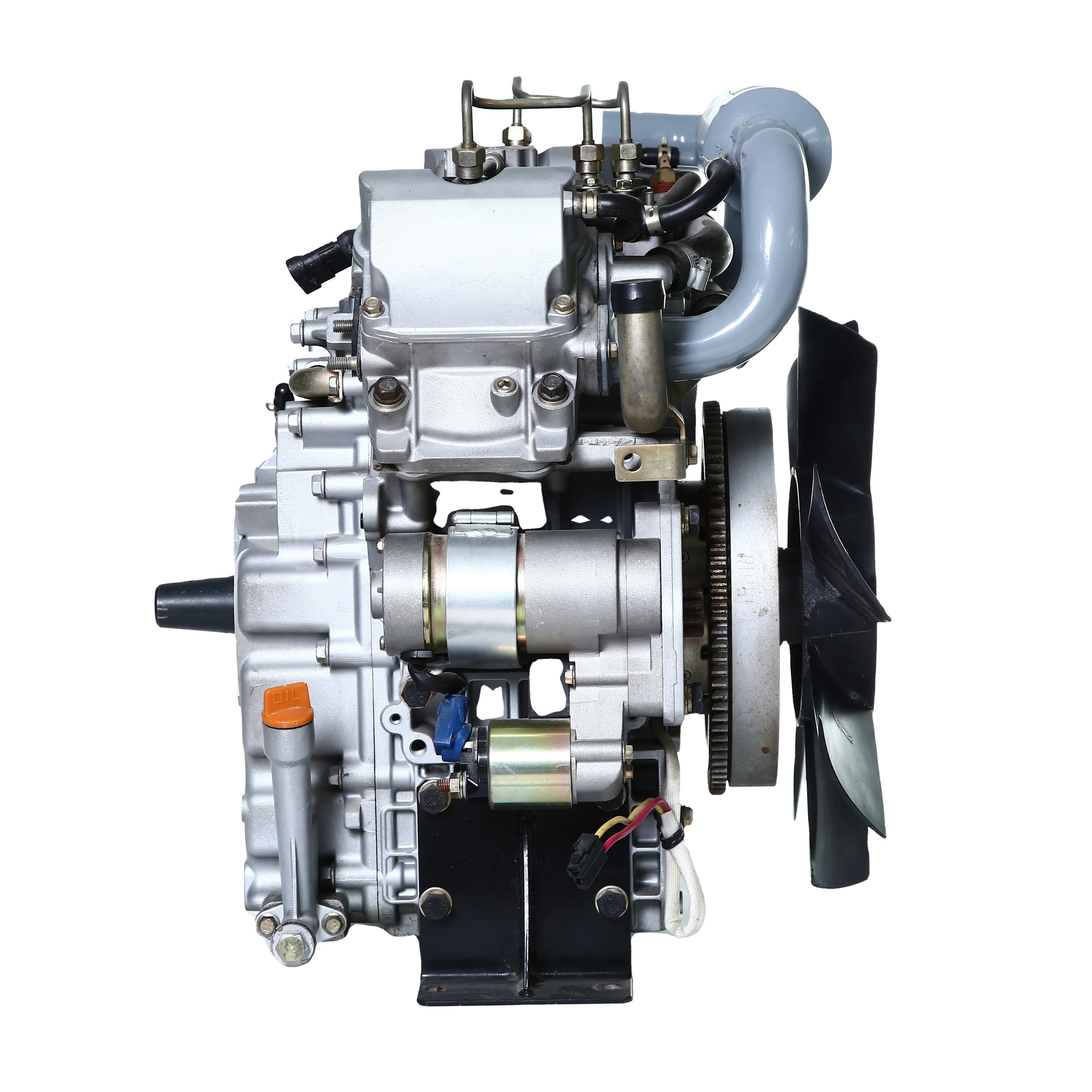

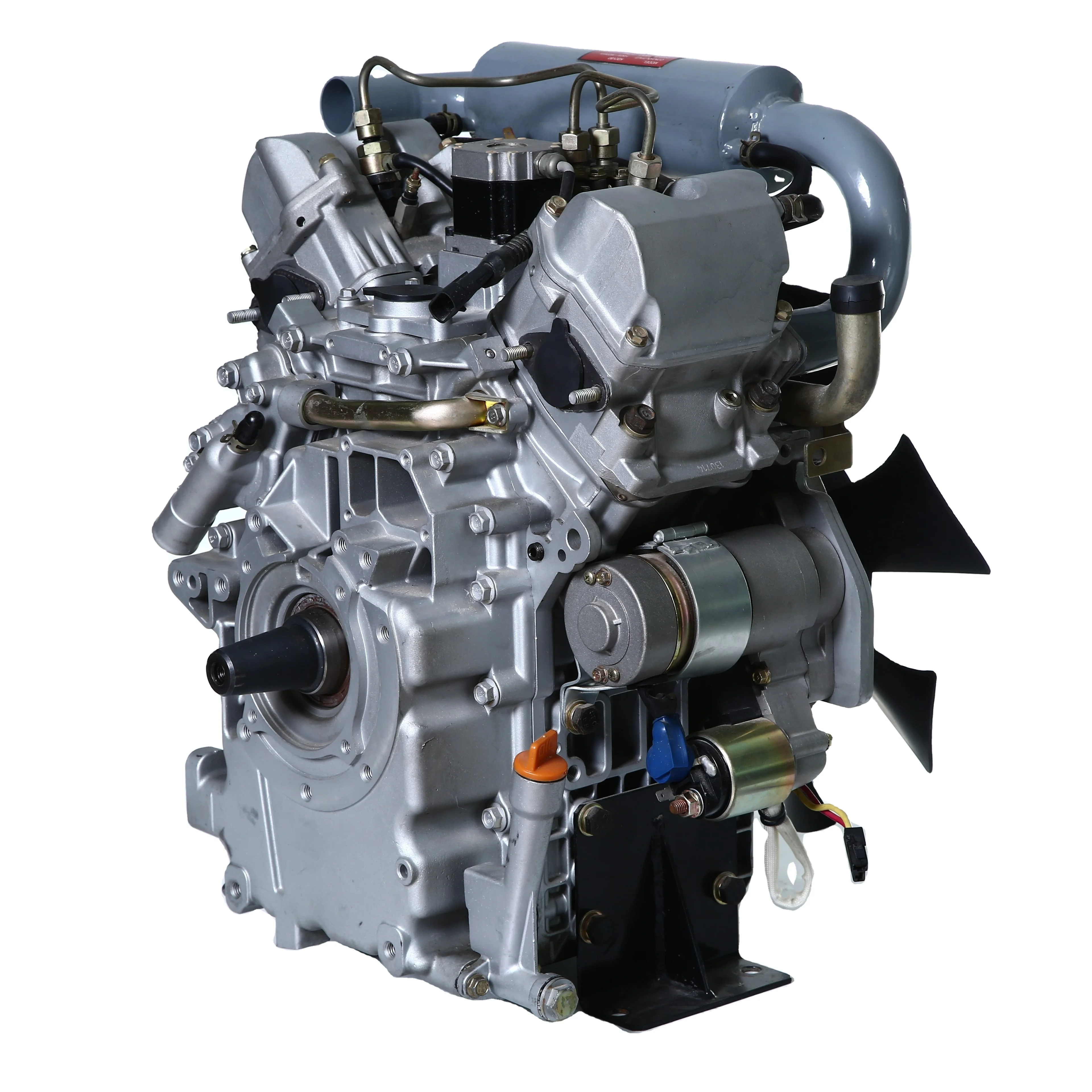

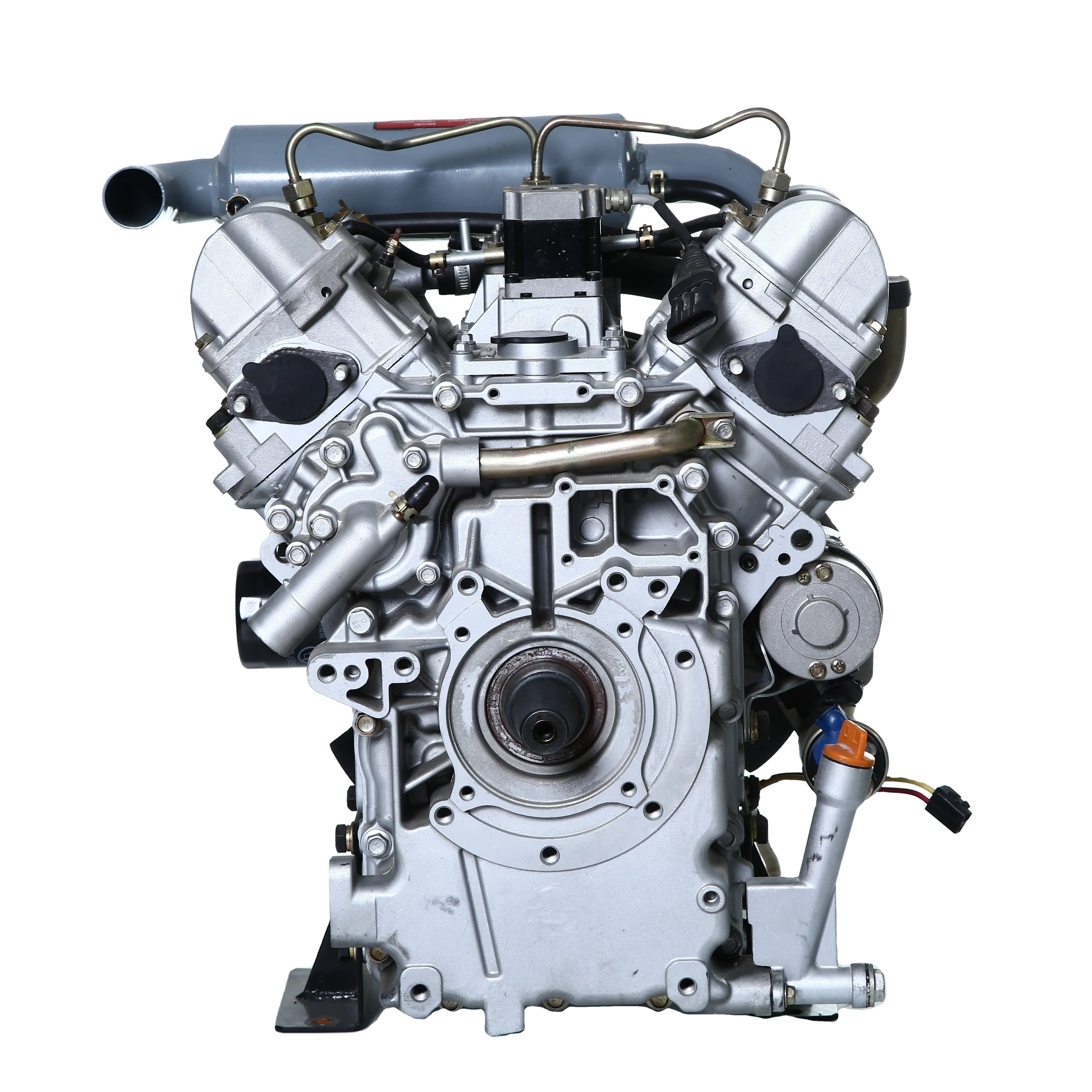

21HP V Twin Cylinder Water Cooled Vertical Shaft Diesel Engine For Mower Tractor
Talosplus® diesel engine TD2V80 is low-maintenance, compact, lightweight, durable, fuel-efficient and quiet.
This engine can be used as horizontal or vertical engine.
It has widely applications, such as construction, generator, marine engine, mower and etc.
Air cooled small diesel engines you can get here as follows,
TD170F(4HP), TD173F(5HP), TD178F(7HP), TD186F(9HP), TD186FA(10HP), TD188F(12HP), TD192F(13HP).
Key Specs
Model | TD2V80 | Brand | Talos Plus | ||
Bore x Stroke | 80 x 79mm | Displacement | 794cc | ||
Engine type | Direct injection, diesel | Cylinder(qty) | 2 | ||
Rated Power | 14kW(19hp)/3600rpm | Speed | 3600RPM | ||
Starting System | Electric start | Cooling System | Water cooled | ||
Fuel Consumption | 297g/kW.h@3600rpm | Fuel Tank | No | ||
Lube Oil Capacity | 2.3L | Fuel Type | Diesel | ||
Compression Ratio | 23 : 1 | Shaft Output | Horizontal/Vertical | ||
Crankshaft | Key type | Shaft Diameter | 25.4mm | ||
N.W/G.W | 57.5/65.5kg | Dimension(L x W x H) | 616 x 486 x 528mm | ||
Lube Oil Type | SAE10W30(above CC grade) | ||||
Rotation Direction | Anticlockwise(view from flywheel) | ||||
Application | Construction, generator, boat, mower and etc. | ||||
Available Option | PTO shaft, water tank. | ||||
Technical Data
PTO Dimensions.
PTO Flagers.
Detailed Images
Packing & Delivery
Durable carton box with foam.
Available option: color box with pallet.
Package dimension(L x W x H): 616 x 486 x 528mm.
Gross weight with package: 57.5kg.
Lead time: regular 30 days after got deposit.
