Электрическая распределительная коробка с заподлицо, 12 способов
- Category: >>>
- Supplier: Wenzhou Kunling Electric Co. Ltd.
Share on (62498196673):
Product Overview
Description
General

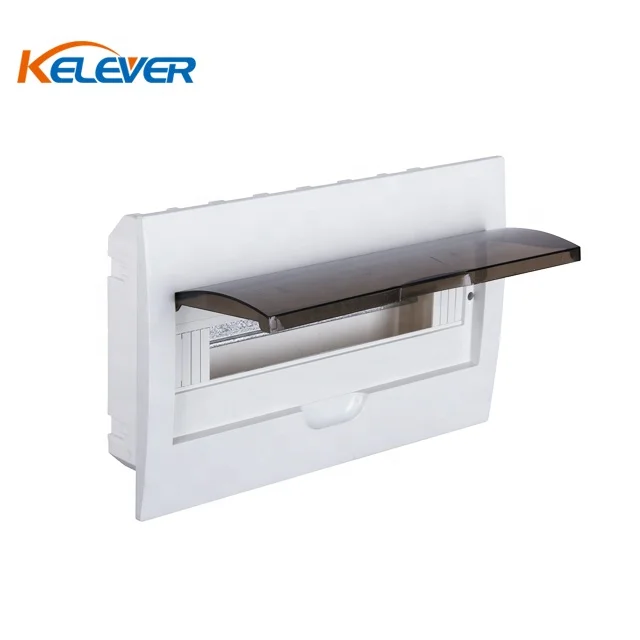

12way flush mounted type electrical junction distribution box
Body material:ABS
Transparent door:PC
Earth/Natural bars:Brass
Material charcteristics:Impact,heat,low temperature and chemical resistance,excellent electrical performance and surface gioss,etc.
Certificates:CE,ROHS
Protection grade:IP50
Application:Suitable for indoor and outdoor electric,communication,fire fighting apparatus,iron and steel smelting,petrochemical industry,electron,power system,railway,building,mine,air and steel smelting,petrochemical industry,electron,power system,railway,building,mine,air and sea port,hotel,ship,works,waste water treatment equipment,environmental equipment and so on.
Installation:

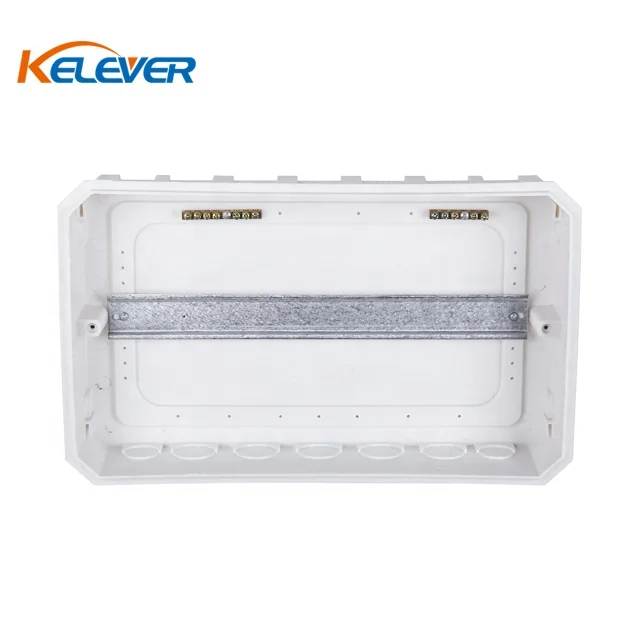

1.Inside:there are the din rail inside for din-rail type circuit breakers,earth bar and natural bar for cable connection.

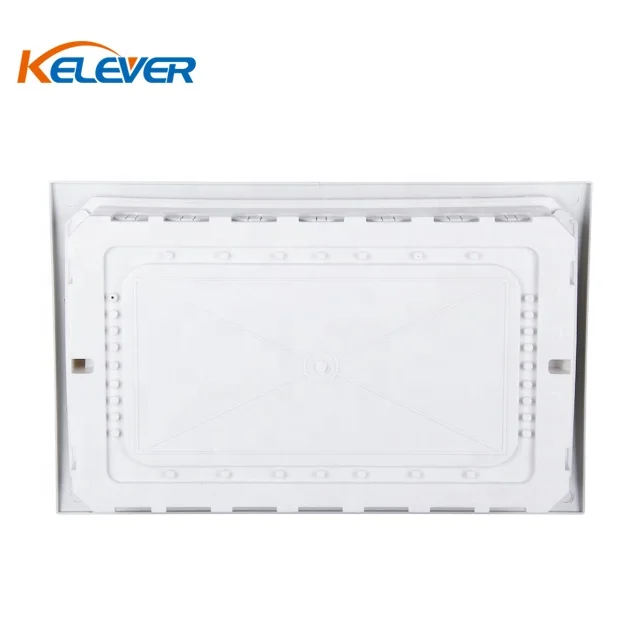

2.Outside:The products can be directly fixed on the wall or nails via the screw holes in the base.
Outlet hole:The plastic plate in the hole can be knocked off for cables.

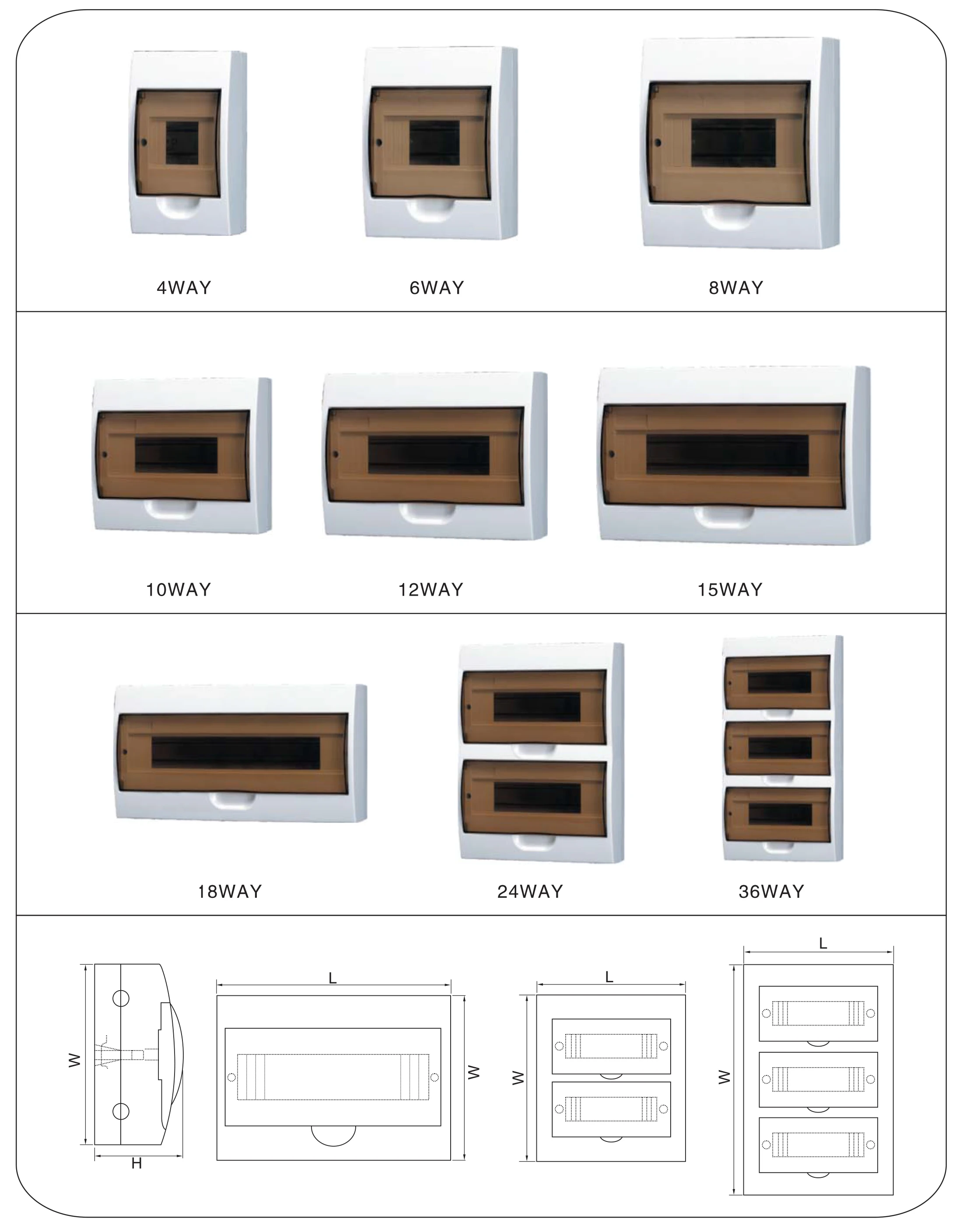

Model and Size

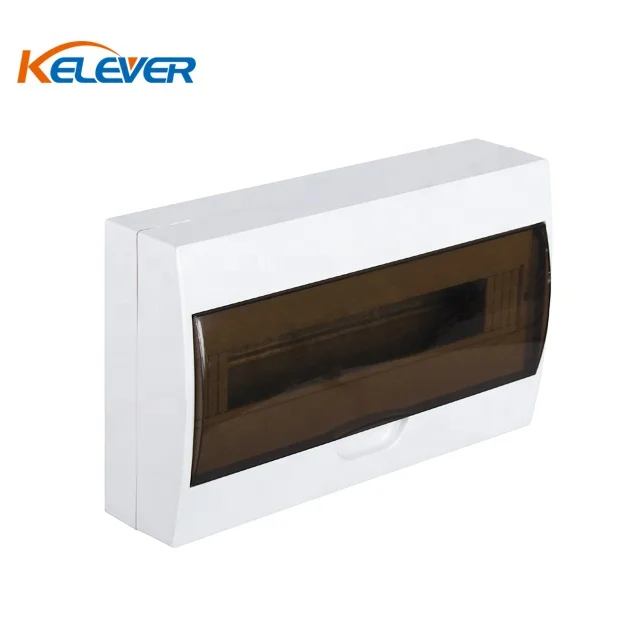

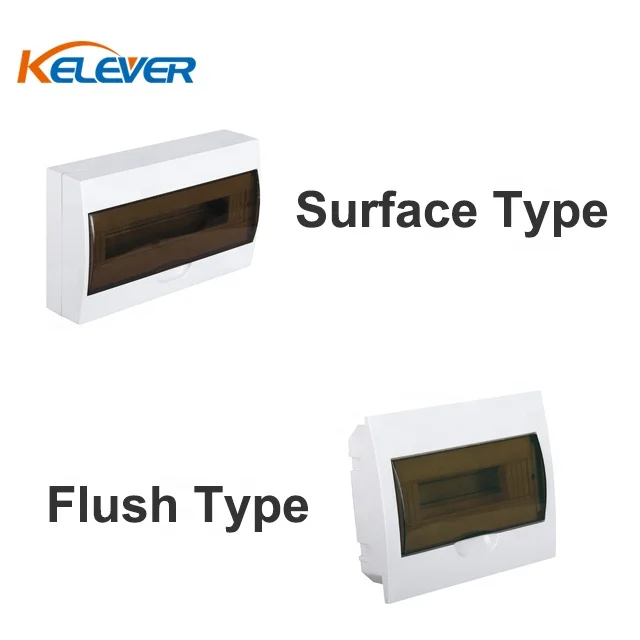

Model Surface Type | Outside Dimension(mm) | Pcs/Package | ||||
L | W | H | ||||
TSM-4WAY | 112 | 200 | 95 | 30 | ||
TSM-6WAY | 148 | 200 | 95 | 30 | ||
TSM-8WAY | 184 | 200 | 95 | 30 | ||
TSM-10WAY | 222 | 200 | 95 | 20 | ||
TSM-12WAY | 256 | 200 | 95 | 20 | ||
TSM-15WAY | 310 | 200 | 95 | 15 | ||
TSM-18WAY | 365 | 222 | 95 | 15 | ||
TSM-24WAY | 271 | 325 | 97 | 10 | ||
TSM-36WAY | 271 | 462 | 100 | 5 | ||

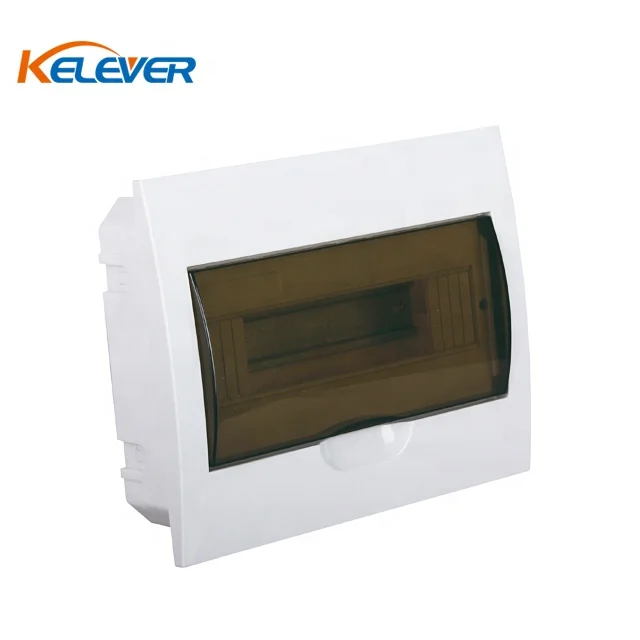

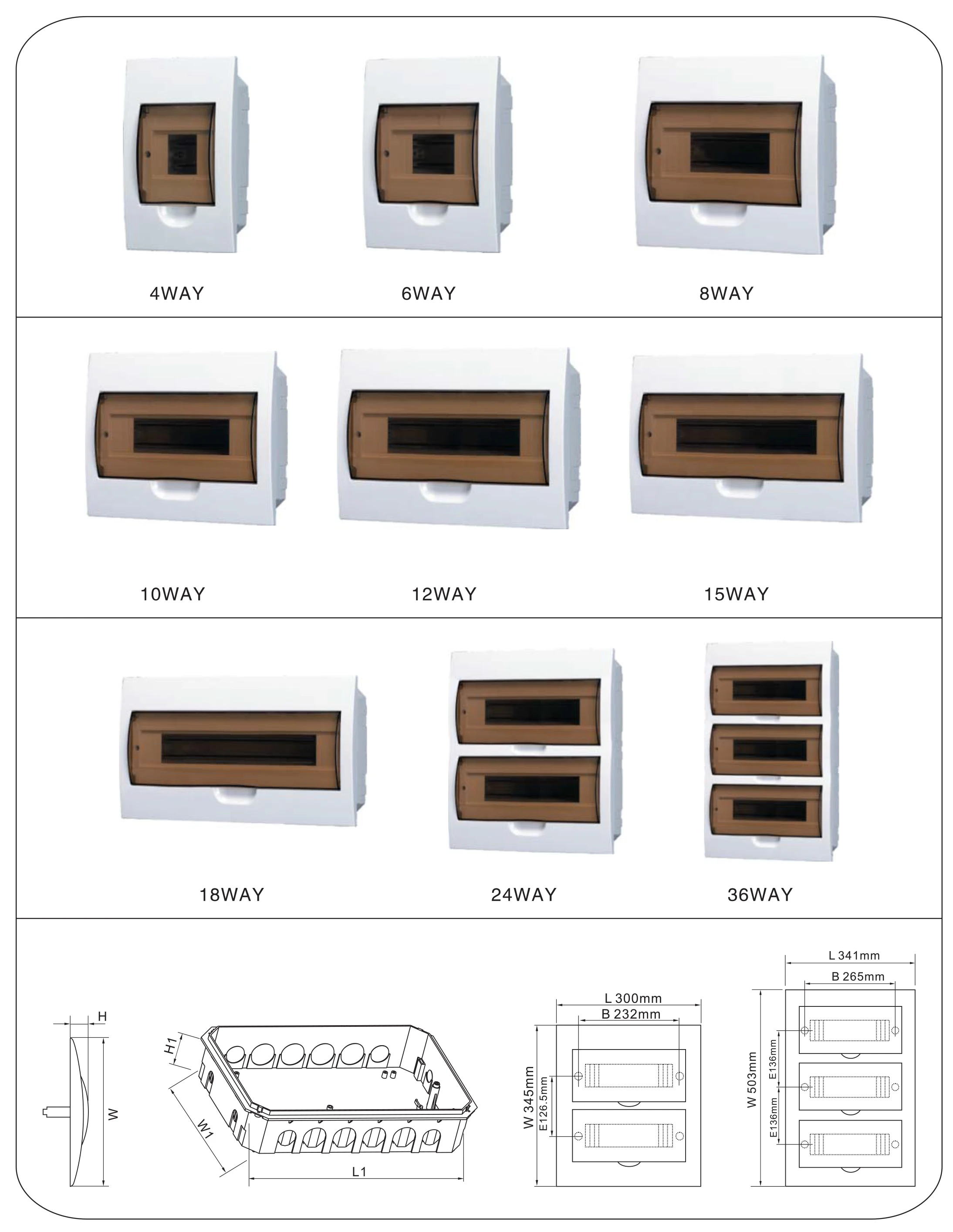

Model Flush Type | Outside Dimenstion | Pcs/Package | ||||||||||
L1 | W1 | H1 | L | W | H | |||||||
4WAY | 115 | 197 | 60 | 136 | 222 | 27 | 30 | |||||
6WAY | 148 | 197 | 60 | 170 | 222 | 27 | 30 | |||||
8WAY | 184 | 197 | 60 | 207 | 222 | 27 | 30 | |||||
10WAY | 222 | 197 | 60 | 243 | 222 | 27 | 20 | |||||
12WAY | 258 | 197 | 60 | 279 | 222 | 27 | 20 | |||||
15WAY | 310 | 197 | 60 | 334 | 222 | 27 | 15 | |||||
18WAY | 365 | 219 | 67 | 398 | 251 | 27 | 15 | |||||
24WAY | 258 | 310 | 66 | 300 | 345 | 27 | 10 | |||||
36WAY | 258 | 449 | 66 | 300 | 484 | 27 | 5 | |||||
