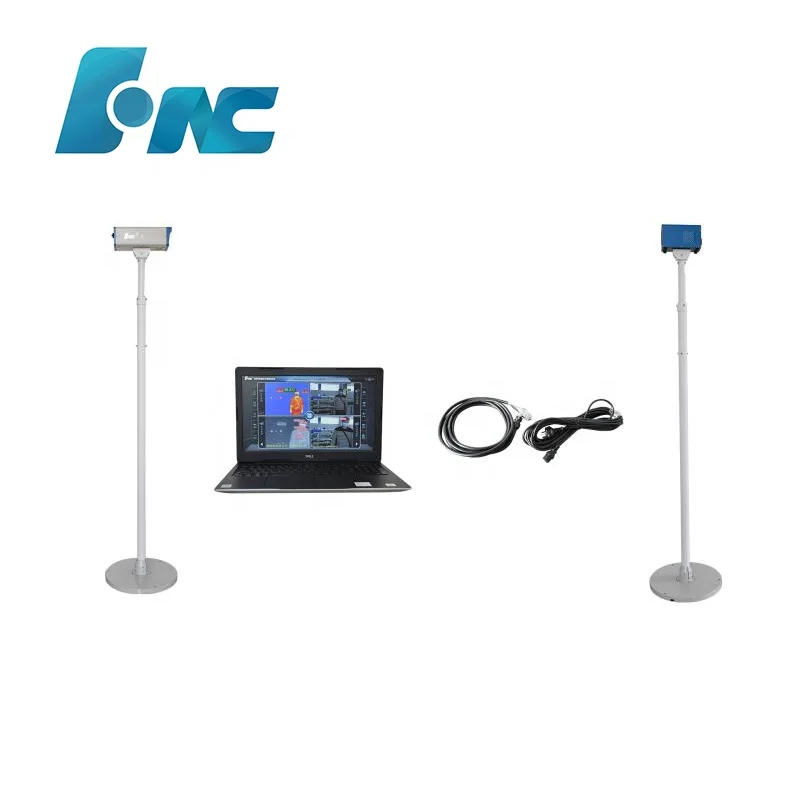

Infrared Temperature Instrument with thermal imaging camera
- Category: >>>
- Supplier: Wuhan Huazhong Numerical Control Co. Ltd.
Share on (62498256602):
Product Overview
Description
Product Description

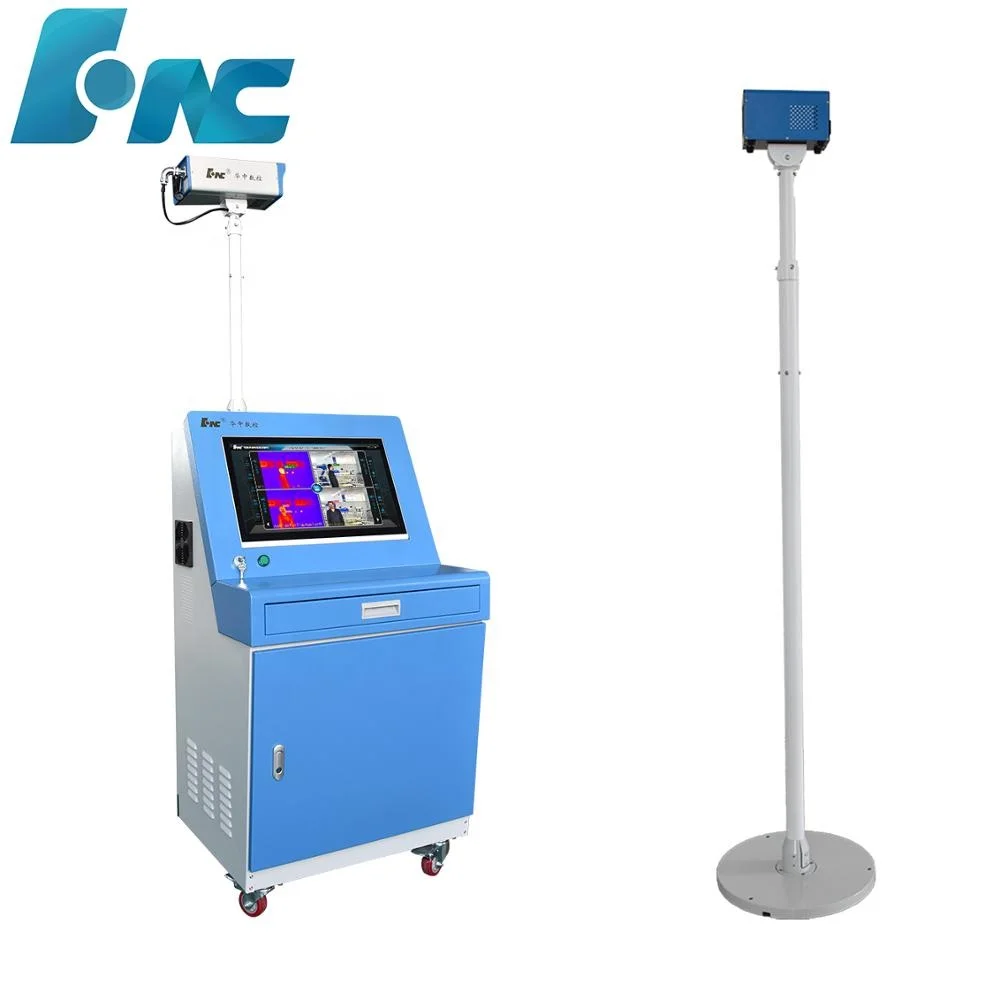

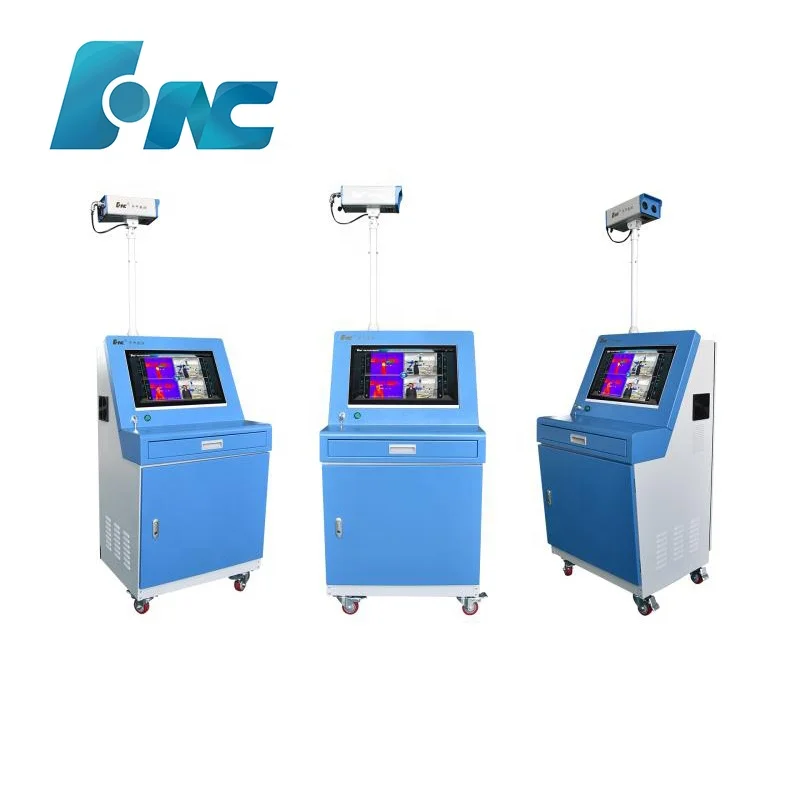

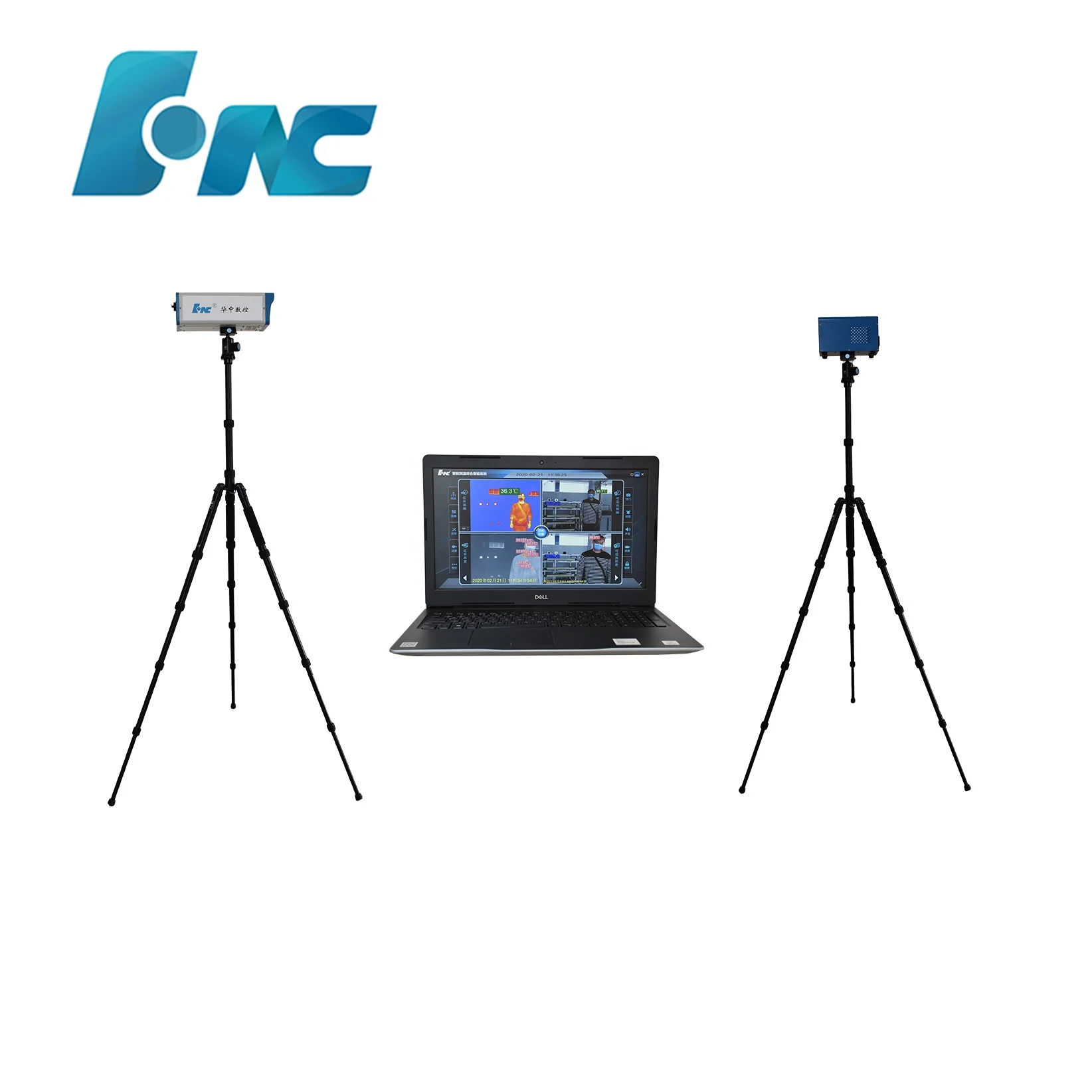

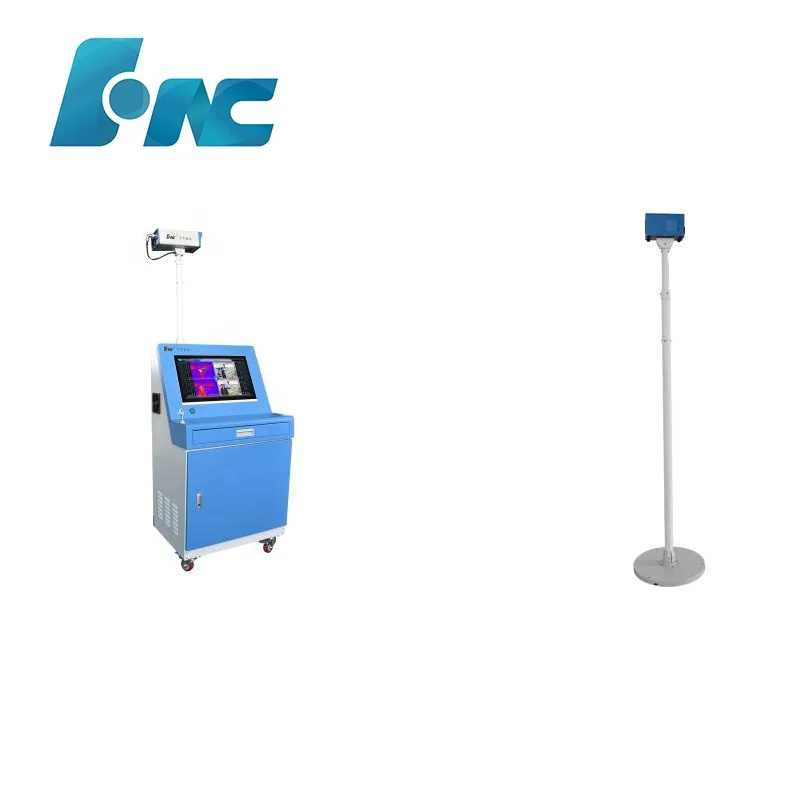

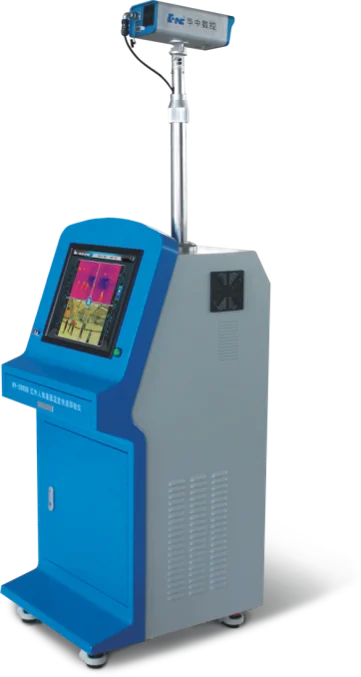

HY-2005B
Infrared Body Surface Temp Screening Instrument
Professional Equipment to Prevent Diseases from Spreading
Features:
Quickness: within 1 second
Non-contact long-distance measurement: 3-10 meters
Sensitivity: The temperature resolution 0.05℃
Face detection: eliminate false alarms

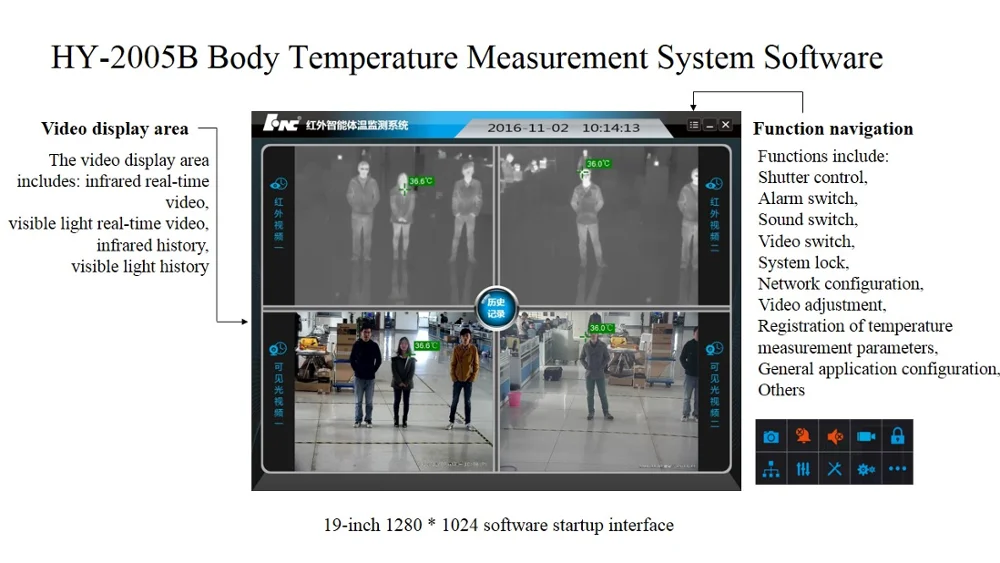

Digitization: High-resolution digital image acquisition and output.
Digital interface: Poviding an open data interface
System Parameter
Name | Technical specifications |
Sensor | Non-refrigerated focal plane detector |
Detector material | Vanadium oxide |
Detector pixel | 336x256/640x512 |
Detector pixel spacing | 17um |
Response ban | 8-14um |
Lens focal length | 19mm |
Field of view | 24°x18°/32°x26° |
Thermal sensitivity | 0.05℃ |
Temperature measurement range | 20℃-50℃ |
Temperature measurement precision | ±0.3℃ |
Temperature measurement mode | Internal and external black body real-time calibration measurement |
Interface | RJ45 |
Communication protocol | TCP/TP, UDP |
Temperature at operation | 0℃-50℃ |
Storage temperature | -20℃-60℃ |
Covered channel width | 3.4m/4.8m (when at a distance of 8 meters) |
HY-2005B Infrared Body Surface Temp Screening Instrument
Has been widely used to contain diseases
YEAR | DISEASES |
2003 | SA |
2009 | H1N1 Influenza |
2012 | Avian Influenza |
2014 | Ebola |
2019 | Mouse Disease of Inner Mongolia |

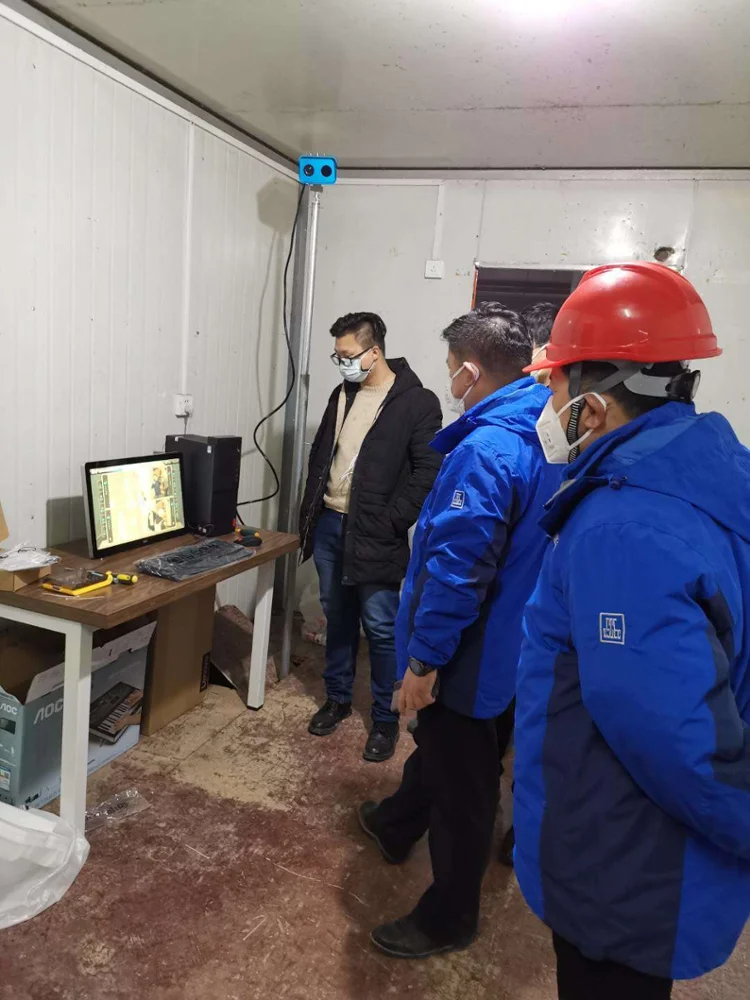

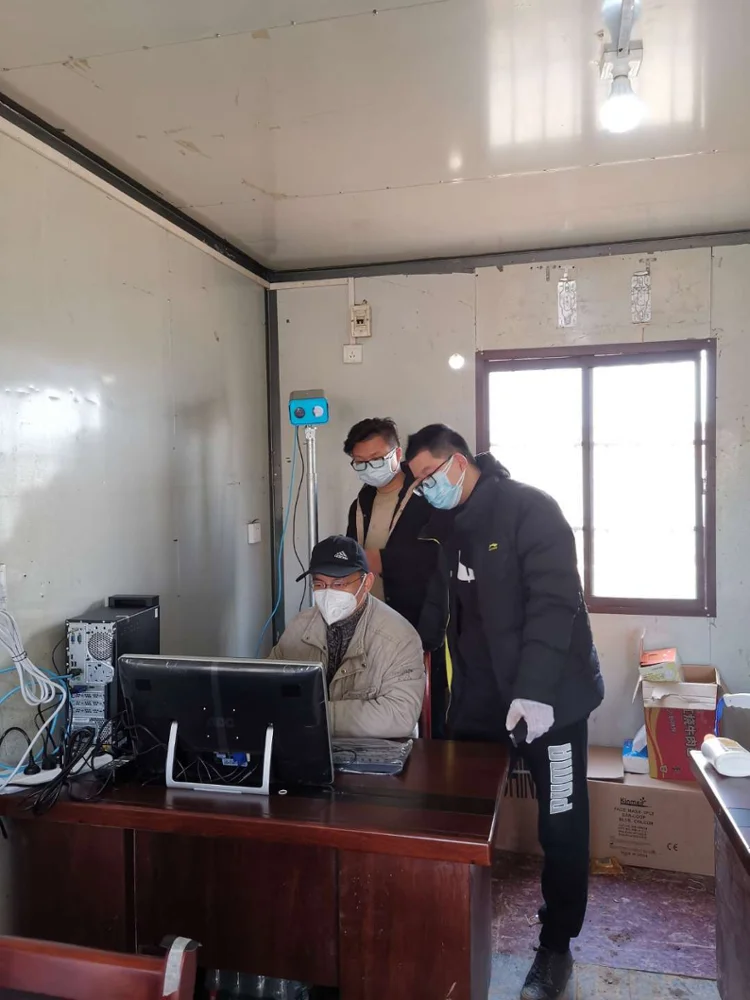

Applications
HOSPITALS CASES
Wuhan Hospital
Wuhan Huoshenshan Hospital
Wuhan Xiaotangshan Hospital
Huanggang Woman and Children's Hospital
Wuhan Hannan People's Hospital
Zhuzhou Central Hospital
Construction Bank of Wuhan
First Affiliated Hospital of Zhengzhou University
Changchun Central Hospital
First People's Hospital of Liangjiang New Area
And so on

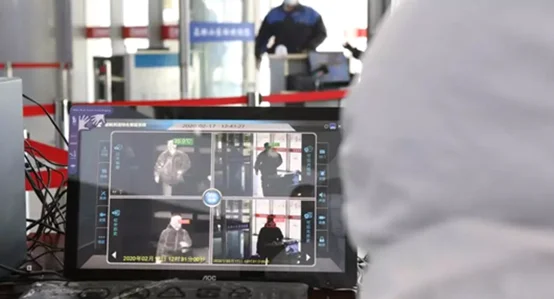

AIRPORT RAILWAY STATION & METRO CASES
Ma'anshan East Station
Wuhan Tianhe Airport
Guangzhou Baiyun Airport
Shanghai Pudong Airport
Nanjing Lukou International Airport
Chongqing Airport
Wuhan Custom
Shenzhen Custom
Beijing Capital International Airport custom
Tianjin Custom
Guangzhou Baiyun Airport Custom
Shenzhen Futian Port
Shenzhen Luohu Port
Entry-Exit Inspection and Quarentine Bureau
(Guangdong, Shenzhen, Zhuhai, Liaojing)
And so on
